11

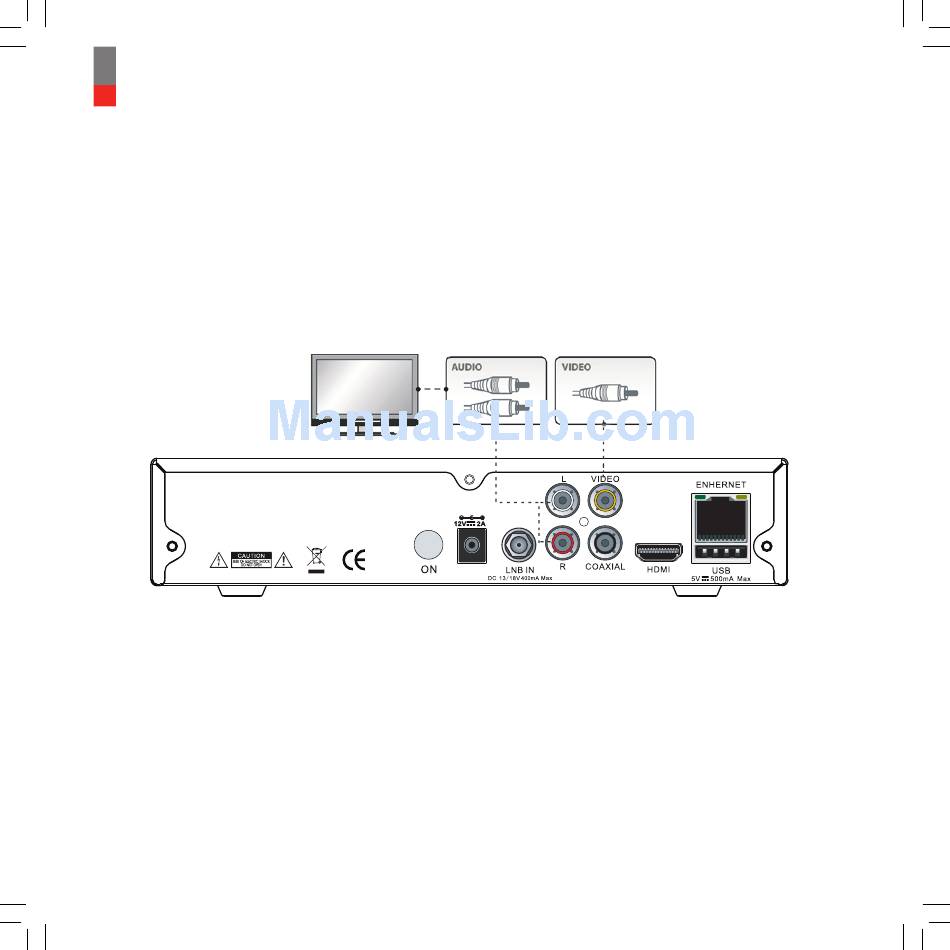

B. Anschluss TV über RCA (Video) Kabel
Der Receiver verfügt ebenso über Composite Video Anschluss.
Das Composite Kabel hat normalerweise drei Anschlüsse an beiden Enden;
Video (gelb) und zwei für Audio (weiß / rot). Verbinden Sie TV wie folgt:
