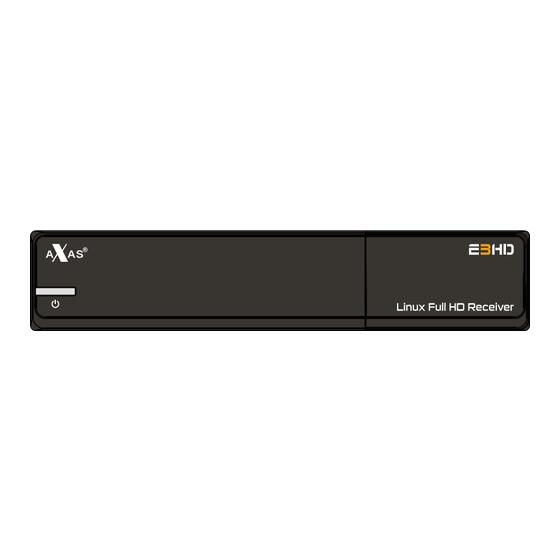

Summary of Contents for Axas Linux Full HD Receiver
- Page 1 Before Operation, Please read entire Manual thoroughly and retain for future reference.
-
Page 2: (A) Safety Instructions
(A) Safety Instructions This product should not be disposed with other house hold wastes at the end of its working life.Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. This will help prevent harm to the environment or human health from uncontrolled waste disposal. -
Page 3: (B) Packaging Contents
(B) Packaging Contents Please check all package contents before using your product. ● Set Top Box ● Remote Control ● Batteries ● HDMI cable (Optional) ● D/C Power Adaptor ● User Manual... -
Page 4: (C) Product Descriptions
(C) Product Descriptions Front Panel Buttons : Standby USB : Connects to the USB memory stick or external HDD Smartcard reader slot : One Smartcard slots are provided... - Page 5 Rear Panel ON : Powers On/Off. DC-IN: Connects the detachable D/C power adapter. LNB-IN : One satellite cable can be connected. Audio output : Connects to TV using RCA cable. Video output : Connects to TV using RCA cable. COAXIAL : Connects to a digital audio system using S/PDIF cable.
-
Page 6: (D) Remote Control
(D) Remote Control Power : To switch the receiver in and out of stand-by mode. Mute : Mutes the audio. Numeric Keys : Enters a service number for service change or to specify values for menu options. < : Navigates left on the menu options. >... - Page 7 ll : Pause. Stop : Stop Play. Reserved Backward skip. Fast forward. Rewind. Forward skip. TV/Radio : Switch TV and Radio. TTX : Displays the Teletext information of the current channel, if the channel provides Teletext data. Audio : Displays the audio track option to choose (e.g. AC3, Stereo). SUBT : Displays the subtitle of the current channel if the channel provides subtitle.
- Page 8 (E) Main Features ● 750 DMIPS Processor ● Linux Operating System ● Media Player ● Downloadable Plug-ins supported ● 1 x Smartcard Reader ● MPEG2/H.264 Hardware Decoding ● 1 x DVB-S2 Tuner ● Status Indicator ● 256MB NAND Flash/512MB DDR Memory ●...
- Page 9 (F) Installation of Set Top Box This chapter will guide you through the whole installation process of Set Top Box. . Please read each section carefully to make sure that the system runs properly. 1. Connecting Satellite Cables Set Top Box is integrated with one satellite tuner, and one of the first steps is to connect satellite cable to Set Top Box in order to gain optimal signal quality.
- Page 10 2. Connecting the TV Set Top Box provides a variety of audio/video connection methods. A. Connecting TV via HDMI Cable For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended. Most HDTVs have HDMI connectors to ensure the highest picture quality.
- Page 11 B. Connecting TV via A/V cable This secondly recommended TV connection for TV is via Composite cable. Set top box provides Composite video has normally three connectors at the both end; one Video (Yellow) and two Audio (White / Red). Connect your TV to Set top box as follows.
- Page 12 3. Power ON/OFF : Press or Press ‘Standby/Reset’] Menu There are several ways to turn your Set Top Box ON or OFF ● Complete Power Shutdown There is a Power Switch in the rear panel and once it is ON, you do not need to turn it on or off each time.
- Page 13 (A) Sicherheitshinweise Dieses Gerät soll nach Gebrauchsende nicht mit dem Haushaltsmüll entsorgt werden. Bitte trennen Sie dieses entsprechend von anderen Abfällen, um eine Belastung der Umwelt zu vermeiden, eine Wiederverwendung von wertvollen Materialien sicherzustellen. ● Dieses Produkt funktioniert nur in den Bereichen AC100V~250V und 50Hz/60Hz. Prüfen Sie bitte daher zuerst Ihre örtliche Stromversorgung.
- Page 14 (B) Lieferumfang Bitte überprüfen Sie die Vollständigkeit des Lieferumfanges. ● Set Top Box ● Fernbedienung ● Batterien ● HDMI Kabel (Optional) ● D/C Power Adapter ● Bedienungsanleitung...
- Page 15 (C) Produkt Beschreibung Vorderseite Tasten : Standby USB : Verbindet USB Memory Stick oder externe Festplatte. Smartcard Einschübe : Ein Smartcard Slots sind vorhanden...
- Page 16 Rückseite ON : Netzschalter DC-IN: Verbindet externes D/C Netzadapter. LNB-IN : Zum Anschluss eines Satellitenkabels. Audio Ausgang : Verbindet TV über RCA Kabel. Video Ausgang : Verbindet TV über RCA Kabel. COAXIAL : Verbindet mit einem digitalen Audio System über S/PDIF Kabel. HDMI : Verbindet TV mit einem HDMI Kabel für Audio und Video Signale.
- Page 17 (D) Fernbedienungl Power : Ein/Aus - Standy Modus. Mute : Stummschaltung. Zifferntasten : Zifferntasten zur Direkteingabe. < : Navigiert nach links in den Menüoptionen. > : Navigiert nach rechts in den Menüoptionen. Medien, Portal, helfen : • Medien - zeigt die Senderliste •...
- Page 18 ll : Pause. Stop : stoppen Play. Vorbehalten Rückwärts überspringen. Schneller Vorlauf. Schneller Rücklauf Vorwärts überspringen TV/Radio : Wechsel zwischen Fernseh- und Radiodiens. TTX : Informationen des aktuellen Senders, wenn angeboten. Audio : Zeigt die auswählbare Audio Option an (z.B. AC3, Stereo). SUBT : Zeigt, falls angeboten, Untertitel des aktuellen Programmes an.
- Page 19 (E) Hauptfunktionen ● 750 MHz MIPS Prozessor ● Linux Operating System ● Media Player ● Plug-ins herunterladbar ● 1 x Smartcard Readers ● MPEG2/H.264 Hardware Decoding ● 1 x DVB-S2 Tuner ● Status Indikator ● 256MB NAND Flash/512MB DDR Memory ●...
- Page 20 (F) Installation des Set Top Box Dieses Kapitel wird Sie durch den gesamten Installationsprozess des Receivers führen. Bitte lesen Sie jedes Kapitel sorgfältig, damit das System dann auch einwandfrei funktioniert. 1. Anschluss Satellitenkabel Der Receiver ist ausgestattet mit einem Satellitentuner, und einer der ersten Schritte ist, die Verbindung mit dem Satellitenkabel so herzustellen, dass eine optimale Signalqualität erreicht wird.
- Page 21 2. Anschluss TV Der Receiver bietet unterschiedliche Anschlussmöglichkeiten für Audio/Video. A. Anschluss TV über HDMI Kabel Um beste Bildqualität zu erreichen, besonders für Digital TV, wird ein HDMI Anschluss empfohlen. Die gängigen HDTVs haben HDMI Anschlüsse für hohe Bildansprüche. An der Rückseite des Receivers ist ein solcher Anschluss verfügbar. Verbinden Sie TV und Receiver mit einem HDMI Kabel wie folgt.
- Page 22 B. Anschluss TV über RCA (Video) Kabel Der Receiver verfügt ebenso über Composite Video Anschluss. Das Composite Kabel hat normalerweise drei Anschlüsse an beiden Enden; Video (gelb) und zwei für Audio (weiß / rot). Verbinden Sie TV wie folgt:...
- Page 23 3. Netz AN/AUS : mit oder ‘Standby/Reset’] Menu Es gibt verschiedene Möglichkeiten den Receiver AN oder AUS zu schalten. ● Vollständiges Abschalten Wenn der Netzschalter an der Rückseite auf AN ist, muss dieser nicht jedes Mal für AN/AUS betätigt werden. Das System benötigt jedes Mal nach AUS eine gewisse Zeit zum Neustart.
- Page 24 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
- Page 25 For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
- Page 26 Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program).Whether that is true depends on what the Program does.
- Page 27 users may redistribute the program under these conditions, and telling the user how to view a copy of this License.(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole.
- Page 28 b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;...
- Page 29 License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.
- Page 30 intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices.
- Page 31 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation;...
- Page 32 Vor Inbetriebnahme lesen Sie das Manual bitte ganz durch und bewahren Sie es gut auf um zukünftig nachzuschlagen...
