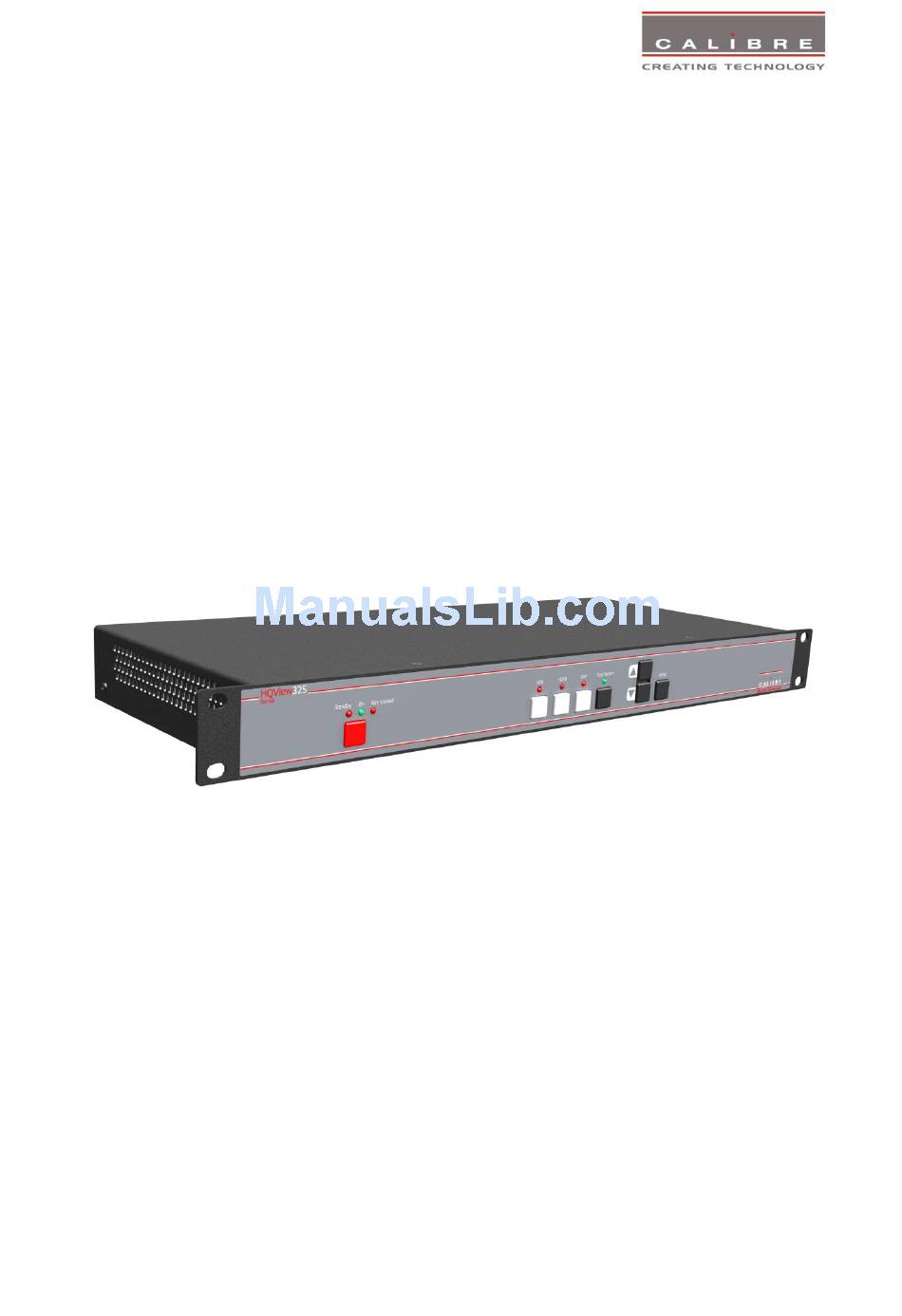

  • Page 1 HQView-325 Operating Instructions Version 2.40...
  • Page 2 If you have any queries relating to this or any other product supplied by Calibre please visit our web site www.calibreuk.com.

  • Page 3: Table Of Contents

    3.9. Enhancement 3.9.1. Sharpness 3.9.2. Detail 3.9.3. Video Filters 3.10. System 3.10.1. User 3.10.2. Names/Profiles 3.10.3. Input Config 3.10.4. Display Mode © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 4 Introduction 5.2. Updating Firmware ENVIRONMENTAL AND EMC 6.1. Recommended Operating Conditions 6.2. Storage 6.3. CE and FCC Compliance 6.4. PAT Testing © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 5: Safety Warning

    REFER ALL SERVICING AND MAINTENANCE TO QUALIFIED SERVICE PERSONNEL. TO AVOID EXPLOSION, DO NOT OPERATE THIS EQUIPMENT IN AN EXPLOSIVE ATMOSPHERE © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 6: Introduction

    Outputs are available in DVI/HDMI digital formats with HDCP encryption compatibility. HQView-325 supports Pan, Tilt and Zoom to select a part of the input image, fill the screen and pan within it. HQView-325 supports multi-screen or multi-projector installations by means of Auto Zoom and Edge Blend with elaborate Black Level Uplift.
  • Page 7 1.1.1. Packing List HQView-325 is supplied with the following: 1) This manual 2) 3 pin plug IEC mains cable 3) DVI-D output cable 4) CD containing manuals and useful applications © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 8: Hqview-325 System Description

    When HDMI is selected as the input channel the HDMI EDID is read by a video source such as a Blue Ray Player. HQView-325 allows the source to provide the formats shown under output formats for HDMI in the below table. (Note: Dolby TrueHD and DTS HD-Master are not in the list of audio formats and thus not supported.)

  • Page 9: Display Output

    By turning off the HQView processor’s compliance the MAC will see a non- compliant device and therefore will not encrypt its output. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...
  • Page 10 EIA/CEA-861-B Format 31 1920 1080 2750 1125 26.97 23.98 74.176 EIA/CEA-861-B Format 32 1920 1080 2640 1125 53.95 47.95 142.418 proprietary © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 11: Hqview-325 Control

    HQVIEW-325 CONTROL 3.1. Menu Tree Level Level Level Level © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 12 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 13 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 14 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 15 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...
  • Page 16 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 17: Introduction

    3 – DVI-D and VGA input 4 – DVI/HDMI output 5 – USB port 6 – TCP/IP port 7 – RS232 port 8 – Power supply connector © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 18: Main Menu

    The Display Type setting defaults to Projector. When set to LCD/Plasma Multiple unit configurations with auto zoom are available, but without edge blend. Note: For HQView-325 leave the setting to Projector mode, since for this model essentially there is no difference to LCD/Plasma mode.

  • Page 19: Output Mode

    Locking is achieved by modulating the output clock and works if input and output refresh rate are nominally at the same rate, e.g. when frame rate is set to 60Hz and the video input is also 60Hz. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 20: Native Colour Temp

    HDMI display is not evaluating AVInfoFrames properly, the range can be changed manually. Frame Rates Settings: 60/50 Hz, 60/50/24 Hz, 60/50/48, 60/50/24/48 © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E: techsupport@calibreuk..com...

  • Page 21: Colour

    If both Colour Temp set here in the Colour menu and Native Colour Temp set in the Output menu are set to the same value, no conversion is performed. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 22: Input Gamma

    Overscan is used to slightly zoom into the image. Thus, the border area of an image is no longer displayed on the screen. This cuts off unwanted features at the top or bottom from e.g. video images. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 23: Pan Tilt Zoom

    16:9 screen. With PC application activated the HQView-325 communicates with the PC tool Warp Generator. Warp Generator allows you to define an arbitrary screen in live operation by projecting a grid on the surface and move the grid points to get a rectangular output.

  • Page 24: Multiple Unit

    3.8. Multiple Unit HQView-325 has a Multiple Unit menu for use in a multi screen application. Multiple screens are stitched together to provide a bigger display with higher resolution than a single display. Each display is driven by a separate HQView unit.

  • Page 25: Blend Curve Type

    The corners of the non-blend region can be moved to allow tracking of the edge of the projection field of adjacent projectors. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 26: Enhancement

    Reset Profile allows to restore default settings for the currently selected user. Note: Copying profiles may take several minutes during which the unit cannot be controlled. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 27: Input Config

    The DDC can be taken off line. When setting HDCP Input to off HQView pretends to be non HDCP compliant forcing the source to not encrypt data which is not copy protected. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 28: Display Mode

    Factory Defaults This button let you restore all settings to the default values of the HQView-325, thus, provide a means to get back to a known (good) system state. A requestor will come up and ask to confirm prior to actual restore.

  • Page 29: Remote Control Web Server

    No extra software needs to be installed on a PC. The PC web browser is used as the graphical user interface for all control items. To connect to the HQView-325 the TCP/IP address of the unit has to be entered into the address list box of the web browser in the following format http://xxx.xxx.xxx.xxx. The TCP/IP address assigned to HQView-325 can be found in the System/Network Settings menu.

  • Page 30: File Upload

    Note: When changes within a submenu make other menu items available immediately when using the on-screen menu of the HQView-325 this has to be either done manually by clicking on the refresh button of the web browser or is done with the next periodic auto refresh.
  • Page 31 // 2ED608 3F FF FF FF 3F FF FF FF (beginning of last line) // s = CEILING(1920 /3 ) * 4 * 1200 = 3072000 bytes © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...

  • Page 32: Firmware Update

    FIRMWARE UPDATE 5.1. Introduction HQView-325 has a USB port which allows a PC connection. With the Calibre PC Updater tool new firmware can be installed on HQView-325 for feature upgrades and bug fixes. http://www.calibreuk.com/downloads/HQView/CalibreUK%20Universal%20Updater%20Installer%20V2. 2.5.msi The latest firmware version for your processor is published on our website at the bottom of this page:- http://www.calibreuk.com/HQViewDownloads.htm...

  • Page 33: Environmental And Emc

    (mains earth). DO NOT CONNECT to the connectors of the rear panel (signal earth). The HQView/LEDView may never work again. © Calibre UK Limited Issue 2.40 January 2014, W: www.calibreuk.com T:+44 1274 394125 F: +44 1274 730960 E:...
