Power Supplies
The Advanced PSU Solution

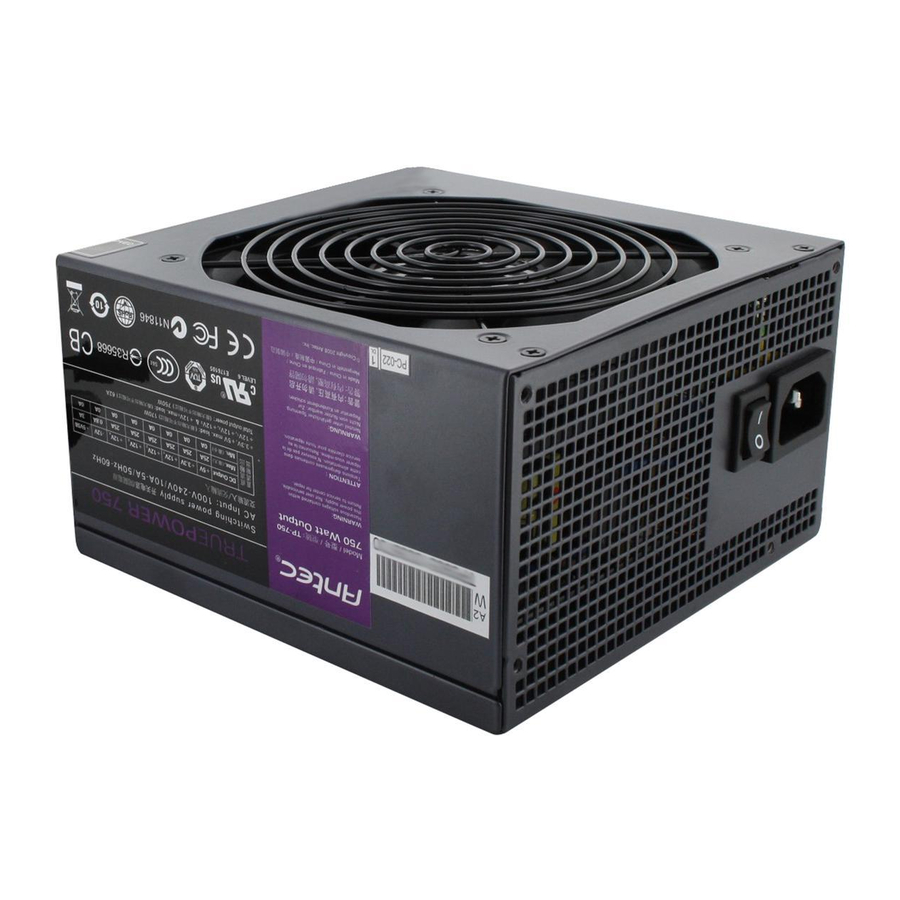

New features. Same true power. The TruePower New series by Antec offers users an advanced power supply
solution, striking the perfect balance of reliability, efficiency and quality. With DC to DC voltage regulator modules,
a 120mm PWM fan, and 80 PLUS® Bronze certification, the TP-750 Blue is the ideal solution for elite system builders
and quality-minded enthusiasts alike.
TP-750 Blue:
0761345-23754-3 US
0761345-07663-0 EC
0761345-07664-7 GB
0761345-23755-0 AP

Specification:

• DC to DC voltage regulator modules for greater
system stability
• 120mm PWM fan runs up to 50% quieter than
standard fans
• Blue internal LED illumination
• Advanced Hybrid Cable Management improves
airflow and reduces clutter
• Double layer PCB optimizes cooling efficiency and
allows for heavy duty components
• NVIDIA™ SLI™- Ready certified
• 80 PLUS® Bronze certification saves energy and
lowers your electric bill
• Universal Input and Active Power Factor
Correction
• Supports dual GPUs and dual/quad core CPUs
• 4 +12V output circuits provide stable power
www.antec.com
1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)
TP-750 Blue

Input:

Input Voltage
100~240VAC ± 10%
Input frequency Range
47Hz ~ 63Hz
Input Current:
10A @ 100VAC, 5A @ 240VAC
Efficiency
Min 82% at full load

Output:

+5V
+3.3V
+12V1 +12V2 +12V3 +12V4
Max. Load
25A
25A
25A
• ATX12V v2.3 and EPS12V v2.91
• 2 x 6 pin and 2 x 8 (6+2) pin PCI-E graphics card
connectors
• Industrial grade protection
• Safety approval: UL, CUL, CE, CB, FCC Class B, TUV, CCC,
C-tick, BSMI
• Weight: 2.3 kg; 5 lbs
• Dimensions: 3.4" (H) x 5.9" (W) x 5.9" (D);
86mm (H) x 150mm (W) x 150mm (D)
-12V
+5VSB
25A
25A
25A
0.8A
3A
