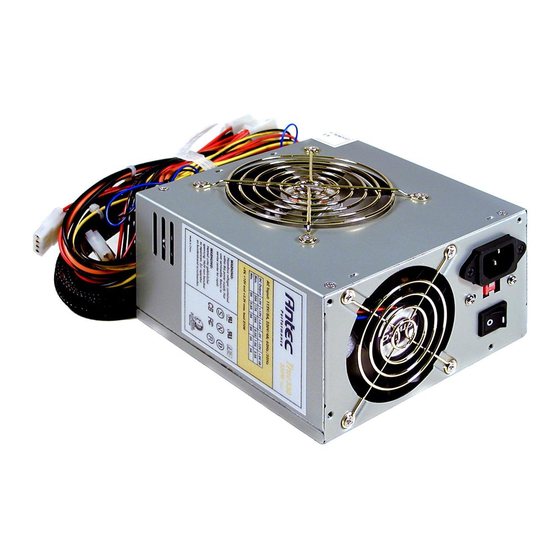

Antec TruePower TRUE330 User Manual

Antec TruePower TRUE330 User Manual

Antec truepower atx12v power supply

Advertisement

Available languages

Available languages

Quick Links

User's Manual
Manuel de l'utilisateur
Manual del usuario

Advertisement

loading
Need help?

Need help?

Do you have a question about the TruePower TRUE330 and is the answer not in the manual?

Questions and answers

Summary of Contents for Antec TruePower TRUE330

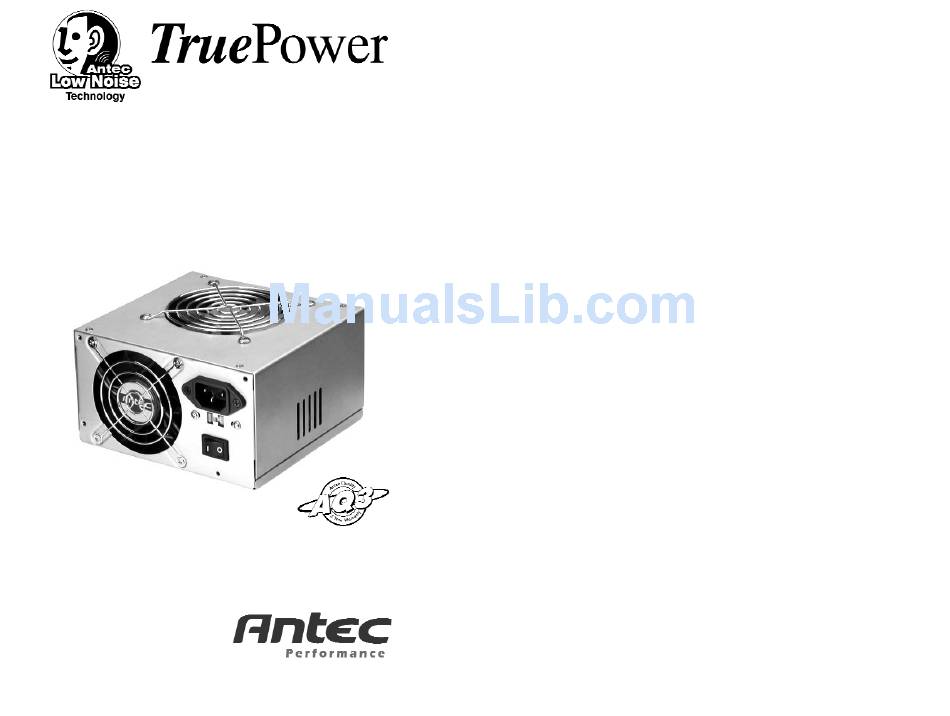

  • Page 1 User’s Manual Manuel de l’utilisateur Manual del usuario...
  • Page 2: Power Switch

    4-pin peripheral connectors, but in this fashion noise will not be reduced. Connectors: The Antec TruePower power supply is an ATX12V form factor power supply. An ATX12V power supply has a single 20-pin Main Power Connector, a 6-pin AUX Power Connector and a 4-pin +12V Power Connector to the motherboard. It also comes with seven 4-pin Peripheral Power Connectors and two 4-pin Floppy Drive Power Connectors to your drives.
  • Page 3 35A 18A 28A 0.5A 1.0A 2.0A Close the computer case. TRUE430 36A 20A 28A 0.5A 1.0A 2.0A Connect the power cord to the Antec power supply TRUE480 38A 22A 30A 1.5A 1.0A 2.0A TRUE550 40A 24A 32A 0.5A 1.0A 2.0A MIN.
  • Page 4 Figure 1. 2) Peak surge current: 15 sec max. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 10uF elec trolytic capacitor parallel 0.1uF ceramic capacitor to simulate system loading to measure AC-V 3) At peak load +12V output regulation +/-10%. 2.1 HOLD-UP TIME: 20ms (minimum) Test Condition: Full load.
  • Page 5 6.0 CE REQUIREMENTS: AUXILIARY POWER CONNECTOR (PS1) 6.1 EMI HOUSING: WST P/N P20-I42002 or equivalent 1. MEET FCC CLASS B TERMINAL: WST P/N I42002BS-2 or equivalent 2. MEET EN55022 CLASS B Pin Signal 16AWG (Wire) Black 6.2 ESD Black MEET IEC-801-2/8KV Black 6.3 EFT/BURST +3.3VDC Orange...
  • Page 6: Installation

    Débrancher tous les connecteurs d'alimentation de la carte-mère et des périphériques Connecteurs : Le bloc d'alimentation Antec TruePower est de format ATX12V. Un bloc tels ventilateurs de boîtiers, disques durs, lecteurs de disquettes, etc. Enlever le bloc d'alimentation existant de votre boîtier d'ordinateur et le remplacer d'alimentation ATX12V dispose d'un connecteur d'alimentation principal simple de 20 avec le bloc d'alimentation Antec.
  • Page 7 à 0.1A/usec, tandis que la 115V 230V fréquence variera entre 10Hz et 1 kHz. La tension de sortie DC se maintiendra dans les TRUE330 limites de l'échelle de variation pendant les modifications de la charge étagée. TRUE380 TRUE430 2.3 SURDÉPASSEMENT...
  • Page 8 Figure 1. 6.0 EXIGENCES CE: 6.1 EMI 1. Satisfait à la norme FCC CLASS B 2. Satisfait à la norme EN55022 CLASS B CA-V 6.2 ESD Satisfait à la norme IEC-801-2/8KV CA-SOUS 6.3 EFT/BURST TENSION Satisfait à la norme IEC-801-4/2KV CA-HORS TENSION 6.4 EXIGENCES DE SÉCURITÉ...
  • Page 9 CONNECTEUR D'ALIMENTATION AUXILIAIRE (PS1) BÂTI: WST P/N P20-I42002 ou équivalent. TERMINAL: WST P/N I42002BS-2 ou équivalent. Broche Signal 16AWG (Fil) Noir Noir Noir +3.3VDC Orange +3.3VDC Orange +5VDC Rouge CONNECTEUR +12V BÂTI: MOLEX 39-01-2040 ou équivalent. TERMINAL: MOLEX 39-29-9042 ou équivalent. Broche Signal 20AWG (Fil) Noir...
  • Page 10 Conectores: Ésta es una fuente Antec TruePower de suministro de tipo ATX12V, la cual Quite la fuente de suministro de energía existente del bastidor de la computadora y cuenta con un conector de alimentación principal de 20 pines, un conector de alimentación reemplácela con su fuente de suministro Antec.
  • Page 11 115V 230V carga escalonada. TRUE330 2.3 SOBREEXCESO TRUE380 El sobreexceso al conectar o desconectar la tensión será inferior al 10% de la tensión de TRUE430 salida nominal.
  • Page 12 Figura 1. 6.0 REQUISITOS "CE" DE SEGURIDAD: 6.1 EMI 1. Cumple con la norma FCC CLASS B 2. Cumple con la norma EN55022 CLASS B AC-V 6.2 ESD Cumple con la norma IEC-801-2/8KV AC-ON 6.3 EFT/BURST (ENCENDIDA) Cumple con la norma IEC-801-4/2KV AC-OFF (APAGADA) 6.4 REQUISITOS DE SEGURIDAD...
  • Page 13 CONECTOR DE POTENCIA AUXILIAR (PS1) ALOJAMIENTO: WST P/N P20-I42002 o equivalente. TERMINAL: WST P/N I42002BS-2 o equivalente. Pin Señal 16AWG (Cable) Negro Negro Negro +3.3VDC Naranja +3.3VDC Naranja +5VDC Rojo +12V CONECTOR ALOJAMIENTO: MOLEX 39-01-2040 o equivalente. TERMINAL: MOLEX 39-29-9042 o equivalente. Pin Señal 18AWG (Cable) Negro...
