Antec True Power Quattro Series User Manual

1200 watt

Advertisement

Quick Links

All manuals and user guides at all-guides.com
T
P
Q
1200-W
RUE
OWER
UATTRO
ATT
P
S
OWER
UPPLY
U
'
M
SER
S
ANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the True Power Quattro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Antec True Power Quattro Series

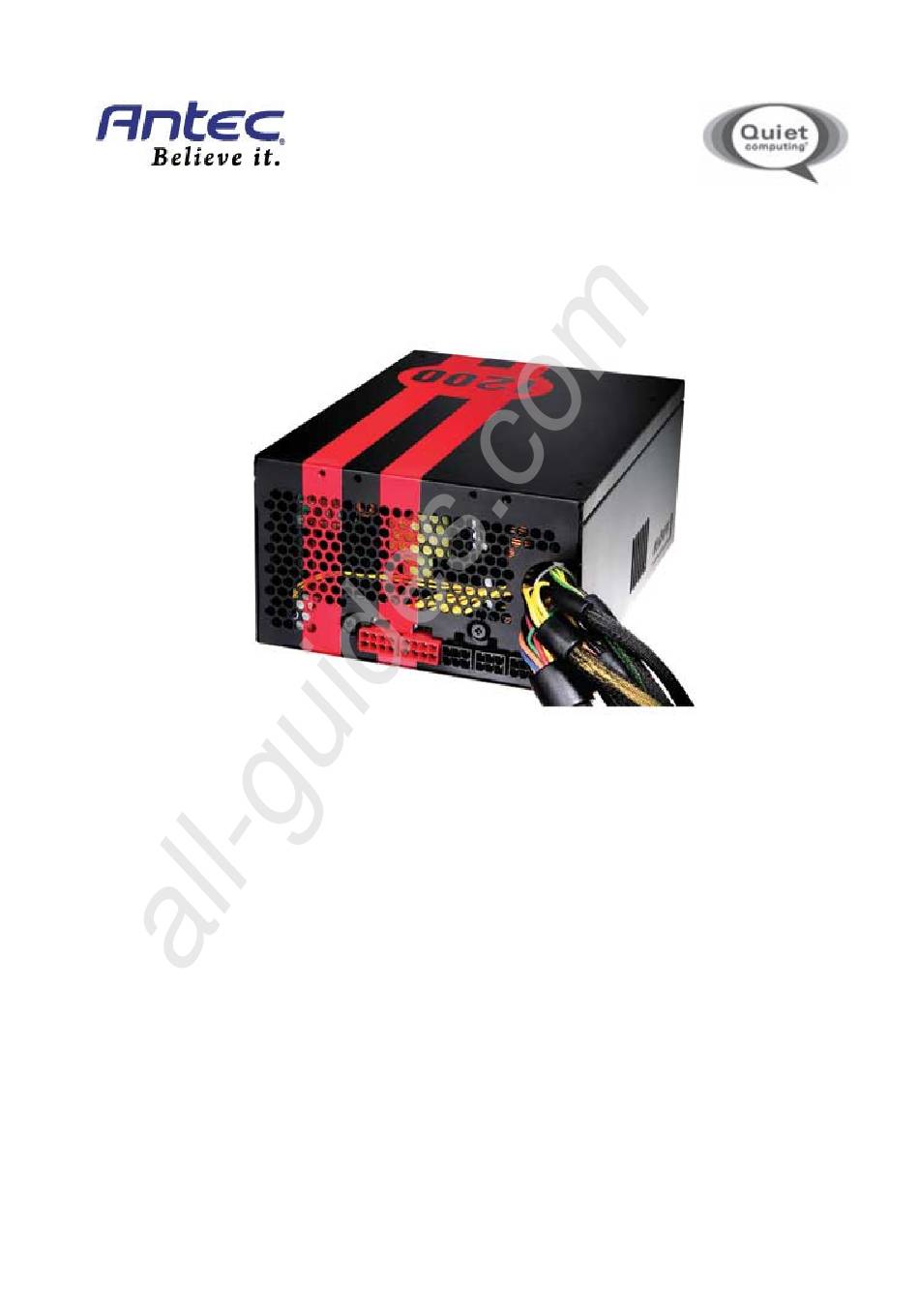

  • Page 1 All manuals and user guides at all-guides.com 1200-W OWER UATTRO OWER UPPLY ’ ANUAL...
  • Page 2 UTPUT ATING Unlike other power supplies that are rated by their peak wattage, Antec power supplies are rated based on their continuous power output. This means that your TPQ-1200 delivers 1200-watt power during normal, continuous operation; not simply at its peak...
  • Page 3 All manuals and user guides at all-guides.com Source: 80 PLUS Verification and Testing Report NVIDIA™ SLI™-R EADY ERTIFICATION Antec’s TruePower Quattro power supplies are NVIDIA™ SLI™-Ready certified for use with multiple high-end graphics cards for superior parallel graphics processing. DVANCED YBRID ABLE...
  • Page 4 All manuals and user guides at all-guides.com Table 1 +12V Direct Cabling Connectors Rail 24-pin main connector 8-pin (4 + 4) ATX12V, EPS 8-pin EPS12V PCI-E w/ blue stripe PCI-E w/ green stripe Molex cable from PSU SATA cable from PSU OWER UTPUT The TPQ-1200 distributes a varying maximum number of amps on each rail.
  • Page 5 All manuals and user guides at all-guides.com ABLE Cable Connector Part Name Description Quantity 24-pin (20+4) Motherboard 8-pin EPS12V 8-pin (4+4) ATX12V, EPS Power Supply Direct Cabling 2 x 8-pin (6+2) PCI-E 3 x Molex + 1 x Floppy 3 x SATA Molex connector and Floppy Includes three...
  • Page 6: Installation

    All manuals and user guides at all-guides.com NSTALLATION Install the TPQ-1200 PSU into your case with the four screws provided. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4-pin ATX12V connector for the CPU to the appropriate connector on your motherboard.
  • Page 7 All manuals and user guides at all-guides.com Connect the AC power cord to the power supply AC inlet. Please be sure to use the heavy-duty cord supplied with your TPQ-1200.
  • Page 8 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
