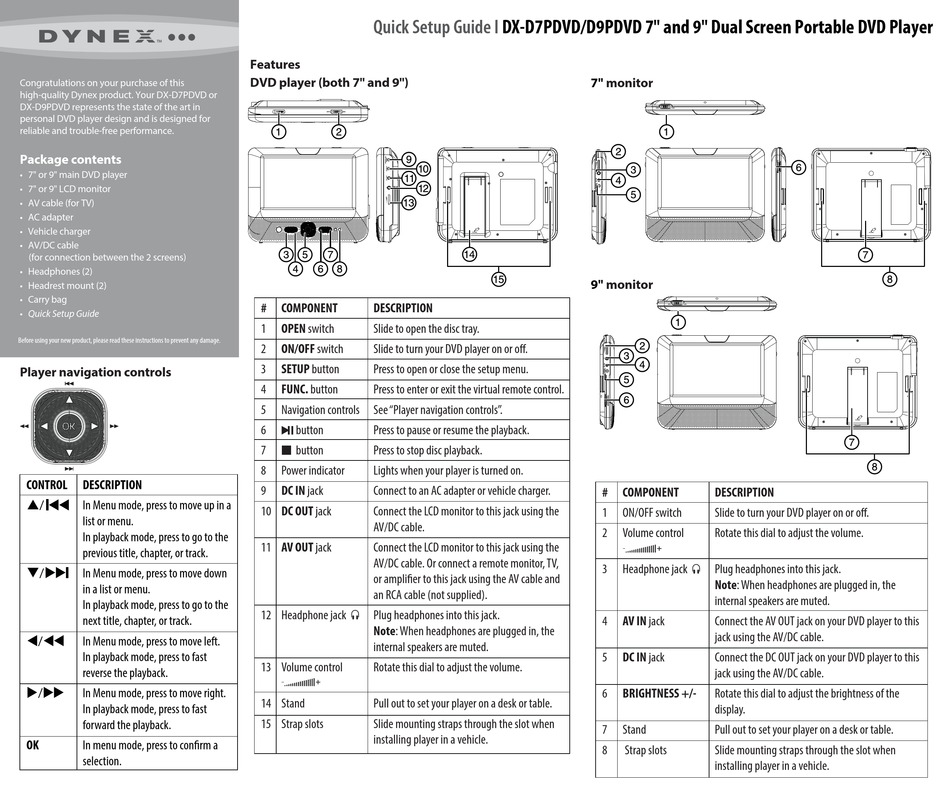

Dynex DX-D7PDVD Quick Setup Manual

Congratulations on your purchase of this
high-quality Dynex product. Your DX-D7PDVD or
DX-D9PDVD represents the state of the art in
personal DVD player design and is designed for
reliable and trouble-free performance.
Package contents
• 7" or 9" main DVD player
• 7" or 9" LCD monitor
• AV cable (for TV)
• AC adapter
• Vehicle charger
• AV/DC cable
(for connection between the 2 screens)
• Headphones (2)
• Headrest mount (2)
• Carry bag
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
Player navigation controls
CONTROL DESCRIPTION
/
In Menu mode, press to move up in a
list or menu.
In playback mode, press to go to the
previous title, chapter, or track.
/
In Menu mode, press to move down
in a list or menu.
In playback mode, press to go to the
next title, chapter, or track.
/
In Menu mode, press to move left.
In playback mode, press to fast
reverse the playback.
/
In Menu mode, press to move right.
In playback mode, press to fast
forward the playback.
OK In menu mode, press to confirm a
selection.
Quick Setup Guide I
Features
DVD player (both 7" and 9")
SETUP FUNC.
# COMPONENT DESCRIPTION
1 OPEN switch Slide to open the disc tray.
2 ON/OFF switch Slide to turn your DVD player on or off.
3 SETUP button Press to open or close the setup menu.
4 FUNC. button Press to enter or exit the virtual remote control.
5 Navigation controls See "Player navigation controls".
6 button Press to pause or resume the playback.
7 button Press to stop disc playback.
8 Power indicator Lights when your player is turned on.
9 DC IN jack Connect to an AC adapter or vehicle charger.
10 DC OUT jack Connect the LCD monitor to this jack using the
AV/DC cable.
11 AV OUT jack Connect the LCD monitor to this jack using the
AV/DC cable. Or connect a remote monitor, TV,
or amplifier to this jack using the AV cable and
an RCA cable (not supplied).
12 Headphone jack Plug headphones into this jack.
Note: When headphones are plugged in, the
internal speakers are muted.
13 Volume control Rotate this dial to adjust the volume.
14 Stand Pull out to set your player on a desk or table.
15 Strap slots Slide mounting straps through the slot when
installing player in a vehicle.
DX-D7PDVD/D9PDVD 7" and 9" Dual Screen Portable DVD Player
7" monitor
9" monitor
# COMPONENT
1 ON/OFF switch
2 Volume control
3 Headphone jack
4 AV IN jack
5 DC IN jack
6 BRIGHTNESS +/-
7 Stand
8 Strap slots
DESCRIPTION
Slide to turn your DVD player on or off.
Rotate this dial to adjust the volume.
Plug headphones into this jack.
Note: When headphones are plugged in, the
internal speakers are muted.
Connect the AV OUT jack on your DVD player to this
jack using the AV/DC cable.
Connect the DC OUT jack on your DVD player to this
jack using the AV/DC cable.
Rotate this dial to adjust the brightness of the
display.
Pull out to set your player on a desk or table.
Slide mounting straps through the slot when
installing player in a vehicle.
