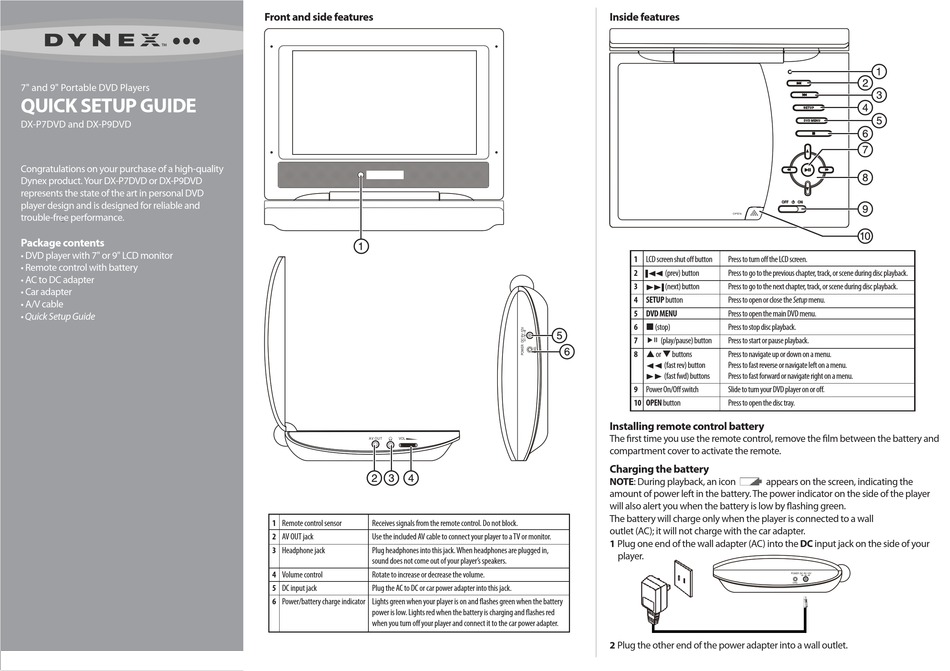

7" and 9" Portable DVD Players
QUICK SETUP GUIDE
DX-P7DVD and DX-P9DVD
Congratulations on your purchase of a high-quality
Dynex product. Your DX-P7DVD or DX-P9DVD
represents the state of the art in personal DVD
player design and is designed for reliable and
trouble-free performance.

Package contents

• DVD player with 7" or 9" LCD monitor
• Remote control with battery
• AC to DC adapter
• Car adapter
• A/V cable
• Quick Setup Guide
Front and side features
AV OUT
VOL
1 Remote control sensor
Receives signals from the remote control. Do not block.
2 AV OUT jack
Use the included AV cable to connect your player to a TV or monitor.
3 Headphone jack
Plug headphones into this jack. When headphones are plugged in,
sound does not come out of your player' s speakers.
4 Volume control
Rotate to increase or decrease the volume.
5 DC input jack
Plug the AC to DC or car power adapter into this jack.
6 Power/battery charge indicator
Lights green when your player is on and flashes green when the battery
power is low. Lights red when the battery is charging and flashes red
when you turn off your player and connect it to the car power adapter.
Inside features
OFF
OFF
OPEN
1 LCD screen shut off button
Press to turn off the LCD screen.
2
(prev) button
Press to go to the previous chapter, track, or scene during disc playback.
3
(next) button
Press to go to the next chapter, track, or scene during disc playback.
4 SETUP button
Press to open or close the Setup menu.
5 DVD MENU
Press to open the main DVD menu.
6  (stop)
Press to stop disc playback.
7  (play/pause) button
Press to start or pause playback.
8  or  buttons
Press to navigate up or down on a menu.
(fast rev) button
Press to fast reverse or navigate left on a menu.
(fast fwd) buttons
Press to fast forward or navigate right on a menu.
9 Power On/Off switch
Slide to turn your DVD player on or off.
10 OPEN button
Press to open the disc tray.

Installing remote control battery

The first time you use the remote control, remove the film between the battery and
compartment cover to activate the remote.

Charging the battery

NOTE: During playback, an icon
appears on the screen, indicating the
amount of power left in the battery. The power indicator on the side of the player
will also alert you when the battery is low by flashing green.
The battery will charge only when the player is connected to a wall
outlet (AC); it will not charge with the car adapter.
1 Plug one end of the wall adapter (AC) into the DC input jack on the side of your
player.
2 Plug the other end of the power adapter into a wall outlet.
SETUP
SETUP
DVD MENU
DVD MENU
ON
ON
POWER
DC 9V-12V
CHG
