Playing Back On Tv - JVC GZ-EX210 Everio User Manual

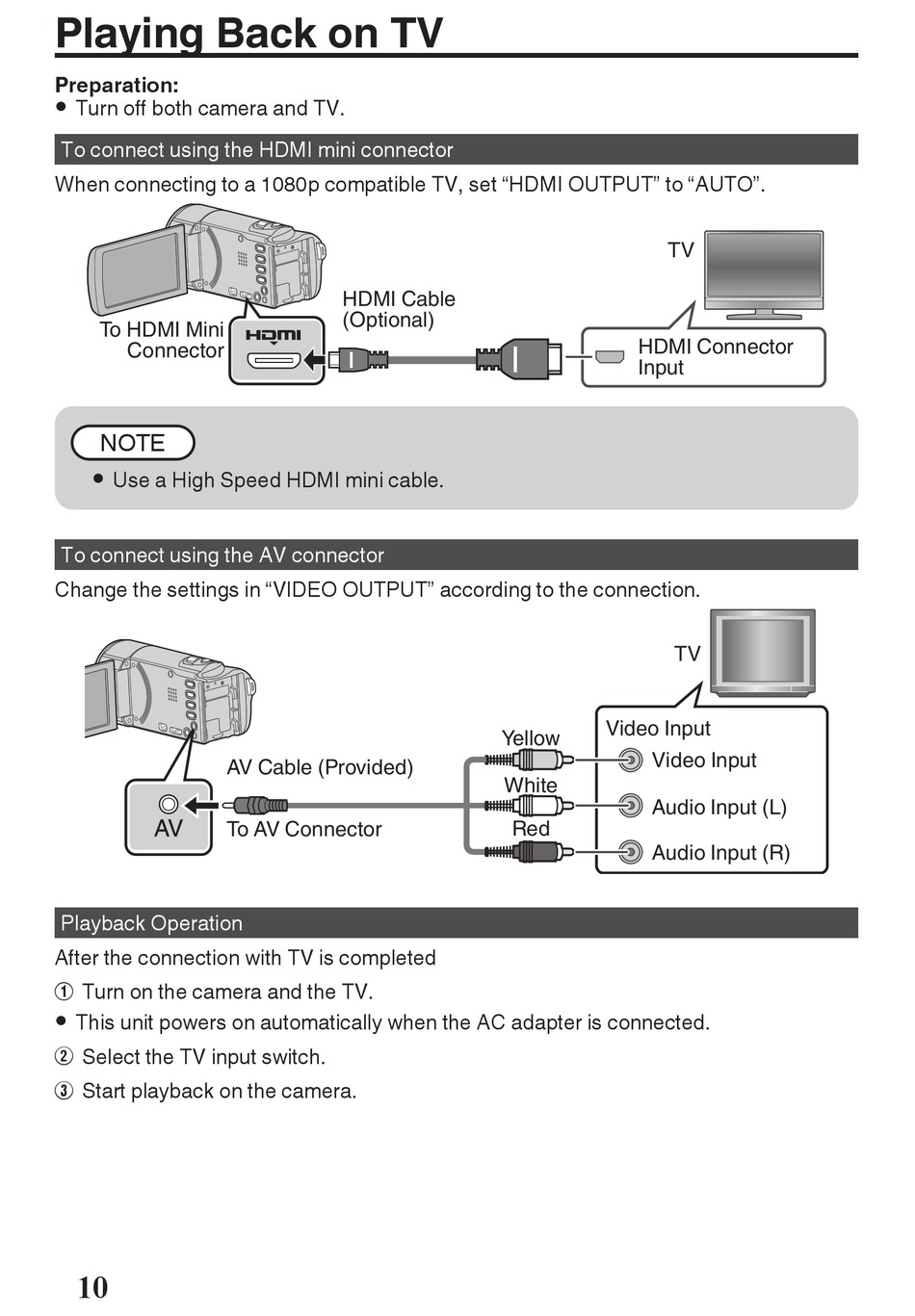

Playing Back on TV

Preparation:
Turn off both camera and TV.
0
To connect using the HDMI mini connector
When connecting to a 1080p compatible TV, set "HDMI OUTPUT" to "AUTO".
To HDMI Mini
Connector
NOTE
Use a High Speed HDMI mini cable.
0
To connect using the AV connector
Change the settings in "VIDEO OUTPUT" according to the connection.
AV Cable (Provided)
To AV Connector
Playback Operation
After the connection with TV is completed
Turn on the camera and the TV.
A
This unit powers on automatically when the AC adapter is connected.
0
Select the TV input switch.
B
Start playback on the camera.
C
10
HDMI Cable
(Optional)
Yellow
White
Red
TV
HDMI Connector
Input
TV
Video Input
Video Input
Audio Input (L)
Audio Input (R)
