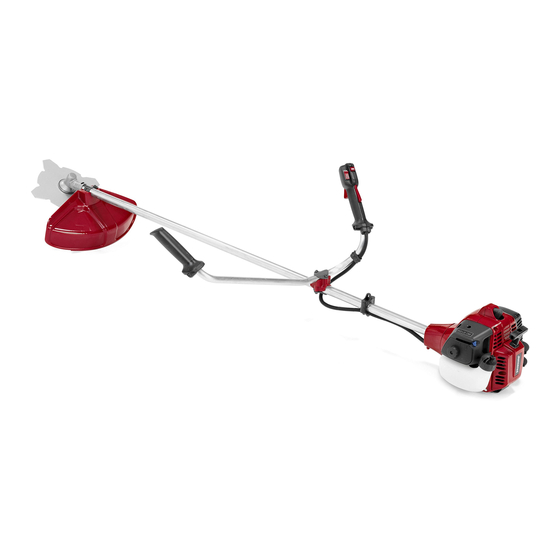

Jonsered BC 2128 Operator's Manual
  1. Manuals
  2. Brands
  3. Jonsered Manuals
  4. Trimmer
  5. BC 2128
  6. Operator's manual

Jonsered BC 2128 Operator's Manual

Jonsered trimmer user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Please read these instructions and make sure you understand them before using the machine.
Lire attentivement et bien assimiler le manuel d'utilisation avant d'utiliser la machine.
Lea detenidamente el manual de instrucciones y asegúrese de entender su contenido antes de utilizar la máquina.
Operator's manual
Manual d'utilisation
Manual de instrucciones
GB (2-27)
FR (28-53)
ES (54-79)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC 2128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jonsered BC 2128

Summary of Contents for Jonsered BC 2128

  • Page 1 Manual de instrucciones Please read these instructions and make sure you understand them before using the machine. Lire attentivement et bien assimiler le manuel d’utilisation avant d’utiliser la machine. Lea detenidamente el manual de instrucciones y asegúrese de entender su contenido antes de utilizar la máquina. Operator’s manual GB (2-27) Manual d’utilisation...

  • Page 2: Symbol Explanation

    Arrows which show limits for handle mounting. Always wear approved protective gloves. Use anti- -slip and stable boots. Only use non- -metallic, flexible cutting attachments, i.e. trimmer heads with trimmer line. 115304126 Rev. 2 7/15/10 This product is in accordance with applicable EC directives.

  • Page 3: Table Of Contents

    Long- - term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection. Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

  • Page 4: What Is What

    4. Cutting attachment guard 19. Support flange 5. Shaft 20. Support cup 6. Handlebar 21. Drive disc 7. Throttle control 22. Trimmer head 8. Stop switch 23. Socket spanner 9. Throttle lock- -out 24. Transport guard 10. Harness clamp 25. Hex wrench 11.

  • Page 5: Important

    Personal protective equipment IMPORTANT! A clearing saw, brushcutter or trimmer can be dangerous if used incor- rectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and un- derstand the contents of this operator’s...

  • Page 6: First Aid Kit

    GENERAL SAFETY PRECAUTIONS GLOVES Gloves should be worn when necessary, e.g., when fitting cutting attachments. BOOTS Wear anti- -slip and stable boots. CLOTHING Wear clothes made of a strong fabric and avoid loose clothing that can catch on shrubs and branches. Always wear heavy, long pants.

  • Page 7: Stop Switch

    If an incorrect or faulty guard is fitted this can cause serious personal injury. 115304126 Rev. 2 7/15/10 Use of incorrectly wound trimmer line or an incorrect cutting attachment increases the level of vibration. WARNING: Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation.

  • Page 8: Locking Nut

    “Technical data”. Refer to the instructions for the cutting attach- ment to check the correct way to load the trimmer line and the correct line diameter. Keep the teeth of the blade correctly sharp- ened! Follow our recommendations. Also re- fer to the instructions on the blade packaging.
  • Page 9 S The length of the trimmer line is also im- portant. A longer trimmer line requires greater engine power than a shorter trimmer line of the same diameter.

  • Page 10: Assembly

    ASSEMBLY NOTE: Make sure unit is assembled cor- rectly as shown in this manual. Fitting the handlebar S Remove the screw at the rear of the throttle handle. S Slide the throttle handle onto the right side of the handlebar (see illustration). S Align the screw hole in the throttle han- dle with the hole in the handlebar.

  • Page 11: Fitting Blades And Trimmer Heads

    Adjust the position of the harness clamp to balance the unit correctly. itting blades and trimmer heads S When fitting the cutting attachment it is extremely important that the raised section...

  • Page 12: Fitting The Trimmer Guard And Trimmer Head

    S Insert the locking pin (C) in the hole to lock the shaft. S Screw on the trimmer head (H) in the op- posite direction to the direction of rota- tion. S To dismantle, follow the instructions in the reverse order.

  • Page 13: Fuel Handling

    JONSERED two- -stroke oil, which is specially formulated for our two- -stroke engines. Mixture 1:50 (2%). S If JONSERED two- -stroke oil is not avail- able, you may use another two-stroke oil of good quality that is intended for air cooled engines.

  • Page 14: Fueling

    FUEL HANDLING Mixing S Always mix the petrol and oil in a clean container intended for fuel. S Always start by filling half the amount of the petrol to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of petrol.

  • Page 15: Check Before Starting

    1.5 Nm. The tight- ening torque of the locking nut should be 35- -50 Nm. S Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked.

  • Page 16: Warm Engine

    STARTING AND STOPPING NOTE: If engine dies, return blue engine choke lever to the closed position and repeat starting steps. CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

  • Page 17: Working Techniques

    WORKING TECHNIQUES General working instructions IMPORTANT! This section describes the basic safety pre- cautions for working with trimmers. If you encounter a situation where you are uncer- tain how to proceed you should ask an ex- pert. Contact your servicing dealer. Avoid all usage which you consider to be beyond your capability.
  • Page 18 Grass trimming with a trimmer head Trimming S Hold the trimmer head just above the ground at an angle. It is the end of the trimmer line that does the work. Let the trimmer line work at its own pace. Never press the trimmer line into the area to be cut.
  • Page 19 WORKING TECHNIQUES S Do not allow the trimmer head to con- - stantly come into contact with the ground during normal cutting. Constant contact of this type can cause damage and wear to the trimmer head. Sweeping S The fan effect of the rotating line can be used for quick and easy clearing up.

  • Page 20: Carburetor

    If you need further information, please contact your nearest authorised service dealer. Carburetor Your Jonsered product has been designed and manufactured to specifications that re- duce harmful emissions. After the engine has used 8- -10 tanks of fuel, the engine will be run- -in.

  • Page 21: Muffler

    MAINTENANCE Unit/Maintenance Safety Disconnect the spark plug before perform- ing maintenance, except carburetor adjust- ments. Muffler CAUTION! Muffler is fitted with a catalytic converter designed to reduce harmful ex- haust gases. The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator.

  • Page 22: Cleaning The Air Filter

    MAINTENANCE Air filter The air filter must be regularly cleaned to remove dust and dirt in order to avoid: S Carburetor malfunctions S Starting problems S Loss of engine power S Unnecessary wear to engine parts S Excessive fuel consumption Clean the filter every 25 hours, or more regularly if conditions are exceptionally dusty.

  • Page 23: Maintenance Schedule

    Replace the cutting attachment guard if it has been exposed to impact or is cracked. Check that the trimmer head is undamaged and not cracked. Replace the trimmer head if necessary. Check that the locking nut of the cutting equipment is tightened correctly.

  • Page 24: Technical Data

    (standard deviation) of 1 dB(A). Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s Model BC 2128 (M10 LH arbor shaft thread) - - Centre hole in blades/cutters, ∅ 25,4 mm Approved accessories Type Grass blade/grass cutter Grass 255- -4 1 inch (∅...

  • Page 25: Ec- -Declaration Of Conformity (Applies To Europe Only)

    We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46- -36- -146500, as authorised representative in the Community, declare that the brushcutter model Jonsered BC 2128 with serial numbers dating from 2009 and onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S...

  • Page 26: Trimmer Head Line Loading Instructions

    Trimmer Head Line Loading Instructions 115304126 Rev. 2 7/15/10 English--- 26...
  • Page 27 Plastic Blades (Tri Cut) 115304126 Rev. 2 7/15/10 English--- 27...
