Two main coils are wound over stator core. Each main coil outputs half the rated power at the lower
voltage (11OV or 12OV). These main coils are wound to be in the same phase. The full power switch
reconnects these main coils in parallel or in series.
Fig. 5-9 shows a circuit diagram.When the full power switch is set for single lower voltage indication
(1lOV or 12OV), the switch position is as indicated by the lower solid line in the diagram. Fig. 5-10 is a
simplified representation of this circuit, showing the two main coils connected in parallel.In this case, the
higher voltage (220V or 240V) at Rec. 3 cannot be taken out. Rec. 2 for the lower voltage can output up
to the rated power (up to 30A if the rated current is over 30A), and Rec. 1 can output up to a total of 15A.
When the full power switch is set for double voltage indication (llOV/22OV or 12OV/24OV), the switch
position is as indicated by the upper dotted line in Fig. 5-9. Fig. 5-11 is a simplified representation of this
circuit, showing the two main coils connected in series. In this case, power can be taken simultaneously
from the receptacles for the both voltages. Rec. 3 for the higher voltage can output up to the rated power,
but Rec. 1 and Rec. 2 for the lower voltage can output only up to half the rated power each.
Table 5-4 is a summary of the above explanation. Select the proper output voltage by full power switch in
accordance with the appliance to be used.
5-3-4 VOLTAGE CHANGEOVER SWITCH
The generator of 50Hz llOV/22OV dual voltage type for U.K. is provided with voltage changeover
switch instead of full power switch.
The output voltage is selected from 1lOV and 220V by turning this switch and both voltages cannot be
taken out simultaneously.
1lOV
RECEPTACLE
IO--
l
I
YFB
I
I
220v
RECEPTACLE
9

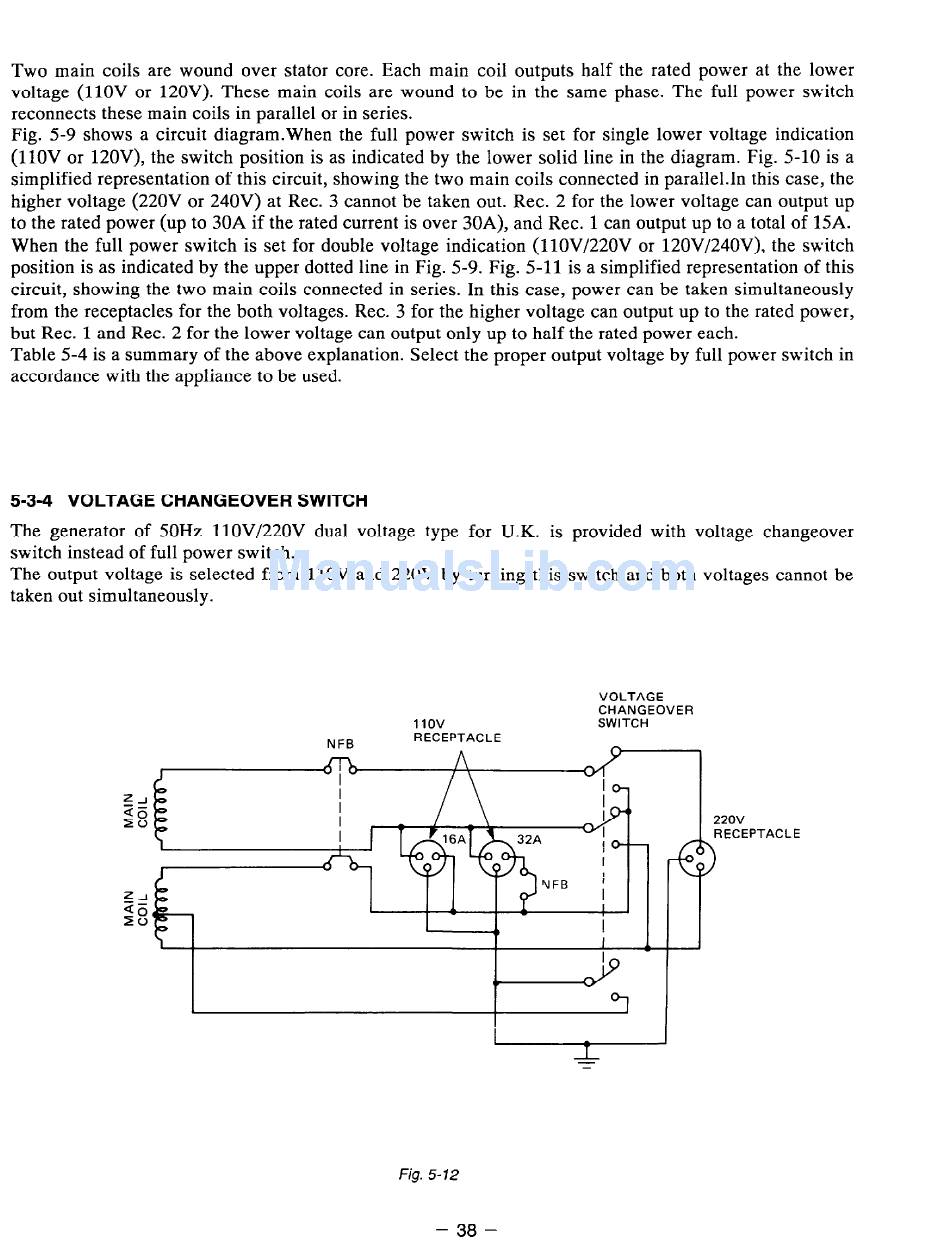

Fig. 5-12
