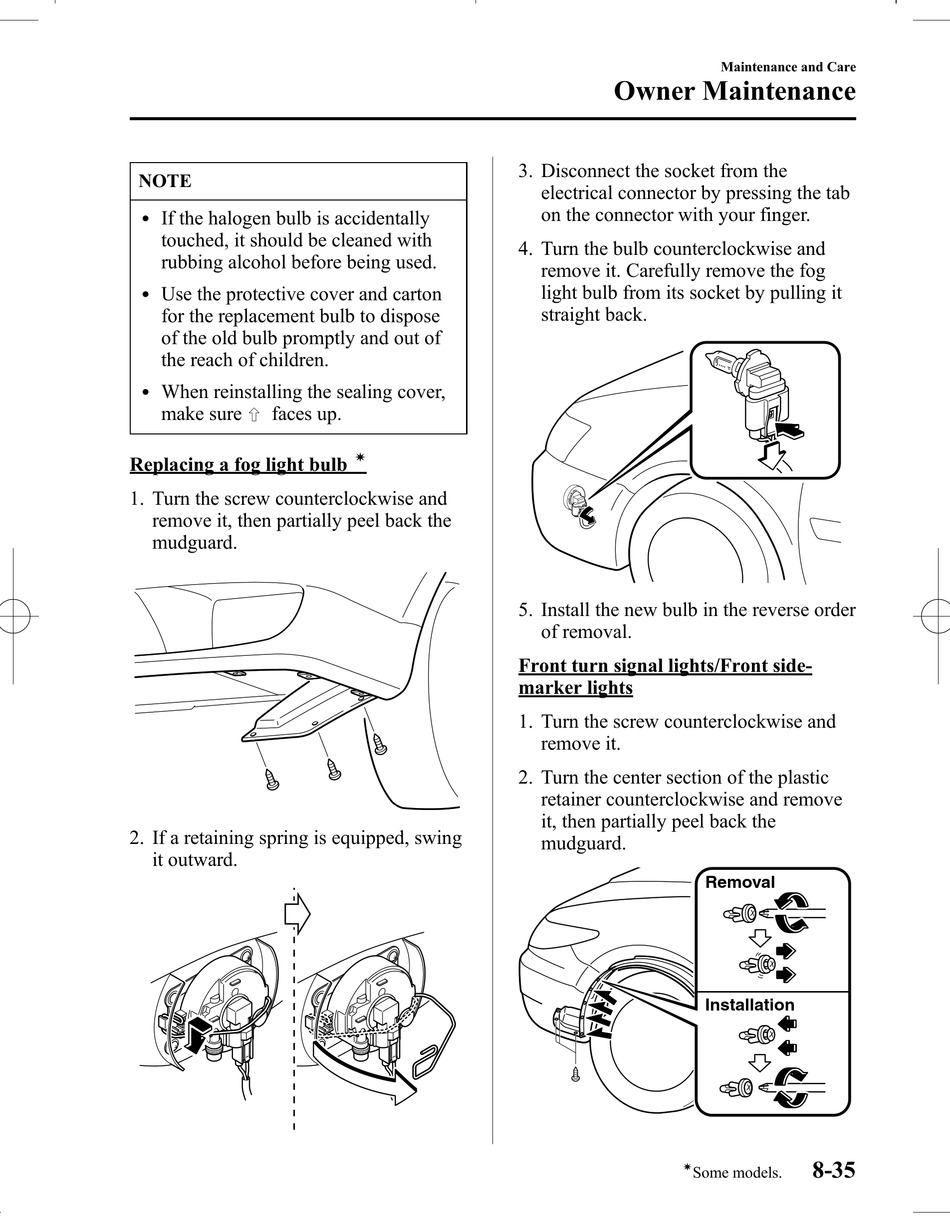

Mazda MPV 2006 Owner's Manual page 295

NOTE
If the halogen bulb is accidentally
l
touched, it should be cleaned with
rubbing alcohol before being used.
Use the protective cover and carton
l
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
When reinstalling the sealing cover,
l
make sure faces up.
Replacing a fog light bulb
1. Turn the screw counterclockwise and
remove it, then partially peel back the
mudguard.
2. If a retaining spring is equipped, swing
it outward.
í
Owner Maintenance
3. Disconnect the socket from the
electrical connector by pressing the tab
on the connector with your finger.
4. Turn the bulb counterclockwise and
remove it. Carefully remove the fog
light bulb from its socket by pulling it
straight back.
5. Install the new bulb in the reverse order
of removal.
Front turn signal lights/Front side-
marker lights
1. Turn the screw counterclockwise and
remove it.
2. Turn the center section of the plastic
retainer counterclockwise and remove
it, then partially peel back the
mudguard.
Maintenance and Care
Removal
Installation
í
8-35
Some models.
