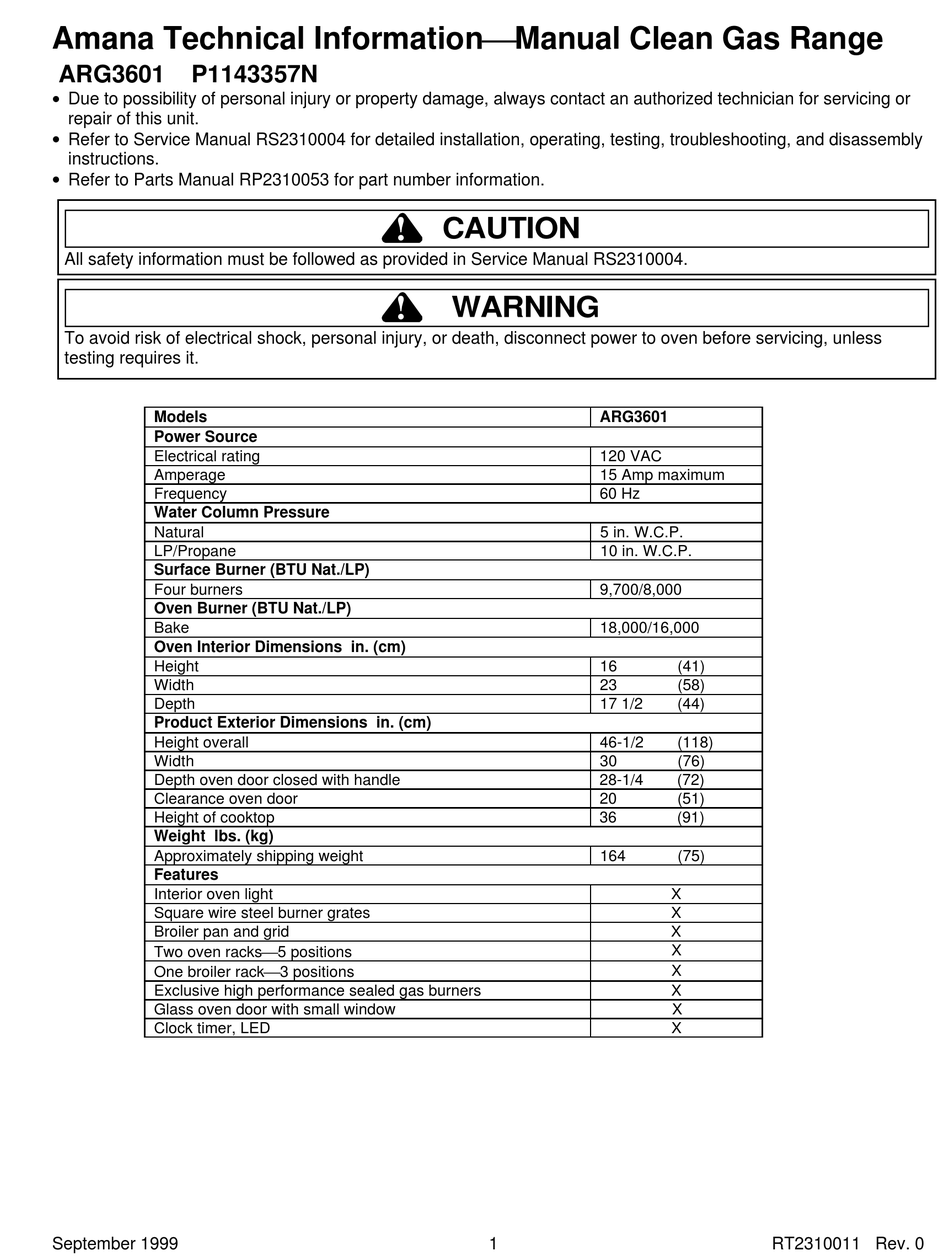

Amana Technical InformationManual Clean Gas Range
ARG3601
P1143357N
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual RS2310004 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manual RP2310053 for part number information.
All safety information must be followed as provided in Service Manual RS2310004.
To avoid risk of electrical shock, personal injury, or death, disconnect power to oven before servicing, unless
testing requires it.
Models
Power Source
Electrical rating
Amperage
Frequency
Water Column Pressure
Natural
LP/Propane
Surface Burner (BTU Nat./LP)
Four burners
Oven Burner (BTU Nat./LP)
Bake
Oven Interior Dimensions in. (cm)
Height
Width
Depth
Product Exterior Dimensions in. (cm)
Height overall
Width
Depth oven door closed with handle
Clearance oven door
Height of cooktop
Weight lbs. (kg)
Approximately shipping weight
Features
Interior oven light
Square wire steel burner grates
Broiler pan and grid
Two oven racks5 positions
One broiler rack3 positions
Exclusive high performance sealed gas burners
Glass oven door with small window
Clock timer, LED
September 1999
!
CAUTION
!
WARNING
1
ARG3601
120 VAC
15 Amp maximum
60 Hz
5 in. W.C.P.
10 in. W.C.P.
9,700/8,000
18,000/16,000
16
(41)
23
(58)
17 1/2
(44)
46-1/2
(118)
30
(76)
28-1/4
(72)
20
(51)
36
(91)
164
(75)
X
X
X
X
X
X
X
X
RT2310011 Rev. 0
