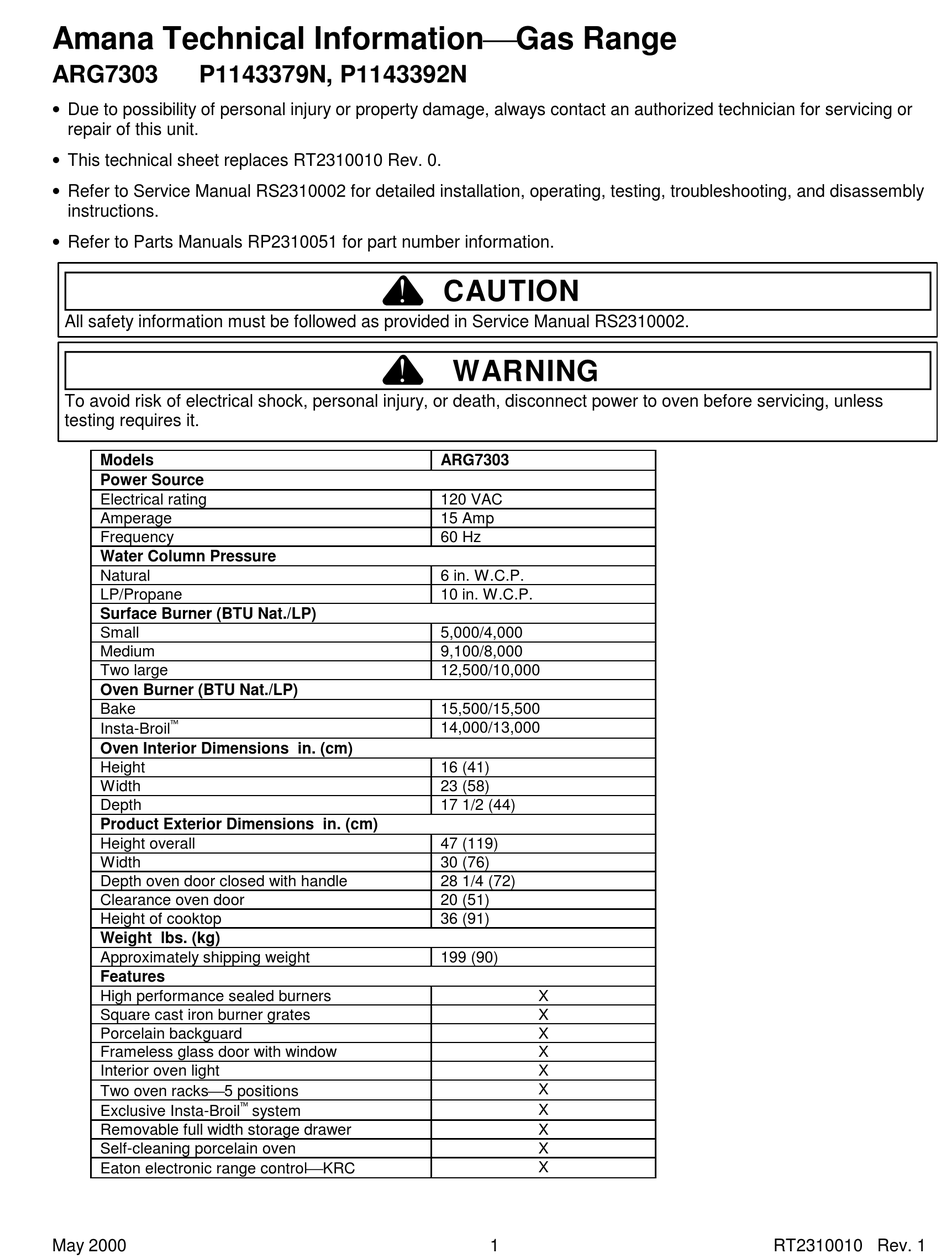

Amana Technical Information Gas Range
ARG7303
P1143379N, P1143392N
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• This technical sheet replaces RT2310010 Rev. 0.
• Refer to Service Manual RS2310002 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manuals RP2310051 for part number information.
All safety information must be followed as provided in Service Manual RS2310002.
To avoid risk of electrical shock, personal injury, or death, disconnect power to oven before servicing, unless
testing requires it.
Models
Power Source
Electrical rating
Amperage
Frequency
Water Column Pressure
Natural
LP/Propane
Surface Burner (BTU Nat./LP)
Small
Medium
Two large
Oven Burner (BTU Nat./LP)
Bake
™
Insta-Broil
Oven Interior Dimensions in. (cm)
Height
Width
Depth
Product Exterior Dimensions in. (cm)
Height overall
Width
Depth oven door closed with handle
Clearance oven door
Height of cooktop
Weight lbs. (kg)
Approximately shipping weight
Features
High performance sealed burners
Square cast iron burner grates
Porcelain backguard
Frameless glass door with window
Interior oven light
Two oven racks 5 positions
Exclusive Insta-Broil
Removable full width storage drawer
Self-cleaning porcelain oven
Eaton electronic range control KRC
May 2000
!
!
™
system
CAUTION
WARNING
ARG7303
120 VAC
15 Amp
60 Hz
6 in. W.C.P.
10 in. W.C.P.
5,000/4,000
9,100/8,000
12,500/10,000
15,500/15,500
14,000/13,000
16 (41)
23 (58)
17 1/2 (44)
47 (119)
30 (76)
28 1/4 (72)
20 (51)
36 (91)
199 (90)
X
X
X
X
X
X
X
X
X
X
1
RT2310010 Rev. 1
