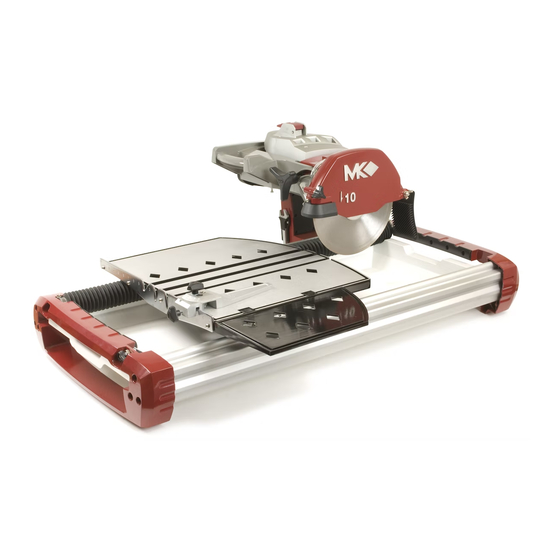

MK TX-3 Operations & Parts Manual

Tile saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.mkdiamond.com
TX-3
TILE SAW
OPERATION & PARTS MANUAL
01.2010
Revision 102
Manual Part No. 165808
Caution: Read all safety and operating instructions before
using this equipment. This manual MUST accompany the
equipment at all times.
MK Diamond Products, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MK TX-3

Summary of Contents for MK TX-3

  • Page 1 TX-3 TILE SAW OPERATION & PARTS MANUAL 01.2010 Revision 102 Manual Part No. 165808 Caution: Read all safety and operating instructions before using this equipment. This manual MUST accompany the equipment at all times. MK Diamond Products, Inc.
  • Page 2 TX-3 INTRODUCTION We at MK Diamond want to congratulate you on selecting the TX-3. We are certain that you will be pleased with your purchase. MK Diamond takes pride in producing the finest products in the industry. Operated correctly, your TX-3 should provide you with years of quality service. In order to help you, we have included this manual.

  • Page 3: Table Of Contents

    TX-3 TABLE OF CONTENTS TX-3 TILE SAW PAGE NO. TABLE OF CONTENTS SAFETY Safety Message/Alert Symbols Safety Warnings Hazard Symbols Rules for Safe Operation Electric Motor Safety Electrical Requirements and Grounding Instructions 10-11 Operation & Safety Decals PRODUCT SPECIFICATIONS Product Specifications INSPECTION &...

  • Page 4: Safety

    The safety labels should be periodically inspected and cleaned by the user to maintain good legibility at a safe viewing distance. If the label is worn, damaged or illegible, it should be replaced, contact MK Diamond or your dealer for replacement.

  • Page 5: Safety Warnings

    TX-3 SAFETY SAFETY WARNINGS SILICA DUST WARNING: Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis.

  • Page 6: Hazard Symbols

    ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. ON / OFF ALWAYS place the power ON/OFF switch in the OFF position when the TX-3 is not in use. ALWAYS wear approved eye protection. ALWAYS wear approved respiratory protection.

  • Page 7: Rules For Safe Operation

    Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to be operated by trained and qualified personnel only! This equipment is for industrial use only. The following safety guidelines should always be used when operating the TX-3 Tile Saw. GENERAL SAFETY •...

  • Page 8: Maintenance Safety

    • Unauthorized equipment modifications will void all warranties. Manufacturer does not assume responsibility for any accident due to equipment modifications. • NEVER use accessories or attachments, which are not recommended by MK Diamond for this equipment. Damage to the equipment and/or injury to user may result.

  • Page 9: Electric Motor Safety

    Use of undersize extension cords result in low voltage to the motor that can result in motor burnout and premature failure. MK Diamond warns that equipment returned to us showing signs of being run in a low voltage condition, through the use of undersized extension cords will be repaired or replaced totally at the...

  • Page 10: Electrical Requirements And Grounding Instructions

    TX-3 SAFETY ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS In order to prevent potential electrical shock and injury, the following electrical safety precautions and symbols should be followed at all times! WARNING In case of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
  • Page 11 TX-3 SAFETY WARNING To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this machine. Receptacles are available having built-in GFCI protections and may be used for this measure of safety.

  • Page 12: Operation & Safety Decals

    PLEASE CALL silica as a substance known to cause cancer. owners’ manual! 1-800-474-5594 Fig. 4 TX-3 Safety Decal Sheet, Part #166787 Flood Version Only, Part #166634 CAUTION • Receptacle is for water pump only.

  • Page 13: Product Specifications

    TX-3 PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS The TX-3 is a versatile tile saw. Operated and used according to this manual, the TX-3 will provide years of dependable service. GENERAL DESCRIPTION The TX-3 is engineered as a 10” Tile Saw with a misting or flood system.

  • Page 14: Inspection & Startup

    Your TX-3 has been shipped from the factory thoroughly inspected. Only minimal assembly is required. CONTENTS If not already done, remove the TX-3 from the carton and place it on a flat surface. Check contents with list below: www.mkdiamond.com TX-3 TILE SAW OPERATION &...

  • Page 15: Setup And Adjustments, Blade Alignments And Blade Depth Adjustments

    Hex Nut Wrench Set Phillips Screwdriver BLADE ALIGNMENTS The TX-3 has been factory aligned. If any adjustment should occur, refer to steps below for specific adjustments. BLADE DEPTH ADJUSTMENT Loosen Hex Nut (A) on blade depth adjustment screw. Set Blade (B) approximately 3/16” below the table surface by turning adjustment screw. Retighten Hex Nut...

  • Page 16: 45º Miter Adjustment

    TX-3 INSPECTION & START-UP 45º MITER ADJUSTMENT A Combination Square (H) is needed for 45º adjustment. Loosen Miter Adjustment Knob (C) and tilt Cutting Head. Remove Outer Blade Guard by turning Outer Blade Guard Release Knob (D) and pushing Outer Blade Guard back.

  • Page 17: Blade Vertical Adjustment

    TX-3 INSPECTION & START-UP BLADE VERTICAL ADJUSTMENT A combination square (H) is needed for 45º adjustment. Remove Outer Blade Guard by turning Outer Blade Guard Release Knob (J) and pushing Outer Blade Guard back. Remove Misting Module (M) by loosening the two Misting Module Screws (K).

  • Page 18: Linear Guide Bar Adjustment

    TX-3 INSPECTION & START-UP LINEAR GUIDE BAR ADJUSTMENT A combination square is needed for 45º adjustment. This adjustment is to ensure consistency of material cutting width. Loosen Guide Bar Adjustment Screws (N) on front and rear End Caps (O). Tap Guide Bar lightly until Table Fence (P) is perpendicular with the blade by using a combination square.

  • Page 19: Misting System Setup

    TX-3 INSPECTION & START-UP MISTING SYSTEM SETUP WARNING ALWAYS disconnect unit from power supply when performing changes or adjustments. STEP 1 - SETTING UP THE WATER TANK Install Grommet (Q) through one end of the Hose (R). Feed the Hose through the Main Cap (U).
  • Page 20 TX-3 INSPECTION & START-UP STEP 2 - ATTACHING WATER TANK TO SAW 1. Insert other end of the Hose (W) into Coupling (V) attaching to the Saw. 2. Open Vent Cap (X) on Water Tank before operating the equipment. 3. Turn on equipment to make sure fine mists are being delivered through both Misting Nozzles (Y).

  • Page 21: Operation

    TX-3 OPERATION WARNING ALWAYS disconnect unit from power supply when performing changes or adjustments. CAUTION ALWAYS ensure there is a sufficient amount of clean water in the Water Tank and the Filter is submerged in the water to ensure proper performance of the misting system and to prevent Pump damage.

  • Page 22: Miter Cuts

    TX-3 OPERATION MITER CUTS 1. The Table (F) has 45º (G), 22.5º (H) and 90º (I) clearance slots built-in. 90º and 45º are pre-set at the factory. 22.5º miter can be obtained by aligning the Pointer to 22.5 mark on the Miter Index (E). All other angular cuts can be obtained by raising the work up.

  • Page 23: Plunge Cuts

    TX-3 OPERATION PLUNGE CUTS Loosen Cutting Head Knob (O) so that the Cutting Head Assembly (N) will swing upward. Shift Plunge Lock Lever (Q) forward. Push Cutting Head Handle (P) downward to perform plunge cuts. Shift Plunge Lock Lever (Q) back while Cutting Head Assembly (N) is at uppermost position.

  • Page 24: Maintenance

    TX-3 MAINTENANCE WARNING ALWAYS disconnect unit from power supply when performing changes or adjustments. BLADE REPLACEMENT Hold Wrench over two flats on Motor Shaft on the inner side of the Blade. Rotate Wrench (B) on the outer side of Blade counterclockwise to loosen and clockwise to tighten the Blade Screw (A).

  • Page 25: Filter Replacement

    TX-3 MAINTENANCE FILTER REPLACEMENT Tilt Motor Assembly (C) at 45º and tighten Miter Adjustment Knob (D) to hold Motor Assembly (C) in place. 2. Remove one screw, which secures Lower Air Flow Module (E) through Inner Blade Guard (F) with a Phillips screwdriver.

  • Page 26: Filter Replacement

    TX-3 MAINTENANCE FILTER REPLACEMENT CONTINUED Lift Air Flow Module (K) up to remove Filter (J). Place a clean Filter onto Spacers (L) through holes in the Filter. 5. Move Air Flow Module (K) over the Filter. Align holes in Lower Air Flow Module with Spacers (L). Push Air Flow Module (K) back onto Spacers (L).

  • Page 27: Misting Pump Replacement

    TX-3 MAINTENANCE MISTING PUMP REPLACEMENT Remove Pump Cover (M) from underside of Cutting Head (N) by loosening screws with a Phillips screwdriver. 2. Disconnect Terminals to Pump (P) and remove Clamps (O). Replace Pump (P) and reinstall Clamps (O).

  • Page 28: Wiring Diagram

    TX-3 MAINTENANCE WIRING DIAGRAM...

  • Page 29: General Product Information

    TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, FINAL - P/N 164800...
  • Page 30 RETAINER, SPRING 164794 SCREW, SOCKET HD SET, M8 X 16 MM 166677 COVER, CUTTING HD 164847 SCREW, PAN HD PHILIP, M4 X 10 MM 164777 CAP, MK LOGO 166656 PAN, WATER 165303 PLUG, DRAIN 159858 ASSY, SIDE TABLE 165317 CLAMP, TUBE...
  • Page 31 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, CUTTING HEAD - P/N 164850...
  • Page 32 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, CUTTING HEAD - P/N 164850 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. CUTTING HEAD 164841 BUSHING, THDED FLANGE 164844 BUSHING, PIVOT SHAFT 166668 PLUNGER, BALL, M8 X 15 MM 166669 INDEX, MITER...
  • Page 33 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, MOTOR - P/N 165029...
  • Page 34 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, MOTOR - P/N 165029 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. MOTOR & ACCESSORIES 157801-C CAP, MOTOR 157877 SPACER, FILTER 157879 SCREW, PAN HD COMB SELF TAPPING, #8 X 1-1/2 158157...
  • Page 35 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - MODULE, MISTING - P/N 164782 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. HOLDER, MISTING NOZZLE 166665 FITTING, END 166667 FITTING, 90-DEG ELBOW 166666 HOSE, PVC, 1/4 X 3/16 165314 NOZZLE, 1.0 MM, 10-24 THREAD...

  • Page 36: Parts Lists

    TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - STOP, BLADE DEPTH - P/N 167135 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. LEVER, PLUNGE LOCK 164848 SCREW, THD CUTTING, #4 X 1/4 165305 PLATE, PLUNGE LOCK 165306 SPACER, PLUNGE LOCK 165307...
  • Page 37 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, LOWER FRAME - P/N 165294...
  • Page 38 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, LOWER FRAME - P/N 165294 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. RAIL, LEFT 166689 ASSY, FRONT ENDCAP 164854 RAIL, RIGHT 166690 ASSY, REAR ENDCAP 165353 WASHER, FLAT, M6 160215 WASHER, SPLIT LOCK, M6...
  • Page 39 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, FRONT ENDCAP - P/N 164854 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. ENDCAP, FRONT 164802 COVER, ENDCAP 164846 SCREW, PAN HD PHILLIP, M5 X 25 MM 160557 CYLINDER, TABLE LOCK 164836...
  • Page 40 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, REAR ENDCAP - P/N 165353 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. ENDCAP, REAR 164833 COVER, ENDCAP 164846 SCREW, PAN HD PHILLIP, M5 X 25 MM 160557...
  • Page 41 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, TABLE - P/N 165293 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. TABLE 166682 FENCE, TABLE 164729 WASHER, FLAT, M5 164858 WASHER, SPLIT LOCK, M5 164859 SCREW, SOCKET, BUTTON HEAD, M5 X 15 MM...
  • Page 42 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, ROLLER WHEEL BRACKET - P/N 165300 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. BRACKET, ROLLER WHEEL 164730 SCREW, SOCKET HD CAP, M5 X 35 MM 165311 NUT, HEX, M8 165030 BEARING, BALL, 608AS...
  • Page 43 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, LINEAR BEARING - P/N 165299 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. HOUSING, LINEAR BEARING 162062 BUSHING, LINEAR GUIDE 162063 SCREW, SOCKET HD SET, M5 X 6MM 165350 BEARING, SLEEVE 166671...
  • Page 44 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, SIDE TABLE - P/N 165317 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. TABLE. SIDE 166676 SCREW, SOCKET HD SET, M5 X 6 MM 165350...
  • Page 45 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - ASSY, RIP GUIDE - P/N 165356 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. SCREW, SOCKET HD SET, M4 X 6 MM 165313 SCREW, SHOULDER, SOCKET CAP, M6 X 8 MM 154363 WASHER, FLAT, M8...
  • Page 46 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - MOTOR & ACCESSORIES - P/N 166232-C ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. MOTOR 157801-C FLANGE, OUTER 158105 WASHER, M10 166134 SCREW, HEX HD CAP, M10 X 20 MM 152272 WRENCH, 17 MM...
  • Page 47 TX-3 GENERAL PRODUCT INFORMATION PARTS LIST - MISTING KIT - P/N 166788 ITEM PART OR OTY. DESCRIPTION IDENTIFYING NO. REQ. TUBING, POLYURETHANE, 3/8 X .245 X 19 165008 PUMP 164693 TUBING, POLYURETHANE, 3/8 X .245 X 24 165005 COUPLING, PUSH-TO-CONNECT, 3/8 X 3/8 165004 TUBING, PVC, 3/8 X 1/4 X 51”...

  • Page 48: Note Page

    TX-3 NOTE PAGE...

  • Page 49: Accessories, Ordering And Return Information

    ACCESSORIES, ORDERING AND RETURN INFORMATION Ordering Information You may order MK Diamond products through your local MK Diamond distributor or, you may order direct from MK Diamond. NOTE: There is a $25.00 minimum order when ordering direct from MK Diamond. All purchases must be made using American Express,VISA or MasterCard.

  • Page 50: Contact Information And Limited Warranty

    The parts involved or the unit in question should be returned to MK DIAMOND PRODUCTS, INC. or to a point designated by us, transportation prepaid.
  • Page 51 TX-3 NOTE PAGE...
  • Page 52 TX-3 TILE SAW OPERATION & PARTS MANUAL DOCUMENT NO. 165808 MK Diamond Products, Inc. 1315 Storm Parkway Torrance, CA 90501 Toll-Free: (800) 845-3729 Phone: (310) 539-2221 Fax: (310) 539-5158 www.mkdiamond.com...
