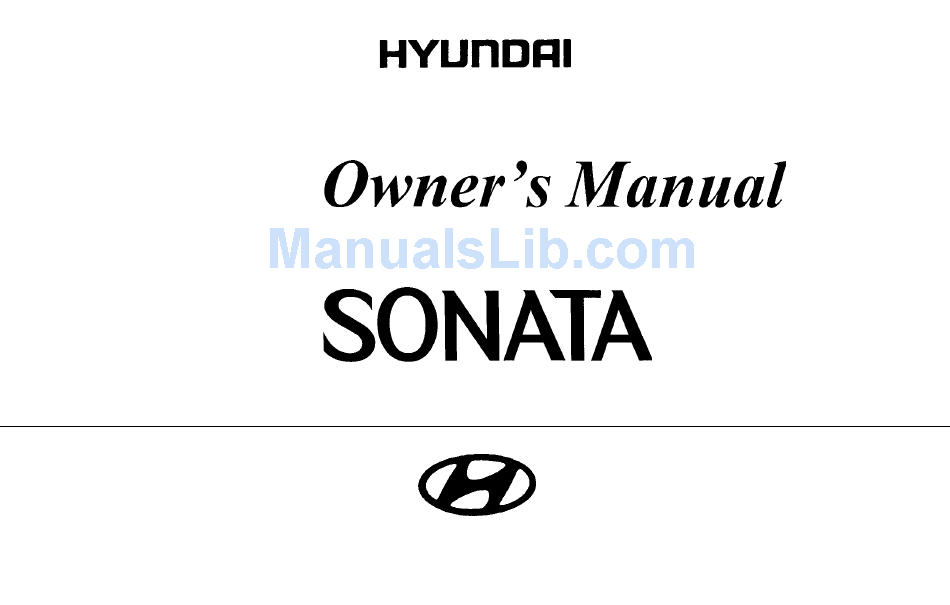

  • Page 1 2002 D R I V I N G IS B E L I E V I N G...
  • Page 2 RESPONSIBILITY FOR MAINTENANCE RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.
  • Page 3 A000A01A-AAT This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner. OWNER'S I.D ORIGINAL OWNER ADDRESS CITY STATE ZIP CODE DELIVERY DATE (Date Sold to Original Retail purchaser) DEALER NAME DEALER NO.
  • Page 4 Specifications All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make All information in this Owner's Manual is current at the time of publication.
  • Page 5 Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully since the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 6 CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S.
  • Page 7 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: WARNING: WARNING:...
  • Page 8 English. facturing requirements. Using imita- tion, counterfeit or used salvage parts Hyundai Genuine Parts are only sold A100A03L is not covered under the Hyundai New through authorized Hyundai Vehicle Limited Warranty or any other Dealerships.
  • Page 9 TABLE OF CONTENTS SECTION PAGE 1 1 1 1 1 FEATURES OF YOUR HYUNDAI ................1-1 2 2 2 2 2 DRIVING YOUR HYUNDAI ..................2-1 3 3 3 3 3 WHAT TO DO IN AN EMERGENCY ..............3-1 4 4 4 4 4 CORROSION PREVENTION &...

  • Page 10: Features Of Your Hyundai

    Hyundai. Fuels containing methanol (wood alcohol) should YOUR HYUNDAI WARNING: not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage o Do not "TOP-OFF" after the first nozzle shut off when refueling.
  • Page 11 Use moderate acceleration. Don't start quick- master keys and a sub key. The master keys that came with the keys to your Hyundai. This ly or depress the accelerator pedal fully. will open all locks on your vehicle. The sub key...
  • Page 12 FEATURES OF YOUR HYUNDAI B030C01Y-AAT when combined with the proper use of B040C02Y-AAT ILLUMINATED IGNITION SWITCH Locking From the Outside seat belts, locking the doors helps keep (If installed) occupants from being ejected from the car in case of an accident.
  • Page 13 FEATURES OF YOUR HYUNDAI B040D01Y-AAT B040F01Y-AAT B040G01Y-AAT Illuminated Door Key Cylinder Locking From the Inside Central Door Locks (If installed) (If installed) LOCK UNLOCK LOCK UNLOCK B040D02Y B040G02Y B040F01Y The central door locking switch is located on o To lock the doors from the inside, simply Whenever the driver's door handle is pulled, the the driver's arm rest.
  • Page 14 Park the car and stop the engine. Arm the system as described below. HEF-131 1) Remove the ignition key from the ignition Your Hyundai is equipped with a “child-protec- switch. tor” rear door lock assembly. When the lock 2) Make sure that the engine hood and trunk lid mechanism is engaged, the rear door cannot be are locked.
  • Page 15 FEATURES OF YOUR HYUNDAI NOTE: The siren will sound for 30 seconds (This hap- Unlocking doors pens 3 times). To turn off the system, unlock Once the system has been disarmed, it can 1. Push the "UNLOCK" button on the transmit- the door or trunk lid with the transmitter.
  • Page 16 FEATURES OF YOUR HYUNDAI B050A01A-AAT B060A02Y-AAT WINDOW GLASS POWER WINDOWS (If installed) Close Open Screwdriver HEF-192 1. Separate the case with a blade screwdriver B050A02Y B060A02Y as shown in the illustration. To raise or lower the window, turn the window The power windows operate when the ignition regulator handle clockwise or counterclockwise.
  • Page 17 FEATURES OF YOUR HYUNDAI normal operation, press the window lock switch B080A01A-AAT B080C01A-AAT ADJUSTABLE FRONT SEATS Adjusting Seatback Angle a second time. The power windows can be operated for 30 seconds after the ignition key is WARNING: turned to the "ACC" or the "LOCK" position.
  • Page 18 FEATURES OF YOUR HYUNDAI reclined. The seat belt cannot provide full o Do not operate the vehicle with the head- B080F01S-AAT Seat Cushion Height Adjustment protection to an occupant if the seat back is rests removed as severe injury to an reclined.
  • Page 19 FEATURES OF YOUR HYUNDAI B090D01Y-AAT WARNING: WARNING: Adjusting Seatback Angle o Never attempt to adjust the seat while the To ensure the seat is locked securely, at- vehicle is moving. This could result in tempt to move the seat forward or rearward loss of control, and an accident causing without using the control knob.
  • Page 20 FEATURES OF YOUR HYUNDAI B140A01S-AAT B110A01Y-AAT the folded down seatback should not extend REAR SEAT WARNING FOLDING REAR SEATBACKS higher than the top of the front seats. This could allow cargo to slide forward and cause (If installed) injury or damage during sudden stops.
  • Page 21 FEATURES OF YOUR HYUNDAI B150A02A-AAT the vehicle should always be in a proper place a rear facing child seat in the front seat of SEAT BELT PRECAUTIONS restraint in the rear seat of the vehicle. a vehicle. WARNING: NOTE: B150D01A-AAT...
  • Page 22 This should be done even other abuse. sure that it has locked into the position. if no damage is visible. Additional questions concerning seat belt operation should be direct- ed to your Hyundai Dealer. 1- 13...
  • Page 23 Check to make sure Hyundai strongly recommends that children al- the unbuckled seat belt to fully retract. that the belt is properly locked and that the belt ways be seated in the rear seat.
  • Page 24 FEATURES OF YOUR HYUNDAI o The shoulder belt should be positioned B220A02Y-AAT WARNING: SEAT BELTS - Rear Seat Center's 3- midway over the shoulder nearest the You should place the lap belt portion as low door for the most effective protection.
  • Page 25 FEATURES OF YOUR HYUNDAI B220C01Y-AAT accident statistics provided by the National High- To Release the Seat Belt way Traffic Safety Administration (NHTSA), children are safer when properly restrained in the rear seats than in the front seat. Larger children should use one of the seat belts provid- All 50 states have child restraint laws.
  • Page 26 FEATURES OF YOUR HYUNDAI o Since a safety belt or child restraint sys- Before purchasing a booster seat, make B230B01Y-AAT Using a Child Restraint System tem can become very hot if it is left in a sure that it meets applicable Federal...
  • Page 27 FEATURES OF YOUR HYUNDAI the vehicle's rear seat since this can make an B230G03Y-AAT Tether strap hook holder Installation on Rear Seats important contribution to safety. Your vehicle is Tether anchor cover provided with three child restraint hook holders on the rear seat package tray for installing the child seat or infant seat.
  • Page 28 If the seat belt does not operate as de- enough to secure the child restraint seat scribed, have the system checked imme- properly in the center of the rear seat and diately by your authorized Hyundai deal- B230F01E may break, causing serious injury or death.
  • Page 29 Emergency Locking Retractor left and right outboard seating positions. (ELR) type of seat belt. When the vehicle stops Your Hyundai vehicle is equipped with driver's Follow the child seat manufacturer's instruc- suddenly, or if the occupant tries to lean for- and front passenger's pre-tensioner seat belts.
  • Page 30 Because the sensor that activates the B240A01Y pre-tensioner seat belts yourself. This SRS airbag is connected with pre- must be done by an authorized Hyundai tensioner seat belt, the SRS airbag warn- Your Hyundai is equipped with a Supplemental dealer.
  • Page 31 If the airbags deploy, they must be re- light collisions in which protection can placed by an authorized Hyundai dealer. The Hyundai SRS consists of airbags installed be provided by the seat belt. o Do not tamper with or disconnect SRS...
  • Page 32 FEATURES OF YOUR HYUNDAI o The SRS airbag system must deploy very the SRSCM detects a considerable impact to rapidly to provide protection in a crash. If the front of the vehicle, it will automatically an occupant is out of position because of deploy the airbags.
  • Page 33 YR10353A spected by your Hyundai dealer. ger's seat. It is intended only as a means to o Before you replace a fuse or disconnect reduce unnecessary collision damage re-...
  • Page 34 B240C01A-AAT o For best protection from the side impact SRS Care Your Hyundai is equipped with a side impact airbag system and to avoid being injured o The SRS is virtually maintenance free and airbag in each front seat. The purpose of the...
  • Page 35 Solvents car towed to an authorized Hyundai deal- or cleaners could adversely affect the airbag covers and proper deployment of the system.
  • Page 36 FEATURES OF YOUR HYUNDAI B250A04Y-AAT INSTRUMENTS AND CONTROLS 1. Hood Release Lever 7 8 9 10 2. Instrument Panel Junction box 3. Multi-Function Light/Front Fog Light Switch (If installed) 4. Steering Wheel Tilt Lever 5. Horn and Driver Airbag (If installed) 6.
  • Page 37 FEATURES OF YOUR HYUNDAI B260A05Y-GAT INSTRUMENT CLUSTER AND INDICATOR LIGHTS INSTRUMENT CLUSTER AND INDICATOR LIGHTS INSTRUMENT CLUSTER AND INDICATOR LIGHTS INSTRUMENT CLUSTER AND INDICATOR LIGHTS INSTRUMENT CLUSTER AND INDICATOR LIGHTS 9 10 11 13 14 15 16 17 19 20 21 22 B260A04Y-A1 1.
  • Page 38 If the TCS indicator stays on, ABS Service Reminder engine should be checked by a Hyundai take your car to your authorized Hyundai dealer dealer before the car is driven again. Indicator (SRI) (If installed) and have the system checked. See section 2 When the key is turned to the “ON”...
  • Page 39 Trunk Lid Open Warning Light should be immediately and carefully driven to a on the center of the belt. And then have the Hyundai dealer for inspection. If further trouble system checked by your Hyundai dealer. is experienced, the vehicle should not be driven...
  • Page 40 "ON" position. heard when the brake pedal is pushed down firmly. Excessive rotor damage will result if the B290A01A-AAT worn pads are not replaced. See your Hyundai ENGINE COOLANT TEMPERATURE B260N01A-AAT dealer immediately. Malfunction Indicator Light...
  • Page 41 FEATURES OF YOUR HYUNDAI Your Hyundai's speedometer is calibrated in B310B02Y-GAT WARNING: ODOMETER/TRIP ODOMETER miles per hour (on the outer scale) and kilome- Never remove the radiator cap when the ters per hour (on the inner scale). engine is hot. The engine coolant is under...
  • Page 42 FEATURES OF YOUR HYUNDAI To shift from TRIP A to TRIP B, press the reset Selectable Function switch. When pressed for 1 second, it will reset Mode Display window Function to 0. This mode indicates first distance you have Trip A...
  • Page 43 FEATURES OF YOUR HYUNDAI B340A01A-AAT To indicate a lane change, move the lever up or B340D01A-AAT COMBINATION TURN SIGNAL, High-beam Switch down to a point where it begins flashing. HEADLIGHT AND HIGH-BEAM The lever will automatically return to the center...
  • Page 44 FEATURES OF YOUR HYUNDAI B360B01Y-GAT B350A01A-AAT B350B01Y-GAT WINDSHIELD WIPER AND WASHER Front Fog Light Switch (If installed) Windshield Washer Operation SWITCH B350B01L B360B01Y B350A01L To use the windshield washer, pull the wiper/ To turn on the front fog lights, place the switch washer lever toward the steering wheel.
  • Page 45 FEATURES OF YOUR HYUNDAI To use the intermittent wiper feature, place the B380A01A-AAT Mist Wiper Operation REAR WINDOW DEFROSTER wiper switch in the "INT" position. With the switch in this position, the interval between SWITCH wipes can be varied from approximately 2 to 10 Automatic type seconds by turning the interval adjuster barrel.
  • Page 46 Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. WARNING: Do not use electric accessories or equip-...
  • Page 47 FEATURES OF YOUR HYUNDAI B430A03Y-AAT B440A01Y-AAT B450A02Y-GAT FRONT ASHTRAY REAR ASHTRAY DRINK HOLDER (If installed) HEF-155 B440A01Y 1MS104029 The front ashtray may be opened by pushing The drink holder is located on the main console The rear ashtray may be opened by pulling it and releasing the ashtray at its top edge.
  • Page 48 The sunroof can be electrically opened or closed with the ignition key in the "ON" position. To Your HYUNDAI is equipped with a sliding sun- open or to close, press and hold the button shade which you can manually adjust to let in B460C01Y located in the front of the roof panel.
  • Page 49 FEATURES OF YOUR HYUNDAI B460D03Y-AAT B480A01Y-AAT MAP LIGHT (with sunroof) Manual Operation of Sunroof If the sunroof does not electrically operate: Map Light Switch B460D03Y 3. Insert the hexagonal head wrench provided HEF-198 with the vehicle into the socket. This wrench...
  • Page 50 FEATURES OF YOUR HYUNDAI Push in the map light switch to turn the light on o OFF B510A01A-AAT OUTSIDE REAR VIEW MIRROR or off. This light produces a spot beam for In the "OFF" position, the light stays off at all convenient use as a map light at night or as a times even though a door is open.
  • Page 51 FEATURES OF YOUR HYUNDAI mechanism or move the vehicle to a warm B510D01Y-AAT OUTSIDE REAR VIEW MIRROR HEAT- place and allow the ice to melt. ER (If installed) Automatic type B510B01Y-AAT Electric Type (If installed) B510B03Y CAUTION: o Do not operate the switch continuously HEF-036 for an unnecessary length of time.
  • Page 52 FOLDING THE OUTSIDE REAR VIEW MIRRORS YM10730A-1 YM10730A Your Hyundai is equipped with a day/night The electric type day/night inside rearview mir- inside rear view mirror. The "night" position is ror automatically controls the glare of head- selected by flipping the tab at the bottom of the lights of the car behind you.
  • Page 53 FEATURES OF YOUR HYUNDAI B530A01A-AAT B540A01S-GAT B540B04Y-AAT PARKING BRAKE TRUNK LID Trunk Lid Knob Lock (If installed) Remote Trunk Lid Release With the remote release B540B03Y HEF-154 Always engage the parking brake before leav- If the trunk lid lock knob (located near the latch) HEF-132 ing the car.
  • Page 54 This will open the trunk lid. B540C03Y o HYUNDAI recommends that cars be kept B550A03Y locked and keys be kept out of the reach In addition to the lower-mounted rear stoplights...
  • Page 55 If you need to replace the filler cap, use a genuine Hyundai replace- NOTE: 1MS104008 ment part.
  • Page 56 WARNING: B580A02Y o Always double check to be sure that the Your Hyundai is equipped with sun visors to hood is firmly latched before driving give the driver and front passenger either fron- away. If it is not latched, the hood could tal or sideward shade.
  • Page 57 WARNING: desired position. Do not use electric accessories or equip- 3. After adjustment, release the lever. ment other than the Hyundai genuine parts in the socket. WARNING: Do not attempt to adjust the steering wheel while driving as this may result in loss of control of the vehicle and serious injury or death.
  • Page 58 FEATURES OF YOUR HYUNDAI B990A03Y-AAT B660A01S-AAT 1. Push in the cruise control main switch. This FLOOR MAT ANCHOR CRUISE CONTROL (If installed) turns the system on. 2. Accelerate to desired cruising speed above 25 mph (40 km/h). 3. Push the control switch "SET" (COAST) position.
  • Page 59 FEATURES OF YOUR HYUNDAI Do one of the following: B660E01L-GAT WARNING: To Reset at a Faster Speed o Keep the main switch off when not using o Push the control switch "CANCEL". 1. Push the control switch "RESUME (ACCEL)" the cruise control.
  • Page 60 FEATURES OF YOUR HYUNDAI B710A01Y-GAT B710A01A-AAT HEATING AND COOLING CONTROL VENTILATION To operate the ventilation system: o Set the air intake control at the fresh air ) position. o To direct all intake air to the dashboard vents, set the airflow control to the face ( position.
  • Page 61 FEATURES OF YOUR HYUNDAI B670A01Y-GAT B670B02Y-AAT B670E01A-AAT Fan Speed Control ROTARY AND PUSH BUTTON TYPE Temperature Control (Blower Control) Cool Warm HEF-023 HEF-032 HFE-031 This is used to turn the heating system on and 1. Air Conditioning switch off and to select the degree of heating desired.
  • Page 62 FEATURES OF YOUR HYUNDAI B670C01Y-AAT passenger compartment will become Air Intake Control stale. In addition prolonged use of the air conditioning with the " " mode se- lected may result in the air within the passenger compartment becoming ex- cessively dry.
  • Page 63 FEATURES OF YOUR HYUNDAI B740C01A-AAT De-Humidified Heating For dehumidified heating: o Turn on the fan control switch. o Turn on the air conditioning switch. The air conditioning indicator light should come on at the same time. o Set the air intake control to the fresh air ) position.
  • Page 64 FEATURES OF YOUR HYUNDAI B720A08Y-AAT DEFROSTING/DEFOGGING B Type B Type A Type A Type B720A02Y B720A01Y To remove interior fog on the windshield. To remove frost or exterior fog on the windshield; o Set the air flow control to the defrost ( ) position.
  • Page 65 FEATURES OF YOUR HYUNDAI B740A01S-AAT B740B01A-AAT o Adjust the fan control to the desired speed. Air Conditioning Operation AIR CONDITIONING SYSTEM For greater cooling, turn the fan control to (If installed) one of the higher speeds or temporarily Air Conditioning Switch...
  • Page 66 AUTOMATIC HEATING AND COOL- Heating and Cooling Controls ING CONTROL SYSTEM (If lnstalled) TYPE A (Without Air Quality System) Your Hyundai is equipped with an automatic heating and cooling control system controlled by simply setting the desired temperature. HEF-021 TYPE B (With Air Quality System) HEF-022 1.
  • Page 67 FEATURES OF YOUR HYUNDAI NOTE: B970C03L-AAT Automatic Operation If the battery has been discharged or dis- connected, the temperature mode will reset to centigrade degrees. This is a normal condition and you can change the temperature mode from centi- grade to fahrenheit as follows;...
  • Page 68 FEATURES OF YOUR HYUNDAI B995A02Y-GAT B980B02Y-AAT B670C01Y-AAT AMBIENT SWITCH Fan Speed Control Switch Air Intake Control Air Intake Control Air Intake Control Air Intake Control Air Intake Control Switch (Without A.Q.S) HEF-024 HEF-034 The fan speed can be set to the desired speed...
  • Page 69 FEATURES OF YOUR HYUNDAI With the "Recirculation" mode selected, and air B980C02Y-GAT Exhaust gas cutoff mode : Air Intake Control Switch (With A.Q.S) from within the passenger compartment will be Air enters the vehicle from the outside. drawn through the heating system and heated...
  • Page 70 FEATURES OF YOUR HYUNDAI B980D01Y-AAT vents. This makes it possible to have cooler air Heating and Cooling System Off from the dashboard vents and warmer air from the floor outlets at the same time. Press the "OFF" button to stop the operation of the heating and cooling system.
  • Page 71 FEATURES OF YOUR HYUNDAI B980G02Y-GAT If the car is being driven in severe condi- Floor-Defrost Level Auto de-humidified control (If in- tions such as dusty, rough roads, more When selecting the "Floor-Defrost" mode, the frequent air filter inspections and chang-...
  • Page 72 FEATURES OF YOUR HYUNDAI B750A02A-AAT AM reception FM radio station STEREO SOUND SYSTEM Ionosphere Unobstructed How Car Audio Works area FM reception Ionosphere Mountains Buildings Iron bridges SSAR011A Obstructed area SSAR012A AM broadcasts can be received at greater dis- FM broadcasts are transmitted at high frequen- tances than FM broadcasts.
  • Page 73 FEATURES OF YOUR HYUNDAI B750B02Y-AAT Using a cellular phone or a two-way radio When a cellular phone is used inside the vehi- cle, noise may be produced from the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.
  • Page 74 FEATURES OF YOUR HYUNDAI H240A01O-GAT STEREO RADIO OPERATION (H240) (If Installed) 5. BAND Selector 3. TREBLE/FADER Control Knob (TREB/FAD) SEEK 6. PRESET Buttons 2. BASS/BALANCE Control Knob (BASS/BAL) 7. SCAN Button 4. TUNE/SEEK Select Button 1. POWER ON/OFF, VOLUME Control Knob...
  • Page 75 FEATURES OF YOUR HYUNDAI H240B03O-GAT FAD (Fader Control) Knob 6. PRESET STATION SELECT Button 1. POWER ON-OFF Control Knob Pull the treble control knob further out. Six (6) stations for AM, FM and FM2 respec- The radio unit may be operated when the...
  • Page 76 FEATURES OF YOUR HYUNDAI 7. SCAN Button When the scan button is pressed, the fre- quency will increase and the receivable sta- tions will be tuned in one after another, receiv- ing each station for 5 seconds. To stop scan- ning, press the scan button again.
  • Page 77 FEATURES OF YOUR HYUNDAI H240C01O-GAT CASSETTE TAPE PLAYER OPERATION (H240) (If Installed) 3. TAPE PROGRAM Button 6. TAPE SLOT 2. AUTO MUSIC SELECT Button 4. EJECT Button SEEK 1. FF/REW Button 5. DOLBY SELECT Button H240A01O 1- 68...
  • Page 78 FEATURES OF YOUR HYUNDAI NOTE: H240A03O-GAT 1. FF/REW Button When tape operation is abnormal or ER8 fault code is displayed, press the eject button o The FF (fast forward tape winding) starts more than 5 seconds to reset the deck func-...
  • Page 79 FEATURES OF YOUR HYUNDAI H260A01O-AAT STEREO RADIO OPERATION (H260) (If Installed) 3. BASS/TREBLE Control Knob 4. SCAN Button 6. BAND Selector 7. PRESET Button 5. TUNE/SEEK Select Button 1. POWER ON-OFF/VOLUME/BALANCE Control Knob 2. FADER Control Knob H260A01O 1- 70...
  • Page 80 FEATURES OF YOUR HYUNDAI H260B03E-AAT 3. BASS Control Knob 6. BAND Selector 1. POWER ON-OFF Control Knob Press to pop the knob out and turn to the left or Pressing the button changes the AM, FM1 FM/AM The radio unit may be operated when the igni- right for the desired bass tone.
  • Page 81 FEATURES OF YOUR HYUNDAI You should then release the button, and proceed to program the next desired station. A total of 18 stations can be programmed by selecting one AM and two FM stations per button. o When completed, any preset station may be recalled by selecting AM, FM or FM2 band and the appropriate station button.
  • Page 82 FEATURES OF YOUR HYUNDAI H260B01O-AAT COMPACT DISC PLAYER OPERATION (H260) (If Installed) 4. SCAN Button 1.Playing CD 3. TRACK UP/DOWN 6. EJECT Button 2. FF/REW Button 5. REPEAT Button H260A01O 1- 73...
  • Page 83 FEATURES OF YOUR HYUNDAI B260D01O-AAT o This equipment is designed to be used 5. REPEAT Button 1. Playing CD only in a 12 volt DC battery system with o To repeat the music you are listening to, negative ground. o Insert the CD with the label facing upward.
  • Page 84 FEATURES OF YOUR HYUNDAI H290A01O-AAT STEREO RADIO OPERATION (H290) (If Installed) 1. POWER ON/OFF VOLUME Control Knob 8. SCAN Button SCAN 7. EQUALIZER Button 3. TREBLE/FAD Konb 2. BASS/BALANCE Control Knob 5. PRESET Buttons 4. TUNE/SEEK Select Button H290A01O 6. BAND Select Button...
  • Page 85 FEATURES OF YOUR HYUNDAI H290B03E-GAT 3. TREBLE/FAD Knob 5. PRESET STATION Select Buttons 1. POWER ON-OFF Control Knob Six (6) stations for AM, FM and FM2 respec- TREBLE Control Knob The radio unit may be operated when the igni- tively can be preset in the electronic memory Press to pop the knob out and turn to the left or tion key is in the "ACC"...
  • Page 86 FEATURES OF YOUR HYUNDAI 6. BAND Selector Pressing the button changes the AM, FM1 FM/AM and FM2 bands. The mode selected is shown on the display. 7. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de- sired tone quality.
  • Page 87 FEATURES OF YOUR HYUNDAI H290C01O-AAT CASSETTE TAPE PLAYER OPERATION (H290) (If Installed) SCAN 5. EQUALIZER Button 4. TAPE EJECT Button 2. AUTO MUSIC Select Button 1. FF/REW Button 6. DOLBY Button 3. TAPE PROGRAM Button H290A01O 1- 78...
  • Page 88 FEATURES OF YOUR HYUNDAI H290D01O-GAT 4. TAPE EJECT button 1. FF/REW Button o When the button is pressed with the o Fast forward tape winding starts when the cassette loaded, the cassette is ejected. FF ( ) button is pressed during the PLAY...
  • Page 89 FEATURES OF YOUR HYUNDAI H290E01O-AAT COMPACT DISC PLAYER OPERATION (H290) (If Installed) 6. CD EJELT Button 7. SCAN Button SCAN 5. EQUALIZER Button 3. TRACK UP/DOWN 2. FF/REW Button 4. REPEAT 1. CD Select Button H290A01O 1- 80...
  • Page 90 FEATURES OF YOUR HYUNDAI NOTE: H290F01O-GAT 4. REPEAT 1. CD Select Button o To assure proper operation of the unit, o To repeat the music you are listening to, o Insert the CD with the label facing upward. keep the vehicle interior temperature press the RPT button.
  • Page 91 SOLUTION CDP DECK MECHANICAL ERROR AFTER RESETTING THE AUDIO, PUSH THE EJECT BUTTON. (EJECT ERROR, LOADING ERROR) IF DISC IS NOT EJECTED, CONSULT YOUR HYUNDAI DEALER. FOCUS ERROR MAKE SURE THE DISC IS NOT SCRATCHED OR DAMAGED. DATA READ ERROR PRESS THE EJECT BUTTON AND PULL OUT THE DISC.
  • Page 92 FEATURES OF YOUR HYUNDAI B850A01F-AAT while the disc is being pulled into the unit by the B860A01A-AAT CARE OF DISC CARE OF CASSETTE TAPES self loading mechanism. Do not pull the unit from the dash immediately Proper Handling after a disc is inserted or the eject switch has been pressed.
  • Page 93 FEATURES OF YOUR HYUNDAI Head Cotton applicator B860B02Y SSAR042B SSAR053B o Be sure that the cassette label is not loose o The playback head, capstan and pinch roll- NOTE: or peeling off or tape ejection may be diffi- ers will develop a coating of tape residue Look at a tape before you insert it.
  • Page 94 FEATURES OF YOUR HYUNDAI B870A01A-AAT B870B01Y-AAT ANTENNA Power Antenna (If installed) Fixed Rod Antenna (If installed) B870B02Y B870A01F The antenna will automatically be extended when the radio power switch is turned "ON" Your car uses a fixed rod antenna to receive while the ignition key is in either the "ON"...
  • Page 95 Hyundai dealer. o Do not run the engine in an enclosed area.
  • Page 96 With the key in the "ACC" position, radio and other accessories may be operated. If you open o If your Hyundai is equipped with a manual the driver's door with the key in the "ACC" or transaxle, place the shift lever in neutral and "LOCK"...
  • Page 97 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI 3. The key can be removed in the "LOCK" 3. After turning the ignition key to the "ON" o o o o o "LOCK" "LOCK"...
  • Page 98 Your Hyundai's manual transaxle has a con- cause engine damage. cause engine damage. cause engine damage. cause engine damage.
  • Page 99 The highly efficient Hyundai automatic transaxle person wearing a seatbelt. person wearing a seatbelt. person wearing a seatbelt.
  • Page 100 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI C090B01A-AAT C090E01O-AAT SKIP SKIP SKIP SKIP SKIP : By rapidly moving the selector forward The function of each position is as The function of each position is as...
  • Page 101 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI o o o o o Before driving away from a stop on a Before driving away from a stop on a Before driving away from a stop on a...
  • Page 102 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI C120A02A-AAT o o o o o Driving on rough, gravel or snow-cov- Driving on rough, gravel or snow-cov- Driving on rough, gravel or snow-cov- Driving on rough, gravel or snow-cov-...
  • Page 103 If the indicator does not illuminate, have it To avoid creeping forward, keep your foot parking brake indicator light is out before checked by an authorized Hyundai dealer. on the brake pedal when the car is stopped. driving away. o Use caution when parking on a hill. Engage...
  • Page 104 Keep your car clean. For maximum service, essarily. Avoid heavy traffic whenever pos- tion. If you follow these suggestions, tire wear your Hyundai should be kept clean and free sible. Always maintain a safe distance from will be held to a minimum.
  • Page 105 Section 6. The level of charge During deceleration, use engine braking to the in your battery can be checked by your Hyundai fullest extent. Sudden brake applications on dealer or a service station. snowy or icy roads may cause skids to occur.
  • Page 106 Ask your result in reduced traction or tire failure. "P" (automatic) or in first or reverse gear (manual Hyundai dealer for further details before towing. transaxle) and block the rear wheels so the car NOTE:...
  • Page 107 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI C190C01Y-AAT gerous situation, safety chains, attached be- total gross vehicle weight is the com- total gross vehicle weight is the com- total gross vehicle weight is the com-...
  • Page 108 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI Lbs. (kg) pressure can seriously affect the handling. 14.When going down a hill, shift into a lower Also check the spare tire. gear and use the engine braking effect.

  • Page 109: What To Do In An Emergency

    3. Check the fuel line in the engine room. serious personal injury and damage to the 4. If engine still refuses to start, call a Hyundai vehicle may occur! If you are not sure how dealer or seek other qualified assistance.
  • Page 110 First, attach one clamp of the jumper cable pinging or knocking, the engine is probably too Hyundai dealer for assistance. to the positive (+) post or cable of the dis- hot. If this happens, you should: charged battery.
  • Page 111 4. As the temporary spare tire is specifically leak in the cooling system and this should designed for your car, it should not be used be checked as soon as possible by a Hyundai on any other vehicle. dealer. 5. The temporary spare tire should not be used...
  • Page 112 WHAT TO DO IN AN EMERGENCY 2. When the car is stopped, turn on your emer- D060K02Y-AAT 4. Reinstall the wheel cover by fitting the boss Wheel Cover (If installed) gency hazard flashers, set the parking brake of the wheel cover in the groove of the and put the transaxle in "P"...
  • Page 113 WHAT TO DO IN AN EMERGENCY D060C01A-AAT The wheel nuts should be loosened slightly D060F02E-AAT 2. Block the Wheel 5. Raising the Car before raising the car. To loosen the nuts, turn the wrench handle counterclockwise. When doing this, be sure that the socket is seated Flat tire completely over the nut so it cannot slip off.
  • Page 114 WHAT TO DO IN AN EMERGENCY D060G02Y-AAT D060H02Y-AAT 6. Changing Wheels 7. Reinstall Wheel Nuts SSA3071H WARNING: D060G01Y D060H01Y Wheels and wheel covers may have sharp To reinstall the wheel, hold it on the studs, put Loosen the wheel nuts and remove them with edges.
  • Page 115 If it is too high, adjust it until it is correct. Always reinstall the valve cap after your Hyundai dealer or a commercial tow truck handle or use an extension pipe over the wrench checking or adjusting tire pressure. If the cap is service.
  • Page 116 WHAT TO DO IN AN EMERGENCY D080B01A-AAT D080C02A-AAT Towing a Car With Manual Transaxle Towing a Car With Automatic Transaxle SSA3101A SSA3100A SSA3090A o OK FOR AUTOMATIC OR MANUAL o NOT OK FOR AUTOMATIC TRANSAXLE o OK FOR AUTOMATIC OR MANUAL TRANSAXLE EQUIPPED VEHICLE EQUIPPED VEHICLE TRANSAXLE EQUIPPED VEHICLE...
  • Page 117 Be sure the steering is unlocked by placing the key in the "ACC" position. D120A01A-AAT IF YOU LOSE YOUR KEYS If you lose your keys, many Hyundai dealers can make you a new key if you have your key D080D02Y number.
  • Page 118 In such conditions, the corrosive material is struction practices to combat corrosion, Hyundai to clean the underside thoroughly when win- kept in contact with the car surfaces by mois- produces cars of the highest quality.
  • Page 119 Check under the the car is to remove water from the car so it will age. These are available at your Hyundai dealer mats periodically to be sure the carpeting is dry. dry without water spots. Don’t rub, this can or auto parts outlet.
  • Page 120 (If installed) (If installed) (If installed) to dry on the painted surfaces. Hyundai. They are: In the normal course of use, leather upholstered surfaces will, like any material, pick-up dust and o Be careful not to spill battery electrolyte or E030B01A-AAT dirt.
  • Page 121 Using a vacuum cleaner with If you have any questions about the care of the appropriate attachment, remove as much your car, consult your Hyundai dealer. dirt from the carpets as possible. Apply the foam following the manufacturer’s directions, then rub in overlapping circles.
  • Page 122 REQUIREMENTS REQUIREMENTS The maintenance required for your Hyundai can form when you drive your Hyundai or you fill the o Inspection should be performed any time a be divided into three main areas: fuel tank. A list of these items will be found on malfunction is experienced or suspected.
  • Page 123 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS compliance with conditions of the emissions system warranty. o After 120 months or 150,000 miles (240,000 km), continue to follow the prescribed main- tenance intervals. o For severe usage maintenance require- ments, see page 5-5 of this section.
  • Page 124 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F030A01A-AAT SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty.
  • Page 125 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F030C07Y-AAT R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MILES X 1000 22.5 37.5 52.5 67.5 82.5 97.5 112.5 127.5...
  • Page 126 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F040A04Y-AAT MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS The following items must be serviced more frequently on cars normally used under severe driving conditions.
  • Page 127 Air cleaner filter o Air cleaner filter tions tions tions tions tions A Genuine Hyundai air cleaner filter is recom- TENANCE ITEMS TENANCE ITEMS TENANCE ITEMS TENANCE ITEMS TENANCE ITEMS Check the fuel lines, fuel hoses and connec- mended when filter is replaced.
  • Page 128 Use Genuine the dust boots and ball joints for deterioration, to the Shop Manual. Hyundai ATF or DIAMOND ATF SP-III or SK cracks, or damage. Replace any damaged parts. ATF SP-III when adding or changing fluid.
  • Page 129 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE 6. 6. 6. 6. 6. DO-IT DO-IT DO-IT DO-IT-Y -Y -Y -Y -YOURSELF MAINTENANCE OURSELF MAINTENANCE OURSELF MAINTENANCE DO-IT OURSELF MAINTENANCE OURSELF MAINTENANCE G010A02Y-GAT ENGINE COMPARTMENT (2.4 DOHC) ENGINE COMPARTMENT (2.4 DOHC) ENGINE COMPARTMENT (2.4 DOHC) ENGINE COMPARTMENT (2.4 DOHC) ENGINE COMPARTMENT (2.4 DOHC)
  • Page 130 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G010B03Y-AAT ENGINE COMPARTMENT (2.7 V6 Delta) ENGINE COMPARTMENT (2.7 V6 Delta) ENGINE COMPARTMENT (2.7 V6 Delta) ENGINE COMPARTMENT (2.7 V6 Delta) ENGINE COMPARTMENT (2.7 V6 Delta) 1 2 3 G010B04Y 9 10 11 12 13 1.
  • Page 131 Windshield glass condition ly, inspect it carefully and seek assistance from o Wiper blade condition your Hyundai dealer if service is needed. o Paint condition and body corrosion o Fluid leaks o Door and hood lock condition...
  • Page 132 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G030C01A-AAT G030D01A-AAT G040A02A-AAT To Check the Oil Level To Check the Oil Level To Check the Oil Level To Check the Oil Level To Check the Oil Level Adding Oil Adding Oil Adding Oil Adding Oil...
  • Page 133 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE 3. Slide underneath the car and loosen the 8. Start the engine and check to be sure no oil G050B01A-AAT Recommended Engine Coolant Recommended Engine Coolant Recommended Engine Coolant Recommended Engine Coolant Recommended Engine Coolant drain plug by turning it counterclockwise is leaking from the drain plug or oil filter.
  • Page 134 If the level drops again, visit your demineralized or distilled water in small quan- Engine Coolant concentration Ambient Hyundai dealer for an inspection and diagnosis tities until the fluid level stays up in the Antifreeze temperature of the reason.
  • Page 135 When spark plugs are replaced, always use spark plugs recommended by Hyundai. The use of other spark plugs can result in loss of perfor- mance, radio interference or engine damage.
  • Page 136 2. When this is done, the cover can be lifted If the wipers continue to streak or smear the off, the old filter removed and the new filter glass, replace them with genuine Hyundai re- G060C03O put in its place.
  • Page 137 Recommended Oil quent use. 1. Using a wrench of the correct size, loosen Use only HYUNDAI GENUINE PARTS MTF The capacity of the washer reservoir is 3.2 U.S. the oil filler plug by turning it counterclock- 75W/90 (API GL-4) or equivalent in the manual quarts (3.0 Liters).
  • Page 138 Recommended Fluid Recommended Fluid reinsert the dipstick as far as it will go, then Your Hyundai automatic transaxle is specially remove it again. Now check the fluid level on designed to operate with HYUNDAI GENUINE the dipstick. It should be in the “HOT” range ATF or DIAMOND ATF SP-III or SK ATF SP- on the dipstick.
  • Page 139 Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer.
  • Page 140 NOTE: NOTE: NOTE: NOTE: inspected by your Hyundai dealer. Do not allow any other liquids to contami- Do not allow any other liquids to contami- Do not allow any other liquids to contami- Do not allow any other liquids to contami- Do not allow any other liquids to contami- nate the brake fluid.
  • Page 141 Then, using your hand, press down slowly on to changes in resistance that mark the limits of it is not, have it inspected by your Hyundai the brake pedal until you feel a change in the free-play. If the free-play is greater than dealer and adjusted or repaired if necessary.
  • Page 142 If this ever happens, other parts of the engine. After a belt is re- brake pedal to the asphalt sheeting under the have a Hyundai dealer determine the cause, placed, the new belt should be adjusted again floor mat.
  • Page 143 Hyundai ous and should be referred to a Hyundai ous and should be referred to a Hyundai ous and should be referred to a Hyundai...
  • Page 144 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G210A01A-AAT o Charge batteries only in a well ventilated condition. condition. condition. condition. condition. CHECKING THE BATTERY CHECKING THE BATTERY CHECKING THE BATTERY CHECKING THE BATTERY CHECKING THE BATTERY area. o Do not permit flames, sparks or smoking in WARNING: WARNING:...
  • Page 145 YOUR HYUNDAI YOUR HYUNDAI YOUR HYUNDAI G270A04Y If you desire additional information about main- taining and servicing your Hyundai, you may purchase a factory Shop Manual at your Hyundai Turn signal Light dealer's parts department. This is the same G270A03Y 6-17...
  • Page 146 Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an ter of headlights. authorized Hyundai Dealer. authorized Hyundai Dealer. authorized Hyundai Dealer. authorized Hyundai Dealer. authorized Hyundai Dealer.
  • Page 147 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE SPECIFICATION: SPECIFICATION: SPECIFICATION: SPECIFICATION: SPECIFICATION: "H" Horizontal center line of headlights from ground : Low Beam: 25.55 in. (649mm) High Beam: 25.31 in. (643mm) "W" Distance between each headlight center : Low Beam: 51.97 in.
  • Page 148 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G280A04Y-AAT (High) (Low) G280A04Y Wattage Part Name Part Name Wattage 55(H1)/55(H7) Head Light (High/Low) High Mounted Rear Stop Light 3.2 (LED type) Map Light With Sunroof Luggage Compartment Light Without Sunroof Rear Combination Light Interior Light Stop / Tail Light...
  • Page 149 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G200C02Y-GAT DESCRIPTION FUSE RATING PROTECTED COMPONENTS JUNCTION BOX DESCRIPTION JUNCTION BOX DESCRIPTION JUNCTION BOX DESCRIPTION JUNCTION BOX DESCRIPTION JUNCTION BOX DESCRIPTION COND FAN Condenser fan Power window Under hood junction box Under hood junction box Under hood junction box Under hood junction box...
  • Page 150 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE G200D01Y-GAT DESCRIPTION FUSE RATING PROTECTED COMPONENTS Instrument panel junction box Instrument panel junction box Instrument panel junction box Instrument panel junction box Instrument panel junction box RR HTD IND Rear window defroster, Outside rear view mirror heater HAZARD Hazard light, Turn signal lights RR FOG...
  • Page 151 Hyundai dealer in ac- a canister while refueling at the gas station, a canister while refueling at the gas station,...
  • Page 152 Do not stop your Hyundai over any com- Do not stop your Hyundai over any com- Do not stop your Hyundai over any com-...
  • Page 153 The vehicle identification number (VIN) is the These pressures were chosen to provide the number used in registering your car and in all The tires supplied on your new Hyundai are most satisfactory combination of ride comfort, legal matters pertaining to its ownership, etc. It chosen to provide the best performance for tire wear and stability under normal conditions.
  • Page 154 Tire chains, if necessary, should be installed on checked by a Hyundai dealer so the cause may o o o o o Never overload your car. Be especially Never overload your car. Be especially Never overload your car. Be especially Never overload your car.
  • Page 155 Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di-...
  • Page 156 The traction grade assigned to this tire is The traction grade assigned to this tire is mation on uniform tire quality grading. Your A Hyundai Shop Manual is available from your based on straight-ahead braking based on straight-ahead braking traction...
  • Page 157 Southern Region: Southern Region: Southern Region: Southern Region: Southern Region: Alabama, Arkansas, Flori- Hyundai motor vehicles are designed and man- da, Georgia, Louisiana, Mississippi, North Caro- ufactured to meet or exceed all applicable safe- lina, South Carolina, Oklahoma, Tennessee, ty standards.
  • Page 158 Traffic Safety Administration hicle safety from the Hotline. (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
  • Page 159 VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS J040A03Y-AAT 9. 9. 9. 9. 9. VEHICLE SPECIFICA VEHICLE SPECIFICA VEHICLE SPECIFICA TIONS TIONS VEHICLE SPECIFICA VEHICLE SPECIFICATIONS TIONS TIONS ELECTRICAL ELECTRICAL ELECTRICAL ELECTRICAL ELECTRICAL Item 2.4L 2.7L (V6) J010A03Y-AAT MEASUREMENT MEASUREMENT MEASUREMENT...
  • Page 160 VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS J070A03Y-AAT ENGINE ENGINE ENGINE ENGINE ENGINE SPECIFICATIONS ITEMS 2.4L (DOHC) 2.7L (V6) Engine Type 4-Cyl., In-line DOHC 6-Cyl., V-type DOHC Bore x Stroke. in. (mm) 3.41x 3.94 (86.5 x 100) 3.41 x 2.95 (86.7 x 75.0) Displacement.
  • Page 161 4.77 (3.96, 4.5) Transaxle Manual HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) 2.2 (1.8, 2.1) Auto HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III 8.2 (6.9, 7.8) Coolant Ethylene glycol base for aluminum radiator 7.7 (6.4, 7.3) 9.0 (7.6, 8.6)
  • Page 162 Brake Corrosion protection Anti-lock system ................2-8 Checking the brakes ..............6-11 Cleaning the interior ................ 4-3 Protecting your Hyundai from corrosion ......... 4-1 Fluid ....................6-11 Pedal clearance ................6-14 Washing and waxing ............... 4-2 Cruise Control ................... 1-49 Pedal free-play ................
  • Page 163 INDEX INDEX INDEX INDEX INDEX Drink Holder ..................1-38 Adjustable headrests ............... 1-9 Drive Belts ................6-12, 6-14 Adjusting seat forward and rearward ..........1-8 Driving Adjusting seatback angle ..............1-8 Economical driving ................ 2-10 Fuel Smooth cornering ................2-10 Capacity ..................
  • Page 164 INDEX INDEX INDEX INDEX INDEX I I I I I Mirrors Ignition Switch ..................2-2 Day-night inside rearview .............. 1-43 Instrument Cluster and Indicator Lights ..........1-28 Outside rear view ................1-41 Instrument Panel Light Control (Rheostat) ........1-37 Instruments and Controls ..............1-27 O O O O O Interior Light ..................
  • Page 165 INDEX INDEX INDEX INDEX INDEX Adjusting your seat belt ..............1-15 Spare tire ..................3-3 Care of seat belts ................. 1-13 Traction ................... 8-3 Precautions ................... 1-12 Towing Shop Manual ..................8-4 A trailer (or vehicle) ..............2-12 Spark Plugs ..................6-6 Emergency ..................
  • Page 166 US.gal (Imp.gal., liter) 17.2 (14.3, 65) lever through all ranges and return to “N” (Neutral) position. Then check the level of fluid on the dipstick. Use only HYUNDAI GENU- TIRE PRESSURE: INE ATF available at your dealer or DIAMOND ATF SP-III or SK See the label on the driver's door edge.

Table of Contents
