If standpipe is lower than 36 inches (91.44 cm), you
must install No. 562P3 Siphon Break Kit. Refer to
Figure 8. This kit is available (as optional equipment
at extra cost) through an authorized dealer or parts
distributor. Installation instructions are supplied with
the kit.
1
3
2
1 562P3 Siphon Break Kit
2 Standpipe
3 Drain Hose

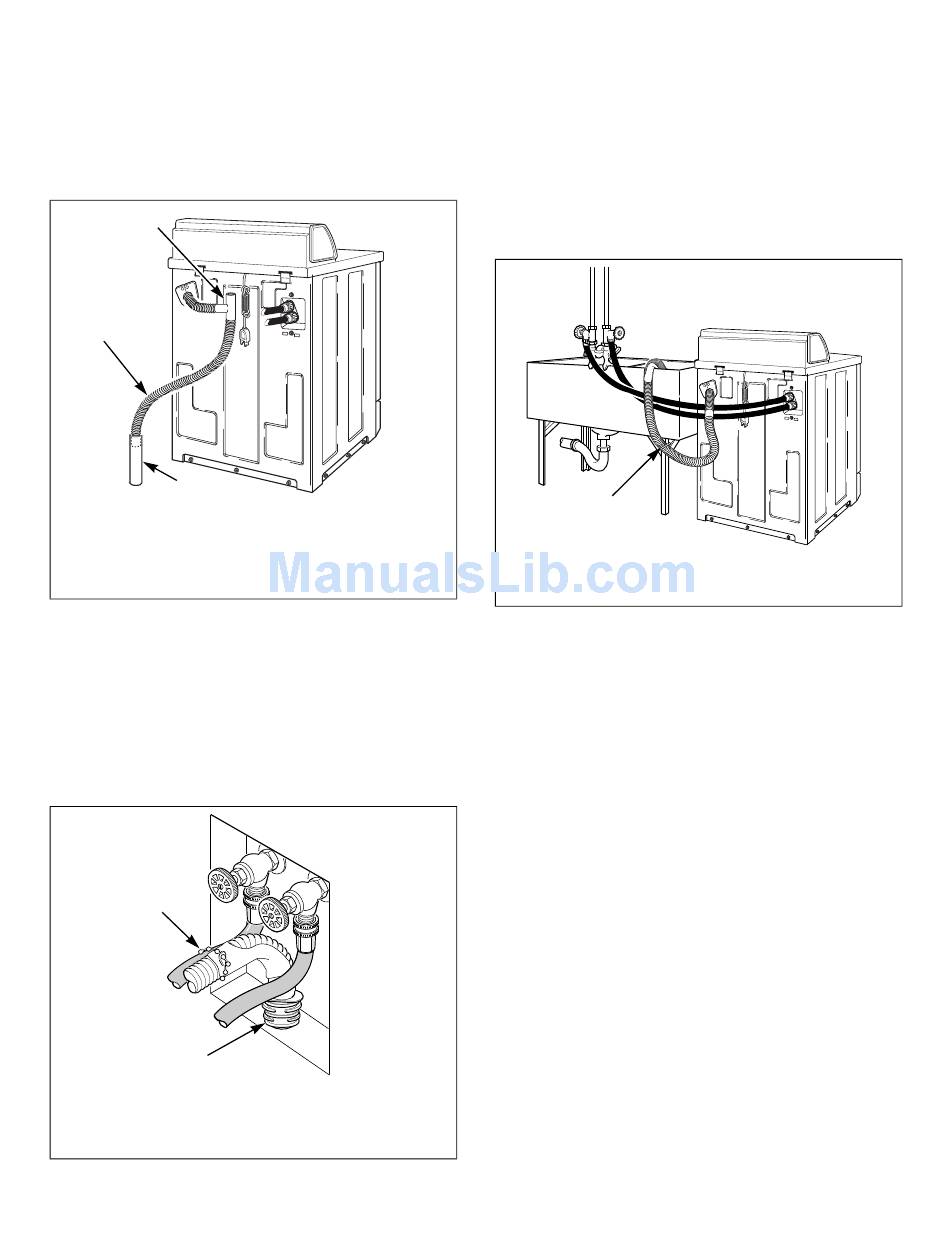

Figure 8

Wall Installation:

For installations of this type, the drain hose MUST be
secured to one of the fill hoses using the beaded strap
from accessories bag. Refer to Figure 9.
NOTE: End of drain hose must be below height of
cabinet top.
1
2
1 Beaded Strap (tape if necessary)
2 Standpipe Adapter
Figure 9
6
W512I
W512I
W329I
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Laundry Tub Installation:

For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
disloding during use. Refer to Figure 10. Use the
beaded strap (supplied in accessories bag) to secure
hose.
We recommend leaving the standpipe adapter on the
drain hose for this type of installation.
1
1 Beaded Strap (tape if necessary)
Figure 10
W515I
