ACCESSORIES
Carry Bag
Rugged double-stitched construction
CBAG2
Pouch & Digger Combo
Pouch with 2 large pockets & 9" heavy duty digging tool. TPKIT-W
Bounty Hunter Stereo Headphones
Use with Bounty Hunter metal detectors. Lightweight and adjustable with
true stereo sound, adjustable volume, 1/8 jack with 1/4 adaptor,
4' cable. HEAD-W
Pin Pointer
Pinpoints the exact location of buried metal objects. Audio signal indicator
and vibrator. Runs on 1 – 9-Volt Battery. PIN POINTER-W
Sand Scoop
Large scoop with filtering holes. Made of strong plastic. SAND SCOOPBH
Replacement Search Coil
7" Standard Coil (replacement) - 7COIL-EX
9" Heavy-Duty Digging Tool
Metal blade with comfortable plastic handle and depth gauge TROWEL-2
Digging Tool
Light and practical wide blade digging tool. TROWEL-W
Bounty Hunter Baseball Cap
One size fits all, with Bounty Hunter
®
logo.
Bounty Hunter T-Shirt
®
100% cotton with Bounty Hunter
Logo. Sizes – LG, XL & XXL
Gold
Prospecting Kits
FOR COMPLETE DETAILS VISIT WWW.DETECTING.COM • 1-800-413-4131
MADV
Rev.2
O W N E R ' S

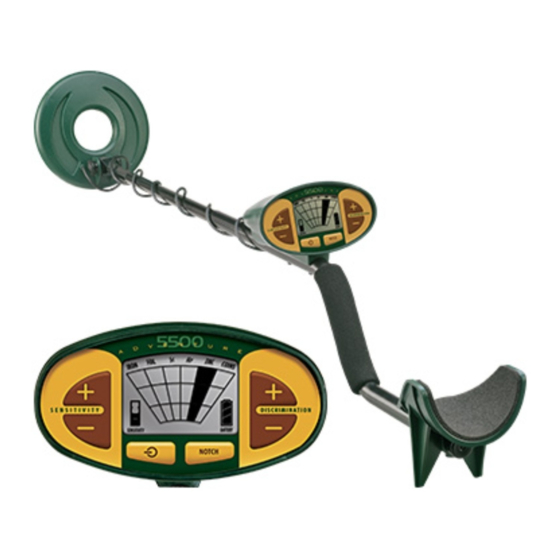

The Adventure 5500 is a professional metal
detector. While the most difficult aspects of metal
detecting have been automated, it is a sophisticated electronic
device which requires an understanding of some basic features and metal
detecting concepts.
If you do not have prior experience with a metal detector, we strongly
recommend that you:
1) Adjust the Sensitivity to a low setting in the event of false
signals. Always begin use at a reduced sensitivity level; increase to
full sensitivity after you have become familiar with the detector.
2) Do not use indoors. This detector is for outdoor use only. Many
household appliances emit electromagnetic energy, which can interfere
with the detector. If conducting an indoor demonstration, turn the
sensitivity down and keep the searchcoil away from appliances such as
computers, televisions and microwave ovens. If your detector beeps
erratically, turn off appliances and lights, especially those with dimmer
switches.
Also keep the searchcoil away from objects containing metal, such as
floors and walls.
3) Read this manual. Most importantly, review the
Quick-Start Demo (p.7-8) and Basic Operation (p. 9-11).
4) Use 9-volt ALKALINE batteries only.
Do not use Heavy Duty Batteries.
091313
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adventure 5500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cabela's Adventure 5500

  • Page 1 Sand Scoop Large scoop with filtering holes. Made of strong plastic. SAND SCOOPBH Replacement Search Coil The Adventure 5500 is a professional metal 7” Standard Coil (replacement) - 7COIL-EX detector. While the most difficult aspects of metal 9” Heavy-Duty Digging Tool...
  • Page 2: Table Of Contents

    Basic Operation ........9-11 The ADVENTURE 5500 metal detector is warranted against defects in Powering-up .
  • Page 3: Terminology

    Terminology TROUBLESHOOTING The following terms are used throughout the manual, and are standard terminology among TROUBLESHOOTING GUIDE detectorists. ELIMINATION SYMPTOM CAUSE SOLUTION Reference to a metal being "eliminated" means that the detector will not emit a tone, nor light up an indicator, when a specified object passes through the coil’s detection field. Detector chatters •...
  • Page 4: Assembly

    The Adventure 5500 Metal Detector has a stereo headphone jack located at the rear of the case. This device is to be used with...
  • Page 5: In The Field Techniques

    In The Field Techniques Assembly - cont. Adjusting the Armrest Swing the searchcoil slowly, overlapping each rapid sweep may provide a more consistent Most people will find the standard position of the sweep as you move forward. It is important to target identification.
  • Page 6: Batteries

    In The Field Techniques Batteries Use ALKALINE batteries only. PINPOINTING COIL MOVEMENT To install the batteries: Accurate pinpointing takes practice and is best When swinging the coil, be careful to keep it Remove the battery cover by accomplished by “X-ing” the target area. level with the ground about 2.5cm (1 inch) disengaging the clip at the back.
  • Page 7: Quick-Start Demo

    A secondary use for the Sensitivity Control is to reduce false detection signals caused by severe ground Medium Tone: Penny conditions. While your Adventure 5500 contains circuitry to eliminate the signals caused by most High Tone: Quarter naturally occurring ground minerals, 100% of all ground conditions cannot be anticipated. Highly b.
  • Page 8: Depth And Target Display

    Many other types of metal can fall under any one of these categories. While the Adventure 5500 will eliminate The segment identifications are highly accurate, when or indicate the presence of most common trash items, it detecting the objects described on the label.
  • Page 9: Basic Operation

    Basic Operation Audio Target Identification While the LCD (Liquid Crystal Display) is very accurate in identifying buried objects, the user in the field does not always maintain the display screen in his field of vision. Therefore, we have incorporated an audio feedback mechanism to alert the user to the nature of buried objects. This audio feedback system first alerts the user to the presence and classification of objects, whose nature and location can be confirmed using the LCD display.
  • Page 10: Default Operation (All Metal)

    Basic Operation Basic Operation - cont. - cont. DEFAULT OPERATION To increase the level of discrimination, press DISCRIMINATION . Each time the pad is The detector defaults to ALL METAL Mode after powering on. In this mode, all types of depressed, an additional "X"...
