If you do not have
prior experience with a
metal
detector,
strongly recommend that you:
1) Adjust the Sensitivity to a low setting
in the event of false signals. Always begin
use at a reduced sensitivity level; increase to
full sensitivity after you have become familiar
with the detector.
2) Do not use indoors. This detector is for outdoor use
only. Many household appliances emit electromagnetic energy,
which can interfere with the detector. If conducting an indoor
demonstration, turn the sensitivity down and keep the search coil
away from appliances such as computers, televisions and
microwave ovens.
appliances and lights.
Also keep the search coil away from objects containing metal, such
as floors and walls.
3) Use a 9-volt ALKALINE battery only.
Do not use Heavy Duty Batteries.
we
If your detector beeps erratically, turn off

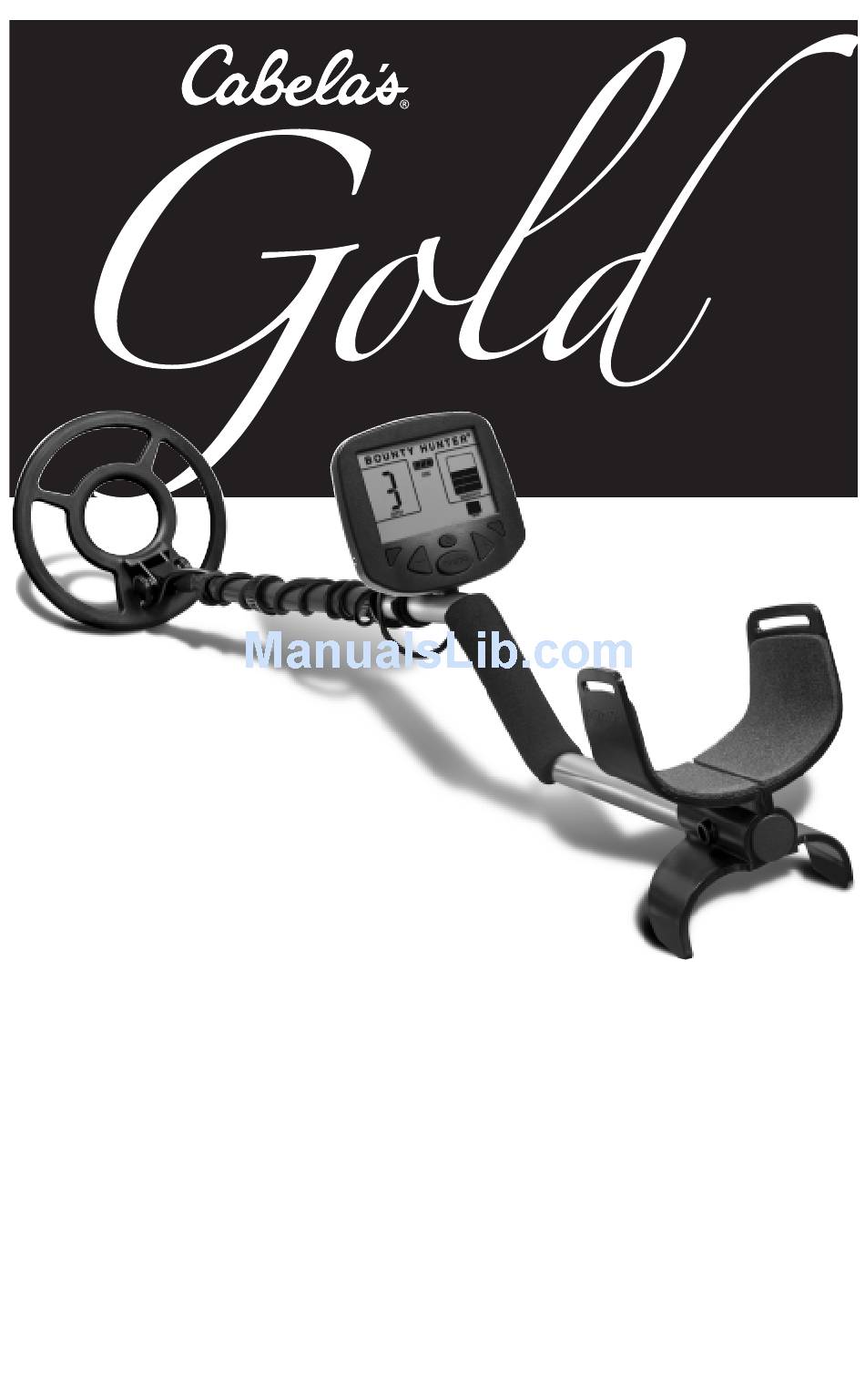

METAL DETECTOR
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gold and is the answer not in the manual?

Questions and answers

Related Manuals for Cabela's Gold

Summary of Contents for Cabela's Gold

  • Page 1 METAL DETECTOR OWNER’S MANUAL If you do not have prior experience with a metal detector, strongly recommend that you: 1) Adjust the Sensitivity to a low setting in the event of false signals. Always begin use at a reduced sensitivity level; increase to full sensitivity after you have become familiar with the detector.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Terminology ........3 Assembly .

  • Page 3: Terminology

    TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. ELIMINATION Reference to a metal being "eliminated" means that the detector will not emit a tone, nor light up an indicator, when a specified object passes through the coil’s detection field.

  • Page 4: Assembly

    ASSEMBLY Assembly is easy and requires no tools. Loosen both Locking Collars by rotating 100% counterclockwise. Insert the Upper Stem into the S-Rod and click Silver Button into hole. Position the Lower Stem with the Silver Button toward the back. Using the Bolt and Knurled Knob, attach the Search Coil to the Lower Stem.
  • Page 5 ASSEMBLY Adjusting the Arm Rest The arm rest may be moved forward backwards removing the single screw and nut, and then repositioning the 2-piece arm rest. Users with shorter arms may find the arm rest more comfortable in the forward position. In order to move the arm rest backwards, plastic...

  • Page 6: Batteries

    BATTERIES The detector requires a single 9-volt ALKALINE battery (battery not included). Do not use ordinary zinc carbon batteries. Rechargeable batteries can also be used. If you wish to use rechargeable batteries, we recommend using a Nickel Metal Hydride rechargeable battery. The battery compartment is located on the back side of the housing.

  • Page 7: Quick-Start Demo

    QUICK-START DEMONSTRATION I. Supplies Needed • a Nail • a Zinc Penny (dated after 1982) • a Nickel • a Quarter II. Position the Detector a. Place the detector on a table, with the search coil hanging over the edge. Or better, have a friend hold the detector, with the search coil off the ground.

  • Page 8: Basic Of Metal Detecting

    4. Estimating the size and depth of objects, to facilitate digging them up. 5. Eliminating the effects of electromagnetic interference from other electronic devices. Your GOLD metal detector is designed with these things in mind. 1. Ground Minerals All soils contain minerals. Signals from ground minerals can interfere with the signals from metal objects you want to find.

  • Page 9: Size And Depth Of Buried Objects

    THE BASICS continued 4. Size and Depth of Buried Objects The relative depth of an object is displayed at the left of the display as a 1 digit number, 0 to 9 inches. The size of an object can be determined using sweep techniques described later in the manual.

  • Page 10: How To Work The Controls

    OPERATION and CONTROLS POWERING UP Press • The detector always starts up with the DISCRIMINATION feature active. Motion is required to detect metal. • Sensitivity is at 70% of maximum • All target categories are illuminated, meaning that all metal objects will be detected.

  • Page 11: Menu Selections

    OPERATION and CONTROLS MENU SELECTIONS 1. DISC to increase or decrease DISCRIMINATION level. Each time you press , a target category is eliminated from detection. Elimination occurs from left to right. When a category description (for example “IRON”) disappears from the display, then targets classified in that category will not be detected.

  • Page 12: Sensitivity

    HOW DEEP WILL IT GO? The Gold Metal Detector will detect a coin-sized object, like a quarter, to a distance of about 9” from the search coil. Large metal objects can be detected to a depth of several feet.

  • Page 13: Target Identification

    Smallest-sized gold objects and steel bottle caps MEDIUM TONE Newer pennies (post-1982 are minted from zinc) Larger gold pieces, small brass objects, and most bottle screw caps. Foil, pull-tabs, nickels and most recent-vintage non-US coins. HIGH TONE Silver and copper coins, large brass objects...

  • Page 14: Depth And Target Display

    Older pull tabs, which always detached completely from the can, register The detector will register a consistent target here. Many medium size gold ring also identification, upon each sweep of the coil, register here. when a buried target has been located and identified.

  • Page 15: In The Field Techniques

    IN THE FIELD TECHNIQUES PINPOINTING COIL MOVEMENT Accurate pinpointing takes practice When swinging the coil, be and is best accomplished by careful to keep it level with the “X-ing” the target area. ground about one inch from the surface. Never swing the coil like 1.
  • Page 16 IN THE FIELD TECHNIQUES (continued) Swing the search coil slowly, respond with a repeatable tone. overlapping each sweep as you If the signal does not repeat move forward. It is important after sweeping the coil directly to sweep the coil at a consistent over the suspected target a few speed over the ground as you times, it is more than likely...
  • Page 17 IN THE FIELD TECHNIQUES (continued) angles, have You will be surprised just how encountered multiple objects. much trash metal and foil you If you are new to the hobby, will find in some areas. The you may want to dig all targets trashiest areas have been at first.

  • Page 18: Headphones

    HEADPHONE JACK The detector has a 1/8” headphone jack on the left side of the housing Optional Bounty Hunter Headphones come standard with a 1/8” stereo plug (the 1/4” adapter is not required). When the headphone jack is connected, speaker audio is disabled. Using a detector with headphones facilitates detection of the weakest signals and also extends the battery life.

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING TROUBLE SHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters • Using detector • Use detector or beeps erratically indoors outdoors only • Using detector near • Move away power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 20’...

  • Page 20: Code Of Ethics

    And ALWAYS COVER YOUR HOLES! 5-YEAR LIMITED WARRANTY The GOLD metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner.
