O W N E R ' S
The Adventure 5500 is a professional metal
detector. While the most difficult aspects of metal
detecting have been automated, it is a sophisticated electronic
device which requires an understanding of some basic features and metal
detecting concepts.
If you do not have prior experience with a metal detector, we strongly
recommend that you:
1) Adjust the Sensitivity to a low setting in the event of false
signals. Always begin use at a reduced sensitivity level; increase to
full sensitivity after you have become familiar with the detector.
2) Do not use indoors. This detector is for outdoor use only. Many
household appliances emit electromagnetic energy, which can interfere
with the detector. If conducting an indoor demonstration, turn the
sensitivity down and keep the search coil away from appliances such
as computers, televisions and microwave ovens. If your detector beeps
erratically, turn off appliances and lights, especially those with dimmer
switches.
Also keep the search coil away from objects containing metal, such as
floors and walls.
3) Read this manual. Most importantly, review the
Quick-Start Demo (p.7-8) and Basic Operation (p. 9-11).
4) Use 9-volt ALKALINE batteries only.
Do not use Heavy Duty Batteries.
M A N U A L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cabela's Adventure 5500
Summary of Contents for Cabela's Adventure 5500

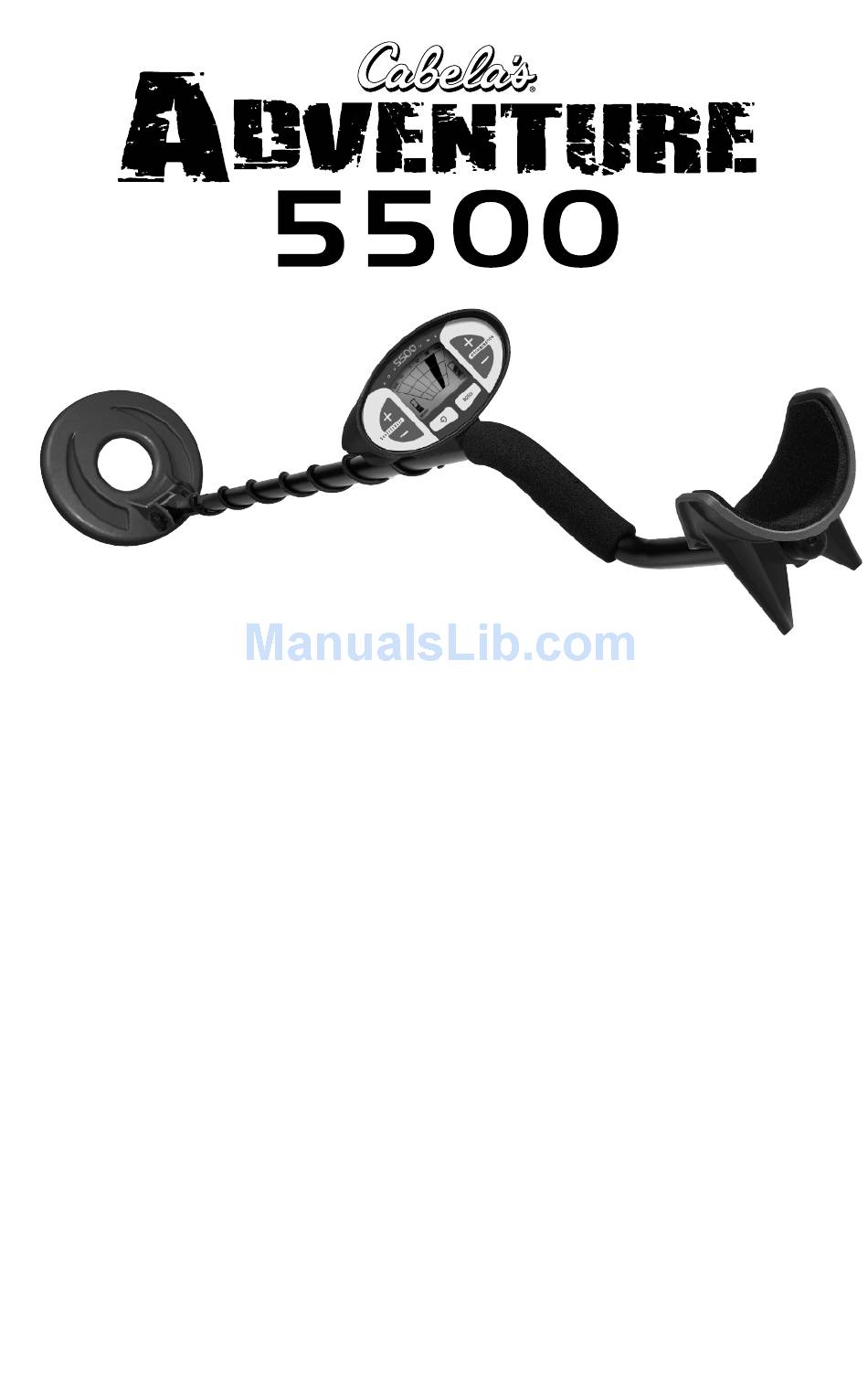

- Page 1 O W N E R ’ S M A N U A L The Adventure 5500 is a professional metal detector. While the most difficult aspects of metal detecting have been automated, it is a sophisticated electronic device which requires an understanding of some basic features and metal detecting concepts.
-
Page 2: Table Of Contents
Table of Contents Terminology..........3 Assembly . -
Page 3: Terminology
Terminology The following terms are used throughout the manual, and are standard terminology among detectorists. ELIMINATION Reference to a metal being "eliminated" means that the detector will not emit a tone, nor light up an indicator, when a specified object passes through the coil’s detection field. DISCRIMINATION When the detector emits different tones for different types of metals, and when the detector "eliminates"... -
Page 4: Assembly
Assembly Assembly is easy and requires no tools. Position the lower stem (the straight tube) with the silver button toward the back. Using the bolt and knurled knob, attach the search coil to the plastic extension protruding from the lower stem. -
Page 5: Assembly
Assembly Adjusting the Arm Rest Most people will find the standard position of the arm rest very comfortable. Very large forearms and short forearms (particularly children’s arms), can be accommodated by moving the arm rest forward. The arm rest is adjustable to three positions. To adjust, remove the screw from the underside, then press the silver button and move the arm rest to one of the alternate positions. -
Page 6: Batteries
Batteries Use ALKALINE batteries only. To install the batteries: Remove the battery cover by disengaging the clip at the back. Align the polarity of the batteries correctly, with the positive "+" toward the coil plug connection, as indicated by the + and – indicators on the housing. -
Page 7: Quick-Start Demo
Quick-Start Demonstration I. Supplies Needed • A Nail • A Quarter • A Zinc Penny (dated after 1982) II. Position the Detector a. Place the detector on a table, with the search coil hanging over the edge. (or better, have a friend hold the detector, with the coil off the ground) b. -
Page 8: Quick-Start Demo
Quick-Start Demonstration -cont VI. Wave the Nail over the Search Coil a. The nail will not be detected. b. The nail has been "Discriminated Out." VII. Press DISCRIMINATION four times. Five “X”s are now displayed over the first 5 target IDs. VIII. -
Page 9: Basic Operation
Basic Operation POWERING UP Press • The detector will beep 4 times • All display segments will illuminate momentarily • The SENSITIVITY and BATTERY indicators will stay illuminated SENSITIVITY The detector’s default sensitivity will be indicated with two segments. At this setting, the detector will detect a coin-sized object, such as a quarter at a distance of about 7”. -
Page 10: All Metal
Basic Operation - continued DEFAULT OPERATION The detector defaults to ALL METAL mode after powering on. In this mode, all types of metals will be detected. An object’s probable identification is indicated by illuminating the icons beneath the appropriate category. In addition, the probable depth of coin-sized objects is indicated by the number of icons illuminated under each target ID. -
Page 11: Notch
Basic Operation - continued To increase the level of discrimination, press DISCRIMINATION . Each time the pad is depressed, an additional "X" will appear, thus eliminating from detection the objects which fall into the corresponding categories. To decrease the level of discrimination, press DISCRIMINATION . -
Page 12: Headphone Jack
Using headphones (not supplied) with your metal detector makes it easier to identify subtle changes in the threshold levels for better detection results, and also reduces drain on the batteries. The Adventure 5500 Metal Detector has a stereo headphone jack located at the rear of the case. -
Page 13: Audio Target Identification
Audio Target Identification While the LCD (Liquid Crystal Display) is very accurate in identifying buried objects, the user in the field does not always maintain the display screen in his field of vision. Therefore, we have incorporated an audio feedback mechanism to alert the user to the nature of buried objects. This audio feedback system first alerts the user to the presence and classification of objects, whose nature and location can be confirmed using the LCD display. -
Page 14: Target And Depth Display
Many other types of metal can fall under any one of these categories. While the Adventure 5500 will eliminate The segment identifications are highly accurate, when or indicate the presence of most common trash items, it detecting the objects described on the label. -
Page 15: Sensitivity Adjustment
A secondary use for the Sensitivity Control is to reduce false detection signals caused by severe ground conditions. While your Adventure 5500 contains circuitry to eliminate the signals caused by most naturally occurring ground minerals, 100% of all ground conditions cannot be anticipated. Highly magnetic soils found in mountainous and gold-prospecting locations can cause the detector to emit tones when metal objects are not present. -
Page 16: In The Field Techniques
In The Field Techniques PINPOINTING COIL MOVEMENT Accurate pinpointing takes practice and is best When swinging the coil, be careful to keep it accomplished by “X-ing” the target area. level with the ground about 2.5cm (1 inch) from the surface. Never swing the coil like a 1. - Page 17 In The Field Techniques -cont Swing the search coil slowly, overlapping each rapid sweep may provide a more consistent sweep as you move forward. It is important to target identification. sweep the coil at a consistent speed over the ground as you search. After identifying a target, Most worthwhile objects will respond with a your sweep technique can help in identifying repeatable tone.
-
Page 18: In The Field Techniques
In The Field Techniques -cont buried objects by the nature of the detector’s response. You may encounter some false signals as you proceed. False signals occur when the detector beeps, but no metal target is present. False signals can be induced by electromagnetic interference, oxidation, or highly mineralized ground soils. -
Page 19: Trouble Shooting
TROUBLE SHOOTING TROUBLE SHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters • Using detector • Use detector or beeps erratically indoors outdoors only • Using detector near • Move away power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 6m (20’) apart •... -
Page 20: Treasure Hunter's Code Of Ethics
• All treasure hunters may be judged by the example you set; always conduct yourself with courtesy and consideration of others 5-YEAR LIMITED WARRANTY The ADVENTURE 5500 metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner.
