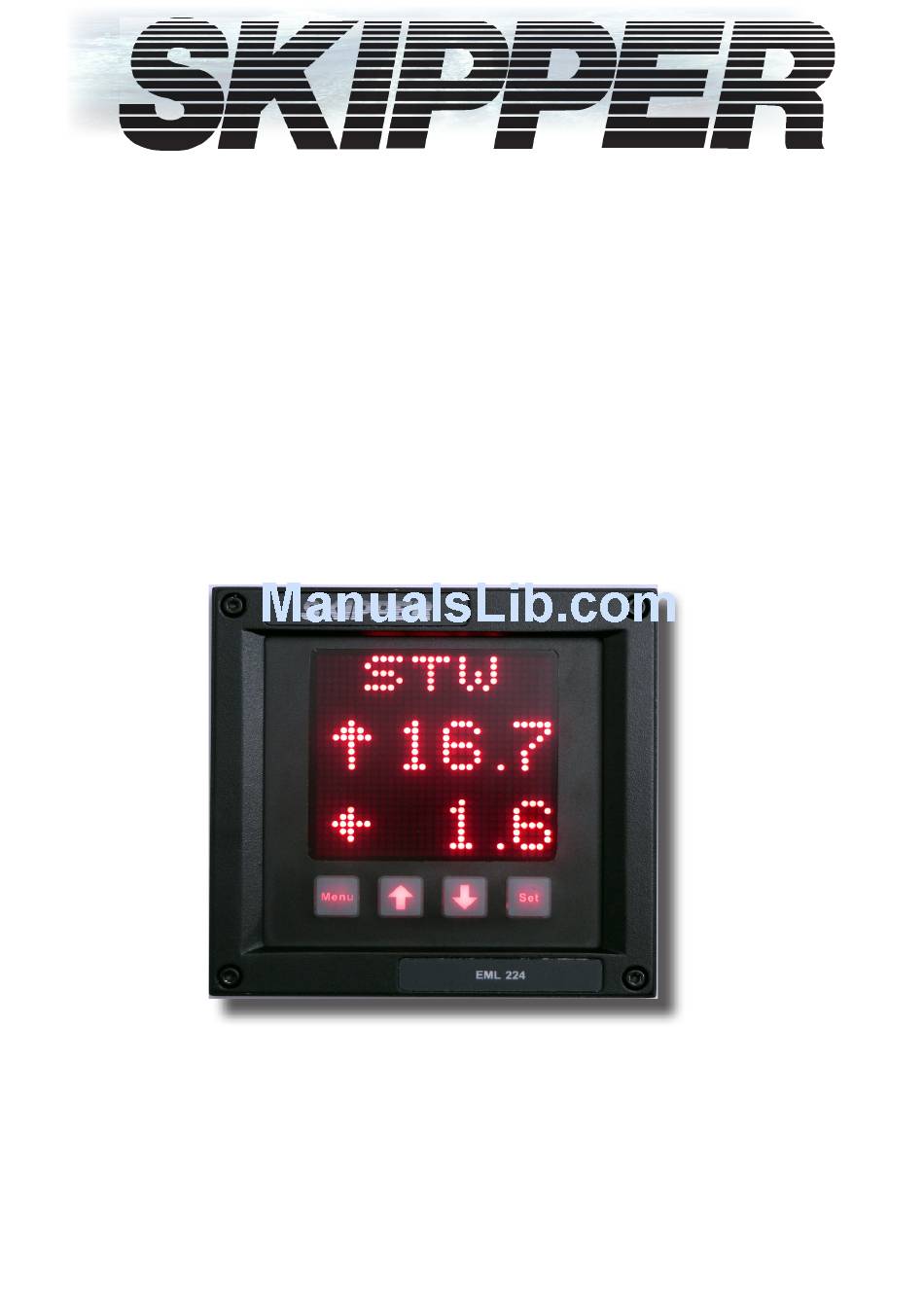

EML224 Compact

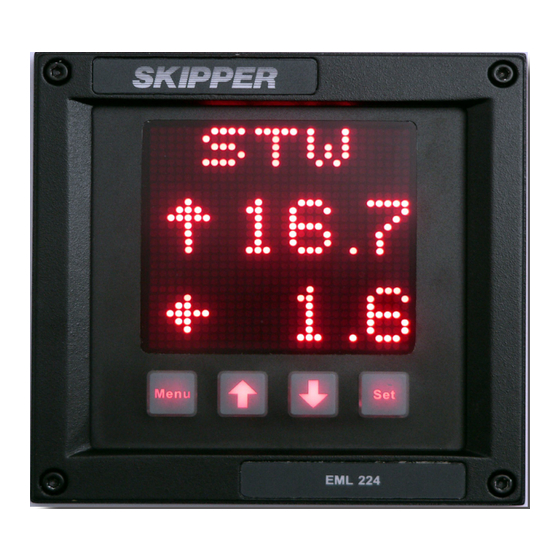

CD401 LR Speed Log Repeater
Operation and Installation Manual
SKIPPER Electronics AS
Enebakkveien 150
P. O. Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
Telephone: +47 23 30 22 70
Telefax:
+47 23 30 22 71
E-mail:
support@skipper.no
Co. reg. no: NO-965378847-MVA
Document no: DM-R004-SB
Edition: 2013-11-05
Rev: 1.13
for SW version 1.12 to 1.15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skipper CD401 LR
Summary of Contents for Skipper CD401 LR
-
Page 1: Appendix
EML224 Compact CD401 LR Speed Log Repeater Operation and Installation Manual SKIPPER Electronics AS Telephone: +47 23 30 22 70 Enebakkveien 150 Telefax: +47 23 30 22 71 P. O. Box 151, Manglerud E-mail: support@skipper.no 0612 Oslo, Norway Co. reg. no: NO-965378847-MVA Document no: DM-R004-SB www.skipper.no... - Page 2 Operation and Installation CD401LR OPERATION AND INSTALLATION MANUAL November 2013 Edition 2013-11-05 Sw. 1.12 - 1.15 Page 2 of 28 Edition: 2013-11-05 Rev: 1.13...
- Page 3 Operation and Installation CD401LR Electronics AS Speed Log Repeater COMPACT VERSION Weitergabe sowie vervielfältigung dieser Copying of this document, and giving it unterlage, verwertung und mitteilung ihres to others and the use or communication inhaltes nicht gestattet, soweit nicht ausdrücklich of contents thereof, are forbidden without zugestanden.
- Page 4 Electronics AS Communicating with us If you need more information, support or other assistance from us, do not hesitate to contact us: SKIPPER Electronics AS Enebakkveien 150 P. O Box 151 NO-0612 Manglerud, Norway Phone: + 47 23302270, Fax: + 47 23302271 E-mail Support@skipper.no...
-
Page 5: Overview Content Of The Manual
Operation and Installation CD401LR OVERVIEW ontent of the manual ___________________________________________________________________________ Terminology Terms, units and abbreviations used in this manual. Introduction This part introduces you to the elements of the electromagnetic speed log (EML) system. Chapter 1 – Physical installation Correct installation of the system will ensure problem free service for many years. - Page 6 Operation and Installation CD401LR Appendix 4 - Other options with the Speed log repeater The Compact can be used in a number of different system both as a repeater and a speed log. This section explains what is available and how to activate the options.
-
Page 7: Table Of Contents
Operation and Installation CD401LR TABLE OF CONTENTS Overview Content of the manual Terminology Terms used in this manual Introduction The RL speed Log Repeater Chapter 1 Physical installation The Dimming Inputs Chapter 2 Setting up the Compact Display Principles Run screens Menu screens Activating the Runtime Displays Configuring of data screens... - Page 8 Operation and Installation CD401LR Appendix 1 Spesification and mechanical drawings System full specification User defines inputs/outputs Accepted NMEA (IEC61162-1) formats Appendix 2 Accepted formats Accepted NMEA0183 (IEC61162-1) messages Appendix 3 Sending the system for repair Appendix 4 Other options with the compact display Compact options Changing the system/ adding options Page 8 of 28...
-
Page 9: Terminology Terms Used In This Manual
Operation and Installation CD401LR TERMINOLOGY erms used in this manual ______________________________________________________________ nits Unless otherwise stated, all values shown on the display are as follows: Distance Nautical Miles (nm) Speed Nautical Miles per hour (Kn) Speed Pulses per Nautical Mile (P/nm) Temperature Degrees Celsius ( bbreviations... -
Page 10: Introduction
______________________________________________________________ The SKIPPER Speed Log Repeater allow important speed values from log systems to be displayed anywhere on the vessel in the format the user wants. The Compact is unique in its simple, yet flexible way to display vital data in almost all conditions, from no light to bright sunlight. -
Page 11: Physical Installation
Operation and Installation CD401LR CHAPTER 1 hysiCal installation ___________________________________________________________________________ The Speed log repeater CD401LR is a stand alone unit and does not require additional circuitry. It should be supplied by a 24 V (18 V-36 V) 25 W DC supply and the cabling of the system is as per diagram below. -
Page 12: The Dimming Inputs
Operation and Installation CD401LR THE DIMMING INPUTS Pulses of at least 60ms on the dimming up and dimming down cables will cause the dimming to change by one level. The inputs are optocoupled and therefore require an external voltage to operate, (4 Volt -30 Volt (Typically 12/24 Volt)) Page 12 of 28 Edition: 2013-11-05 Rev: 1.13... -
Page 13: Setting Up The Compact Display
Operation and Installation CD401LR CHAPTER 2 etting up the ompaCt isplay ______________________________________________________________ PRINCIPLES The Compact Display is a flexible dot matrix LED display designed to display navigation data. The Speed log repeater can be user programmed to show most kinds of numerical data, from NMEA messages or self generated. It can also be used as a primary sensor display for speed logs showing the speed values produced by the sensor, or as a simple repeater. -
Page 14: Menu Screens
Operation and Installation CD401LR MENU SCREENS To change the setup of the Speead log repeater, the user must simultaneously press MENU and SET This will give access to a menu system allowing the user to scroll up and down the sub-menus and functions using UP (↑) and DOWN (↓), and SET to select. -
Page 15: Configuring Of Data Screens
Operation and Installation CD401LR CONFIGURING OF DATA SCREENS The 3 user programmable screens can be set up using the Config (CONFG) menu. This submenu allows the user to select one of the three displays, and on entering the config screen, the user can change the data type to be displayed in each of the 4 screen positions. -
Page 16: Menu Diagram
Operation and Installation CD401LR iagram ______________________________________________________________ Screens (SCRN) System Setup (SETUP) Activate/Deactivate user definable Setup the system parameters and runtime screens ▲ Next sub menu ▲ Next sub menu ▼ Prev sub menu ▼ Prev sub menu SET select sub menu SET select sub menu MENU return MENU return... - Page 17 Operation and Installation CD401LR Menus Scrollable menu system Accessed with SET and MENU pressed simultainiously ▲ Next sub menu ▼ Prev sub menu SET select sub menu MENU return Screen Configuration (CONFG) Diagnostics Advanced Setup (DIAG) Change the messages being Diagnose and adjust less used displayed on each user screen parameters...
-
Page 18: Changing Of The Baud Rate
Operation and Installation CD401LR ACCEPTED INPUTS The system will allow many NMEA formats to be displayed. Version 1.02 of the software allows the following: Speed long, trans, fore/aft water/bottom VMVBW Temperature (water) VMMTW, Trip/Total VMVLW, The system will automatically update recognized formats. CHANGING OF THE BAUD RATE The NMEA (IEC61162-1) standard is 4800 baud. -
Page 19: Routine Operation
Operation and Installation CD401LR CHAPTER 3 outine peration ___________________________________________________________________________ RUNTIME SCREENS The unit starts up in runtime mode. By pressing menu, the preset runtime screens can be selected. Some of the menu screens (i.e alarms) are also available in the runtime mode.The unit can be dimmed in any of the runtime screens using the UP (↑) and DOWN (↓) buttons. -
Page 20: Maintenance
Operation and Installation CD401LR CHAPTER 4 aintenanCe ______________________________________________________________ ROUTINE MAINTENANCE No maintenance is required. The screen can be cleaned with standard window cleaning solutions. CHECKING YOUR VERSION If the info screen is activated on the run screens, the System type and firmware version can be read from there. -
Page 21: Spesification And Mechanical Drawings
To help planning and installation, the following diagrams are supplied. 1. System full specification 2. Compact CP401 mounting diagram In addition further guides for mounting of your particular hull mounting can be found at www.skipper.no Edition: 2013-11-05 Rev: 1.13 Page 21 of 28... -
Page 22: System Full Specification
28 x 30 pixel alphanumeric LED (red).with dimming. Languages English. Accessories Dimming control Classification IMO MED B Service Available in most major harbours, world- wide through extensive dealer network. See www.skipper.no for further information. Page 22 of 28 Edition: 2013-11-05 Rev: 1.13... - Page 23 Operation and Installation CD401LR SKIPPER Menu COMPACT DISPLAY ..Menu Power consuption: 24 VDC/ 3W Protection code: IP56 Edition: 2013-11-05 Rev: 1.13 Page 23 of 28...
-
Page 24: Appendix 2
All data fields are free format. Values will be preceeded with sign as needed. ( e.g “-“ = Astern, Port) *hh = Checksum Some proprietry sentences beginning with $PSKP can be accepted to allow configuration and system diagnostics. Contact skipper@skipper.no for more details Page 24 of 28... -
Page 25: Appendix 3
Make contact with your local dealer for warranty case (list available on www.skipper.no.) On contact with SKIPPER, the case will be given a SKIPPERid number. This should be quoted on all correspondace, and marked clearly on all parts returned. -
Page 26: Appendix 4
Compact and these can be activated using the CODE page in the setup menu. On this menu, the systems unique ID is displayed, and the new options can be purchased from the SKIPPER retailer to add extra functions. You will receive a code to be entered in the codes screen... - Page 27 Operation and Installation CD401LR Edition: 2013-11-05 Rev: 1.13 Page 27 of 28...
- Page 28 Operation and Installation CD401LR SKIPPER Electronics AS Telephone: +47 23 30 22 70 Enebakkveien 150 Telefax: +47 23 30 22 71 P. O. Box 151, Manglerud E-mail: support@skipper.no 0612 Oslo, Norway Co. reg. no: NO-965378847-MVA www.skipper.no Page 28 of 28...
