Control kit S

IMPORTANT : The ventilation system fan must operate continuously so the duct sensor (HD) can obtain a
precise reading of the humidity level inside the residence.
8.4.

Controls description

Part
Control
number
See section
PCB
10
HR HRR100
SR SRR100
HD HRD100
APS AFPS100
APS/HL HRDFS100
(Optional) (Optional)
OTW OTW
(Optional) (Optional)
IMPORTANT : Maximum length of each control cable is 100 feet (30m).
Printed Circuit Board in the humidifier. It incorporates all the control functions.
(See section 10–Description of the Control PC board)
Wall humidity controller with set point adjustment knob and an alarm indicator (red)
(see section 14-Types of alarm).
Locate this item on an inside wall which will serve as a reference for the humidity
level in the residence or the controlled space.
Remote set point controller with set point adjustment knob and an alarm indicator
(red) (see section 14-Types of alarm). This item requires the use of the duct humidity
controller (HD) HRD100.
Duct humidity controller with set point adjustment knob and an alarm indicator (red)
(see section 14-Types of alarm). If this item is used with the (SR) SSR100, the
switch on the (HD) HRD100 must be positioned at ROOM SET POINT, otherwise set
the switch to DUCT SET POINT (default).
Install this item in the return duct of the ventilation system.
Airflow proving switch with status indicator (green). The indicator is on when
airflow is detected. Install this item on the supply duct up-stream from the steam
dispersion tube. Insert one extremity of the transparent tube into the duct and the
other end into the tube connection P1 of the airflow proving switch.
Airflow proving switch and a high limit humidistat with status indicator (green).
The indicator is on when airflow is detected. This item replaces the (APS) AFPS100.
Install the (APS/HL) HRDFS100 in the supply duct 5 feet (1.5m) down-stream of the
steam dispersion tube.
Window temperature sensor.
windows. Install the OTW on the bottom corner of the glass on a window oriented to
the north. Requires 2 wires, 22 AWG (by others) for the connection to the humidifier.

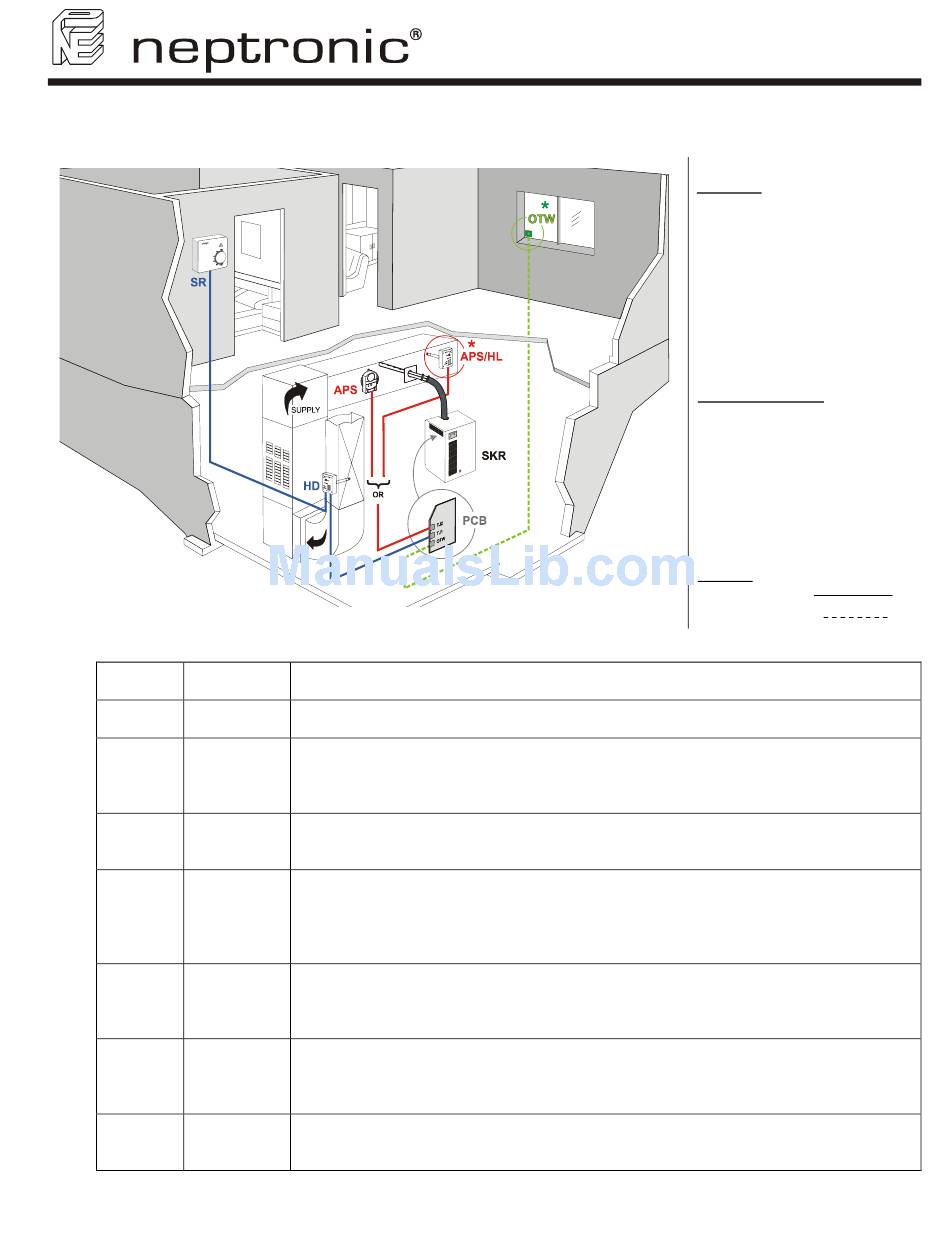

SKR Humidifier
Controls:
• PCB: Printed Circuit Board
in the humidifier.
• SR: Remote set point
controller
• HD: Wall humidity
controller.
• APS: Airflow proving
switch.
Optional controls:
*
APS/HL: Airflow proving
switch and high limit
humidistat.
*
OTW: Window
temperature sensor.
Cables:
• Included:
(Fig. 14)
• By others:
Description
The OTW is used to prevent condensation on
User Manual
11
