- Page 1 ® 1280-X Aquanaut Automatic Metal Detector for Sea, Surf or Shore Operating Manual...
-
Page 2: Table Of Contents
CONTENTS About Your 1280-X ..............pg. 3 Assembly .................. pg. 4 Setting Up ................. pg. 5 Hipmounting................pg. 6 Control Panel ................pg. 7 Discrimination Points ............... pg. 8 Searching ................pg. 10 Pinpointing ................pg. 12 Target Recovery ..............pg. 13 Recovery Tools ............... -
Page 3: About Your 1280-X
Fisher Research Laboratory has been producing rugged, high quality, high performance metal detectors since 1931, longer than any other company in the world. Your 1280-X Aquanaut is a product of that proud heritage. Designed for deep sea treasure hunting, the 1280-X will also do the job in fresh water or on land. -
Page 4: Assembly

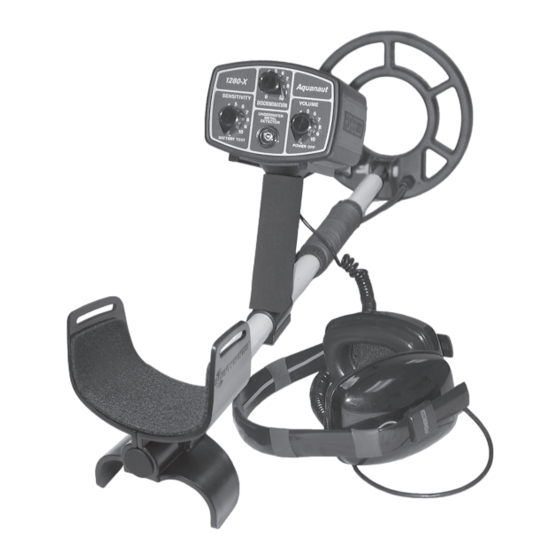

ASSEMBLY Battery Access Panel 8-inch Spider Coil Control Panel Derlin Screw and LED (Light Emitting Diode) Nylon Wing Nut Lower Stem Upper Stem Searchcoil Cable Adjustable Arm Rest Waterproof Headphones Arm Rest Screws Spring Lock (Not visible) Please save all packing materials for later shipping. Most important, notice the styrofoam face plate cover. -
Page 5: Setting Up
SETTING UP FOR LAND OR SHALLOW WATER (See Figure 2-A) Put the headphones around your neck to keep them out of the way while making the following adjustments. 1. Adjust the length and coil angle so that the searchcoil rests flat on the ground about 6 inches in front of and slightly to the right of your right foot (to the left of your left foot for left... -
Page 6: Hipmounting
HIPMOUNTING For almost effortless treasure hunting, the control housing is easily removed from the handle and attached to a belt clip. “Hipmounting” the 1280-X in this manner takes half the weight off the handle and allows the land or shallow water Treasure Hunter to search much longer without arm fatigue. -
Page 7: Control Panel
CONTROL PANEL 1. POWER/VOLUME CONTROL: Turns the power on and off. Also controls the target response volume in the headphones. The volume control should be set no louder than comfortable when the searchcoil is passed over a large, close target. 2. -
Page 8: Discrimination Points
DISCRIMINATION POINTS By adjusting the DISCRIMINATION control you will be able to ignore (or “reject”) small pieces of metallic trash and ground minerals while detecting valuable targets. The lowest setting at which an object is rejected is referred to as the object’s “discrimination point”. - Page 9 DISCRIMINATION POINTS 9. Large pieces of trash such as beer cans or jar lids may sound like good targets no matter what you do. With a little practice, however, you will be able to tell the difference between a large target and a small coin sized object.
-
Page 10: Searching
SEARCHING Good search techniques remain the same whether you’re using your 1280-X in the desert or on the bottom of the ocean. 1. Decide how much discrimination you want to use. a. In relatively non-trashy areas you may wish to search at zero discrimination. - Page 11 SEARCHING 1. Minimum Depth a. Very slow or fast sweep speed. b. Discrimination set at “10.” 2. Good Depth a. Moderate sweep speed. b. Discrimination set at “5.” 3. Maximum Depth a. Moderate sweep speed. b. Discrimination set at “0.” 4.
-
Page 12: Pinpointing
PINPOINTING Pinpointing takes practice. The more time you spend with your 1280-X, the faster and more accurate you’ll become. 1. Once a buried target is indicated by the tell-tale “Beep” of the 1280-X, continue moving the searchcoil from side- to-side across the target in a narrower and narrower search pattern. -
Page 13: Target Recovery
TARGET RECOVERY Once you have pinpointed a target, your objective is to recover it quickly and neatly, leaving virtually no trace of your excavation. There are almost as many ways to do this as there are treasure hunters. Whatever works best for you is good enough as long as you don’t break any laws or leave your search area looking like a World War II Battlefield. - Page 14 TARGET RECOVERY inserting the screwdriver into the ground next to the hole and pulling in towards the center. Do this 4 to 5 times around the edge of the hole until it is no longer visible. PLUGGING METHOD This method of recovery is not allowed in many areas and should never be used in dry lawns or in very hot weather.
-
Page 15: Recovery Tools
TARGET RECOVERY your 1280-X if you still can’t find it. 9. Once you have recovered the target, check the area again. Two or more coins are often found in the same spot. 10. Scrape all loose dirt back in the hole, reinsert the plug and press it firmly in place with your foot. -
Page 16: Operating Tips
OPERATING TIPS 1. Keep the searchcoil cable wound snugly around the stem when diving around coral or jagged rocks to keep it from snagging. 2. Divers should make sure the drain holes in the headset are unobstructed. Better yet, wait until you’re on the bottom before putting them on and take them off before surfacing. - Page 17 OPERATING TIPS find anything under either one, you’re probably over a nail or some other elonggated ferrous object. But a coin on edge will give the same response and there’s lots of coins on edge down there. In either case, the target will be between the beeps or, if you sweep at right angles to your original direction, you’ll receive a single beep directly over the target.
-
Page 18: Battery Replacement
BATTERY REPLACEMENT Eight 1.5V size AA batteries (not included) are located in the rear section of the Control Housing. The batteries are sealed off from the electronics so that accidental water leakage into the battery compartment will not damage the circuitry. 1. - Page 19 BATTERY REPLACEMENT VERY IMPORTANT Follow these instructions carefully to avoid getting water in the battery compartment. 1. Tuck in the wires. Do not pinch them in the seal when closing. 2. Tighten the knobs SECURELY. a. Use a coin. b. Tighten by hand FIRMLY. Use maximum MANUAL force.
-
Page 20: Battery Recharging
BATTERY RECHARGING Rechargeable nicad batteries may take as many as 1,000 recharges, however they do have some limitations you should be aware of: 1. Nicads will last only about half as long as standard carbon-zinc batteries before recharging is required. 2. - Page 21 BATTERY RECHARGING 1. Install the nicad batteries. 2. Plug the charger into your auto cigarette lighter socket and the small cable into the 1280-X RECHARGE JACK. 3. The batteries will begin charging immediately. 4. An overnight charge with the engine off may give only 6-8 hours of battery life.
-
Page 22: Maintenance
MAINTENANCE CLEANING Hose down your 1280-X with clean fresh water whenever you’ve had it on the beach or in the water. Pay particular attention to the following areas: 1. Stem adapter. Sand or dirt between the coil “ears” and stem adapter will literally grind away the ears and adapter. -
Page 23: Battery Door Gasket: Orientation
BATTERY DOOR GASKET: ORIENTATION CROSS SECTION CASE BATTERY DOOR A = Small side to case B = Large side to battery door Battery door gasket installation Figure 9. The rubber gasket, which fits into the battery door, must be installed with the larger protrusion (B), toward the battery door. If you remove the gasket for cleaning, re-install correctly. -
Page 24: Searchcoils
SEARCHCOILS The 1280-X is available with either the standard 8 inch “Spider” coil or the 10.5 inch “Spider” coil. As a general rule, the 8 inch coil is preferred for tight spots, fast moving surf and high density trash areas. For normal conditions however, the 10.5 inch coil will cover a little more ground with each sweep and will give slightly more depth 5 to 20 percent in air, less in soil, depending on target size and mineralization. -
Page 25: Where To Hunt In The U.s
Where To Use Your Metal Detector In The U.S. National Forest and Federal Lands—Metal detecting is allowed only by special permit acquired from the federal government. Each area has a district office. Corps of Engineers, Lakes, Shorelines and Lands—Permission has been granted only on predisturbed sites, such as beaches and attached swimming areas. -
Page 26: Treasure Hunter's Code Of Ethics
TREASURE HUNTER’S CODE OF ETHICS LETS PRESERVE OUR TREASURED SPORT! Laws governing the use of metal detectors are becoming more and more common. In many countries, the use of metal detectors is illegal or severely restricted. Don’t let this happen in your area. •... -
Page 27: Specifications
SPECIFICATIONS Length Collapsed ............33” 8” Coil 10.5” Coill Weight Complete (with headset) ..........Lbs. 5.4 lbs. Searchcoil ................2.6 lbs. Control Housing ............... 2.3 lbs. Frequency VF-Search ........2.4 KHz, Quartz Crystal Controlled Audio Target Response ........... 400 Hz Unipolar Headset Type ..........Piezo Electric, Custom Designed Interchangeable ................No Visual Target Response ...... - Page 28 ® ATTENTION: Damage do to neglect or accidental damage is not warrantable IMPACT WARNING: Impact to the front knobs will cause the knobs or front plate to fracture, resulting in leakage. Such damage is not warrantable. CABLE STRESS: If you hip-mount the 1280X, leave slack in the cable so as not to pull cable taunt at end of sweep.
