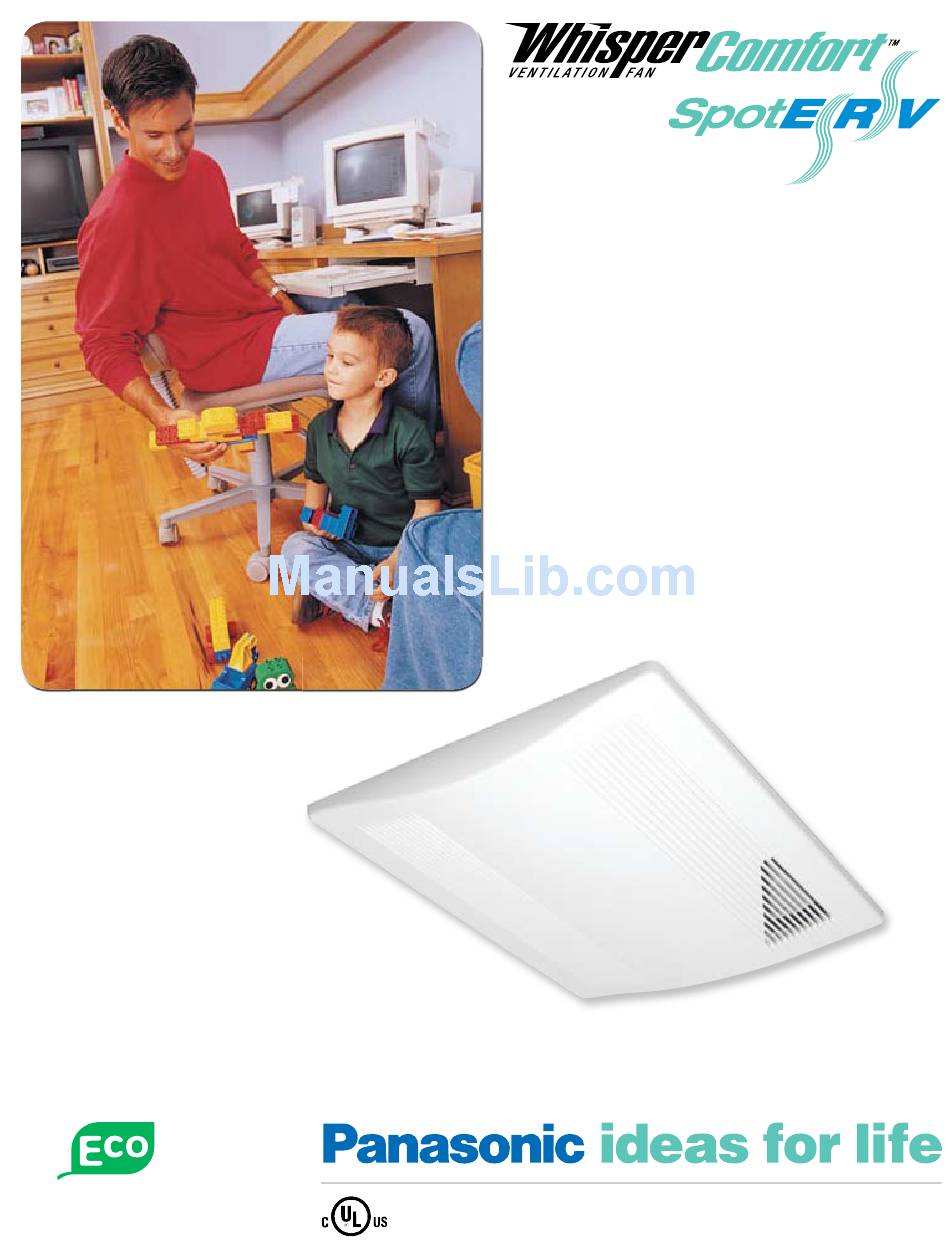

FV-04VE1
Panasonic WhisperComfort Spot Energy Recovery
Ventilator (ERV) offers a revolutionary way to
provide balanced ventilation. Affordable and easy
to install, WhisperComfort is energy efficient and
provides fresh ventilated air while maintaining
indoor air quality.
— Spot balanced ventilation fan with low-rate
continuous run
— Easy ceiling mount installation
— Exchange capillary core recovers heat energy
and moisture
— Balances air pressure inside the house
— Ideal for new air tight homes built to meet
energy efficiency standards
FV-04VE1
Advertisement
Related Manuals for Panasonic FV-04VE1
Summary of Contents for Panasonic FV-04VE1
- Page 1 FV-04VE1 Panasonic WhisperComfort Spot Energy Recovery Ventilator (ERV) offers a revolutionary way to provide balanced ventilation. Affordable and easy to install, WhisperComfort is energy efficient and provides fresh ventilated air while maintaining indoor air quality. — Spot balanced ventilation fan with low-rate continuous run —...
- Page 2 Panasonic WhisperComfort Spot ERV uses two 4 inch ducts – one to exhaust stale air and the other to supply fresh air from outdoors. Its low, continuous run ensures volatile organic compounds (VOC’s) are vented out and replaced with fresh air.
- Page 3 Use 2 WhisperComfort or 1 WhisperComfort and Total 38.5 CFM 1 WhisperGreen ® Use WhisperComfort set at 40 CFM * WhisperGreen are Panasonic exhaust fans with variable speed DC motor and ® built-in controls. Ideal for both bathroom intermittent ventilation and whole house continuous run ventilation.
-
Page 4: Operation
Balanced Ventilation With Spot ERV WINTER SUMMER Inside Outside OPERATION Frost Prevention Mode Settings WhisperComfort incorporates built-in frost prevention technology WhisperComfort has two 2-speed CFM settings to avoid core freeze up. High __________________________________________________ • Above 32ºF both exhaust and supply are fully functional Setting 1. -
Page 5: Installation
Standard Wall Cap Installation INSTALLATION Mounting WhisperComfort measures 14" wide and fits between joists 16" on EXHAUST center. Adjustable brackets and screws are provided to secure the unit to the joist on 4 corners. SUPPLY Wiring Power consumption is 23 Watts at 40 CFM with a power rating of 120/60 V/Hz. -
Page 6: Specifications
8-5/8 in. 4-1/2 in. 20-3/4” 16-3/4” FV-04VE1 FV-WC04VE1 Panasonic Home & Environment Company Unit of Panasonic Corporation of North America Headquarters Customer Service For Order Information: Panasonic Home & Environment Company Panasonic Home & Environment Company PHONE: 866-292-7299; FAX: 888-553-0723...
