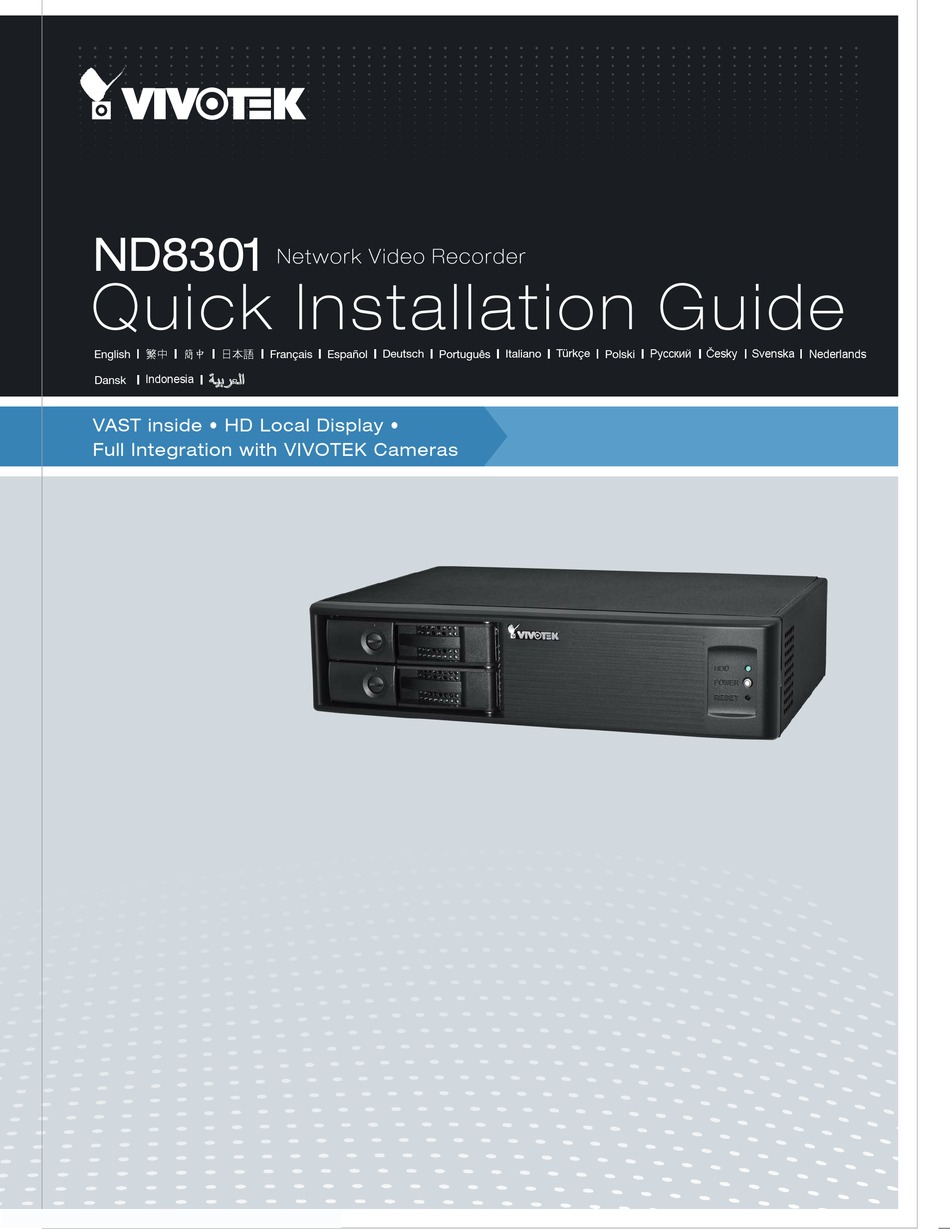

- Page 1 ND8301 Network Video Recorder Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Nederlands Türkçe English Français Español Deutsch Português Italiano Polski Indonesia Dansk VAST inside • HD Local Display • Full Integration with VIVOTEK Cameras...
-
Page 2: Package Contents
Do not attempt to remove or uninstall the software on the mounted IDE flash. Nor should you open the chassis. Doing so will void our warranty. Package Contents ND8301 Power Cord & Adaptor Software CD Quick Installation Guide Warranty Card... -
Page 3: Physical Description
Physical Description Front View Disk 1 HDD LED Power button & LED Reset button Disk 2 Rear View RS-232 (reserved) LAN WAN Line In DC Power USB2 Line Out Fan exhaust eSATA combo outlet USB1 MIC-In combo IMPORTANT: It is important to leave a clearance of 15cm to the rear side of the chassis. -
Page 4: Hardware Installation
Hardware Installation SATA hard disk(s) are user-supplied. The network video recorder can readily accommodate most of the off-the-shelf SATA hard drives. 1. Use a flat-blade screwdriver to unlock the rotary bezel lock. Open the drive bay bezel by pulling the lever on it. Bezel Lock Bezel Lever 2. - Page 5 3. Close the drive bay bezel. Bezel Lever 4. 4-1. Press on the left edge of the drive bay bezel to snap it into place. 4-2. Use a flat-blade screwdriver to turn the bezel lock to the “locked” position. You should always lock the drive bezel when the drive bay is populated. This en- sures the hard drive is securely installed.
- Page 6 Interface Connections 1 & 2. Connect CAT5 or better-quality Ethernet cables to cameras via a local, switched network, or clients through the Internet. Refer to next page for more information. 3. Connect the DB15 VGA port to a monitor (with resolutions up to 1920x1080). 4.
-
Page 7: Network Deployment
Network Deployment 1. Connect the supplied power adapter to a power outlet. 2. Connect network cameras to the NVR’s LAN ports. 3. If you want to access NVR over the Internet, connect the NVR to the Internet via the WAN port. A web console can be established from a remote PC by keying http://<public IP>:3454 in a browser’s URL address field. -
Page 8: Initial Configuration
Initial Configuration 1. Once your NVR is started, you will be prompted by the Setup Wizard. You should then begin the initial setup. The system is booted from an embedded IDE flash. No software installation is required. 2. Enter the default User name and Password as admin & admin. It is recommended you change the password later to prevent unauthorized access. -
Page 9: Ready To Use
6. On the Camera page, all cameras connected through the local network should appear on a Camera list after a brief search. You can manually assign IP addresses by clicking on the cameras' address field. You can also select the "Assign IP addresses to all cameras" checkbox and let NVR assign IPs to cameras. - Page 10 3. 3-1. By default, the Batch Insert Cameras window will prompt for you to recruit cameras into your configuration. If it does not, you can enter the Configuration menu, select Camera Management > Batch Insert Cameras. 3-3. Select cameras by clicking their checkboxes.
- Page 11 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com |T: 408-773-8686| F: 408-773-8298| E: salesusa@vivotek.com VIVOTEK Netherlands B.V. Busplein 36, 1315KV, Almere, The Netherlands |T: +31 (0)36 5389 149| F: +31 (0)36 5389 111| E: saleseurope@vivotek.com...
