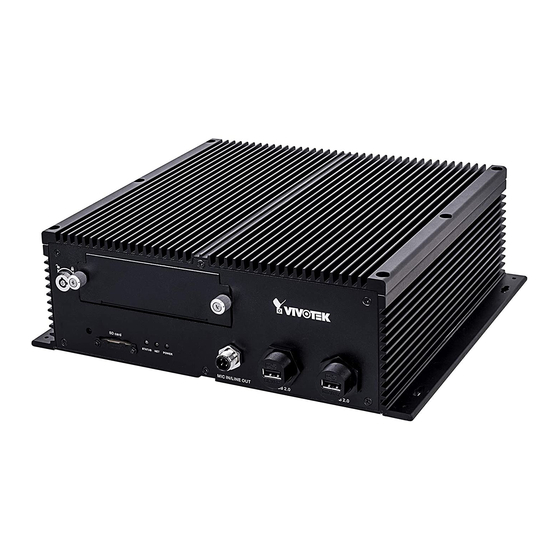

Page 1 VIVOTEK–Built with Reliability NV9311P, NV9411P Mobile NVR NV9311P-M12, NV9411P-M12 User ’s Manual H.265/H.264 Codec • 802.3af/at PoE • HDMI/VGA • G-sensor • GPS • 8/16 CH • -40ºC ~ 55ºC • EN50155 Solid Connection for Shock & Vibration • SATA or SSD • Programmable Delay ON/Off Rev.
Page 2: Table Of Contents
VIVOTEK–Built with Reliability Table of Contents Chapter One Hardware Installation and Initial Configuration ..................7 Introducing the Network Video Recorder ....................... 7 Special Features ............................. 7 Safety ................................8 Installation Instructions ............................9 Chapter 1 Hardware ..............................10 Dimension Drawing .............................. 10 Interface Connectivity ............................
Page 3 VIVOTEK–Built with Reliability 3-5-5. Settings–Camera–Media ......................96 3-5-6. Settings–Camera–Image ......................102 3-5-7. Settings–Camera–Motion Detection ..................104 3-5-8. Settings–Camera–PTZ settings ....................105 3-5-9. Settings–Alarm–Alarm ......................107 3-5-10. Settings–Alarm–Email ......................120 3-5-11. Settings–System–Information ....................121 3-5-12. Settings–System–Maintenance ....................122 3-5-13. Settings–System–Display ....................... 123 3-5-14.
Page 4 1. No storage system is completely fail-safe. Damage to data might occur due to file system corruption, operating system malfunction, virus infection, HDD component failures, and so on. Therefore, it is highly recommended to regularly back up your data, and VIVOTEK disclaims responsibilities of data loss or recovery.
Page 5 Note that the Settings pages on the web console has been changed to that identical to the local console. * Rev. 1.1: Added the description for the M12 models, NV9311P-M12 and NV9411P-M12. Also added new system LED definitions for system troubleshooting when unable to power up.
Page 6 VIVOTEK–Built with Reliability Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
Page 7: Chapter One Hardware Installation And Initial Configuration
Configuration Introducing the Network Video Recorder The NV9311P/ NV9411P is a mobile NVR designed for the transportation surveillance that pro- vides powerful 1080p 8-CH or 16-CH real-time live display and recording using the advanced H.265 video compression technology. The 8 802.3at PoE ports provide the ease of connections with cameras.
Page 8: Safety
VIVOTEK–Built with Reliability Safety  This product is connected to a fuse box in the passenger compartment before it is connected to the vehicle battery, and the fuse in a fuse box is UL listed as an automotive fuse.  Use the appropriate flexible and SAE wiring to connect to a fuse box.
Page 9: Installation Instructions
VIVOTEK–Built with Reliability Installation Instructions Warning: This equipment is intended to be used in a Restricted Access area, such as a cabinet or a dedicated computer room. Access should only be allowed to SERVICE PERSONS or USERS who have been instructed on proper handling of the device’s metal chassis, which may become hot during operation.
Page 10: Chapter 1 Hardware
VIVOTEK–Built with Reliability Chapter 1 Hardware Dimension Drawing 5.5-4x M3-tapping-4x 276.7 10–User's Manual...
Page 11: Interface Connectivity
SD card You should pull the retention cap up after you install an SD card to prevent disconnection by vibration or impact. Note that the front panels of the NV9311P/NV9411P and the M12 version (NV9311P-M12/ NV9411P-M12) are identical. User's Manual–11...
Page 12 VIVOTEK–Built with Reliability Rear Panel - NV9311P & NV9411P Chassis ground Black Yellow DC IN+ 12V ~ 48V RS232 antenna Wi-Fi antenna Antenna Main LTE PoE ports 802.3af/at IP cameras Terminal block Chassis HDMI ground Camera 01 Camera 02 Camera 03...
Page 13 VIVOTEK–Built with Reliability SIM card: Access from the Bottom The GPS (Global Positioning System) connectivity can apply for speed and route tracking data on video streams. For specialized wireless transmission, a SIM card is necessary for the LTE module. The SIM card can be installed by opening a small cover from the bottom of the NVR.
Page 14 VIVOTEK–Built with Reliability Cabling Clearance It is recommended to have a clearance for making the cabling connections at the front and the the rear of the chassis. Front: 4", Rear: 3". Rear 3”, 7.6cm Front 4”, 10cm Connector Pinouts–Front Panel Audio IN/OUT–M12...
Page 15 VIVOTEK–Built with Reliability Connector Pinouts–Rear Panel Terminal Block ALARM OUT DI GND DI8 DI GND DI4 DO4_ DO4_ DO3_ DO3_ DO2_ DO2_ DO1_ DO1_ Terminal Block Connections The terminal block pinouts is shown as follows: Connect your relay or external devices’ signal wires to the system, the system will automatically detect the current signal status.
Page 16 VIVOTEK–Built with Reliability RS232 VGA_5V Vsync Hsync Power Input DC IN+ DC IN+ DC IN- DC IN- DC IN- The Red DC IN+ connects to the vehicle battery positive. The Black DC IN- connects to the vehicle battery negative or chassis ground.
Page 17 VIVOTEK–Built with Reliability M12 8-pin A code Ethernet M12 4-pin D code Ethernet TxData+ RxData+ TxData- RxData- IMPORTANT: While routing the cables, the possible damage caused by impact, friction, and vibration should be taken into consideration. Cable Pinouts Black Yellow...
Page 18 VIVOTEK–Built with Reliability Chassis ground Black Yellow DC IN+ Connect the yellow wire to a vehicle's ignition switch's ACC pin. Red wire to the vehicle battery output, and the Black wire to the chassis ground. IMPORTANT: You can connect the wiring through the vehicle electrical panel. When connecting to the chassis ground, it is important that you are connecting to a grounding point that is not rusted.
Page 19 VIVOTEK–Built with Reliability RF Antenna Connector The NVR has 3 antenna connectors, one of which is the GSM/UMTS/LTE main antenna connector, the others are UMTS/LTE auxiliary antenna connector and GPS/GLONASS antenna connector. The Rrcommended antenna characteristics are described by the 2 following tables.
Page 20: Installation
VIVOTEK–Built with Reliability Installation Install a SIM card Open the small maintenance panel at the bottom of the NVR. You should subscribe to a service with a wireless service provider and obtain a SIM card. Refer to page 134 for the Network IP and the default gateway configuration.
Page 21 VIVOTEK–Built with Reliability Install an LTE and Wi-Fi module Depending on the country/region of your operation, you may need to install different wireless WAN modules. Install an LTE and Wi-Fi module by lowering and inserting them into socket. LTE module Wi-Fi module Secure the installation by driving 3 screws.
Page 22 VIVOTEK–Built with Reliability Connect the antenna cables (provided with the NVR) to the corresponding connectors on the module. Note that only the Main and AUX connectors on the PCI-E 4G communication module need to be connected. The NVR comes with another embedded GPS module. Connect the antenna cables to the Wi-Fi module.
Page 23 VIVOTEK–Built with Reliability Intall a 2.5" hard disk or SSD Note the choice with HDD or SSD is relted to operating temperature: -40°C ~ 55°C(SSD), 0°C ~ 55°C (surveillance HDD). 1. Use the bezel key to unlock the bezel lock.
Page 24 VIVOTEK–Built with Reliability 5. Remove another screw from the bottom of the tray box. 6. The interior of the box is revealed. Remove the drive tray by unlocking the tray lock and press lever to the right. 24–User's Manual...
Page 25 VIVOTEK–Built with Reliability 7. Pull the drive tray away from the tray box. When handling hard disk drives, it is recommended to wear an anti-static wrist strap to avoid damages from static charge. 8. Insert the 2.5" hard disk or SDD into the drive tray through the side opening. Note that the hard disk label side is facing up and the SATA connector is at the rear side.
Page 26 VIVOTEK–Built with Reliability 9. Flip the drive tray over, and secure the hard drive using 4 included sunk-head screws. 10. When done, install the drive tray into the tray box. Note that the lever should be in the open position when you insert the drive tray.
Page 27 VIVOTEK–Built with Reliability 10-1. Press the drive tray firmly into the unit bay. Contact resistance can be felt during the process. 10-2. Close the front lever. 10-3. Secure the installation using the tray lock. Keep the tray lock key safe for later use.
Page 28 VIVOTEK–Built with Reliability 12. Install the tray box back into the NVR. 13. Secure the installation by fastening hand screws and lock the tray lock on the front panel. NOTE that you cannot power up the device unless the tray lock is locked! Tray lock 28–User's Manual...
Page 29 VIVOTEK–Built with Reliability Skip this section (steps #14 to #17) if you install the NVR with the M12 connectors. Install the cable clamps to the cable retention bracket. Note that the positions of every two cable clamps should be one in the back and the other in the front. The same applies to the holes at the bottom.
Page 30 VIVOTEK–Built with Reliability 16. Secure the bracket to chassis using two screws at the top, and the grounding screw at the bottom. 17. Connect cables to ports and secure their connections using the cable clamps. M12 4-pin D code/ M12 8-pin A code...
Page 31 VIVOTEK–Built with Reliability Shown below is the M12 rear panel connection. M12 4-pin D code/ M12 8-pin A code User's Manual–31...
Page 32 VIVOTEK–Built with Reliability IMPORTANT: The tray lock must be in the locked position before the NVR can be powered on. Make sure you keep your tray keys for access to the onboard disk drive. 18. Use four self-tapping screws to secure the NVR to a metal panel. If the need should arise to install the NVR on a ceiling, use the M5 self-tapping screws and drive them through the smaller holes on the four corners of the NVR.
Page 33 VIVOTEK–Built with Reliability Initial Configuration–via a Local Console A local console requires the following: 1. A monitor is connected via an HDMI or VGA cable. 2. A mouse and/or a keyboard are connected to the system. 3. It is presumed that the system has not been configured yet.
Page 34 VIVOTEK–Built with Reliability IMPORTANT: Except in the initial setup, changing system time can produce disruptions to the existing recordings. Turning the current system time back to a time when video recording was taking place can generate duplicate files. And those files may not be playable.
Page 35 VIVOTEK–Built with Reliability NOTE: 1. The maximum recording bandwidth is 1920x1080 @ 480 fps (16-CH) Max. Decoding streaming resolution: 8192x8192 Display resolution: for H.264/MJPEG , 4096x4096 for H.265 HDMI: 3840x2160, 1920x1080,1280x720(P2) VGA:1920X1080 ,1280x720(P2) When cameras are recruited into the configuration, their stream 1 is used as the recording stream.
Page 36: Led Indicators
VIVOTEK–Built with Reliability LED Indicators Ethernet Power System Name Behavior Definitions Power LED Solid Green Power on Green Power off Blinking Green The delay shutdown is taking place. every 1 second No ACC LED is off * Below is used when unable to power up HDD tray LED blinks every 2 seconds.
Page 37: Power Up And Power Down
VIVOTEK–Built with Reliability Power Up and Power Down To power up and power down, On the initial configuration: The NVR is started when the vehicle ignition is started sensing the voltage. The NVR supports configurable power ON/OFF delay time. Low power protection is also supported.
Page 38 VIVOTEK–Built with Reliability When a camera is included into the NVR configuration, the video recording automatically starts. The red dot indicates the recording is taking place. IMPORTANT: For making Internet connection via the NAT-traversal over the OpenVPN tunnel, see page 141 for details.
Page 39 VIVOTEK–Built with Reliability NOTE: If system buzzer is sounded, move your mouse cursor to reveal the main screen portal, and then click on the Stop buzzer button. Serious system faults, such as a missing volume, can trigger the system buzzer. Verify the cause of system fault and turn off the buzzer.
Page 40: Section One Management Over A Local Console
VIVOTEK–Built with Reliability Section One Management over a Local Console Chapter Two Introduction to the Local Console Interface Camera 01 Camera 03 Camera 02 Camera 05 Camera 06 Camera 04 Camera 07 Camera 08 Camera 09 40–User's Manual...
Page 41 VIVOTEK–Built with Reliability By default, a live view appears on an HDMI monitor. The interface architecture of the local console is illustrated as follows: LiveView Main screen Main control portals When you move mouse cursor Layout DI/DO Time search Alarm search...
Page 42: How To Begin
VIVOTEK–Built with Reliability 2-1. How to Begin 1. How to access the Configuration Portal? Make sure a mouse is attached to your NVR. Move your mouse cursor, and the Configuration Portal will appear on screen. For all the configurable options available through this portal, please refer to Chapter 3 on page 73.
Page 43 VIVOTEK–Built with Reliability PTZ control panel for joystick type PTZ PTZ control panel for ordinary PTZ type Move speed conﬁg Preset points Pan/Tilt controller Focus far Focus near Zoom controller Home position Patrol button PTZ presets: If your PTZ cameras have preset locations, click on the button to unfold the preset menu.
Page 44 VIVOTEK–Built with Reliability The Playback window will prompt, and a playback begins from the point in time you selected, e.g., 30 seconds ago. This function allows you to quickly review what has just happened. 03 - Camera 03 01 - Camera 01 2016.05.16...
Page 45 VIVOTEK–Built with Reliability 4. How to recieve system alarm? Please refer to page 107 for how to configure system alarm triggers. When the alarm is triggered, e.g., by digital inputs or motion detection, an alarm message will prompt on the screen.
Page 46 VIVOTEK–Built with Reliability 5. Why live view is unavailable? The default live view receives a camera's stream #1. If a camera's stream #1 is configured using MPEG-4 as the video codec, the following message will prompt. You can go to the Settings > Camera > Media > Video window to configure the video codec of stream #1 into H.264 or H.265.
Page 47 VIVOTEK–Built with Reliability 6. How do I move to another layout page? Move your cursor to the right-center side of your screen. The page turner buttons will appear as shown below. For example, if you have 8 cameras placed on 2 2x2 layout pages, use these buttons to visit different pages.
Page 48: Tracking And Viewing The Mobile Nvr Videos On Vast2
VIVOTEK–Built with Reliability 2-2. Tracking and Viewing the Mobile NVR Videos on VAST2 2-2-1. Adding NVR as a VAST2 Sub-station 1. From the Live view page, click Settings. 2. Click Sites from the Device pane. 3. In the Site management window, click the Add Sites button.
Page 49 VIVOTEK–Built with Reliability 4. You can manually enter the IP address or use the Search button to locate your NVR. 5. Once the NVR is found, enter the CMS access password to authenticate the connection. Note that the CMS password is configured on the NVR, in the Settings > Network > Service page.
Page 50: Configuring Gps And E-Map
VIVOTEK–Built with Reliability 6. A check mark will appear on the NVR entry. Click the Apply button to complete the configuration. 2-2-2. Configuring GPS and E-Map 1. Open the E-Map configuration page, and click on the E-Map import button. Select a graphic file of your vehicle.
Page 51 VIVOTEK–Built with Reliability 3. Click and drag cameras to their corresponding positions on the vehicle. When the camera is in place, drag the FOV indicators on the edge to change the shoot angle and the coverage range. Drag the FOV to change the shooting direction to match the actual installation.
Page 52 VIVOTEK–Built with Reliability Click on the camera icon. You can also change the color of camera icon and the FOV type. Fisheye cameras, when ceiling mounted, have a round shape coverage. When your E-Map configuration is completed, click the Done button at the lower-right of the screen.
Page 53 VIVOTEK–Built with Reliability 5. The Google map window appears. Click on the GPS tab. 6. Click the Add GPS button. The GPS device on the NVR will be listed. User's Manual–53...
Page 54 VIVOTEK–Built with Reliability 7. Your GPS location should be found on the Google map. Double-click the Built-in GPS found under the NVR to display the current position. 8. Select the "Show e-maps while selecting GPS on google map" checkbox. Select the E-Map configured for your vehicle from the pull-down menu.
Page 55 VIVOTEK–Built with Reliability 9. On the VAST live view, click the E-Map button to create an E-Map view. Click the E-Map tab on the left to open the E-Map window. 10. Click to open the E-Map view. Double-click to open the Google map.
Page 56 VIVOTEK–Built with Reliability 12. You can click on any of the camera icons placed on the vehicle to display an instant live view. Note that one live view can display at a time. 03 - Camera 03 2016.05.16 17:15:41 56–User's Manual...
Page 57: Alarm
VIVOTEK–Built with Reliability Alarm You can let a VAST server receive an event from NVR. The Alarms can be configured to perform a series of actions when different events occur. Alarms can be used to automatically react to possible threats. For example, the VAST server can start a recording or send an Email notification when Motion detection is triggered.
Page 58 VIVOTEK–Built with Reliability 2. VAST server and NVR triggers Network disconnection These can be used to send maintenance notifications. Storage failure Storage full Fan status GPS disconnected The GPS and G-sensor related options apply to the Mobile NVR (Mobile NVR) that comes with the GPS and G-sensor.
Page 59 VIVOTEK–Built with Reliability The available actions include: Start to record video Send HTTP requests Set DO status Send live streaming Go to camera presets Send email Start to record video will record a video clip of the length of 10 seconds on the occurrence of an event.
Page 60 VIVOTEK–Built with Reliability A reachable Mail server and Email accounts must be provided before you can apply the settings. On the Schedule page, you can select to activate or de-activate alarm triggers throughout a specific timeline. For example, in some situations you can disable the alarm triggers during the office hours, and choose to enable the triggers only during the off-office hours.
Page 61 VIVOTEK–Built with Reliability Click on any of the options on the Schedule panel for the alarm to take effet: Customize, Always, or Add a schedule. You can manually create an effective time template using the New template button. Click and hold down on the time cells, and drag the mouse to include the time span of your preferrence.
Page 62: Playback Videos On The Nvr H.d.d. From The Vast2 Cms Software
VIVOTEK–Built with Reliability 2-2-3. Playback Videos on the NVR H.D.D. from the VAST2 CMS Software Since the NVR runs on Linux, you have to install the Ext2 File System Driver for Windows to access the recording files from a NVR hard disk.
Page 63 VIVOTEK–Built with Reliability User's Manual–63...
Page 64 VIVOTEK–Built with Reliability 1. Remove the disk tray box from a mobile NVR. 2. Connect the disk tray box to your VAST server using a USB 3.0 type A to Micro B cable. VAST Note that the USB 3.0 cable is user-supplied.
Page 65 VIVOTEK–Built with Reliability 5. Taking a mobile NVR's disk drive as an example, click the Source select button to locate the disk drive. 6. The NVR will be mounted as a local DB. 7. A Local DB sub-tree will be listed under your server, and you can view the existing recordings on the NVR's disk drive.
Page 66: Operation On Camera View Cell
VIVOTEK–Built with Reliability 2-3. Operation on Camera View Cell 2-3-1. PTZ Panel Once you selected a camera, click on the PTZ button on a camera portal. The PTZ panel will prompt. Below are the description of its functions: List of preset positions...
Page 67 VIVOTEK–Built with Reliability Below is the PTZ panel that appears with ordinary PTZ cameras. List of preset positions Speed selector Focus far Focus near Zoom in Zoom out Starts patrol 1. PTZ control: Click on the arrow buttons to move towards the direction you wish to move to.
Page 68 VIVOTEK–Built with Reliability Joystick support The joystick related operations are listed below: 1. Pan: Continuous move is supported. (joystick X-axis movement) 2. Tilt: Continuous move is supported. (joystick Y-axis movement) 3. Zoom: Continuous move is supported. To zoom in, move joystick Z-axis clockwise (or use button #2).
Page 69: Digital Zoom Panel
VIVOTEK–Built with Reliability 2-3-2. Digital zoom Panel Digital zoom is a function that provides digital zoom into a live video. Be sure you place your mouse cursor inside the Global view window for the zoom function to take effect. When activated, a Global view window will appear at the lower right of the view cell as shown below.
Page 70: Play Recording Clips Panel
VIVOTEK–Built with Reliability 2-3-3. Play Recording Clips Panel The Play Recording Clips function provides a shortcut to the latest recordings on the system. You can select 30 secs, 1 min, 3 mins, 10 mins, and 60 mins for an immediate playback.
Page 71: Di/Do
VIVOTEK–Built with Reliability 2-3-4. DI/DO The DI/DO panel provides a glimpse of all DI and DO signal statuses from the connected cameras. You can manually trigger a digital output by clicking on its indicators. When a digital input is triggered, its status will also be indicated on the panel.
Page 72: Right-Click Commands
VIVOTEK–Built with Reliability 2-3-6. Right-click Commands Left-click to select a camera. Right-click to display the selection menu. 1. Camera information: Click to display camera name, resolution, codec, or frame rate on the view cell. The information will display on the upper left corner of a view cell.
Page 73: Chapter Three Configuation Using The Local Console
VIVOTEK–Built with Reliability Chapter Three Configuation Using the Local Console The Main Control Portal 3-1. Layout Move your mouse cursor across the screen to display the portal. The first functional button is Layout. You can select the 1x1, 1x3, 2x2, 3x3, 1+5, 1+6, 2+3, 1+3, layout as the screen display.
Page 74: Search Recording Clips
VIVOTEK–Built with Reliability 3-3. Search recording clips 3-3-1. Time Search Click the button to start searching for recorded clips. A confirm box will prompt. Enter User name and Password to proceed. The search and calendar view will appear. Select a day on the calendar when the recordings took place (the days with recorded clips will be highlighted in blue and green).
Page 75 VIVOTEK–Built with Reliability The timeline bar enables quick skimming through the recording. Its functions are described as follows: Control buttons Functional buttons Timeline scale Span of existing Current time recording indicator Buttons Description Time scale selector. Use the buttons to select the span of time displayed on the tool bar.
Page 76 VIVOTEK–Built with Reliability When playing the video recorded by a fisheye camera, the fisheye display options will be available on screen. You can click to select the 1O, 1P (Panoramic), 1R (Regional), 1O3R (1 Original and 3 Regional), or 1O8R modes. If 1P, 1R, 1O3R, or 1O8R mode is selected, you can exert the mouse control on screen, such as swiping the view, or hold down the mouse button and swipe the field of view.
Page 77 VIVOTEK–Built with Reliability Note that to export a video segment from the playback timeline, 1. Click on the Export button 2. Insert a USB drive formatted in the FAT format. 3. Select the "From time" by clicking on the timeline. You can also manually enter the "From time"...
Page 78: Alarm Search
VIVOTEK–Built with Reliability 3-3-2. Alarm Search Click on the Alarm search button on the upper left of the screen to enter the Alarm Search panel. You can specify the search criteria by selecting the devices to be involved in the Alarm search.
Page 79 VIVOTEK–Built with Reliability You can then specify the start time and end time to configure a span of time to be searched. Click to expand the calendar view and keypad to specify the From and the To time to cover the possible time of occurrences.
Page 80 VIVOTEK–Built with Reliability When done with the selection, click on the Search button. In the sample screen below, a list of alarms is displayed, and you can click on any of them to replay the moment when the alarm was triggered.
Page 81: Storyboard
VIVOTEK–Built with Reliability 3-3-3. Storyboard The Storyboard interface provides a glimpse of past recordings over a timeline. It looks like doing the film editing after a film was shot. To enter the Storyboard window, click on the Storyboard shortcut on the upper-left of screen.
Page 82 VIVOTEK–Built with Reliability Mouse over the line of snapshots to display its time of recording. Click on a snapshot of your interest. The time of recording is immediately displayed on top of it. The detailed search is based on a narrow-down criteria. The search begins from a 24-hour time span, and then moving in to a 4-hour, 1-hour, 10-minutes, and 2-minutes span.
Page 83 VIVOTEK–Built with Reliability If you find yourself in the wrong segment on the timeline, use the buttons on the upper-right of the screen to travel. The definitions of these buttons depend on the time span of your current position. For example, if you are in a 4-hour time span, the "Back to previous state button"...
Page 84 VIVOTEK–Built with Reliability The playback window will appear. Please refer to page 75 for the operation details. 01-01 camera 2016.03.14 14:05:09 To return to the Live View window, click on the Back to Search recording clips button the Back to Liveview button on the upper-left of the screen.
Page 85: Export Recordings
VIVOTEK–Built with Reliability 3-4. Export recordings The Export recordings button allows users to directly select a piece of recordings by a specific camera, and export that to a USB thumb drive. Users can select one or multiple cameras, select a period of time in which the recording took place, and then click export.
Page 86 VIVOTEK–Built with Reliability 6. The Export progress will be shown. 7. When the Export process is done, select to resume another export or go back to the live view. Note that the Export process can take a long time if the time span of the selected video is very long.
Page 87: Settings
VIVOTEK–Built with Reliability 3-5. Settings 3-5-1. Settings–Overview Click the Settings button to start the camera and system settings window. A confirm box will prompt. Enter User name and Password to proceed. The system will default to the overview page displaying the camera connection and storage statuses.
Page 88: Settings-Camera-Management
VIVOTEK–Built with Reliability The Camera menu provides access to Management, Recording, Media, Image, Motion detection, and PTZ settings pages. 3-5-2. Settings–Camera–Management On the camera Management page, you can configure the following: 1. Recruit or disband cameras. 2. Create a camera name.
Page 89 VIVOTEK–Built with Reliability To recruit cameras: 1. Click on the Add button. A list of cameras in the same subnet will appear. 2. Click the Add button, the camera will be placed at an unoccupied position. You may also expand the menu on the side of the Add button to select a position number.
Page 90 VIVOTEK–Built with Reliability To disband cameras: 1. Click on the Remove button. A list of cameras will appear. 2. The Remove button will turn yellow . Mouse over to the camera you want to remove, and its entry will display the Remove message.
Page 91 VIVOTEK–Built with Reliability Network On the Network tabbed window, you can configure the network type, IP address, and the connection ports for video streaming. You can select DHCP as the method for cameras to acquire IP addresses, or you can manually configure static IPs for a single or all cameras. Using static IPs is recommended.
Page 92 VIVOTEK–Built with Reliability 1. Wi-Fi (SSID): Displays the AP (Access Point) this camera is connected to. 2. Security mode: Displays the security mode used for the security encryption. 3. Encryption: Displays the encryption standard currently applied. Camera position To change a camera's position on the Liveview layout, click and drag a camera to an unpopulated position.
Page 93: Settings-Camera-Recording
VIVOTEK–Built with Reliability 3-5-3. Settings–Camera–Recording Recording options On the camera Recording page, you can configure the following: 1. Configure the duration of camera events, for the concern that camera can be too frequently triggered. 2. Enter the Pre- and Post-event recording time. The triggering events can be DI, DO, Motion detection, PIR, or Tampering detection.
Page 94: Settings-Camera-Recording
VIVOTEK–Built with Reliability 3-5-4. Settings–Camera–Recording Recording options On the camera Recording page, you can configure the following: 1. Configure the duration of camera events, for the concern that camera can be too frequently triggered. 2. Enter the Pre- and Post-event recording time. The triggering events can be DI, DO, Motion detection, PIR, or Tampering detection.
Page 95 VIVOTEK–Built with Reliability Recording Schedule By default, all video feeds from cameras are recorded at all time. You can modify the recording task using the schedule tool: 1. Click to select a recording condition's checkbox–1. Continuous recording , Event recording , and 3.
Page 96: Settings-Camera-Media
VIVOTEK–Built with Reliability 3-5-5. Settings–Camera–Media Stream management The stream here refers to the recording stream, namely, Stream 1. You can use these preset conditions to configure the resolution, image quality, frame rate, and the bandwidth consumption of the recording stream on this window.
Page 97 VIVOTEK–Built with Reliability Video The Video window allows you to configure all video streams (the no. of stream available can be different for different models). You can configure the following: 1. Codec: video compression codec in H.264, MPEG-4, or MJPEG. Note that MPEG-4 is not supported for Liveview.
Page 98 VIVOTEK–Built with Reliability ■ Dynamic Intra frame period High quality motion codecs, such as H.265, utilize the redundancies between video frames to deliver video streams at a balance of quality and bit rate. The encoding parameters are summarized and illustrated below. The I-frames are completely self- referential and they are largest in size.
Page 99 VIVOTEK–Built with Reliability Smart codec effectively reduces the quality of the whole or the non-interested areas on a ■ screen and therefore reduces the bandwidth consumed. You can manually specify the video quality for the foreground and the background areas.
Page 100 VIVOTEK–Built with Reliability As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
Page 101 VIVOTEK–Built with Reliability Audio The Audio window allows you to configure all audio codec, sampling rate, and Microphone input gains. Depending on design of the camera models, some codecs may not be available. Also, there are cameras that come without embedded mircrophones.
Page 102: Settings-Camera-Image
VIVOTEK–Built with Reliability 3-5-6. Settings–Camera–Image Display The Display window allows users to tune the image display options: 1. Video name: the video name is displayed on the title bar that is displayed on each view cell. The screen shot below shows a name as "Speed dome."...
Page 103 VIVOTEK–Built with Reliability Image adjustment The Image adjustment window allows users to tune the basics about image display options: 1. Color: Select to display image as color or black and white. 2. Brightness. 3. Saturation. 4. Contrast. 5. Sharpness. 6. High TV line, Gamma curve, low light compensation, etc. The rest of the options depend on the lens and image sensor type of each individual camera.
Page 104: Settings-Camera-Motion Detection
VIVOTEK–Built with Reliability 3-5-7. Settings–Camera–Motion Detection Motion Detection To set up a detection window: 1. Select a camera by a single click. 2. Use the PTZ panel to move to a field of view where you want to place a detection window.
Page 105: Settings-Camera-Ptz Settings
VIVOTEK–Built with Reliability 3-5-8. Settings–Camera–PTZ settings To configure PTZ preset positions: 1. Select a PTZ camera by a single click. 2. Use the PTZ panel to move to a field of view where you want to designate as a preset position.
Page 106 VIVOTEK–Built with Reliability To configure a patrol: 1. Click to enter the Patrol menu. Select a preset position if you want to change its position on the patrolling order. 2. Click the up and down buttons to change the position on the order, or click the remove button to disband a position from the order.
Page 107: Settings-Alarm-Alarm
VIVOTEK–Built with Reliability 3-5-9. Settings–Alarm–Alarm The events reported from individual cameras' digital inputs, digital outputs, and motion detection can be accommodated in the NVR system's alarm settings. These events will then be reported or trigger corresponding actions as follows: 1. Record the video by the time the event is triggered.
Page 108 VIVOTEK–Built with Reliability When an alarm is triggered, a message prompt will appear on the Liveview or any configuration window. Below is a glimpse of alarm sources and alarm actions: Sources Actions System DI Video recording ►video footage System DO Email snapshot ►snapshots...
Page 109 VIVOTEK–Built with Reliability To create an alarm, 1. Click on the Add button You can manually enter a name for the current setting. You can enter up to 16 numeric or alphabetic characters for the name, including symbols such as [0-9][a-z][A-Z][_][ ]. You can also designate the interval between one alarm and the next triggered alarm to avoid the situation that the alarms can be too frequently triggered.
Page 110 VIVOTEK–Built with Reliability 3. On the Trigger window, select system triggering conditions, or one or more cameras by selecting their checkboxes. The number of DI or DOs on each camera is automatically detected and displayed through individual checkboxes. The Motion detection function, if there are many detection windows configured on a camera, is all triggered by one checkbox.
Page 111 VIVOTEK–Built with Reliability 4. On the Action window, you can select the Action type from a drop-down menu. The configuration details of each action type is discussion below. 4-1. Recording–When an event is triggered, the selected camera will record a video footage of the length defined by the pre-/post-event setting, to the NVR system.
Page 112 VIVOTEK–Built with Reliability The Email subject and addresses can be composed of 254 characters in numeric or alphabetic characters including: [0-9][a-z][A-Z][_][ ][-][.][,][@]. You can enter the addresses of multiple recipients. Use semicolons, (;), to separate the addresses of multiple recipients.
Page 113 VIVOTEK–Built with Reliability 4-4. FTP–Snapshots from specified cameras can be uploaded to an FTP site on the occurrence of an event. Enter the FTP site address in the dotted-decimal notation, e.g., 159.22.151.20. Enter the login name and password for the user account. You can enter a directory name you prefer on the FTP site.
Page 114 VIVOTEK–Built with Reliability 4-5. Camera DO–A triggered alarm triggers a camera's DO, e.g., an alarm siren. 4-6. Camera pan-tilt-zoom–A PTZ capable camera can move its lens to the preset position in case of a triggered alarm. For example, a triggered sensor may indicate an area of interest has been intruded, and a camera's field of view should be moved to cover that area.
Page 115 VIVOTEK–Built with Reliability 4-7. System DO–A triggered alarm can be used to toggle the NVR's digital output, e.g., to sound an alarm siren. User's Manual–115...
Page 116 VIVOTEK–Built with Reliability 4-8. Send to CMS–An event message will display on your VAST CMS software in the event of GPS signal loss or G-sensor force exceeds configured thresholds. The triggered alarms can be found in the Alarm search panel.
Page 117 VIVOTEK–Built with Reliability You should also configure a corresponding alarm on the VAST server. Enter the Alarm management window. Select System Event and begin your configuration. Select NVR and a triggering condition, such as the GPS diconnect, as your trigger.
Page 118 VIVOTEK–Built with Reliability Select the triggering condition from the pull-down menu. Configure the corresponding action, and proceed with the rest of the configuration. When an event is triggered, such as GPS signal loss, or exceptional G-force is detected, an event message will prompt on screen.
Page 119 VIVOTEK–Built with Reliability 4-9. Send video to full screen–The video feed from a related camera will be displayed on the occurrence of a triggered condition. 5. On the Schedule page, you can select to activate or de-activate alarm triggers throughout a specific timeline.
Page 120: Settings-Alarm-Email
VIVOTEK–Built with Reliability 3-5-10. Settings–Alarm–Email This window provides an interface where you can configure the connection to a Mail server. Via the Mail server, the system can deliver Emails containing system alarm messages to multiple receivers. A reachable Mail server and Email accounts must be provided before you can apply the settings.
Page 121: Settings-System-Information
VIVOTEK–Built with Reliability 3-5-11. Settings–System–Information On this window, you can configure the following: 1. Change the system name. Using a name in different languages is supported via a web console. 2. Select the UI text language. 3. Configure system time, time zone, and if you are connected to a DNS server where Auto Daylight Saving time can be applied, you can acquire the associated setting from a server within your network.
Page 122: Settings-System-Maintenance
VIVOTEK–Built with Reliability 3-5-12. Settings–System–Maintenance If the need arises for updating system firmware, acquire the update from VIVOTEK's technical support or download site. Locate the firmware binaries, and click the Import button. The upgrade should take several minutes to complete. Note that during the upgrade, the recording task will be interrupted.
Page 123: Settings-System-Display
VIVOTEK–Built with Reliability 3-5-13. Settings–System–Display On this page, you can configure the system to consecutively display (rotate) cameras' view cells on the Liveview window. For example, if you have 8 cameras in 2 2x2 layouts, the rotation can let you see the live views of all cameras by every few seconds.
Page 124: Settings-System-Poe Management
VIVOTEK–Built with Reliability 3-5-14. Settings–System–PoE management When IP cameras are connected to the NVR's PoE ports, their power consumption is constantly monitored, and the power budget is displayed on the PoE management screen. The following apply to the PoE connections and PoE management: 1.
Page 125: Settings-System-Power Management
VIVOTEK–Built with Reliability 10. When the NVR has little reserved power budget, and you attach a new camera, the NVR will stop supplying power to the new camera. 3-5-15. Settings–System–Power management You can configure the system delayed boot up and delayed shuntdown here. Note the function only takes effect when the power line connection is valid.
Page 126: Settings-System-Ups
VIVOTEK–Built with Reliability 3-5-16. Settings–System–UPS On this page, you can configure the system to gracefully shut down when UPS battery is lower than a certain level. You may also let it shut down when the estimated sustainable time is reached. We support APC Black 500 UPS.
Page 127: Settings-System-Log
VIVOTEK–Built with Reliability 3-5-17. Settings–System–Log System logs are categorized as System, Recording, User, and Error. To display system logs, select a range of time and click on the Search button. You can search for past logs in each category window.
Page 128 VIVOTEK–Built with Reliability 128–User's Manual...
Page 129: Settings-User
VIVOTEK–Built with Reliability 3-5-18. Settings–User The User window allows you to create more users, to change user password, and place limitations on users' privileges and administration rights. Up to 16 users can be created, including the default administrator. 1. By default, there are two user groups: Administrator and Regular user.
Page 130 VIVOTEK–Built with Reliability To create or edit users, 1. Select a User group by unfolding its pull-down menu. Select either an Administrator or regular user as the user group. 2. Enter the User name and password. The max. number of characters for a user name is 64, with alphabetic and numeric characters including [0-9][a-z][A-Z][_][ ][-][.][,][@].
Page 131: Settings-Storage
VIVOTEK–Built with Reliability 3. If you are creating a regular user with limited access to cameras, deselect the checkboxes by the cameras to deny the user access. 4. Click Apply to close the configuration window. Repeat the process to create more users.
Page 132 VIVOTEK–Built with Reliability Attribute: The various attributes can vary from different HDD manufacturers. Value: Value for the currently selected attribute. Worst: Worst value acquired for that attribute. Threshold: A predefined threshold or triggering value. The threshold below which the normalized value will be considered exceeding specifications.
Page 133 VIVOTEK–Built with Reliability IMPORTANT: There are conditions that disk drives will not be available for storage configuration: 1. The disk drives are performing the Verify process. 2. The disk drives considered as "failed" drives by the S.M.A.R.T. self detection. User's Manual–133...
Page 134: Settings-Network
VIVOTEK–Built with Reliability 3-5-20. Settings–Network Settings–Network–IP Default Gateway: The NVR gains access to the Internet via Ethernet, Wi-Fi, or LTE (4G Long Term Evolution) wireless WAN. Select a default gateway and start configuration. IMPORTANT: When using LTE, and a PIN is required: It is very important to use the correct PIN after it is configured.
Page 135 VIVOTEK–Built with Reliability 3. Install the SIM card and the LTE module before configuring the 4G LTE wireless WAN connection. 4. Antennas must be installed for the WAN feature to work. LTE Configuration: Enter the following on the LTE configuration page: 1.
Page 136 VIVOTEK–Built with Reliability Ethernet Configuration: DHCP: Default is selected, the server obtains an available dynamic IP address assigned by the DHCP server each time the system is connected to the LAN. Manual setup: Select this option to manually assign a static IP address to the NVR.
Page 137 VIVOTEK–Built with Reliability Wi-Fi Configuration: Configuration options: The applicable alpha-numeric Wi-Fi (SSID): Enter a known SSID or search for a nearby AP. characters are [0-9][a-z][A-Z][-], with a max. length of 64 characters. Security: APs support three wireless authentication settings that use pre-shared keys: WPA only (PSK) —...
Page 138 VIVOTEK–Built with Reliability DHCP: Default is selected, the server obtains an available dynamic IP address assigned by the DHCP server each time the system is connected to the LAN. Manual setup: Select this option to manually assign a static IP address to the NVR.
Page 139: Settings-Ddns
VIVOTEK provides Safe100.net, as a free DDNS dynamic domain name service for users who want access from the internet or a domain name service for the NVR. VIVOTEK maintains a database of product MAC addresses for the Safe100.net service, and you can apply one domain name for each NVR system.
Page 140: Settings-Service
HTTPS encrypted connection is enabled by default. Instead of a web console, you can also access the NVR and the subordinate cameras using the iViewer and VIVOTEK's VAST software. The NVR can be managed as one of the sub-stations in a hierarchical device structure.
Page 141 VIVOTEK–Built with Reliability VAST2 auto connection NAT-traversal with OpenVPN You can select the "VAST Server with OpenVPN" option when installing the VAST server. A remote connection from NVR via a 3G/4G/LTE network can be made through an OpenVPN tunnel. When the OpenVPN option is selected, an OpenVPN server will be installed with the VAST server.
Page 142 3939 proto udp dev tun ca ca.crt cert server.crt key server.key dh dh.pem server 10.6.0.0 255.255.0.0 topology subnet client-to-client client-config-dir "C:\\Program Files (x86)\\VIVOTEK Inc\\VAST\\Server\\OpenVPN\\ ccd" keepalive 10 30 cipher AES-256-CBC max-clients 50000 persist-key persist-tun status openvpn-status.log log-append openvpn.log verb 3...
Page 143 VIVOTEK–Built with Reliability Note that the NVR and VAST server should have a similar time setting when exchanging certificate information. Otherwise, the mutual handshake authentication process may fail. Enter the OpenVPN DNS domain name and the credentials on the NVR network service configuration page.
Page 144: Devices
VIVOTEK–Built with Reliability 3-6. Devices GPS & G-sensor GPS can be used to detect the vehicle's speed. The speed limitation can be used as a triggering condition. Enter a number as a speed threshold. G-sensor The G-sensor can be used to detect unusual maneuvers by detecting acceleration speed information in 3-axial (X, Y, Z) directions.
Page 145: Information
VIVOTEK–Built with Reliability 3-7. Information This window shows the revision number of the firmware running on this machine. User's Manual–145...
Page 146: Section Two Management Over A Web Console
VIVOTEK–Built with Reliability Section Two Management over a Web Console There are two different interfaces on the system: 1. One is connecting mouse and keyboard, and an HDMI cable to a TV screen or monitor. The local management thus made is described in Section One of this manual.
Page 147: Chapter Four Login And Getting Started
VIVOTEK–Built with Reliability Chapter Four Login and Getting Started 4-1. Login This is the login page on the browser. The minimum for resolution is 1280x960. If you enable the IE7 compatible mode when using the IE8 browser, please disable the compatibility function.
Page 148 VIVOTEK–Built with Reliability You may login to a different software utility by unfolding the side panel on the Login button. You can also select a different language using the Multilingual selector menu on the lower left corner of the Login screen. The functional items, menus, and dialogues will then be displayed using the selected language.
Page 149 VIVOTEK–Built with Reliability Login options: You may also mouse over the Login button to display the login options. You can then enter the Liveview, Playback, or Settings window. The NVR system features a simple UI structure which consists of a Liveview window, a Playback utility, and a system Settings window.
Page 150 VIVOTEK–Built with Reliability IMPORTANT: 1. Before operating the NVR, make sure you have properly installed hard drives and configured the storage volumes. Otherwise, you will not be able to operate some of the system's functionality. 2. Since the NVR system comes with 32-bit plug-ins for screen control, if your PC runs a default 64-bit IE browser and you manually enter the NVR's address on the browser, your browser session may malfunction.
Page 151: Graphical Layout And Screen Elements-Liveview
VIVOTEK–Built with Reliability 4-2. Graphical Layout and Screen Elements–Liveview Layout Camera list Layout contents Logo & Menu Alarm panel panel Viewcell panel Once you log in, the system defaults to the Liveview page, which provides access to other configuration utilities, live view screen, and other functional panels. The screen elements are...
Page 152: Camera List Panel
VIVOTEK–Built with Reliability 4-2-1. Camera List Panel The camera list displays the recruited cameras by the sequential numbering order you configured in the System Settings utility. Sorting criteria Camera thumbnails Page switcher Depending on the size and screen resolution of your monitor, the snapshots of 8 cameras are displayed in this panel.
Page 153 VIVOTEK–Built with Reliability * Snapshot: the camera's image snapshot is replenished every 5 minutes. If a camera is disconnected, the last image taken will be used to represent a camera. * Camera index & Camera name: Placing the mouse cursor on top of a camera text displays the camera index number and the camera name.
Page 154: Layout
VIVOTEK–Built with Reliability 4-2-2. Layout By default, 5 typical layouts are provided for the user. They include: 1x1, 2x2, 3x3, 4x4, 1P+3, 1M+5, and 1M+12. System default is the 4x4 layout. Cameras that do not fit into the first page of a layout, say, a 3x3 layout, will be displayed on the succeeding layout pages.
Page 155: Layout Contents
VIVOTEK–Built with Reliability 4-2-3. Layout contents A few functional buttons are available on the Layout contents page. Clears all view cells on the current layout. Full view: extends the view cells on the current layout to the full of the screen.
Page 156: View Cell Panel
VIVOTEK–Built with Reliability 4-2-5. View Cell panel A single view cell is shown below. Each view cell contains a video stream display area, an information bar, and functional buttons at the bottom. A view cell is displayed in Normal, Focused, or Maximized mode.
Page 157 VIVOTEK–Built with Reliability A view cell attempting to connect to a network camera will look like this. If the connection attempt takes a long time, it may result from network problems or incorrect configuration with video streaming. For example, you may have configured the camera to be streaming a 5MP stream.
Page 158 VIVOTEK–Built with Reliability Information Bar Status icon Camera index Video time Status icon Description Connected with live streaming; a single click on this icon can trigger a manual recording. Connected and recording video to system storage. Disconnected or trying to establish a connection.
Page 159 VIVOTEK–Built with Reliability The time display format is as follows: yyyy/m/d/yyyy hh:mm:ss 2014.05.05 16:15:41 Tool Bar Buttons Buttons Description Resumes streaming. Pauses a video stream. Adds a Bookmark (that saves a short description and a one-minute footage from the current feed) Takes a snapshot.
Page 160 VIVOTEK–Built with Reliability Tool Bar Functions in Details 1. Play and Pause buttons: These buttons pause and resume a video stream currently being played on your web browser. Note that this operation does not affect the video recording taking place between a camera and the NVR system.
Page 161 VIVOTEK–Built with Reliability Below are two bookmarks (yellow tags) shown along with a recorded video in the Playback utility screen. Bookmarks help find and retrieve important moments in a recoded video. NOTE: Bookmarks will be erased if the user/system erases the video clips they were appended to. For example, system will recycle storage space by deleting old videos along with their bookmarks.
Page 162 VIVOTEK–Built with Reliability 4. Clear: This button removes camera from the current view cell. The view cell will then be available for other cameras 5. Mute and Unmute: These buttons stops or resumes audio from a live stream. 6. Restore: This button restores the view cell's original position on the Liveview panel.
Page 163 VIVOTEK–Built with Reliability 9. Volume controller: The volume control takes effect when audio input from the network camera is available. Audio is heard only from a focused window, one that you selected by a mouse click from the Liveview panel. Some network cameras do not come with an embedded microphone, and its audio is disabled by system default.
Page 164 VIVOTEK–Built with Reliability 1R (Regional view) 1R View (Single Regional View) Zoom Out Zoom In Zoom in/out & all-directional navigation control The 1R mode (or rectilinear) provides access to one image section within the hemisphere. You can zoom in or out (using the mouse wheel or PTZ panel) or travel through to other areas within the hemisphere using simple mouse clicks and drags.
Page 165: Ptz Panel
VIVOTEK–Built with Reliability 4-2-6. PTZ panel The PTZ panel takes effect for cameras that come with mechanical PTZ functions. It does not support digital PTZ functions. To utilize its functions, select a view cell populated by a PTZ camera, such as a speed dome.
Page 166 VIVOTEK–Built with Reliability PTZ presets: If your PTZ cameras have preset locations, click on the button to unfold the preset menu. Click on any of the preset locations to move to the area of your interest. Refer to your camera's User Manual for how to configure preset locations.
Page 167: Alarm Panel
VIVOTEK–Built with Reliability Auto pan/patrol controller: These buttons provides pan and patrol functions provided that preset locations have been configured on the camera. For a speed dome camera, the pan command tells the camera to continuously pan 360 degrees until it is stopped by a user command.
Page 168 VIVOTEK–Built with Reliability If an event is configured with a recording action, there will be a play button to the left of the alarm message. The alarm playback window will begin playback of a footage taken 10 seconds before the occurrence of an alarm.
Page 169 VIVOTEK–Built with Reliability Move your cursor over an alarm with a recorded footage. The Play button will become available. The following buttons are available in the alarm playback window. Buttons Description View live video: displays the live view streaming instead of the alarm recording.
Page 170 VIVOTEK–Built with Reliability Incoming Alarms New alarms will be indicated by the messages in bold letters, the alarm bell icons, and the increasing number of unread messages on the title bar. 170–User's Manual...
Page 171: Graphical Layout And Screen Elements-Search Recording Clips
VIVOTEK–Built with Reliability 4-3. Graphical Layout and Screen Elements–Search recording clips Layout contents Logo & Menu Camera list 03 - Camera 03 Calendar 2016.05.16 17:15:41 Alarm panel Playback panel The screen elements of the Playback window are described as follows:...
Page 172: Camera List Panel
VIVOTEK–Built with Reliability 4-3-1. Camera List Panel The camera list displays the 8 recruited cameras by the sequential numbering order you configured in the System Settings window on page 87. The elements in the Camera list on a Search recording clips window are identical to those on a Liveview window. Please refer to page 152 for details on the Camera list panel.
Page 173: Search Recording Clips Layout
VIVOTEK–Built with Reliability 4-3-2. Search Recording Clips Layout 3 types of layouts are provided for the Search recording clips window: 1x1, 2x2, and 1+3. In the Search recording clips window, users can simultaneously playback up to 4 recorded videos. Clears all view cells on the current layout Starts or stops the Synchronous playback.
Page 174: View Cells In Search Recording Clips
VIVOTEK–Built with Reliability 4-3-4. View Cells in Search Recording Clips The view cells in Liveview and Playback windows are similar. Their differences are listed as follows: 1. 3 simple layout types are supported as previously described. 2. The information bar displays camera index and video time information only.
Page 175: Search Recording Clips Control Panel
VIVOTEK–Built with Reliability Search Recording Clips Control Panel Timeline slider Span of existing recording Control buttons Playback info Timeline zoomer The time slide bar enables quick skimming through the recording. Its functional buttons are described as follows: Buttons Description Pause Play.
Page 176 VIVOTEK–Built with Reliability The time line shows the length of existing recording taken on a specific time span. You can use the timeline zoomer to scale down the span of time. For example, if the time span is reduced to 1 hour, then each section on the time line represents 15 minutes of recording. The total time span of a timeline starts from the minimal of 4 minutes, 20 minutes, 40 minutes, 1 hour, and up to a maximum of 24 hours.
Page 177: Alarm Panel
VIVOTEK–Built with Reliability 4-3-5. Alarm Panel The alarm panel displays the alarms or bookmarks recorded by the day of recording. Two additional buttons are available: Page selector and Alarm filter. Page selector Alarm filter See page 107 for how to configure alarms.
Page 178: Calendar Panel
VIVOTEK–Built with Reliability 4-3-6. Calendar Panel Double-click on any of the existing cameras to display the Calendar panel. Days with recorded videos will be highlighted in blue regardless of the length of existing recordings that occurred in that day. You may then click on a day to begin viewing the past recordings.
Page 179: Chapter Five System Settings
VIVOTEK–Built with Reliability Chapter Five System Settings Since revision 2.0.0.x, the System Settings pages are made identical to those on the local console. Since the Setting pages are identical, the following pages will be omitted. Please refer to page 87 for the description of System Settings via a local console.
Page 180 VIVOTEK–Built with Reliability Another difference is the ability to enter a camera or system name using languages other than English. The NVR's system name also supports the use of other lanaguages. This is only achievable through a web console. The following characters are not supported: [>][<][)][(]["][%][;][#][&][+][-][\]...
Page 181: Chapter Six Operation
VIVOTEK–Built with Reliability Chapter Six Operation IMPORTANT: 1. Before operating the NVR, make sure you have properly installed hard drives and configured the storage volumes. Otherwise, you will not be able to operate most of the system's functionality. 2. Since the NVR system comes with 32-bit plug-ins for screen control, if your PC runs a default 64-bit IE browser and you manually enter the NVR's address on the browser, your browser session may malfunction.
Page 182 VIVOTEK–Built with Reliability To begin the design of your layout, 1. Select a layout pattern by a single click. The options are: 1x1, 2x2, 3x3, 4x4, 1P+3, 1M+5, 1M+12, and 1M+31, where 4x4 and 1M+12 are available for the 16-CH model.
Page 183 VIVOTEK–Built with Reliability Placing different regional views of a fisheye camera into view cells will look like this: 1R View (Single Regional View) NOTE: Only an administrator can alter the display modes of fisheye cameras. Although ordinary users can make changes to a regional view, his changes will not be preserved after a console is re-started.
Page 184 VIVOTEK–Built with Reliability 4. When you are done with the current layout design, i.e., the user layout 1, click Save to preserve your settings. This message prompts on the screen whenever any change is made to the current layout. 5. You can create more user layouts by mouse-overing the user layout button. You may create more user layouts for different purposes, such as for the use of different users, or playing different views of a camera on multiple view cells.
Page 185: Ptz And Other Screen Controls
VIVOTEK–Built with Reliability NOTE: By default, every users or administrator logs in to the Live view window to the last layout page he visited. The last layout page a user visited during the previous console becomes the default layout. 6-1-2. PTZ and Other Screen Controls Note that the PTZ control panel only applies when you select a view cell with a camera that comes with mechanical PTZ functions.
Page 186 VIVOTEK–Built with Reliability To access live view control, 1. Click on a view cell. The view cell will become a focused view cell. The streaming control buttons will be listed at the bottom of a view cell. These buttons have been discussed on page 159.
Page 187 VIVOTEK–Built with Reliability To place bookmarks and exert screen controls, On a focused view cell, you can place a bookmark that saves a short description and a one- minute footage from the current feed. The bookmark is also displayed along with the recorded video, and therefore it is easier to look for a specific moment in time when you need to trace back for a scenario later.
Page 188: Audio
VIVOTEK–Built with Reliability To Activate and Deactivate PiP function, PiP is short for Picture in Picture, a function that provides digital zoom into a live video. When activated, a Global view window will appear at the lower right of the view cell as shown below.
Page 189: Camera Properties And Controls
VIVOTEK–Built with Reliability 6-1-4. Camera Properties and Controls You can click on the underlined name entry of a camera on the camera list to open its properties window. Here you can find a short description of the camera name, address, and model name.
Page 190: Alarm Panel
VIVOTEK–Built with Reliability 6-1-5. Alarm Panel To receive alarms from cameras, you need to configure alarm triggers in the Settings > Alarm configuration window (see page 107). Network cameras' digital inputs, digital outputs, or motion detection can all be used to detect conditions in external environments. You can configure certain kind of actions to take place in response to the alarms: such as, 1.
Page 191: Layout View Control Buttons
VIVOTEK–Built with Reliability 6-1-6. Layout view Control Buttons When editing a user layout, you can use this button to clear all view cells of inserted cameras. This button extends the current layout to the full of the screen. The Rotate function lets system display successive pages in a user layout...
Page 192: Search Recording Clips
VIVOTEK–Built with Reliability 6-2. Search Recording Clips The elements in the Camera list on a Search recording clips window are similar to those on a Liveview window. Please refer to page 152 for details on the Camera list panel. However, on a Search recording clips window, 1.
Page 193: Past Alarms And Bookmarks
VIVOTEK–Built with Reliability 6-2-2. Past Alarms and Bookmarks When you selected a day when alarms took place on a camera, the alarms will be listed on the Alarm panel. Up to 200 entries can be listed on a single page, and a max. of 1,000 entries across multiple pages.
Page 194: Synchronous Playback
VIVOTEK–Built with Reliability Note that the bookmarks you inserted on the Liveview window will be listed on the Alarm panel, and the bookmarks will also appear on the slide bar of the Playback window. To retrieve or view the video clip tagged by the bookmark, click on it to play the video that was recorded by the time bookmark was inserted.
Page 195: Export Media
VIVOTEK–Built with Reliability 6-2-4. Export media To export video clips, 1. Click on the Export media button on the tool bar, while the Playback window is playing a video section of your interest. 2. An Export media window will prompt.
Page 196: Time Search
VIVOTEK–Built with Reliability 6-2-5. Time Search Use the time line slide bar to find the nearest recording from a specific point in time. Timeline slider Span of existing recording Control buttons Playback info Timeline zoomer Details of the control bar in the Playback window can be found on page 175.
Page 197 VIVOTEK–Built with Reliability Time span =12 hrs Each section =3 hrs Total time span Time span =1 hrs Each section =15 mins If recordings take place by an event-triggered recording, the intervals between recordings can be down to 1 minute, and the individual recordings will not be easily discernible. In this situation, you can mouse over the timeline to pin-point individual recording instances.
