Impassa SCW9055(D)(G)(I)-433/868 User Manual

Self contained wireless alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

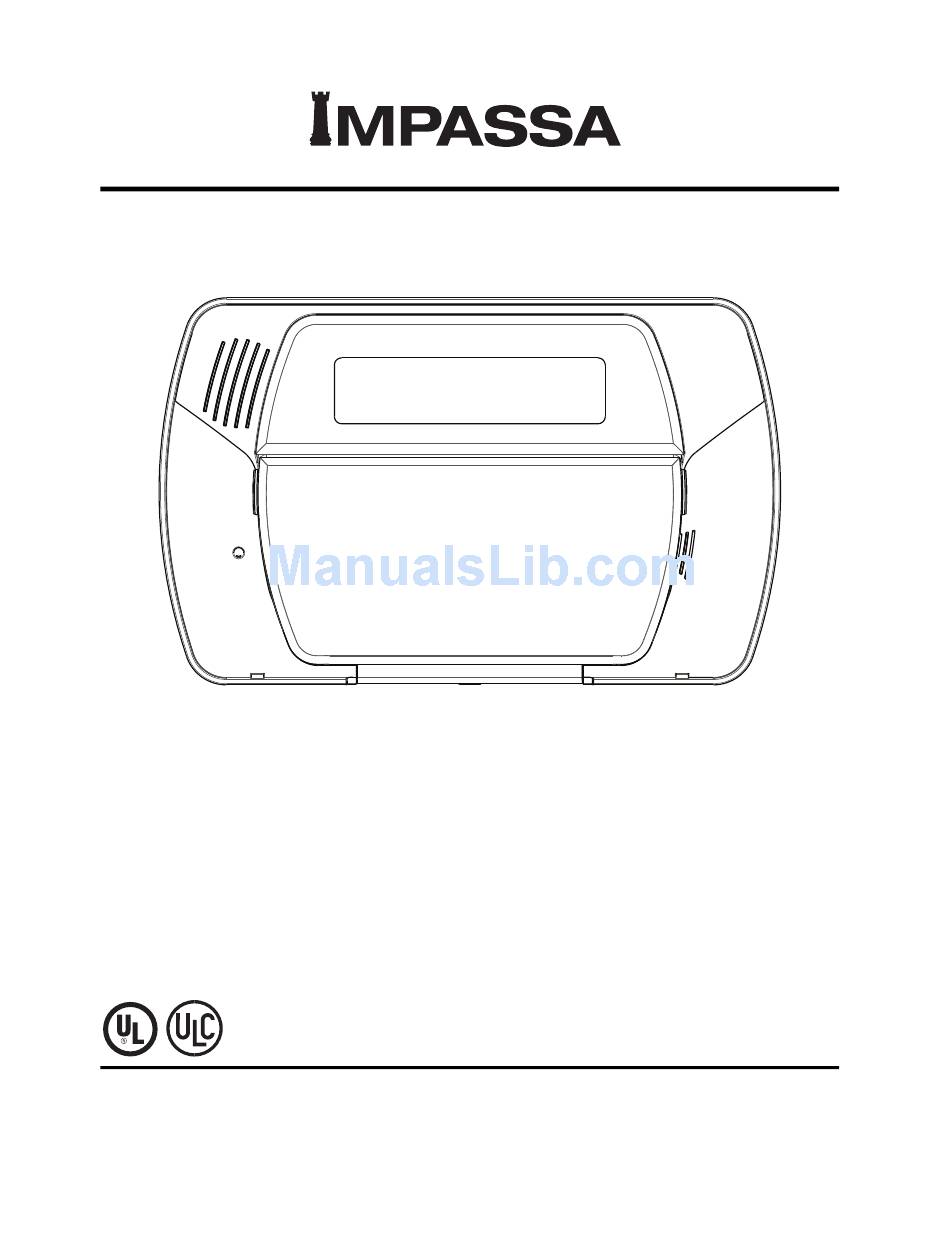

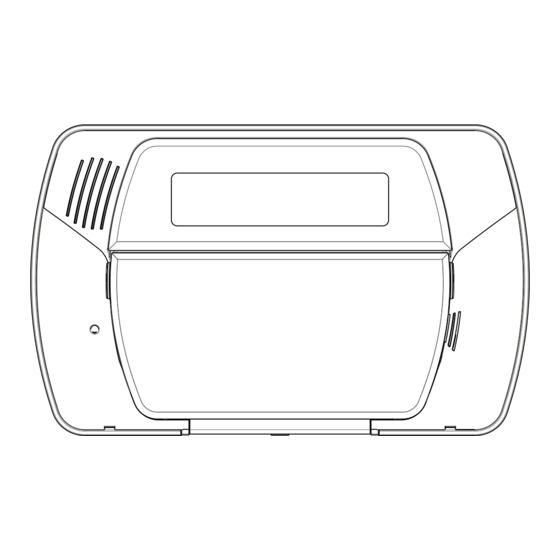

Self Contained Wireless Alarm System
Models:
SCW9055(D)(G)(I)-433/868
SCW9057(D)(G)(I)-433/868
Used with:
WT5500-433/868
WT5500(P)-433/868
v1.0 Installation Guide
WARNING: This manual contains information on limitations regarding product use and
function and information on the limitations as to liability of the manufacturer. The entire
manual should be carefully read.
WWW.DIYALARMFORUM.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCW9055(D)(G)(I)-433/868 and is the answer not in the manual?

Questions and answers

Related Manuals for Impassa SCW9055(D)(G)(I)-433/868

Summary of Contents for Impassa SCW9055(D)(G)(I)-433/868

  • Page 1 Self Contained Wireless Alarm System Models: SCW9055(D)(G)(I)-433/868 SCW9057(D)(G)(I)-433/868 Used with: WT5500-433/868 WT5500(P)-433/868 v1.0 Installation Guide WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read.
  • Page 2 WWW.DIYALARMFORUM.COM...

  • Page 3: Table Of Contents

    Table of Contents 1 Introduction............1 1.1 SCW9055/57 Model Differences .

  • Page 4: Safety Instructions For Service Personnel

    SAFETY INSTRUCTIONS for SERVICE PERSONNEL WARNING: When using equipment connected to the TELEPHONE NETWORK, there are basic safety instructions that should always be followed. Refer to the SAFETY INTRUCTIONS provided with this product; save them for (future) reference. Instruct the end-user regarding the safety precautions that shall be observed when operating this equipment.

  • Page 5: Smoke Detectors

    Guidelines for Locating Smoke & CO Detectors The following information is for general guidance only and it is recommended that local fire codes and regulations be consulted when locating and installing smoke and CO alarms. Smoke Detectors Research indicates that all hostile fires in homes generate smoke to a greater or lesser extent. Detectable quantities of smoke precede detectable levels of heat in most cases.

  • Page 6: Limited Warranty

    Limited Warranty Digital Security Controls warrants the original purchaser that for a period of twelve months from the date of purchase, the product shall be free of defects in materials and Items Not Covered by Warranty workmanship under normal use. During the warranty period, Digital Security Controls shall, at its option, repair or replace any defective product upon return of the product to In addition to the items which void the Warranty, the following items shall not be covered by Warranty: (i) freight cost to the repair centre;...

  • Page 7: Introduction

    1.1 SCW9055/57 Model Differences 1 Introduction This manual provides installation and programming information for the SCW9055(D)(G)(I) and SCW9057(D)(G)(I) two-way wireless alarm sys- tem. Available hardware platforms for the 433 MHz and 868 MHz versions are described below. 1.1 SCW9055/57 Model Differences •...

  • Page 8: Product Specifications

    SCW9055/57 Wireless Alarm System 1.3 Product Specifications • Maximum standby time 24h (AUX=0mA)/ 4h (AUX=100mA) • Recharging time to 80% 24hours Control and Indicating Equipment Specifications • Recharging current: Zone Configuration DSC part no. 17000152 (1.5Ah) ....125mA •...

  • Page 9: Controls & Indicators

    1.4 Controls & Indicators 1.4 Controls & Indicators The SCW9055/57 has four status indicators located on the front right side of the panel. See the table below for details: Table 1-6 Controls & Indicators - Alarm Panel Alarm Indicators Ready: Panel is ready to be armed. Armed: Panel is armed.
  • Page 10 SCW9055/57 Wireless Alarm System When the required letter or number is displayed use the arrow keys [<][>] to scroll to the next letter. When you are finished programming the Zone Label, press the [] key, use the [<][>] keys to scroll to “Save” then press []. Continue from Step 2 until all labels are programmed.

  • Page 11: Installation

    2 Installation 2 Installation This section describes how to install and connect the SCW9055/57. 2.1 Mounting Figure -1, Opening Cover If required, separate the front and back covers by removing the cover screw then inserting a small slotted screwdriver between the front and back covers and gently twist the screwdriver to separate.

  • Page 12: Wiring

    SCW9055/57 Wireless Alarm System 2.2 Wiring 2.2.1. Zone Wiring Zones can be wired for Normally Open and Normally Closed con- tacts with Single-end-of-line (SEOL) resistors or Double End-of- Normally Closed Loops - Do NOT use for UL Installations Line (DEOL) resistors. Observe the following guidelines: AUX- Any I/O Any I/O...

  • Page 13: Wireless Device Setup

    2 Installation 2.2.4 Battery 2.2.5. AC Wiring For systems without an alternate communicator module, a 1500 mAh Ni- AC Transformer Requirements: Mh battery pack is included to meet battery standby requirements. For sys- Primary:120VAC, 50/60Hz., 0.33A (NA), 240VAC, 50/ tems with an alternate communicator module, a 3600 mAh Ni-MH battery 60Hz., 0.165A (EU) pack is included.
  • Page 14 SCW9055/57 Wireless Alarm System Quick Enrolling Keypads, Sirens, Wireless Keys & Repeaters Enter [ ][8][5555][898]. The following is displayed: “Wireless Enrollment Mode.” ✱ Activate the device as indicated below or in the device’s installation sheet. • Additional keypad: Press the [ ] and [1] keys simultaneously.

  • Page 15: Alternate Communicator Module Setup/Initialization

    2 Installation 2.3.3 Wireless Device Placement Test Perform wireless device placement testing on keypads, sirens, sensors and repeaters only. • During placement test, the sensitivity of the wireless receiver is reduced significantly. This is done to ensure that, if consistent good placement test results are generated with reduced sensitivity, the product should have more than adequate range when place- ment test exits and the sensitivity level returns to normal.

  • Page 16: Operation

    SCW9055/57 Wireless Alarm System 3 Operation 3.1 Operating Modes 3.1.1 – Away Arming Away Arming arms the entire system including the perimeter and interior devices. The Ready light must be on to arm the system. If the Ready light is off, ensure all protected doors and windows are secure or bypassed. To arm in Away mode, press and hold the Away function key for 2 seconds or enter a valid user code and leave the premises through a door programmed as Delay.
  • Page 17 3 Operation Additional Bypass Commands: Bypass Recall: Press [99]. The keypad will recall the last group of zones that were bypassed. Clear Bypass: Press [00]. The keypad will clear the bypass on all zones. Save Bypass: Press [95]. The keypad will save which zones are manually bypassed. Recall Save: Press [91].
  • Page 18 SCW9055/57 Wireless Alarm System One-time Use Code: The one-time-use code allows unlimited arming but only permits a single disarming once a day. The Disarm function is restored at midnight. ][6] – User Functions ✱ To access the User Functions section, press [ ][6] followed by the master or supervisor code.

  • Page 19: Function Keys

    3 Operation 3.4 Function Keys The keypad has 5 programmable one-touch function keys located in a column down the right-side of the keypad. These keys can also be activated by pressing and holding number [1] through [5] respectively for 2 seconds. The default for these keys are as follows: [1] Stay Arm [4] Bypass [2] Away Arm...

  • Page 20: Programming

    SCW9055/57 Wireless Alarm System 4 Programming The SCW9055/57 can be programmed using the following methods: Programming Method Description Procedure Template Programming Allows the minimum required data to be pro- Press [899] at the “Enter Section” screen. grammed. It also allows for the setup of DLS See Template Programming below for details.
  • Page 21 4 Programming After programming the exit delay, enter a 4 or 6-digit installer code depending on the value in section [701] option 5. See “[006] Installer Code” on page 20 for installer code details. Press [#] to exit Template Programming. •...
  • Page 22 SCW9055/57 Wireless Alarm System • Selected Troubles - Enables the following Troubles Trouble [345] Alarms [346] Restore Battery AC Failure Fire Trouble Aux PS General System FF = General System Trouble, 00 = Disabled, XX = Not transmitted • Openings & Closings - Sets Residential Dial Reporting Codes for all openings and closings Users CLOSINGS, Residential Dial Reporting Codes Section...

  • Page 23: Dls Programming

    4 Programming 4.2 DLS Programming 4.2.1 Local Programming with PC-Link Follow the steps below in the sequence indicated to set up local programming using DLS: Connect AC Wiring before mounting the back plate. NOTE: In a new installation, the backup battery requires 24 Hrs. charging. AC Power is required for PC-Link Programming until battery is charged.

  • Page 24: Advanced Programming

    SCW9055/57 Wireless Alarm System 5 Advanced Programming 5.1 How to Program To help reduce programming time and eliminate errors, fill in the Programming Worksheet with the required programming defaults before programming the system. To enter Installer Programming, press [][8][Installer Code]. The LCD keypad displays “Enter Section.” An error tone sounds if an incorrect installer code is entered.

  • Page 25: Index To Programming Worksheets And Descriptions

    5 Advanced Programming 5.2 Index to Programming Worksheets and Descriptions Programming Option PWS/Desc. Programming Option (cont.) PWS/Desc. [001]-[002] Zone Definitions..........20/40 [404] Panel ID Code............30/56 [005] System Times ............20/42 [405] Double Call Timer .............30/56 [006] Installer's Code ............20/42 [406] Number of Rings to Answer On ........30/56 [007] Master Code ..............

  • Page 26: Programming Worksheets

    SCW9055/57 Wireless Alarm System 5.3 Programming Worksheets Unless indicated otherwise, default values apply to NA and CP-01.  SIA FAR CP-01 defaults are indicated in gray. e.g., or 030 [001]-[002] Zone Definitions 00 Null Zone (Not Used) 14 24 Hour Heat* 27-30 Future Use 01 Delay 1* 15 24 Hour Medical*...

  • Page 27: I/O Programming

    5 Advanced Programming Programmable Output Options 00 Null PGM (Not Used) 10 System Event Output (with Event Options) 01 Residential Burglary and Fire Bell Output 11 System Tamper (all sources: zones, keypad) 02-04 Future Use 12 TLM and Alarm 05 System Armed Status 13-16 Future Use 06 Ready To Arm 17 Away Armed Status...

  • Page 28: Fourth System Options

    SCW9055/57 Wireless Alarm System [016] Fourth System Options Def.   Cross Zoning Enabled  Police Code Enabled    Exit Delay Restart Enabled  Exit Delay Restart Disabled   Blank Keypad When Not Used  Keypad Always Active ...

  • Page 29: Zone Attributes

    5 Advanced Programming [101]-[134] Zone Attributes Options 9 and 10 do not apply to SCW9055 versions. Options 14, 15 and 16 apply to hardwired zones only (zones 33 & 34). To program attributes 9 to 16, press 9 within the zone attribute section. Press 9 again to program attributes 1 to 8. Zone Attribute Defaults Attribute: Audible Steady Chime Bypass Force Swing...

  • Page 30: Cross Zone/Police Code Timer

    SCW9055/57 Wireless Alarm System [176] Cross Zone/Police Code Timer Default 060 Valid entries are 001-255 seconds/minutes I_______I_______I_______I [190] No Activity Arming Pre-alert Timer Default 001 Valid entries are 001-255 minutes, 000 for no pre-alert I_______I_______I_______I [191] No Activity Arming Timer Default 000 Valid entries are 001-255 minutes, 000 to disable I_______I_______I_______I...

  • Page 31: Alarm Rep. Codes

    5 Advanced Programming [320]-[322] Alarm Reporting Codes, Zones 01-34 Section [320] Zone 01 Zone 02 Zone 03 Zone 04 Zone 05 Zone 06 Zone 07 Zone 08 |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| Zone 09 Zone 10 Zone 11 Zone 12 Zone 13 Zone 14...

  • Page 32: Tamper Rep. Codes

    SCW9055/57 Wireless Alarm System [330]-[332] Tamper Reporting Codes, Zones 01-34 Section Zone 01 Zone 02 Zone 03 Zone 04 Zone 05 Zone 06 Zone 07 Zone 08 [330] |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| Zone 09 Zone 10 Zone 11 Zone 12 Zone 13...

  • Page 33: First Telephone Number

    5 Advanced Programming [345] Maintenance Alarm Reporting Codes [346] Maintenance Restore Reporting Codes |___|___| Battery Trouble Alarm |___|___| Battery Trouble Restore |___|___| AC Failure Trouble Alarm |___|___| AC Failure Trouble Restore |___|___| Future Use |___|___| Future Use |___|___| Fire Trouble Alarm |___|___| Fire Trouble Restore |___|___|...

  • Page 34: Second Telephone Number

    SCW9055/57 Wireless Alarm System [367] Opening/Closing Communicator Call Directions Option 1 Option 2 Option 3 Option 4 Option 5-8 First Telephone Second Telephone Third Telephone Fourth Telephone Future Use Number (Default OFF) Number (Default OFF) Number (Default OFF) Number (Default OFF) (Default OFF) ...

  • Page 35: Second Communicator Options

    5 Advanced Programming  Alternating Backup Dialing Enabled   Call Primary Number, Backup to Secondary  Future Use  Delinquency Follows Zone Activity (Hours)   Delinquency Follows Arming (Days) [381] Second Communicator Options Def.  Opening After Alarm Keypad Ringback Enabled ...

  • Page 36: Downloading Options

    SCW9055/57 Wireless Alarm System DLS Downloading [401] First Downloading Options  Answering Machine/Double Call Enabled   Answering Machine/Double Call Disabled   User Can Enable DLS Window  User Cannot Enable DLS Window  Call Back Enabled   Call Back Disabled ...

  • Page 37: Inactivity Timers 1&2 Start/End Times

    5 Advanced Programming Attribute: Service AC Fail TLM Fault Device Device Device Loss of Req. Event Fault Tamper Clock Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled 09 System Trouble         Attribute: Burg. Fire Panic Event Medical...

  • Page 38: Alternate Com. Receiver Trouble Rep. Codes

    SCW9055/57 Wireless Alarm System [610] Alternate Communicator Receiver Trouble Reporting Codes I___I___I Receiver 1 Trouble I___I___I Receiver 1 Trouble Restore I___I___I Receiver 2 Trouble I___I___I Receiver 2 Trouble Restore I___I___I Receiver 3 Trouble I___I___I Receiver 3 Trouble Restore I___I___I Receiver 4 Trouble I___I___I Receiver 4 Trouble Restore I___I___I...

  • Page 39: Door Chime Options For Zones 1-34

    5 Advanced Programming [800] Door Chime Options for Zones 1-34 Option Option 6 Beeps Bing Bong Ding Dong Alarm 6 Beeps Bing Bong Ding Dong Alarm OFF Disabled Disabled Disabled Disabled OFF Disabled Disabled Disabled Disabled Section Zone Default Default Default Default Section Zone Default...

  • Page 40: Wireless Key Serial Number

    SCW9055/57 Wireless Alarm System [804][101]-[156] Wireless Key Programming Enable/Disable Wireless Key Programming Sub Serial Number Sect. Sect. Def.03 Def.04 Def.27 Def.30 Def.13 Def.14 Sect. Def. [101] |___|___|___|___|___|___|___|___| [141] |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| [181]   [102] |___|___|___|___|___|___|___|___| [142] |___|___| |___|___| |___|___| |___|___| |___|___| |___|___| ...

  • Page 41: Wireless Siren Options

    5 Advanced Programming [804][311] Wireless Siren #1 Options Def.   Siren Alarm Enabled  Siren Alarm Disabled   Buzzer Notifications Enabled  Buzzer Notifications Disabled   Door Chime Enabled  Door Chime Disabled   Trouble Beeps Enabled ...

  • Page 42: Wireless Device Placement Test

    SCW9055/57 Wireless Alarm System [904]-[907] Wireless Device Placement Test Enter [*][8][Installer Code][904], [905] [906] or [907] to placement test wireless zones, sirens and repeaters respectively. See “2.3 Wireless Device Setup” on page 7. [908] Wireless Modules Enter [*][8][Installer Code][908] to display all wireless modules enrolled on the system. Scroll to display the name and slot number of each device.

  • Page 43: Fire Alarm Label

    5 Advanced Programming [006] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [15] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [007] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [016] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [008] [017] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [009] [018] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [019] [027] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [020] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [028] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [021] |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [029] |____|____|____|____|____|____|____|____|____|____|____|____|____|____|...

  • Page 44: First Keypad Options

    SCW9055/57 Wireless Alarm System [074] First Keypad Options Def.   [F] Key Enabled  [F] Key Disabled   [A] Key Enabled  [A] Key Disabled   [P] Key Enabled  [P] Key Disabled   Quick Arm Prompt ON ...

  • Page 45: Command Output Labels

    5 Advanced Programming [120] Command Output 1 Label (2 x 14 Characters) Default |____|____|____|____|____|____|____|____|____|____|____|____|____|____| COMMAND _ _ _ _ _ _ _ _ _ _ _ _ _ _ |____|____|____|____|____|____|____|____|____|____|____|____|____|____| [121] Command Output 2 Label (2 x 14 Characters) Default |____|____|____|____|____|____|____|____|____|____|____|____|____|____| COMMAND _ _ _ _ _ _ _ _ _ _ _ _ _ _...

  • Page 46: Programming Descriptions

    SCW9055/57 Wireless Alarm System 5.4 Programming Descriptions The following is a description of the programming features and options available in the control panel. [000] Keypad Function Key Programming The five function keys on the alarm panel can be reprogrammed as described below. See “[001]-[002] Zone Definitions” on page 20 for defaults Option Description Option Description...
  • Page 47 5.4 Programming Descriptions Future Use 24 Hour Water: Similar to 24 Hour Burglary except for System Event output type and SIA identifier. 24 Hour Freeze: Similar to 24 Hour Burglary except for System Event output type and SIA identifier. Future Use Momentary Keyswitch Arm: A keyswitch device may be connected to the zone programmed as momentary keyswitch arm.
  • Page 48 SCW9055/57 Wireless Alarm System The fire delay is terminated if a second fire zone is tripped or if the key is pressed during a delay. Standard 24-Hour Fire (Wireless). This zone is used with wireless smoke detectors. The bell output will sound instantly to indicate that the smoke detector has been activated when violated.
  • Page 49 5.4 Programming Descriptions • 24-hour supervisory buzzer zone alarm • No activity arm pre-alert • Entry delay • Audible exit fault • Audible exit delay • Door chime The PGM output remains switched to ground while the keypad buzzer is active. This PGM type does not activate for local key presses or trouble beeps.
  • Page 50 SCW9055/57 Wireless Alarm System Lockout Duration Program a time from 000 to 255 minutes to determine the length of time before lockout resets and the keypad can once again be used. • If lockout is not reached within the hour roll-over, the number of invalid attempts is reset to 0. •...
  • Page 51 5.4 Programming Descriptions [015] Third System Options Option Description ON: Fire Key Enabled. Pressing and holding the fire key for 2 seconds generates a fire alarm. The keypad sounds a set of 3 beeps to acknowledge the valid alarm and the buzzer sounds a pulsing alarm tone for the length of the bell time-out, or until an access code is entered.
  • Page 52 SCW9055/57 Wireless Alarm System ON: Keypad Backlighting Enabled. Keypad backlighting is continuously on. OFF: Keypad Backlighting Disabled. Keypad backlighting is never on. Future Use ON: Bypass Status Displayed While Armed. “Warning Bypass Active” displays if zones are manually bypassed when the system is Away armed.
  • Page 53 5.4 Programming Descriptions [024] Eleventh System Options Code Option Description ON: Temperature Display Enabled. The keypad displays the temperature received from the lowest numbered external siren. If the local clock display is also enabled, then the keypad displays date, time, and temperature. OFF: Temperature Display Disabled.
  • Page 54 SCW9055/57 Wireless Alarm System [10] Talk-Listen/Lis- ON: The zone initiates a 2-way session with the central station. Both microphone and speaker are acti- ten-in Only vated. This option is only available when zone attribute [9] is enabled. OFF: The zone initiates a Listen-in only session with the central station. Only the microphone is acti- vated.
  • Page 55 5.4 Programming Descriptions [176] Cross Zone/Police Code Timer Program the time, in seconds (Cross Zone) or minutes (Police Code), that the panel uses to determine if a Cross Zone or Police Code event has occurred. If [000] is programmed when using the Police Code feature, the panel generates a Police Code event (if any two zones go into alarm during an armed-to-armed period).
  • Page 56 SCW9055/57 Wireless Alarm System [320]-[326] Alarm Reporting Codes These reporting codes are used by the communicator to transmit zone alarms and restores for zones 1 to 34.These reporting codes are sent to the Alarm & Restore call direction group Zone alarms transmit to the System Test Transmission Call Direction when they are being transmitted as part of the walk test (enabled if section [382] option [2] is ON).
  • Page 57 5.4 Programming Descriptions Exit Fault If an Exit Error occurs and entry delay expires before the system is disarmed, this reporting code is sent. This reporting code is sent to the Openings & Closings call direction group If the delay zone that caused the exit error has cross zoning enabled, the exit fault and zone alarm still transmit if a second zone is not violated.
  • Page 58 SCW9055/57 Wireless Alarm System DLS Lead In and Lead Out When call-back is enabled, the control panel transmits the DLS Lead In reporting code before calling back the downloading computer. The DLS Lead Out reporting code is transmitted by the panel every time DLS has completed a successful DLS session with the control panel.
  • Page 59 5.4 Programming Descriptions Each group can be assigned to the following call directions: Option 1: Telephone Number Option 2: Telephone Number Option 3: Telephone Number Option 4: Telephone Number [377] Communicator Variables Program a 3-digit number for each program entry: Swinger Shutdown (Alarms): Maximum number of alarm/restore transmissions per zone.
  • Page 60 SCW9055/57 Wireless Alarm System [381] Second Communicator Options Option Description ON: Opening After Alarm Keypad Ringback Enabled. When the Opening After Alarm reporting code is successfully transmitted to a programmed telephone number, the keypad sounds a series of 8 beeps to confirm to the end user that the Opening After Alarm Code was sent and received.
  • Page 61 5.4 Programming Descriptions [383] Fourth Communicator Options Code Option Description Future Use ON: Phone number 2 Backs Up Phone number 1. Phone number 2 backs-up phone number 1 if phone number 1 fails to communicate (FTC). Phone number 2 communicates in the same format as phone number 1. OFF: Phone number 2 is Independent.
  • Page 62 SCW9055/57 Wireless Alarm System Future Use ON: 300 Baud Panel Call-Up. When the user initiates a DLS connection, the panel connects and sends the initial header at 300 baud. OFF: 110 Baud Panel Call-Up. When the user initiates a DLS connection, the panel connects and sends the initial header at 110 baud.
  • Page 63 5.4 Programming Descriptions The following attributes are available for the System Trouble PGM option [09] System Trouble PGM (Type 09) [1] Service Required [2] A.C. Failure [3] Telephone Line Fault [4] Communications (Failure to Communicate) [5] Device (Fire) Fault / WLS Zone Supervisory Fault Enabled [6] Device Tamper [7] Device Low Battery [8] Loss of Clock...
  • Page 64 SCW9055/57 Wireless Alarm System [601] 2-way Audio Control Options 2 (applies to SCW9057 only) Option Description ON: Talk/Listen on Phone #1 Enabled. If Talk/Listen is required for an event, the panel initiates a Talk/Listen session with the central station on phone #1. OFF: Talk/Listen on Phone #1 Disabled.
  • Page 65 5.4 Programming Descriptions [702] Second International Options Option Description ON: Pulse Dialing Make/Break ratio is 33/67. The communicator uses 33/67 make/break ratio when pulse dialing. OFF: Pulse Dialing Make/Break ratio is 40/60. The system uses 40/60 make/break ratio. ON: Force Dialing Enabled. The system dials regardless of the presence of dial tone after the first attempt. OFF: Force Dialing Disabled.
  • Page 66 SCW9055/57 Wireless Alarm System [804][081] Wireless Supervisory Window This entry is used to program the length of time a wireless device must be absent from the system before a fault is generated. The wire- less supervisory window is calculated by multiplying the programmed value by 15 minutes. Valid entries are 04 to 96 which correlates to 1 to 24 hours.
  • Page 67 5.4 Programming Descriptions ON: Door Chime Enabled. The siren activates for door chime conditions. OFF: Door Chime Disabled. The siren does not activate for door chime conditions. ON: Trouble Beeps Enabled. The siren activates for trouble beep conditions. Trouble beeps are sounded until any key on the keypad is pressed or until all trouble conditions are restored.
  • Page 68 SCW9055/57 Wireless Alarm System [850] Cellular Signal Strength This section displays Cellular network signal strength on the LCD (“Cellular” is displayed on the first line). Scroll to the second line to   view. If the SIM card is activated, the second line displays and the signal strength bars.
  • Page 69 5.4 Programming Descriptions [000] Keypad Function Key Programming This section is used to program the keypad function keys. To access enter [][000] from Installer Programming. Enter digits 1 to 5 to select a function key (F1-F5) for programming. Key in a 2-digit entry to assign a function to the key. The system returns to the key selection screen (in section [000]).
  • Page 70 SCW9055/57 Wireless Alarm System [001]-[034] Label Programming (Zone 1-34) Zone and other labels in these sections can be customized. Default labels are in English and do not change when an alternate language is selected. Labels can be programmed locally or downloaded/uploaded using DLS and Connect 24 interactive software. To program a zone label: Press To Enter/Display...
  • Page 71 5.4 Programming Descriptions [075] Second Keypad Options Option Description ON: Local Clock Display Enabled: When the keypad is not being used, the keypad returns to displaying the Time and Date until another key is pressed. OFF: Local Clock Display Disabled. Time and date is not displayed on the keypad. ON: Local Clock Displays 24 Hour Time.
  • Page 72 SCW9055/57 Wireless Alarm System [997] Keypad Version Entering this section displays the keypad version. The keypad version is displayed as a 4-digit decimal entry. E.g., Entry is 1234 = Version 12.34. This is a read-only value. [998] Initiate Global Label Broadcast Programmed keypad labels are broadcast and installed on all system keypads from keypad 1.

  • Page 73: Testing And Troubleshooting

    6 Testing & Troubleshooting 6 Testing & Troubleshooting Testing: • Power up system • Program options as required (see programming section) • Violate, then restore zones • Verify correct Reporting Codes are sent to the central station Troubleshooting: • Power up system •...
  • Page 74 SCW9055/57 Wireless Alarm System Trouble [1] Service Required Press [1] to determine specific trouble Low Battery The panel detects that no battery is pres- NOTE: If battery is new, allow 24 Hrs. to charge. ent, that the battery is shorted, or that the •...
  • Page 75 6 Testing & Troubleshooting Trouble [5] Zone Fault Press [5] to determine specific zones with a Fault trouble Hard-wired zone fault condition present. • Remove the wire leads from I/O and COM terminals and press - Zone faults A short circuit is present on one or more measure the resistance of the wire leads.

  • Page 76: Appendix A: Reporting Code Formats

    SCW9055/57 Wireless Alarm System Appendix A: Reporting Code Formats The following tables contain Contact ID and Automatic SIA format reporting codes. See Programming Sections [320]-[348] for Report- ing Codes. Contact ID The first digit (in parentheses) is automatically sent by the control. The second two digits are programmed to indicate specific informa- tion about the signal.
  • Page 77 Appendix A: Reporting Code Formats Automatic Dialer SIA Auto Section # Reporting Code Code Sent When... Contact ID Direction* Rep Codes** Codes [345]-[346] Auxiliary Power Trouble/ Aux voltage supply trouble/restore MA/R E(3) 12-000 YP-00/YQ-00 Rest. R(3) 12-000 [346] TLM Fail/Restore Telephone line restored MA/R E(3) 51-000...
  • Page 78 SCW9055/57 Wireless Alarm System Automatic Dialer SIA Auto Section # Reporting Code Code Sent When... Contact ID Direction* Rep Codes** Codes [610] Alternate Communicator The Atl. Comm. has detected receiver 2 has gone MA/R E(3)5A-001 YS-02/YK-02 Receiver 2 Trouble/Restore absent or failed to initialize/is present and has been R(3)5A-001 initialized [610]...

  • Page 79: Appendix B: 2-Way Audio Verification (Scw9057 Only)

    Appendix B: 2-Way Audio Verification (SCW9057 only) Appendix B: 2-Way Audio Verification (SCW9057 only) The following information is intended for use by the Central Station Operator. • The SCW9057 Audio Verification provides Talk and Listen-in capability for audio verification of alarms. This allows the central station to com- municate with the occupants through the microphone and speaker of the alarm system.

  • Page 80: Appendix C: Communicator Format Options

    SCW9055/57 Wireless Alarm System Appendix C: Communicator Format Options The following format options are programmable in section [350] on page 27 20 BPS, 1400 Hz handshake 20 BPS, 2300 Hz handshake • BPS Formats - 0 is not valid in Account or Rep Code (A must be used). Depending on the pulse format, the panel communicates using the following: 3/1, 3/2, 4/1 or 4/2, 1400 or 2300 Hz handshake, 20 bits per second, non-extended.

  • Page 81: Appendix D: Regulatory Approvals Information

    Appendix D: Regulatory Approvals Information Appendix D: Regulatory Approvals Information North America will provide advance notice in order for you to make necessary modifications to main- tain uninterrupted service. FCC COMPLIANCE STATEMENT Equipment Maintenance Facility If trouble is experienced with this equipment (SCW9055) for repair or warranty infor- mation, contact the facility indicated below.
  • Page 82 SCW9055/57 Wireless Alarm System This product has been tested and found in compliance with the following standards: UL1023 Household Burglar-Alarm System Units UL985 Household Fire Warning System Units UL1635 Digital Alarm Communicator System Units ULC-S545-02Residential Fire Warning System Control Units ORD-C1023-1974Household Burglar-Alarm System Units This product has also been tested and found in compliance with the ANSI/SIA CP-01-2010 Control Panel Standard –...
  • Page 83 Appendix D: Regulatory Approvals Information SIA False Alarm Reduction Installations For a list of the defaults value programmed when the unit is shipped from the factory and for any other programming information refer to Appendix D: False Alarm Reduction. Caution Call Waiting Cancel (Section [382], Option 4) feature on a non-Call Waiting line will prevent successful communication to the supervising station.
  • Page 84 © 2011 Tyco International Ltd. and its Respective Companies. All Rights Reserved. The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
