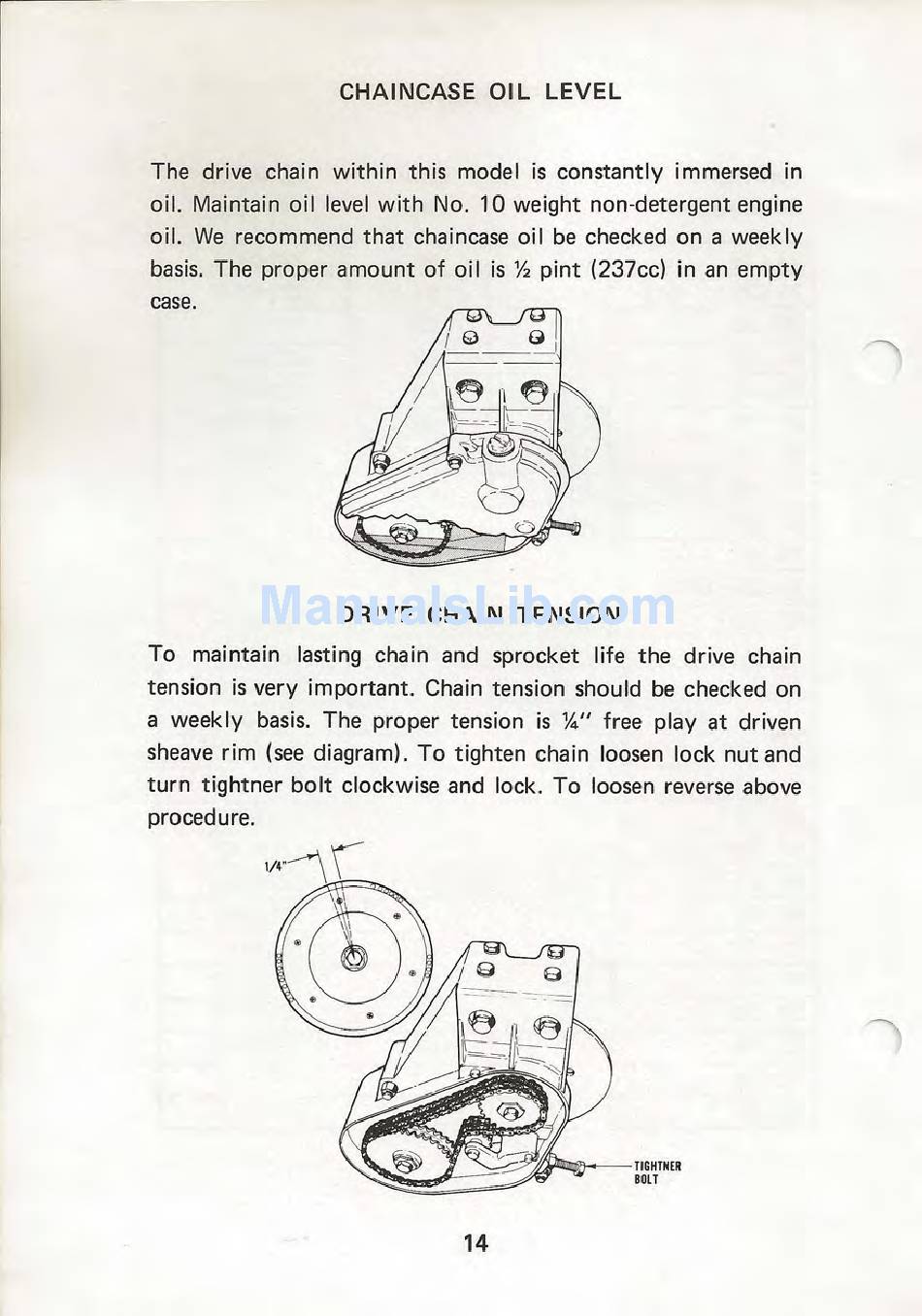

CHAINCASE 01 L LEVEL
The drive chain within this model is constantly immersed in
oil. Maintain oil level with No. 10 weight non-detergent engine
oil. We recommend that chaincase oil be checked on a weekly
basis. The proper amount of oil is % pint (237cc) in an empty
case.
DRIVE CHAIN TENSION
To maintain lasting chain and sprocket life the drive chain
tension is very important. Chain tension should be checked on
a weekly basis. The proper tension is
%"
free play at driven
sheave rim (see diagram). To tighten chain loosen lock nut and
turn tightner bolt clockwise and lock. To loosen reverse above
procedure.
14
