Board Layout Description - Polaris Automatic Gate Operators SL2000 Installation Manual

WIRING AND HOOKUP INSTRUCTIONS

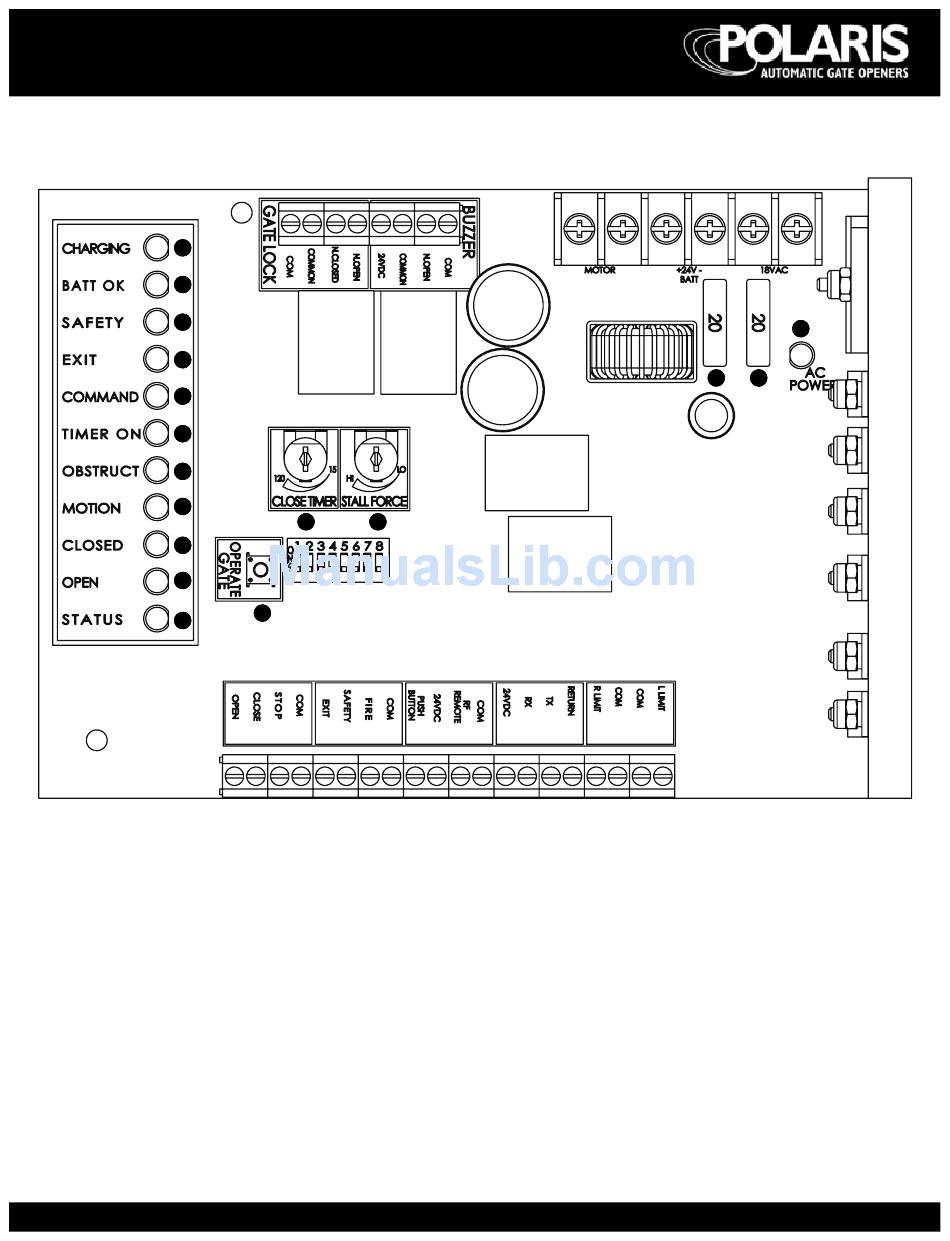

Figure 15
11
11
10 10
9 9
8
8
7 7
6
6
5 5
4 4
3 3
2 2
1 1
LED's
1. Status
2. Open
3. Closed
4. Motion
5. Obstruct
6. Timer On
7. Command
8. Exit
9. Safety
10. Batt OK
11. Charging
12. AC Power

Board Layout Description

13 14
13 14
15 15
Potentiometers
13. Auto Close Adjustment
14. Stall Force Adjustment
Buttons
15. Operate Gate
Fuses
16. 20 Amp Fuse
17. 20 Amp Fuse
15
12
12
16 16 17 17
