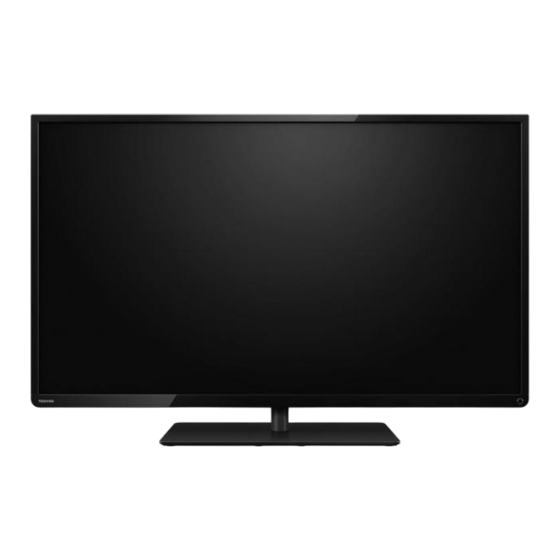

Toshiba 58L2300 Series User Manual

O M
WNER'S ANUAL
LED TV
Owern's Record
58L2300 Series
<RX ZLOO ¿QG WKH PRGHO QXPEHU DQG VHULDO QXPEHU RQ WKH EDFN RI WKH
79 5HFRUG WKHVH QXPEHUV LQ WKH VSDFHV SURYLGHG EHORZ 5HIHU WR WKHP
ZKHQHYHU \RX FDOO XSRQ \RXU 726+,%$ GHDOHU UHJDUGLQJ WKLV SURGXFW
0RGHO QXPEHU
6HULDO QXPEHU
©2013 TOSHIBA CORPORATION
All Rights Reserved
Service
Important information
1) Never repair, modify or disassemble the TV by
1) About LCD screen
yourself.
If you have the LCD screen facing to the sun, the
It may cause a fire or an electric shock. LCD screen will be damaged. Be aware of locating
the TV close to a window or outdoors.
Consult a service technician for inspection and
repairs. Never press the LCD screen strongly or scratch
it, and never put anything on it. These actions will
2) When a malfunction occurs, or if smoke or an
damage the LCD screen.
unusual odor comes from the TV, turn off the
2) About cabinet and LCD screen
TV and remove the power plug from the outlet
immediately. Never spray volatile compounds such as insecticide
on the cabinet and LCD screen.
Make sure that the smoke or smell has stopped,
This may cause a discolouration or damage the
then contact a service technician. If the TV is still
used in this condition, it may cause a fire or an cabinet and LCD screen.
electric shock.
3) Some pixels of the screen do not light up
3) If the TV is dropped or the cabinet is broken, turn
The LCD display panel is manufactured using
off the TV and remove the power plug from the
an extremely high level of precision technology,
outlet immediately.
however sometimes some pixels of the screen may
If the TV has power in this condition, it may cause a be missing picture elements or have luminous spots.
fire or an electric shock. If the cabinet is broken, be This is not sign of malfunction.
careful when handling the TV to prevent an injury.
4) About Interference
Contact a service technician for inspection and
The LCD display may cause interference in image,
repair.
sound, etc. of other electronic equipment that
4) When the TV reaches the end of its useful life, receives electromagnetic waves (e.g. AM radios and
ask a qualified service technician to properly
video equipment).
dispose of the TV.
5) About using under the low temperature places
Cleaning
If you use the TV in the room of 0°C or less, the
picture brightness may vary until the LCD monitor
CAUTION: Avoid using chemicals (such as air
warms up. This is not a sign of malfunction.
refreshers, cleaning agents, etc.) on or near the TV
6) About afterimage
pedestal. Studies indicate that plastics may weaken
and crack over time from the combination effects
If a still picture is displayed, an afterimage may
of chemical agents and mechanical stress (such as remain on the screen, however it will disappear.
weight of TV). Failure to follow these instructions
This is not a sign of malfunction.
could result in serious injury and/or permanent
Exemptions
damage to TV and TV pedestal.
Toshiba is not liable for any damage caused by fires,
1) Remove the power plug before cleaning.Never
natural disaster (such as thunder, earthquake, etc.),
use solvents such as benzine or thinner to clean acts by third parties, accidents, owner's misuse, or
the TV.
uses in other improper conditions.
These solvents may distort the cabinet or damage Toshiba is not liable for incidental damages (such as
its finish.
profit loss or interruption in business, modification
or erasure of record data, etc.) caused by use or
If rubber or vinyl products remain in contact
with the TV for a long time, a stain may result. inability to use of product.
If the cabinet becomes dirty, clean it with a soft,
Toshiba is not liable for any damage caused by
dry cloth.When cleaning the surface of the LCD
neglect of the instructions described in the owner's
display, wipe the panel surface gently with a soft,
manual.
dry cloth.
Toshiba is not liable for any damage caused by
2) Periodically disconnect the power plug from the
misuse or malfunction through simultaneous use of
outlet and check it.If dust has collected on the
this product and the connected equipment.
power plug connectors, clean off the dust with a
dry cloth.
This dust may cause a fire due to reduced insulation
on the plug.
- 5 -

Connecting a computer

Turning the TV on

The following signals can be display: Switching on the TV
VGA: VESA 640 × 480 @ 60/72/75 Hz
Connect the power cord to a wall outlet, the
S-VGA: VESA 800 × 600 @ 56/60/72/75 Hz
power indicator lights in red (standby mode).
XGA: VESA 1024 × 768 @ 60/70/75 Hz
1 Press on the remote control or
W-XGA: VESA 1280 × 768 @ 60 Hz
left side panel, the power indicator lights in
W-XGA: VESA 1360 × 768 @ 60 Hz
green.
S-XGA: VESA 1280 × 1024 @ 60 Hz
Note:
1920 × 1080p @ 60 Hz (Horizontal Frequency: 67.5
If you watch black and white programmes when the
kHz (H), Pixel Clock Frequency: 148.5 MHz)
Colour System mode is set to "A" (Automatic), colour
Notes:
noise may appear on the screen. In this case select the
Some PC models cannot be connected to this TV. appropriate Colour System (For the system of each
country or region, refer to pages 10, 24).
If connecting a certain PC model that signal is
particular, the PC signal may not be detected
Switching off the TV
correctly.
There is no need to use an adapter for computers
1 Press on the remote control or
with DOS/V compatible mini D-sub 15 pin terminal.
left side panel to switch to the standby mode, the
A bar may appear in the upper, lower, right or left
power indicator lights in red.
side of the screen, or parts of the picture may be
obscured depending on some signals. This is not the Notes:
malfunction.
When the TV will not be used for a long period of
If the edges of the picture are stretched, readjust time, such as during vacation or travel, remove the
the picture position adjustments in the PC Settings power plug from the wall outlet.
menu.
The TV will automatically turn off in 15 minutes
Depending on the specifiation of the PC you are
based on No Signal Power Down settings (
playing the DVD-Video on, and the DVD's title, some 16) if no signal is detected.
scenes may be skipped, or you may not be able to
If power is cut off while you are viewing the TV,
pause during multi-angle scenes.
the Last Mode Memory function turns on the TV
automatically when power is applied again. If power is
Signal names for mini D-sub 15 pin connector
going to be off for a long time and you are going to be
Pin assignment for RGB/PC terminal
away from your TV, unplug the power cord to prevent
the TV from turning on in your absence.

Tuning the TV for the first time

Pin No. Signal name Pin No. Signal name
Before switching on the TV, put your decoder and
1 R 9 5V
media recorder to standby, if they are connected, and
2 G 10 Ground ensure that the aerial is connected. To setup the TV,
use the buttons on the remote control as detailed on
3 B 11 Ground
page 7.
4 NC (not 12 DDC Data
connected) 1 Press the button. The Quick Setup screen
will appear. This screen will appear the first time
5 NC 13 H-sync
that the TV is switched on.
6 Ground 14 V-sync
7 Ground 15 DDC Data
8 Ground
Most of the picture/sound controls and functions
are available. However features not available will be
greyed out.
2 Press Y or Zto select the menu language.
3 Press OK to confirm selection.then Auto signal
Booster screen is dispalyed.
Yes: The TV sets On / Off Signal Booster feature
by channel Automaticlly.
NO: Disable feature
- 9 -
PC Wide

Picture adjustment

Use this setting for PC connected via HDMI or RGB/
Selecting the Picture Size PC terminal when receiving PC signal format. This
setting will display the image without picture clipping.
1 Press repeatedly to select the desired Picture
Size.
Native
This setting will display the image correctly without
distortion or picture clipping.
Dot by Dot
"Dot by Dot" is a non-scaling display. Depending on
the input signal format, the picture is displayed with
side panels and/or bars at the top and bottom (e.g.
VGA input source).
Wide
Use this setting when watching a wide-screen DVD,
widescreen video tape or a 16:9 broadcast (when
available). Due to the range of wide-screen formats
(16:9, 14:9, 20:9 etc.), you may see bars on the top and
bottom of the screen.
Zoom
Sets the size to full screen keeping the 21:9 circularity
ratio when watching a movie stored on a USB device.
4:3
Use this setting to view a true 4:3 broadcast.
Notes:
Using the special functions to change the size of the
displayed image (e.g. changing the height/width ratio)
for the purpose of public display or commercial gain
may infringe on copyright laws.
If the aspect ratio of the selected format is different
from the one of the TV transmission or video
Super Live programme, it can cause a difference in vision.
Change to the correct aspect ratio picture size.
This setting will enlarge a 4:3 image to fit the screen by
When using the PC connected via HDMI or RGB/
stretching the image horizontally and vertically, holding
PC terminal, the moving image quality may be
better proportions at the centre of the image. Some
deteriorated.
distortion may occur.
Using the picture still
Press to freeze the picture. Even if an image is
frozen on the TV screen, the pictures are running on
the input source. Audio continues to be output as
well.
To return to a moving picture, press
PC Normal
Use this setting for PC connected via HDMI or RGB/PC
terminal when receiving PC signal format. This setting
(M ov ing)
will display the image correctly without distortion or
picture clipping.
Note:
If you use this function except for the purpose of
your private viewing and listening, it may infringe the
copyright protected by the copyright laws.
- 13 -
Pedestal stand Assembling
CAUTION:
Before beginning pedestal assembly, carefully lay the front of the LCD Panel face down on a flat, cushioned
surface such as a quilt or blanket. Leave the bottom of the unit protruding over the edge of the surface and
assemble as indicated.
Two people are required for installations to avoid injury or damage to the TV.
Note:
Extreme care should always be used when attaching the pedestal stand to avoid damage to the LCD panel.
1 3
4
2
M5 x 18
Warning: Ensure the power cable is not pinched
when attaching the pedestal stand as this could
cause an electric shock.
HDA51M5850I
- 2 -
If the batteries are dead or if you will not use the

Connecting an aerial

remote control for a long time, remove the batteries
to prevent battery acid from leaking into the battery
Optimum reception of colour requires a good signal
compartment.
and will generally mean that an outdoor aerial must be
used. Effective range
The exact type and positioning of the aerial will depend
upon your particular area.
Your Toshiba dealer or service personnel can best
advise you on which aerial to use in your area.
Before connecting the aerial cable, turn off all main
power switches.
VHF and/or
UHF aerial
Media Recorder TV back view
IN
OUT
Aerial cable
(75 Ω coaxial) (not supplied)
TV panel controls
300 Ω twin-lead feeder
You can operate your TV using the buttons on the
side panel or the remote control. The back of the
(75 Ω
Aerial adaptor panel provide the terminal connections to connect
aerial
(not supplied) other equipment to your TV.
terminal
75 Ω coaxial cable
Plug (75 Ω aerial
(not supplied)
terminal
Exploring your new TV
Installing the remote control batteries
Remove the battery cover.Insert two R03 (AAA)
batteries matching the –/+ polarities of the battery to
the –/+ marks inside the battery compartment.
Cautions:
Dispose of batteries in a designated disposal area.
Batteries must not be exposed to excessive heat such
as sunshine, fire or the like.
Attention should be drawn to the environmental
aspects of battery disposal.
1
Never mix battery types or combine used batteries
with new ones.
2 VOL
Notes:
volume level.
If the remote control does not operate correctly, or if
buttons select programme position or input
the operating range becomes reduced, replace both source.
batteries with new ones.
- 6 -
the automatic colour system selection (A) may
have malfunctioned, or sound system selection
is wrong. In such a case, select another colour
and/or sound system (
D. Position skip selection
Press U or V to turn the position skip option
on the TV on "
be skipped when you select channels with P^
Press Y or Zto select and press OK to confirm. or P . The "
4
position number when you use the Number
5 Select Start Scan and press OK to start the button on the remote control.
automatic search.
E. Channel search operation
Press U to search up the band or V to search
down the band.
Press U or V repeatedly until your desired
channel is displayed.When a station is found, it
will be displayed.
on the TV NEVER PRESS ANY OTHER BUTTONS WHILE
Use the Manual Tuning operation THE SET IS TUNING.
F. Manual Fine Tuning
If desired channels cannot be preset with the Auto
Tuning or if you would like to preset channels to Press U or V until better picture and sound are
specific position numbers one by one. obtained.
Use the Menu: Setup Æ Channel Tuning
G. Signal Booster
Use the item: Manual Tuning
If the receiving signal is weak/strong and the
picture is noisy, the picture may be improved

page
when using this function.
Press the U or V to turn the Signal Booster
On or Off .
H. Label
Station labels appear under the programme
position display each time you turn on the TV,
select a channel, or press
To change or create station labels:
1) Press U or V repeatedly to select a
character for the first space, then press Y or Z.
Press U or V to select the programme position
1
you want to arrange and press OK to display the
breakdown menu.
2) Repeat step 1) to enter the rest of the
Press Y or Z to select an item, then press U or V characters. If you would like a blank space in
to select the item as shown below. the label name, you must choose a blank space
from the list of characters.
Press OK to store your settings.
Notes:
The Quick Setup, Location, Channel Tuning (Auto
Tuning, Manual Tuning) menu can also be display at
any time from the SETUP menu.
When you preset the channel which sound of
broadcast transmission system adopts "M" system

( page 24), the sound system may not be tuned
A. Position selection
correctly if the radio waves transmit badly. At that

B. System (Sound) ( page 24)
time, preset the channel by Manual Tuning.
C. Colour System (  page 24)
A : Automatic (factory set), P : PAL,
S : SECAM, N4 : NTSC 4.43 (MHz),
N3 : NTSC 3.58 (MHz)
If the colour of a certain channel is abnormal,
- 10 -
Activating the Picture Mode Notes:
If the picture mode is set to Game or PC mode, this
This TV offers the choice of personalising the picture
feature is automatically not available.
style.
Adjusting the Colour Temperature
Dynamic, Standard, Movie, Game and PC are preset
options and affect many features/settings within the
Colour Temperature increases the warmth or coolness
TV.
of the picture by setting the red, green or blue tint.
PICTURE and QUICK menu
Use the menus: PICTURE Æ Advanced Picture
Picture Mode
Settings Æ Colour Temperture
Notes:
Use the items: Colour Temperature, Red Level,
Green Level and Blue Level
Game mode is available in external input mode (other
than aerial input). When you select Game mode, Use the modes: Cool, Medium and Warm.
suitable widescreen formats will be selected.
Resetting the Colour Temperature
PC mode is available in RGB/PC input mode or HDMI
input mode.
Use the menus: PICTURE Æ Advanced Picture
Activating the picture preferences Settings Æ Colour Temperature
Use the item: Reset (select and press OK)
You can customise current Picture Mode settings as
desired. Resetting the Picture Settings
Use the menus: PICTURE
Use the menus: PICTURE
Use the items: Backlight, Contrast, Brightness,
Use the item: Reset (select and press OK)
Colour, Tint and Sharpness
Activating the Noise Reduction (NR)
Setting the Dynamic Contrast
If the receiving signal of MPEG is a mosquito (grained)
Dynamic Contrast improves the contrast of the
noise depending on the compression and conversion,
picture.
the picture is weak and the picture is blurry, the picture
Use the menus: PICTURE Æ Advanced Picture
may be improved when using this function.
Settings
Use the menus: PICTURE ÆAdvanced Picture
Use the item: Dynamic Contrast
Settings Æ Noise Reduction
Use the modes: Low, Middle, High and Off
Use the items: MPEG NR and DNR
Adjusting the Static Gamma Use the modes: Low, Middle, High and Off.
Adjusting the Base Colour Adjustment
The static gamma feature lets you adjust the levels of
black in the picture.
You can adjust the picture colour quality by selecting
Use the menus: PICTURE Æ Advanced Picture
from 6 base colour adjustments : Red, Green, Blue,
Settings
Yellow, Magenta or Cyan.
Use the item: Static Gamma
Use the menus: PICTURE Æ Advanced Picture
Settings Æ ColorMaster (On) and Base Colour
Notes:
Adjustment
If the setting is decreased, the detail of black colors is
decreased. Use the items: Hue, Saturation and Brightness
If the setting is increased, the detail of black colors is
Resetting the Base Colour Adjustment
increased.
Use the menus: PICTURE Æ Advanced Picture
Using the Edge Enhancer
Settings Æ ColorMaster (On) Æ Base Colour
The Edge Enhancer feature lets you adjust the levels
Adjustment
for your desired picture settings and achieve a sharper
Use the item: Reset (select and press OK)
picture.
Adjusting the DynaLight
Use the menus: PICTURE Æ Advanced Picture
again.
Settings
The DynaLight
Use the item: Edge Enhancer
black coloring of dark areas in the video according to
the level of darkness.
Adjusting the Clean Scan
(Still)
Use the menus: PICTURE Æ Advanced Picture
This feature helps to eliminate video shaking.
Settings
Use the menus: PICTURE Æ Advanced Picture Use the item: DynaLight
Settings
Use the modes: High, Low, Off
Use the item: Clean scan
Use the modes: Off, Standard, Middle and High
- 14 -
Welcome to Toshiba
Thank you for purchasing this Toshiba LED TV. This
manual will help you use the exciting features of your
new TV.
Instructions in this manual are based on using the
remote control.
You also can use the controls on the TV if they have
the same name as those referred to on the remote
control.
Please read all safety and operating instructions in
this manual carefully, and keep this manual for future
reference.
"LED TV" means LCD Panel with LED Backlight.
Contents
Important Safety Instructions ........................................3
Connecting an aerial......................................................6
Exploring your new TV ..................................................6
TV panel controls ...........................................................6

Learning about the remote control ................................7

TV back panel connections ...........................................8

Connecting HDMI or DVI devices ..................................8

Connecting a computer .................................................9
Turning the TV on ..........................................................9
Tuning the TV for the first time ......................................9
Use the Manual Tuning operation................................10

Using the Quick Menu .................................................11

Learning about the menu system ................................11
M5 x 18
Watching TV programmes ...........................................12

Selecting the video input source to view ....................12

Channel List .................................................................12

Selecting the PC/HDMI 1 Audio mode ........................12
Picture adjustment ......................................................13

Sound adjustment .......................................................15

Other features settings ................................................16
Teletext ........................................................................16
Using The Pc Settings .................................................18
Using The Media Player ...............................................18
Troubleshooting ...........................................................23
Broadcast System .......................................................24
Specfications ...............................................................25
3 (power on/standby) — Press to turn the TV
on/ standby.
4 (programme position or input source)
— This button switches to the programme position
or the input source selection.
5 HDMI 1 (input terminal) — High-Definition
Multimedia Interface input receives digital audio
and uncompressed digital video from an HDMI
device or uncompressed digital video from a DVI
device (Connect HDMI, DVI or PC etc.) (
HDMI 2 (input terminal) — High-Definition
Multimedia Interface input receives digital audio
and uncompressed digital video from an HDMI

device ( page 8).
HDMI 3 (input terminal) — High-Definition
16.4 ft (5m)
Multimedia Interface input receives digital audio
and uncompressed digital video from an HDMI

device ( page 8).
6 USB (input terminals) — Insert your USB storage
device (photo, music and movie).
Learning about the remote control
10
8
TV front view
12
14
1
Left side view
16
3
2
4
18
4
20
5
3, 5, 9
6
6
23
(power LED) — Power indicator.
25
v(volume) — These buttons adjust the
v (mode up/down) — These
Using the Quick Menu
Press QUICK to display the Quick Menu and use U or
 page 24). V to select the option.
" or off " ". The position will then
" mark will appear beside a
Note:
Quick Menu items are different depending on the
current mode.
Quick menu item
Picture Mode
Sound Mode

Media Player
Sleep Timer
Power Bass Booster

Signal Booster
Learning about the menu system
We suggest you familiarize yourself with the display
charts before using the menu system:
Press MENU to display menu, then press U or V to
select main menu headings.
.
Press U or V to select an item.
Press Y or Z to select or adjust setting.
Press OK to display the next menu.
Press EXIT to close the menu.
Press RETURN to return the previous menu.
Using the Auto Brightness Sensor
When the Brightness Sensor Setting is set to On, the
TV optimizes the backlighting levels to suit ambient
light conditions.
Use the menus: PICTURE Æ Advanced Picture
Settings
Use the item: Auto Brightness Sensor
Sound adjustment
Setting the MTS (Multi-channel TV Sound)
Auto mode
The MTS Auto mode automatically recognize stereo/
bilingual programmes depending on the broadcast
signal.
Mono mode
If you experience noise or poor reception of any stereo/
bilingual programme, set the MTS mode to Mono.
Noise will be reduced and reception may improve.
Use the menu: SOUND
Use the item: MTS
Note:
If you experience noise with a particular programme
on whose channel reception is usually good, try setting
MTS mode to Auto, then press to switch to
Mono (monaural).
Selecting the Dual 1 or Dual 2 mode
You can hear only Dual 1 or Dual 2 sound selected,
whenever bilingual programmes are received.
Use the menu: SOUND
Use the item: Dual
Notes:
The Dual menu setting status remains even if the TV
is turned off.
When the MTS setting is in Mono mode,The Dual
menu is not selectable.
Selecting the stereo programmes
When a stereo programme is received,
appears and press .
Use the modes: Stereo and Mono
Selecting the bilingual programmes
® When a bilingual programme is received,
appears and press .
®
feature automatically strengthens the
Sound to be heard
Display A2 stereo/bilingual
NICAM
broadcast
Dual 1 Sub I sound Main sound
Dual 2 Sub II sound Sub sound
Mono Main sound
Note:
These settings are not stored in the TV memory.
About the use
Important Safety Instructions
Make sure to insert the plugs firmly, when plugging
Be sure to observe the following instructions and the AC power cord into the TV set end and wall
precautions to ensure safe use of this TV. outlet end.
Make sure to hold the plug, when unplugging the
Installation
AC power cord.
Never use other cord except for supplied AC power
1) WARNING: To prevent injury, this apparatus
cord, and never use the supplied power cord for
must be securely attached to a stable surface/
any other purpose.
wall in accordance with the installation
5) Never insert or remove the power plug with wet
instructions. Install the TV in a horizontal, stable
hands.This may cause an electric shock.
location. Attach the TV to the stand with the
mounting screw.
6) Never block or cover the slots and openings in
If the TV is not installed securely, it may lean or fall
the cabinet.
over and cause an injury.
Never place the TV so that it is facing upward or on
To prevent injury, use the exclusive optional stand
its side.
or wall-hanging bracket to install this TV on the a
Never place the TV in a closet, bookcase or other
stable surface or wall securely in accordance with
similar area where the ventilation is poor.
a qualified technician.
Never drape a newspaper, tablecloth or curtain on
Screw hole the TV.
When installing the TV against a wall, always keep
the TV at least 10 cm away from the wall.
Never place the TV on a soft unstable surface,
Top view
such as a carpet, or a cushion.
The inside of this TV will overheat if the ventilation
2) Never place the TV in an unstabilized location holes are covered, blocked or sealed, which may
such as on a shaky table, incline or location
result in a fire.
subject to vibration.
7) Never place the TV near a heater or in direct
Only use cabinets or stands recommended by the
sunlight.
TV manufacturer.
The surface of the cabinet or power cord may melt
Only use furniture that can safely support the TV.
and result in a fire or an electric shock.
Ensure that the TV is not hanging over the edge of
the supporting furniture. 8) Never place the TV in an area exposed to high
Never place the TV on tall furniture (for example, humidity levels, such as in a bathroom or close to
cupboards or bookcases) without anchoring both a humidifier.
the furniture and the TV to a suitable support.
This may cause a fire or an electric shock.
Never stand the TV on cloth or other material
9) Never place the TV next to a stove where it will be
placed between the TV and supporting furniture.
exposed to oil, smoke, or steam, or in a location
The TV may drop or fall off , which may cause an
where there is a large quantity of dust.This may
injury or damage.
cause a fire or an electric shock.
3) Never stand or climb on the TV.
10) Precautions for moving the TV
Educate children about the dangers of climbing
on furniture to reach the TV or its controls. When moving the TV, be sure to remove the plug
from the wall outlet and disconnect the aerial
Be especially careful in households with children
cable and audio/video cables, any steady ties and
to prevent them through climbing on top of the TV.
mounting screw. A fire or an electric shock may
It may move, fall over, break, become damaged or
result if the power cord is damaged.
cause an injury.
When carrying the TV, at least two people are
4) Always connect the power plug to an
needed. Be sure to carry it upright.
appropriate electrical outlet equipped with 110-
Never carry the TV with the screen facing up or
240 V, AC 50/60 Hz.
down.
Never use the TV outside the specified voltage
11) Precautions for installing on outdoor aerial
range. It may cause a fire or an electric shock.
An outside aerial system should not be located in
About the fuse
the vicinity of overhead power lines, or other electric
In a three pin earthing-type, the fuse fitted in this
light or power circuits.If the aerial falls down or
plug is approved by ASTA or BSI to BS1362.
drops, it may cause an injury or an electric shock.
It should only be replaced by a correctly rated
and approved type and the fuse cover must be
refitted.
- 3 -
1 Power on/standby — Press to turn the TV on/
TV back panel connections
standby.
2 Programme position — These buttons select the
programme position.
3 MENU up/down — When a menu is on-screen,
these buttons function as up/down menu
navigation buttons.
„
When using the movie file ( II , )
4 Volume — These buttons adjust the volume level.

page 8).
5 MENU left/right — When a menu is on-screen, TV back view
these buttons function as left/right menu
navigation buttons or adjust settings.
When using the movie file (e e,f f)
6 On-screen Menus
7 To return to the previous menu
8 Input source selection
9 To confirm your selection.
f
When using the music and movie file ( )
10 Picture Size
11
11 Teletext Subtitle pages if available
PC/HDMI 1 (AUDIO) (input terminal) — PC
12 Picture still
1
audio input terminal is shared with HDMI analogue
13 Stereo/Bilingual selection
audio input terminal, and their use can be configured
13
in the OPTIONS menu (Connect PC or DVI etc.).
14 Number buttons (0-9)
(aerial input terminal) — Analogue aerial signal
15 To display the Channel List
input.
15
16 To return to the previous programme
(1) COMPONENT / VIDEO INPUT (input
terminals) — High-definition component video and
17 To display on-screen informationInitial / Index
standard (analogue) stereo audio inputs, or standard
function for Teletext
(composite) video and standard stereo audio inputs.
17
18 This button turns the sound off/on.
RGB/PC (input terminal) — For use when
connecting a personal computer (PC) (Connect PC
19 To exit menu
etc.).
20 To access the Quick Menu AUDIO (output terminals) — Standard audio
outputs.
2 21 Teletext on / Superimpose Teletext/off
Notes:
22 Teletext control buttons (Four coloured buttons:
Before connecting any external equipment, turn off all
Red, Green, Yellow, Blue) main power switches.
19
The unauthorized recording of TV programmes, DVDs,
23 To reveal concealed text
video tapes and other materials may infringe upon the
21
When using the movie file ( ). provisions of copyright law.
24 To select a page while viewing a normal picture
7 COMPONENT / VIDEO INPUT terminals
To select the time display
Video mode
When using the movie file ( ).
22
25 To hold a wanted page
26 To enlarge the teletext display size
24
26
- 7 -
Displaying the menu chart
Watching TV programmes
Selecting the menu language
You can select a language for the on-screen display.
Use the menu: SETUP
Use the item: Menu Language
Changing the position
1 Enter the desired position number using the
Number buttons on the remote control.
SOUND For positions below 10, use 0 and the required
number e.g., for position 1.
2 You can also change the position by using P^ or
P .
The position will be displayed on the screen with
Description the Mono/Stereo/Dual audio status.
Note:
page 14.
Changing positions between different format channels
page 15.
takes several seconds.
page 18.
OPTIONS Switching between two positions
page 16.
You can switch two positions without entering actual
page 15.
position number each time.
page 10.
1 Select the fist position you want to view.
2 Select the second position with the Number
buttons (0-9).
3 Press
Each time you press
SETUP
forth between the two positions.
Displaying the on-screen information
1 Press
information.
TV
TIMERS
The information will disappear in 5 seconds.
To erase the display instantly, press
Sorting positions
GET HELP
Ex.: To swap channel ABCD (Prog.1) for channel MNOP
(Prog.4):
1 From the SETUP menu, press U or V to select
Channel Tuning, press U or V to select Manual
Tuning item, then press OK.
- 11 -
Adjusting the Sound Balance
Other features settings
Use the menu: SOUND
Selecting the Sleep Timer
Use the item: Balance
Use the button: Y or Z
The Timer is especially useful if you want the TV to turn
itself off after a selected period of time.
Using the Sound Mode
Use the menu: TIMERS
Choose your preferred Sound Mode.
Use the items: Sleep Timer
Use the menu: SOUND Æ Advanced Sound
Use the button: U, V
Settings
After configuring the settings then press OK to save.
Use the item: Sound Mode
Setting the No Signal Power Down
Use the modes: Dynamic, Natural and Clear Voice
Adjusting the sound quality The TV will automatically turn itself off after 15 minutes
when no signal is detected. You can change the setting
You can adjust the basic sound quality. to OFF for following purposes.
Use the menu: SOUND Æ Advanced Sound
Low signal strength of channel (no signal detection)
Settings
Only Audio L/R is connected to external input to listen
Use the items: Bass and Treble
to music through the TV speakers.
Use the button: Y or Z
Use the menu: OPTIONS Æ Power Managerment
Using the Power Bass Booster Use the item: No Signal Power Down
Notes:
Power Bass Booster helps to create rich bass.
Default setting is all On.
Use the menus: SOUND Æ Advanced Sound
Settings Using the Panel Lock
Use the item: Power Bass Booster
Panel Lock disables the buttons on the TV. All buttons
Use the modes: Super, Normal and Off
on the remote control can still be used.
Using the Surround Use the menu: OPTIONS
Use the item: Panel Lock
A kind of virtual sound effect.The feature is simulated
Note:
surround sound.
Use the menu: SOUND Æ Advanced Sound When Panel Lock is On, a reminder will appear when
Settings the buttons on the TV are pressed. If the standby button
is pressed, the TV will switch off and on.
Use the item: Surround
Using the Auto Aspect
Resetting the Advanced Sound Settings
When this feature is set to On, the TV will automatically
Use the menus: SOUND Æ Advanced Sound
select the picture size when input sources is received.
Settings and Reset
Use the menu: Picture Æ Display settings
Use the item: Reset (select and press OK)
Use the item: Auto Aspect
Using the Audio Level Offset
Activating the 4:3 Stretch
Sometimes there can be large changes in volume
when switching from an ATV channel or an external When 4:3 Stretch is activated, this function will switch
Stereo
input. Using this feature reduces these volume 4:3 format programmes into a full screen picture.
differences. Use the menu: PICTURE Æ Display Settings
Use the menu: SOUND Use the item: 4:3 Stretch
Use the item: Audio Level Offset
Note:
Dual Use the button: Y or Z
In HDMI signal format ,this functioin is available
Using the Dynamic Range Control This function is enabled,when Auto Aspect setting is
on.
This feature allows control of compression.
Viewing the System Information
Use the menu: SOUND
Use the item: Dynamic Range Control
This feature can be used to check the version of
software currently installed.
Using the TV Speakers
Use the menu: GET HELP
— The feature disable speakers, even though volume is
Use the item: System Information
unmute.
Use the button: OK
Use the menu: SOUND
Use the item: TV speakers
- 15 -
Use
1) Never place hot objects or open flame sources,
such as lighted candles or nightlights, on or
close to the TV.
High temperatures can melt plastic and lead to fires.
2) The apparatus shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
apparatus.
When liquids are spilled or small items are dropped
inside the TV, this may cause a fire or an electric
shock.
If small objects drop inside the TV, turn off the
TV and remove the power plug from the outlet
immediately and contact a service technician.
3) Never insert objects (metal or paper) or pour
water inside the TV through ventilation holes and
other openings.
These items may cause a fire or an electric shock.
If these objects are inserted inside the TV, turn off
the TV and remove the power plug from the outlet
immediately and contact a service technician.
Be especially careful that children do not insert
objects in the TV.
4) When the TV will not be used for a long period of
time, such as during vacation or travel, remove
the power plug from the wall outlet for safety.
The TV is not completely disconnected from the
power supply line, as minute current is consumed
even when the Power switch is turned off.
The mains plug or an appliance coupler is used as
the disconnect device, therefore the disconnect
device shall remain readily operable.
5) Never pull on the power cord when removing the
plug from the wall outlet.
Always hold the plug firmly when removing it. If
the power cord is yanked, the cord may become
damaged and a fire or an electric shock may occur.
6) Never cut, break, modify, twist, bunch up or bent
the cord or apply excessive force or tension to it.
Never place heavy objects on the cord or allow it
to overheat as this may cause damage, a fire or an
electric shock. Contact a service technician if the
power cord is damaged.
7) If there is thunder or lightning, never touch the
aerial cable or other connected cables.
You may suffer an electric shock.
- 4 -
Connecting HDMI or DVI devices
When turning on your electronic components, turn
on the TV first, and then the HDMI and DVI device.
When turning off your electronic components, turn
off the HDMI and DVI device first, and then the TV.
This TV may not be compatible with features and/or
specifications that may be added in the future.
This TV is only operable with L-PCM and Dolby
Digital on 32/44.1/48kHz. If there is no sound when
Connection example
using HDMI, use the analogue audio cables to
connect the TV and the HDMI device, and select
PC in PC/HDMI 1 Audio of the Options Æ Input

DVD video player Options ( page 12).
This TV is able to connect with HDMI devices. But it
(with component video outputs)
is possible that some HDMI devices may not operate
or
properly with this TV.
Connecting HDMI or DVI devices
The HDMI input on your TV receives digital audio
and uncompressed digital video from an HDMI and
Set Top Boxoror uncompressed digital video from a DVI device.This
or input is designed to accept HDCP programme material
in digital from CEA-861-D compliant consumer
electronic devices (such as a set top box and DVD
player with HDMI and DVI output). The HDMI input is
VCR (Normal)
designed for best performance with 1080i (50/60 Hz)
and 1080p (50/60 Hz) high-definition video signals, but
will also accept and display 480i, 480p, 576i, 576p,
and 720p (50/60 Hz) and VGA (VESA 640 × 480 @
60/72/75 Hz) signals.
HDMI: High-Definition Multimedia Interface
HDCP: High-bandwidth Digital Content Protection
CEA-861-D compliance covers the transmission
of uncompressed digital video with high-
bandwidth digital content protection, which is being
standardized for reception of high-definition video
signals. Because this is an evolving technology, it is
possible that some devices may not operate properly
with the TV.
Acceptable PC signal format:
S-VGA: VESA 800 x 600 @ 56/60/72/75 Hz
XGA: VESA 1024 x 768 @ 60/70/75 Hz
W-XGA: VESA 1280 x 768 @ 60 Hz
W-XGA: VESA 1360 x 768 @ 60 Hz
S-XGA: VESA 1280 x 1024 @ 60 Hz
However, these signal formats are converted to match
the number of pixels of the LCD panel.Therefore, the
TV may not display small text properly.
If you connect this unit to your PC, the compressed
ColorStream HD mode
image is displayed in S-XGA mode, therefore the
picture quality may deteriorate and characters may not
be read.
L-PCM: Linear-Pulse Code Modulation
Supported Audio format: L-PCM, Dolby Digital
sample rate 32/44,1/48 kHz
- 8 -
Press U or V to select the channel ABCD, then
2
press Z.
3 Press V to select the new position "4", then press Y.
4 Press U to select the channel MNOP, then press Z.
5 Press U to select the new position "1", then press Y.
6 Confirm new Manual Tuning menu.
Labeling external input sources
These input labels are shown in the input selector. You
can label external inputs according to the devices you
have connected to the TV.
1 From the OPTIONS menu, press U or V to select
Input Options and then press OK.
2 Select Input Labeling then press OK.
3 Press U or V to select the item you want to label
. The previous channel will be displayed.
and press Y or Z to select --, Receiver, Cable,
, the TV will switch back and DVD, Game, PC, Recorder, Satellite, VCR, Blu-
Ray or Hide.
Selecting the video input source to view
to display the following on-screen
1 Press on the remote control until the video
input mode list appears on the screen, then press
4 U ,V or to select appropriate input source (or
480i 4 : 3
touch twice and ^ or v or on the TV left
side panel to select required input source directly).
2 Press OK.
Channel List
1 Press the button. The Channel List will
appear.
Press U or V to select a channel, and press OK
2
to watch.
again.
Selecting the PC/HDMI 1 Audio mode
You can select PC audio or HDMI audio when using
this function.
Use menus: OPTIONS Æ Input Options
Use the item: PC/HDMI 1 Audio
Use modes: PC and HDMI 1
- 12 -
Resetting the TV
Reset TV will reset all TV settings, including stored
channels, to their original factory values.
Use the menu: SETUP
Use the item: Reset TV (select and press OK)
Note:
When the set powers back on, the first time screen will

appear ( page 9).
Teletext
This TV has a multi-page Teletext memory, which
takes a few moments to load and it offers two ways of
viewing Teletext Auto and List which are explained
below.
Setting up the Teletext mode
To select a language for Teletext:
The language 1-4 option enables the display of dì
erent language when using Teletext.
Use the menu: OPTIONS Æ Teletext
Use the item: Teletext Language
Language 1 : English, German, Swedish, Italian,
French, Spanish, Turkish, Greek
Language 2 : Polish, German, Estonian, Lettish,
French, Serbian, Czech, Rumanian
Language 3 : English, German, Swedish, Italian,
French, Hebrew, Turkish, Arabic
Language 4 : English, German, Swedish, Italian,
French, Hebrew, Turkish, Farsi
To select Teletext mode:
Select a channel position with the desired Teletext
service.
Use the menu: OPTIONS Æ Teletext
Use the item: Teletext
Use the modes: Auto and List
Teletext general information
button
Pressing once will bring up the teletext screen.
Press again to superimpose the teletext over a normal
broadcast picture. Press again to return to normal TV
mode. You need to return to normal viewing if you
wish to change channels.
When you first press to access the text service,
the first page you see will be the initial page.
In Auto mode, this displays the main subjects
available and their relevant page numbers.
In List mode, you will see the page numbers currently
stored on the each colour button.
- 16 -
