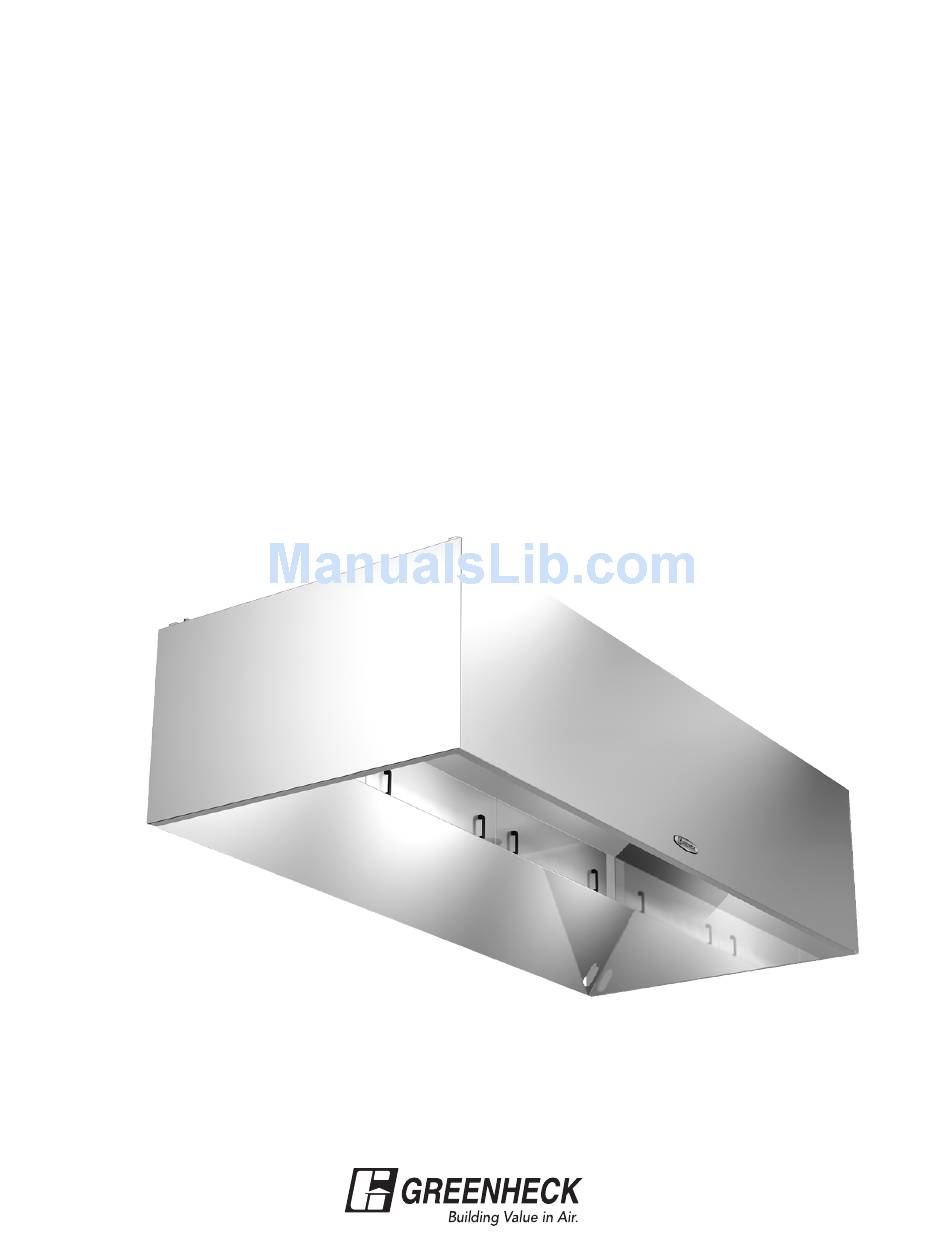

Page 1: Installation Instructions
Part # 458292 Read and Save These Instructions Installation Instructions Waterwash Kitchen Hoods April 2005 ®... -
Page 2: Table Of Contents
TABLE OF CONTENTS How To Use This Manual ..............4 Receiving and Handling . -
Page 3: April 2005
TABLE OF CONTENTS CONT’D Field Wiring for Ansul Snap-Action Switch ............35 Overall Wiring Plan View . -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL Read and save these instructions. This manual is designed to assist qualified field service, operating and maintenance personnel with the installation, operation, and maintenance of Greenheck canopy type kitchen hoods and accessories. Procedures described in this manual should be followed in the order they appear, with attention to all safety and caution statements. -
Page 5: Waterwash Components
Fire Mode (Optional): The waterwash system also provides water spray for the exhaust plenum when the system is in fire mode. This is in addition to the hood’s automatic fire suppression system. When the fire suppression system discharges, it activates the waterwash system (without the detergent) and the optional continuous cold water mist to spray water within the exhaust plenum and turns on the fan circuit. - Page 6 SYSTEM COMPONENTS: Hood: The hood is shipped from the factory prepiped and ready to install. All waterwash components within the hood are complete and ready for connection to hot water, electrical sources, the sanitary sewer drain and optional cold water. All piping to and from the waterwash control station and the hood is by others. Wiring from the control panel to the hood (for lights) is by others.
- Page 7 Fig. 5 Std. Piping with Reduced Pressure Fig. 2 Std. Piping with Vacuum Breakers Backflow Preventer To Hood 3/4 in. or 1 in. Connection Piping Disconnect Switches Others Optional Low Fire Mode Field Wiring Detergent Indicator Light Terminal Strip Indicator Light Fan Relay Optional 24 Hour Timer...
-
Page 8: Continuous Capture Plenum
(by others) into hanger brackets on hood top. (Fig. 9, Pg. 10) Check the engineering drawings for proper hood height above finished floor. Greenheck recommends that the hoods be hung 6 feet 6 inches above the finished floor. Raise and hang hood from adequate roof or ceiling supports. All hanger brackets must be used and hood must be properly supported while lifting to prevent damage or distortion to the hood. -
Page 9: Double Island Style Hood
Double Island Style Hoods Before hanging the hoods, please verify the hood marks to make sure the correct hood is hung on the correct side. A double island hood is created by installing two wall style hoods back to back. Use the installation procedure described on page 8, for single island hoods to install and level both hoods. -
Page 10: Ductwork
DUCTWORK in. threaded rod by others Exhaust Fig. 9 As specified in NFPA 96, Ch. 7.5 (latest edition), exhaust duct systems must be constructed in the following manner: Materials. Ducts shall be constructed of and supported by carbon steel not less than 1.37mm (.054 in.) (No. -
Page 11: Installation Instructions For The External Supply Plenums
INSTALLATION INSTRUCTIONS FOR EXTERNAL SUPPLY PLENUMS USING THE SUPPLY PLENUM CLIP or UNI STRUT Using the Supply Plenum Clip OPTION #2 UNI-STRUT SUPPLIED BY OTHERS 1. Bolt the hanging clip to the supply OTHERS plenum - 2 clips are needed for plenums TOP VIEW less than 96 in. - Page 12 INSTALLATION INSTRUCTIONS FOR EXTERNAL SUPPLY PLENUMS USING A THREADED ROD Installing External Supply Plenum 1. Insert 1⁄2 in. diameter threaded rod (by others) into hanger brackets on the supply plenum top. Raise and hang the external supply plenum from adequate roof or ceiling supports.
-
Page 13: Installation Instructions For The Backsupply Plenum Bsp
INSTALLATION INSTRUCTIONS FOR THE BACKSUPPLY PLENUM BSP Installing the Supply Duct Collar W (MODULE WIDTH) 1. Find the center of the Backsupply Plenum. 2. If the Backsupply Plenum is less than 9 ft. 10 in. wide, cut opening at the suggested location, centering the opening over the center of the backsupply Plenum. -
Page 14: Hanging The Hood
Hanging the Hood Fig. 12 Before hanging the hood according to the hood installation instructions, please check the following: 1. Make sure the Backsupply Plenum is properly secured, as described in steps 5 and 6, page 13. 2. If the ductwork for the Backsupply will not interfere with the hood installation, it should be connected now. -
Page 15: Enclosure Panel Installation Instructions
ENCLOSURE PANEL INSTALLATION INSTRUCTIONS Before installing the enclosure panels, make sure the hood is hung in position with all the ductwork attached and electrical connections completed. FRONT ENCLOSURE PANEL FASTENERS TO WALL BY OTHERS 5/16 IN. BOLTS WITH NUTS AND WASHERS 3/8 IN. -
Page 16: Filler Panel Installation Instructions
FILLER PANEL INSTALLATION INSTRUCTIONS 1. Uncrate the hood and lay it on the floor with Fig. 17 protective material HOOD between the hood and the floor (See Fig. 8, page 8). 2. Bolt the filler panels together with 5/16 in. bolts provided in the hardware package. -
Page 17: End Skirt Installation Instructions
END SKIRT INSTALLATION INSTRUCTIONS 1. After the hood is hung in position, slide the hemmed form on top of the end skirt onto the end panels of the hood. 2. Drill a hole in the hood end panel to line up with the hole in the end skirt. Attach the end skirt with a 1/4 in. bolt and cap nut to the inside of the hood, or tack weld the end skirt to the hood. -
Page 18: Backsplash Panel Installation Instructions
BACKSPLASH PANEL INSTALLATION INSTRUCTIONS 1. After the hood is hung Fig. 19 in position, slide the flat flange of the backsplash panel behind the back of the HOOD FRONT PANEL HOOD END PANEL hood. Note: If the backsplash panel length is greater than 46 in., it will be shipped in multiple pieces. - Page 19 FLAT BACKSPLASH PANEL MATERIAL WALL (S) STAINLESS HEIGHT LENGTH LENGTH <=48 >48<=94 >94<=141 >141<=188 >188<=235 NOTE: PANELS UP TO 48 INCHES WIDE SHIPPED IN 1 PIECE, OVER 48 INCHES IN MULTIPLE PIECES. 1.000 INSULATED BACKSPLASH PANEL MATERIAL WALL (S) STAINLESS INSULATION HEIGHT 1 IN.
-
Page 20: Duct Collar Installation Instructions For Gh, Gw, Gk And Gx Series Hoods
Fig. 20C is to be provided by Note: UL listed hood others). assembly to be used 6. On combination hoods, only with Greenheck make sure the fire Fan Corp. labeled subassembly for damper is located over exhaust hood without the internal supply... -
Page 21: Plumbing
Plumbing Mounting the Control Station: The control station can be either surface mounted or recessed mounted within the wall. For recessed mounts, provisions must also be made for piping and electrical wiring within the wall. Holes are provided in the top and bottom of the control station for piping and wiring. - Page 22 Plumbing & Electrical 2) Optional Continuous Cold Water Mist Engineering Specifications: Minimum Control Panel Total Hood Cabinet to Maximum Hood Pipe Size Length Hood Pipe Size Water Usage Pipe Size by others 3/4 in. 50 ft. or less 1/2 in. 4 gpm 3/8 in.
-
Page 23: Electrical Connections
Electrical B. Electrical Wiring: All wiring must be done according to NEC (National Electrical Code NFPA #70) and local building codes. A terminal block is provided in the electrical compartment of the waterwash control station for all wiring connections. (See Figs. 21 & 22 on page 24. See also separate wiring diagram.) NOTE: The waterwash control station must be wired to the exhaust fan controls and optionally to the hood's fire protection system. - Page 24 120/60/1 to Optional Sequence SEQUENCE Remote Solenoid Sequence SEQUENCE 120/60/1 TO OPTIONAL Valves for Sequence REMOTE Sequence SEQUENCE Washing VALVES FOR Sequence SEQUENCE WASHIN Terminal Strip in Greenheck Waterwash Control Station TERMINAL STRIP IN GREENHECK WATER WASH CONTROL PANEL April 2005 ®...
-
Page 25: Startup, 24/7 Timer, Pump Settings, Detergent Operation
Instructions for programming the Waterwash Control Panel (WWCP) 24-hour or 7-day timer If your waterwash control panel included a timer, either 24-hour or 7-day, it will need to be programmed prior to kitchen start-up. The timer was shipped with a 3-year battery installed and was tested before leaving the factory. - Page 26 Waterwash Timing Adjustment for PLCs: SEQUENCE OF WASH OPERATIONS 15 SEC. COLD WATER PURGE (OPTIONAL 30 SEC.) (PU214 & CPU224) 4 MIN. WASH (OPTIONAL 0 TO 10 MIN.) 30 SEC. DETERGENT PURGE (OPTIONAL 1 MIN.) 15 MIN. SEQUENCE DELAY (OPT. 0 TO 45 MIN.) Fig.
-
Page 27: Daily Operation Of Waterwash Hood
The detergent brand SC-5 (by 2010 Products) is recommended by Greenheck for use in the waterwash system. For normal use in Greenheck waterwash hood systems, use SC-5 full strength or as suggested by supplier. This product is biodegradable, non-caustic, and safe for kitchen staff to use. It can also be diluted with one part SC-5 to one part water for cleaning hood exterior surfaces. -
Page 28: Sequence Of Operation
Fig. 24 Sequence of Operation START Push Start Fan Button Exhaust Fan, Supply Fan and Optional Continuous Cold Water Mist will start for the normal Cooking Operation. Exhaust Plenum Drip Dry (1 min.) Start Fan Light ON Allows excess water to drain from hood. -
Page 29: Sequence Of Operation
Greenheck Waterwash Sequence of Operations Siemens PLC S7-200, CPU 214 & CPU 224 The intent of the waterwash control panel(WWCP) is to control the operation of the fans and will start the wash cycle upon fan shutdown. If hooked up properly, the fans will be off during wash cycles. If the exhaust fan is being controlled by something other than the WWCP, this panel will still function. - Page 30 The “Start Fan” and “Stop Fan / Start Wash” buttons must be pushed everyday for PLC to be reset. Each sequence can wash up to the following combined hood lengths. 10 feet with ⁄ in. piping, 20 feet with 1 in. piping, 30 feet with 1 ⁄...
-
Page 31: Balancing The Kitchen Exhaust
BALANCING THE KITCHEN EXHAUST SYSTEM A. To determine the proper dining room air balance: 1. Refer to engineering drawings to determine total exhaust CFM from dining areas. (Exhaust fans, heating and air conditioning units, restrooms, etc.) 2. Determine the total CFM of make-up air supplied to dining area. 3. - Page 32 Measuring Hood Exhaust Volume: A digital 2-3/4 in. rotating vane anemometer can be used to measure exhaust CFM when the more accurate pilot traverse is not available. Accuracy of the rotating vane anamometer has been tested at + 15%. Measuring Velocity and Calculating Volume 1.
- Page 33 Supply (If Applicable): Example for Perforated Face Supply 1. Hood set up If the make-up air unit has a temperature control, it should be used to keep the supply air a the desired room discharge air temperature. 2. Measure Velocities Divide the perforated face panel into a grid of equal areas, each approximately 4 in.
-
Page 34: Short Circuit Hoods
TESTING HOOD AIR VOLUME Fig. 26 Short Circuit Hoods Supply All cooking equipment should be off. The hood exhaust should also be off. 1. Measuring Velocities • Velocity measurements should be made with a digital 2-3/4 in. rotating vane anemometer or its equivalent. -
Page 35: Field Wiring For Ansul Snap-Action Switch
Wiring Diagrams Field Wiring for the Ansul or Amerex Snap-Action Switch 2 Snap-Action Switches Provided by Greenheck may be wired as shown. 4 Typical Examples Shown Option A Power to cooking Equipment equipment Relay Part NO. 14702 * K1a and K1b are N.O. when K1 is de-energized... -
Page 36: Overall Wiring Plan View
OVERALL WIRING PLAN VIEW Diagram illustrates the overall plan view when the control center is located in the make-up air unit. CONTROL CENTER MUA FAN EXHAUST EXHAUST FAN-1A FAN-1B WATER WASH CONTROL PANEL Fire System POWER W/ SWITCHES Control PANEL HOOD-1A HOOD-1B FIELD WIRING... -
Page 37: Wiring For Hood Switch Panels
WIRING FOR HOOD SWITCH PANELS The diagrams below show a typical hood switch panel remote mounted. All switches are provided in the waterwash control panel. The diagram below shows how to wire the exhaust and supply fans with a control panel to a fire suppression contact (FSC1). -
Page 38: Circuit Diagram
CIRCUIT DIAGRAM Single Pole Double Pole ON (NC) ON (NC) ON (NC) ON (NC) ON (NO) ON (NO) ON (NC) ON (NO) ON (NC) ON (NO) ON (NO) ON (NO) Series Circuit Parallel Circuit Off if both are not activated Off if either are not activated On if both are activated Off if both are not activated... -
Page 39: Waterwash Control Panel
WATER WASH CONTROL PANEL - MODEL WW W / VACUUM BREAKER MODEL DESCRIPTION PIPE SIZE OPTIONAL: LOW DETERGENT INDICATOR LENGTH OF LONGEST HOOD PIPE SIZE OR SEQUENCE OF HOOD A = 24 HOUR TIMER SEQUENCED HOODS B = 7 DAY TIMER 3/4"... - Page 40 WATER WASH CONTROL PANEL - MODEL WW W / REDUCED PRESSURE BACKFLOW PREVENTER MODEL DESCRIPTION PIPE SIZE OPTIONAL: LOW DETERGENT INDICATOR LENGTH OF LONGEST HOOD PIPE SIZE OR SEQUENCE OF HOOD A = 24 HOUR TIMER SEQUENCED HOODS B = 7 DAY TIMER 3/4"...
- Page 41 WATER WASH CONTROL PANEL - MODEL WW W / VACUUM BREAKER & COLD WATER SPRAY MODEL DESCRIPTION PIPE SIZE OPTIONAL: LOW DETERGENT INDICATOR LENGTH OF LONGEST HOOD PIPE SIZE OR SEQUENCE OF HOOD A = 24 HOUR TIMER SEQUENCED HOODS B = 7 DAY TIMER 3/4"...
- Page 42 WATER WASH CONTROL PANEL - MODEL WW W / REDUCED PRESSURE BACKFLOW PREVENTER MODEL DESCRIPTION PIPE SIZE OPTIONAL: LOW DETERGENT INDICATOR LENGTH OF LONGEST HOOD A = 24 HOUR TIMER PIPE SIZE OR SEQUENCE OF HOOD SEQUENCED HOODS B = 7 DAY TIMER 3/4"...
- Page 43 WATER WASH CONTROL PANEL - MODEL WW W / REDUCED PRESSURE BACKFLOW PREVENTER & COLD WATER SPRAY MODEL DESCRIPTION PIPE SIZE OPTIONAL: LOW DETERGENT INDICATOR LENGTH OF LONGEST HOOD PIPE SIZE OR SEQUENCE OF HOOD A = 24 HOUR TIMER SEQUENCED HOODS B = 7 DAY TIMER 3/4"...
-
Page 44: Waterwash Control Panel
LADDER DIAGRAM FOR WATER WASH CONTROL PANEL VOLTAGE 120/60/1 FROM SUPPLY FAN OPTIONAL HEATER SWITCH HEATER HOOD LIGHTS LIGHTS FAN STARTER 1 FAN STARTER 2 COLD WATER SPRAY (OPTIONAL) IND. LIGHT FAN START FAN FAN ON FANS IND. LIGHT WASH STOP FAN / START WASH MAIN MAIN VALVE SEQ. -
Page 45: Maintenance
MAINTENANCE: Daily • Hood exterior surfaces should be wiped clean. Use SC-5 brand cleaning solution as recommend in detergent pump section. Weekly • Detergent tank should be checked and refilled at least once per week. • Check nozzles. Clean or replace all clogged nozzles. •... - Page 46 Waterwash System Hood not clean enough If the hood does not seem to be adequately cleaned, look for the following: • Water supply — Is it turned on? • Nozzles — Are any of them clogged? If so, they can be removed and cleared using a small wire.
- Page 47 Vacuum breaker problems If the vacuum breaker leaks or seems to snap at the beginning or end of a cycle, check the following: • Mounting height — The vacuum breaker must be mounted a minimum of 6 in. higher than the line to the hood.
-
Page 48: Troubleshooting
TROUBLESHOOTING Problem: Exhaust fan is not operating or is not operating at design levels. Items to Check Possible Solution Is the fan receiving power? Replace fuses, reset circuit breakers, check disconnect. Is the belt loose or broken? Replace or tighten belt. Is the fan rotating in correctly? Have the electrician correctly wire the fan. - Page 49 Problem: Smoke blows away before reaching the bottom of the hood. Items to Check Possible Solution Are there pass thru windows near Adjust amount and locations of make-up air to eliminate drafts the hood? through the pass through windows. Is this an air curtain hood? Turn off or reduce the amount of make-up air.
-
Page 50: Replacement Parts
Approved Waterwash Detergent - Not provided by Greenheck SC5 from 2010 Products call 800-286-2010 X-701 from ZEP Manufacturing call 877-428-9937 Replacement Parts: When Ordering Parts: please be prepared to provide us with your cabinet and hood system model number and serial number from labels on the hood and cabinet. See the diagram and chart below as well as the drawing on the following page to identify the replacement parts needed. -
Page 51: Replacement Parts/Kits
Replacement Parts April 2005 ®... -
Page 52: Waterwash Start-Up Checklist
Waterwash Start-up Checklist Check boxes when this has been verified and gone over with customer. HOOK-UP Plumbing Connected Hot water supply Piping to hoods(s) Drain if RPBP is installed in cabinet Shut-off valve(s) open Electrical Connected 120V/1 20A to terminals 1 & 2 Fans to terminals 3 &... - Page 53 Is the hood being properly cleaned? See page 46 - Troubleshooting. TROUBLESHOOTING See IOM Pages 45 - 49 One IOM is provided with every Waterwash hood and each control panel. It is also available on the Internet at www.greenheck.com in the Kitchen Ventilation Systems section. April 2005 ®...
-
Page 54: Notes For Maintenance Checks
Date Notes April 2005 ®... - Page 55 Date Notes April 2005 ®...
-
Page 56: Warranty
Warranty Greenheck warrants this equipment to be free from defects in material and workmanship for a period of one year from the purchase date. Any units or parts which prove defective during the warranty period will be replaced at our option when returned to our factory, transportation prepaid.
