Parts of the design of this product may be protected by worldwide patents. Part No. ZM0322-01 Soundcraft is a trading division of Harman International Industries Ltd. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Soundcraft shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
Page 3
Contents Contents Contents Contents Contents User Guide User Guide User Guide P P P P P AR ART 1 User Guide User Guide Schematic Diagrams Schematic Diagrams Schematic Diagrams P P P P P AR ART 2 Schematic Diagrams Schematic Diagrams P P P P P arts List arts List arts List...
Page 6
Part No. ZM0301-01 Issue: 1 Soundcraft is a trading division of Harman International Industries Ltd. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Soundcraft shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
IMPORTANT SAFETY INSTRUCTIONS CAUTIONS To avoid the risk of fire, replace the mains fuse only with the correct type and value fuse, as marked on the rear of the product. ATTENTION: - Afin de réduire le risque de feu remplacer seulement avec fusible de même type.
Page 9
As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth / ground symbol: The wire which is coloured Blue or White must be connected to the terminal in the plug which is marked with the letter N.
Page 10
Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, the apparatus does not operate normally or has been dropped.

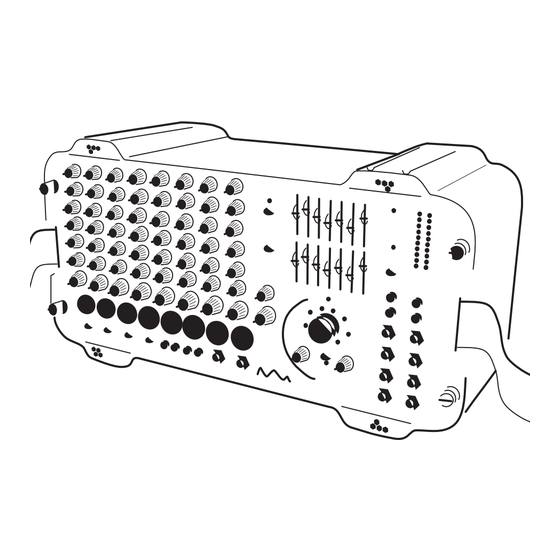

Introduction Firstly wed like to thank you for choosing the Soundcraft GigRac 1000st. We hope you have many happy years together! Features 8 Microphone Inputs 48V Phantom Power for condenser microphones (Inputs 1-4 only) PAD buttons for controlling loud input signals (Inputs 1-4 only) 4 Stereo inputs Treble, Mid and Bass controls Pan/Bal controls...
Quick Start Guide If like most people you cant wait to use your GigRac for the first time, then use the Quick Start Guide to get things started. The Quick Start Guide covers the following: Connecting up your loudspeakers to the GigRac Plugging in a vocal microphone Adding Treble, Mid or Bass to the signals Plugging in a guitar or stereo keyboard...
Page 14
Connecting up your loudspeakers to the GigRac Note: Make sure your GigRac is not powered up. This is very important to prevent any damage to either the GigRac or your loudspeakers! Using good quality speaker cables connect the loudspeakers to the Speaker outputs on the rear of the GigRac.
Page 15
Turn the Main Master Volume control (1) up to about half-way. Now gradually turn up the Main Volume control (6) on the microphone channel you have chosen to use. You should now hear the microphone signal appearing in the loudspeakers as you begin to speak. You should also be able to see activity on the Output Meter (7).
Page 16
Adding Treble, Mid or Bass to the signal The GigRac offers Treble, Mid and Bass control for changing the tone of the signal. Treble (9) To add or remove some brightness or sparkle to or from a signal, use the Treble control. In the center click position (0) the Treble control has no effect.
Page 17
Plugging in an Acoustic Guitar, Stereo Keyboard or CD Player The GigRac will happily receive signals from instruments with either mono or stereo outputs such as guitars (Mono) or stereo keyboards and CD Players (Stereo). Before plugging in, make sure the Main Volume control (6) for the chosen channel is turned fully off to avoid accidental damage to your speakers.
Apply one of the 10 GigFX digital effects to the signals The GigRacs GIGFX Processor (14) has a choice of 10 studio quality digital effects that can be added to any individual or group of signals running through the mixer. Usually vocals require some digital reverb or echo to be added to them in order to create a more spatial sound that is pleasing to the listener.
Front Panel Input channel The GigRac 1000st has a total of 8 channels. Channels 1-4 are designed to handle mono microphone or mono line level signals only. Channels 5-8 are designed to handle mono microphone and stereo line level signals but will also accommodate mono line-level signals as well.
Page 20
(2) PAD switch (Channels 1-4 only) Pressing the PAD switch reduces the input level by 20dB allowing line or mic level signals that would normally be too loud for the Input stage to handle to be connected without any audible distortion. (3) Main Volume Control The Main Volume Control determines the amount of level sent from the channel to the main output mix.
Page 21
The FX Bus Output connector could also be used to connect to other external devices such as effects processors or recorders. (7) Bass Control The Bass Control is set at 80Hz and allows you to either add or remove the low frequency content of the signal by 15dB. Rotating the control clockwise will boost...
(10) Main Master Volume Control This control determines the overall level that is sent to the internal amplification and to the Main Output sockets (22). It also controls the volume of the headphone socket (21). (11) Mon Master Volume Control This control determines the overall level that is sent to the Monitor Output (Mon Output) socket (23).
Page 24
(15) Amp Clip LEDs The red Amp Clip LEDs illuminate when the input levels to the internal amplifiers are too high. It is acceptable for these LEDs to come on momentarily every now and then but the Main or Monitor Master Volume (depending on which signals have been routed to the amplifiers: see (16) below) should be turned down if the Amp Clip LEDs illuminate consistently.
Page 26
the Gigrac and allows the playback in signal to be heard without interference from other signal sources. (20) Standby Mute Switch This switch mutes all inputs to the Gigrac except for the signal from the playback in connectors. It also mutes the FX Bus Output and the Monitor Output.
Page 27
(26) FX Bypass Footswitch The FX Bypass Footswitch socket is used for connecting an optional foot switch to turn the GigFX processor On and Off. (27) Effect on switch The effect on switch has a toggle action, the adjacent LED indicates when the FX unit is on.
Rear Panel Power Switch This switch turns the GigRac On or Off. The red Power LED (14) on the front panel will illuminate to confirm this. NB! Before switching the GigRac On or Off, make sure that the Main and Mon Master Volume controls are turned fully down.
Rackmounting Your GigRac The GigRac 1000st can be rack mounted into a standard 19rack. This is useful for fixed instalations or for applications where the GigRac might need to be installed into a portable 19 rack along with other equipment. Caution: leave a free 1U space above the Gigrac to allow internal heat to escape.
Using your GigMat GigRac comes supplied with a unique non-slip GigMat which can be placed underneath the GigRac when it has to be put onto a slippery surface such as a shiny table top. Under normal circumstances the GigMat will prevent the GigRac from slipping around.
Warranty Soundcraft is a trading division of Harman International Industries Ltd . End User means the person who first puts the equipment into regular operation. Dealer means the person other than Soundcraft (if any) from whom the End User purchased the Equipment, provided such a person is authorised for this purpose by Soundcraft or its accredited Distributor.
Specifications NOISE EIN 150 ohms 20 - 22kHz -123 dBu Main out Level control mid -78 dBu Mon out Level control mid -80 dBu Amp out -57 dBu CROSSTALK Main cutoff -80 dB Mon cutoff -80 dB Frequency Response 20 - 22Khz rel 1kHz Line in to Main out +0.2/-2.5 dB THD+N Mic i/p -20dB Pad 0dBu I/P at Main out (22Hz-22kHz)
Page 37
cuit Dia cuit Dia g g g g g r r r r r ams cuit Dia Cir cuit Dia cuit Dia Gigrac Main PCB Gigrac Main PCB Gigrac Main PCB Gigrac Main PCB Gigrac Main PCB 2-3 to 2-13 2-3 to 2-13 2-3 to 2-13 2-3 to 2-13...
MAIN ASSEMBLIES GIGRAC 1000ST RW5673 Ident Description Part Number BUSH POT SHAFT - GIGRAC P-S2010J-02 KNOB ST.STEEL-EFFECT SELECTOR P-S2010Z-01 FRONT PANEL-GIGRAC 1000ST P-S2017C-03 GIGRAC 1000ST PCB ASSY R-S2017A-02-AF (Safety Critical Part)! SWITCH MAINS ROCKER 6A 250V DL10006 W/FORM 5WAY 2MM CRIMP TYPE L-S2010A-01 W/FORM 10WAY 2MM CRIMP TYPE L-S2010B-01...
Page 57
CASE MOULDING-GIGRAC 1000ST P-S2017A-01 LID MOULDING-GIGRAC 1000 ST P-S2017B-01 BRACKET - GIGRAC 1000ST P-S2017G-01 LID LINER - GIGRAC 1000ST P-S2017H-01 LOGO STICKER SHEET-GIGAC ACCES P-S2010AA-01 DESK GIGRAC MAT-ACCESSORY P-S2010BB-01 CORNER PACKAGING-GIGRAC T-S2010A-01 CARTON PACKAGING -GIGRAC 900 T-S2017A-01 POLY BAG 200G - 24X30 TZ2440 USER GUIDE- GIGRAC 1000ST ZM0301-01...
Page 58
SWITCH TOPS, FADER TOPS AND KNOBS Description Part Number Used in (part number) CAP ELLIPSE SW DK/GRY LONG KB10020 RW5673, RW5708 CAP ELLIPSE SW DK/GRY SHORT KB10021 RW5673, RW5708 ELIPT SW-CP RED PANTONE 201C KB2328 RW5673, RW5708 KNOB 14MM DK/GREY PTR YELL KA10031 RW5673 KNOB 14MM DK/GRY &...
Page 59
FADERS Description Part Number Used in: (part number) FADER 10K\10K-CD.30MM TRV.PAN. DD0469 R-S2017A-02-AF PAN GRAPHIC FADER 10KB DD0411 R-S2017A-02-AF GIGRAC 1000ST Spare Parts Page 3 - 7...
Page 67
CAP ELEC VERT 220UF 6.3V 6X11M CE0423 CAP ELEC VERT 220UF 6.3V 6X11M CE0423 CAP ELEC VERT 10UF 63V SKP 5X1 CE0462 CAP ELEC VERT 220UF 6.3V 6X11M CE0423 CAP ELEC VERT 10UF 63V SKP 5X1 CE0462 CAP ELEC VERT 10UF 63V SKP 5X1 CE0462 CAP ELEC VERT 10UF 16V SSP CE0448...
Page 68
C208D CAP ELEC VERT 10UF 16V SSP CE0448 10WY 2MM VERT ML HDR(CHINA) FF1003 DUAL PC PHONO VERT 24MM CLIFF FH0768 DUAL PC PHONO VERT 24MM CLIFF FH0768 CN1A DUAL PC PHONO VERT 24MM CLIFF FH0768 CN1B DUAL PC PHONO VERT 24MM CLIFF FH0768 FDR1 FADER 10K\10K-CD.30MM TRV.PAN.
Page 69
LED22 LED SPACER 0.1"PITCH 12MM JZ2230 LED23 LED 3MM ULTRA RED ROUND JA10025 LED23 LED SPACER 0.1"PITCH 12MM JZ2230 LED24 LED 3MM ULTRA RED ROUND JA10025 LED24 LED SPACER 0.1"PITCH 12MM JZ2230 LED25 LED 3MM ULTRA RED ROUND JA10025 LED25 LED SPACER 0.1"PITCH 12MM JZ2230 LED26...
VR102B POT 20K VRT MTG 9MM C/D TWA RV DM10029 VR102C POT 20K VRT MTG 9MM C/D TWA RV DM10029 VR102D POT 20K VRT MTG 9MM C/D TWA RV DM10029 VR103A POT 20K VRT MTG 9MM C/D TWA RV DM10029 VR103B POT 20K VRT MTG 9MM C/D TWA RV DM10029...
Page 71
CAP ELEC VERT 4700 100V LPW CE0467 CAP ELEC VERT 4700 100V LPW CE0467 CAP CER ML 10N 100V 5MM CA0027 CAP CER ML 10N 100V 5MM CA0027 (Safety Critical Part)! CAP 275V 1UF X2 XC09- CX10000 CAP CER ML 10N 100V 5MM CA0027 CAP CER ML 10N 100V 5MM CA0027...
Page 72
MF 0.25W RES 1% 100K BL AP1397 RES W/W 22R 17W 5% AM0069 MF 0.25W RES 1% 680K BL AP1417 RES 47K0 5% 1W MF PRO1 XA01- AE10002 MF 0.25W RES 1% 220K BL AP1405 MF 0.25W RES 1% 620R BL AP1344 MF 0.25W RES 1% 680R BL AP1345...
