7.3 Auto Elevation Grille

• Auto Elevation Grille is automatically down to height
of max. 3.1 m. So it enables to install the Indoor unit
at high ceiling space. And Auto Elevation Grille
makes you cleaning the filter easily.

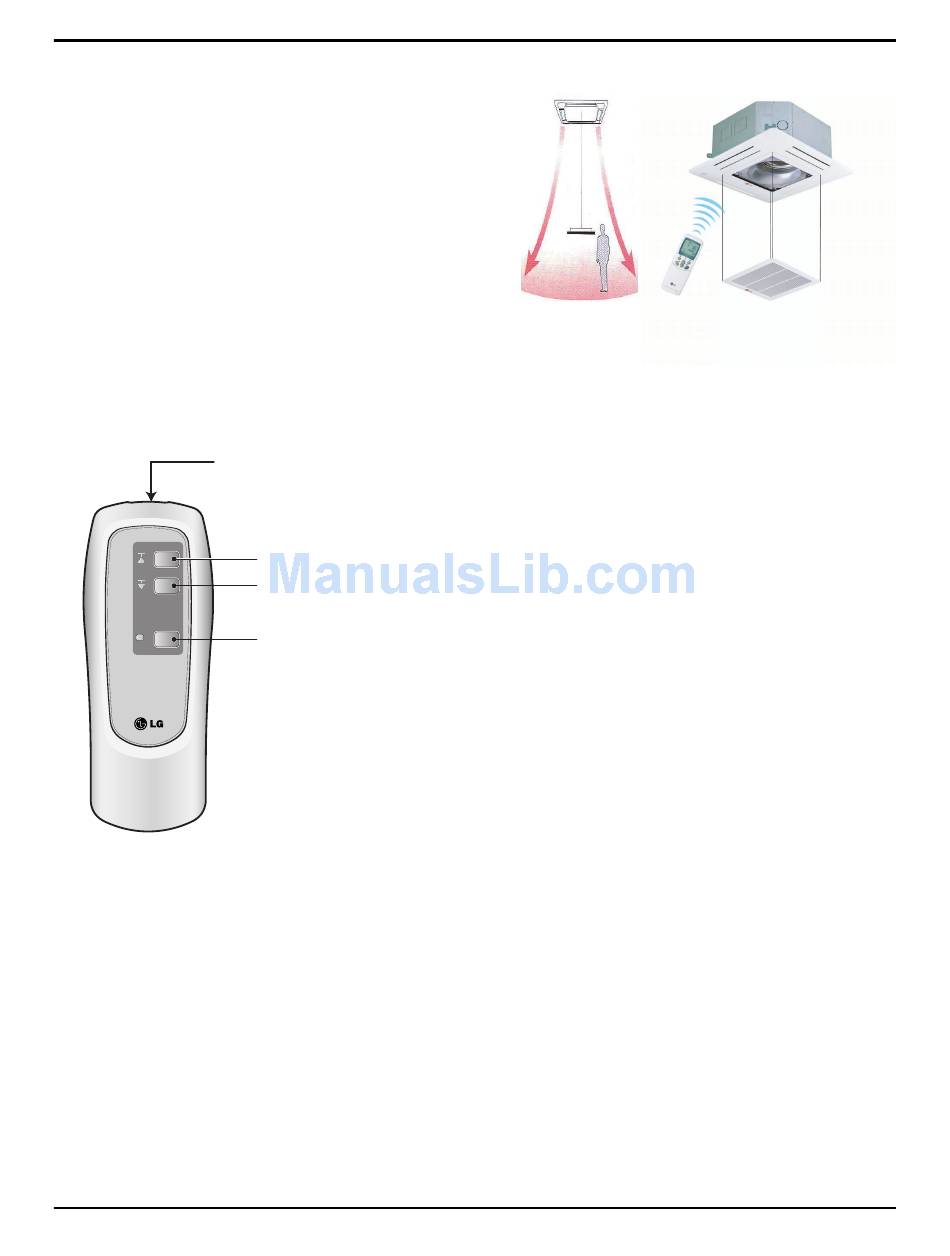

I ELEVATION GRILL (REMOTE CONTROLLER_Accessory)
Signal transmitter
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
• Main Components of Lift Grill
➀ Lift grill front panel assembly
➁ Bolts for installation (4 EA, P/No. 3A00255K)
➂ Instruction manual
Ascend
➃ Remote Controller for lift grill
Descend
• How to Use Remote Controller
Stop
As for operation of Remote Controller, use it by directing the trans-
mitter part of Remote Controller to the receiver part of front panel
directly under front panel.
• Do not drop it down or into water. Or else there is worry about
trouble failure.
• Do not press hard the Remote Controller button with nail (ball-
point pen or other sharp substance). Or else there is worry about
trouble failure.
• In case when obstacle such as curtain hides the signal reception
part of receiver in between the space interval, Remote Controller
operation is infeasible.
