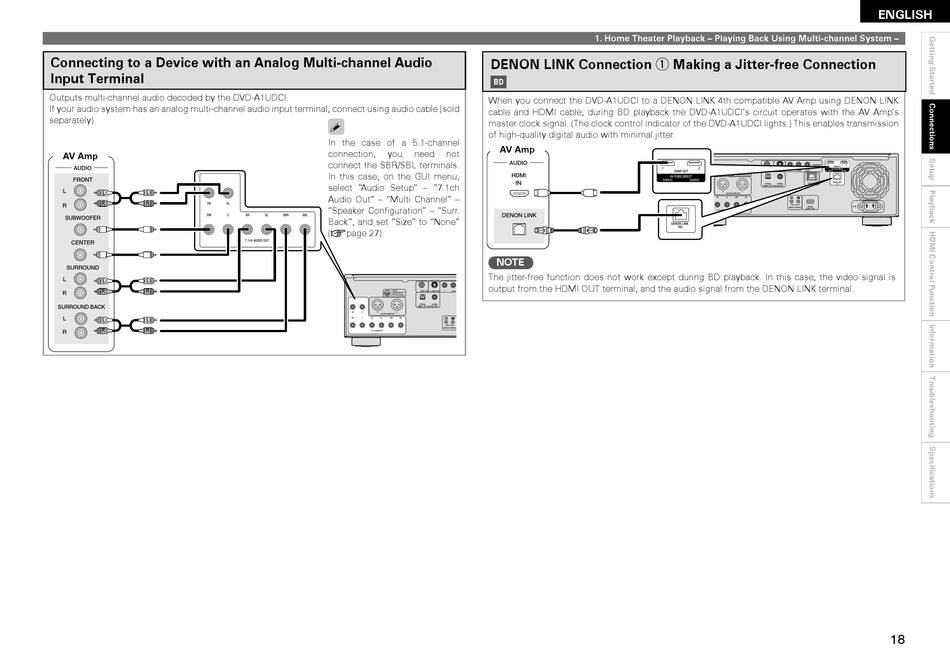

Connecting to a Device with an Analog Multi-channel Audio
Input Terminal
Outputs·multi-channel·audio·decoded·by·the·DVD-A1UDCI.
If·your·audio·system·has·an·analog·multi-channel·audio·input·terminal,·connect·using·audio·cable·(sold·
separately).
AV Amp
L L
R R
L L
R R
L L
R R

DENON LINK Connection q Making a Jitter-free Connection

BD
When·you·connect·the·DVD-A1UDCI·to·a·DENON·LINK·4th·compatible·AV·Amp·using·DENON·LINK·
cable· and· HDMI· cable,· during· BD· playback· the· DVD-A1UDCI's· circuit· operates· with· the· AV· Amp's·
master·clock·signal.·(The·clock·control·indicator·of·the·DVD-A1UDCI·lights.)·This·enables·transmission·
of·high-quality·digital·audio·with·minimal·jitter.·
In· the· case· of· a· 5.1-channel·
AV Amp
connection,· you· need· not·
connect·the·SBR/SBL·terminals.·
In· this· case,· on· the· GUI· menu,·
select· "Audio· Setup"· –· "7.1ch·
Audio· Out"· –· "Multi· Channel"· –·
"Speaker Configuration" – "Surr.
Back",·and·set·"Size"·to·"None"·
(vpage·27).
NOTE
The· jitter-free· function· does· not· work· except· during· BD· playback.· In· this· case,· the· video· signal· is·
output·from·the·HDMI·OUT·terminal,·and·the·audio·signal·from·the·DENON·LINK·terminal.
1. Home Theater Playback – Playing Back Using Multi-channel System –
