6. Wiring Diagram

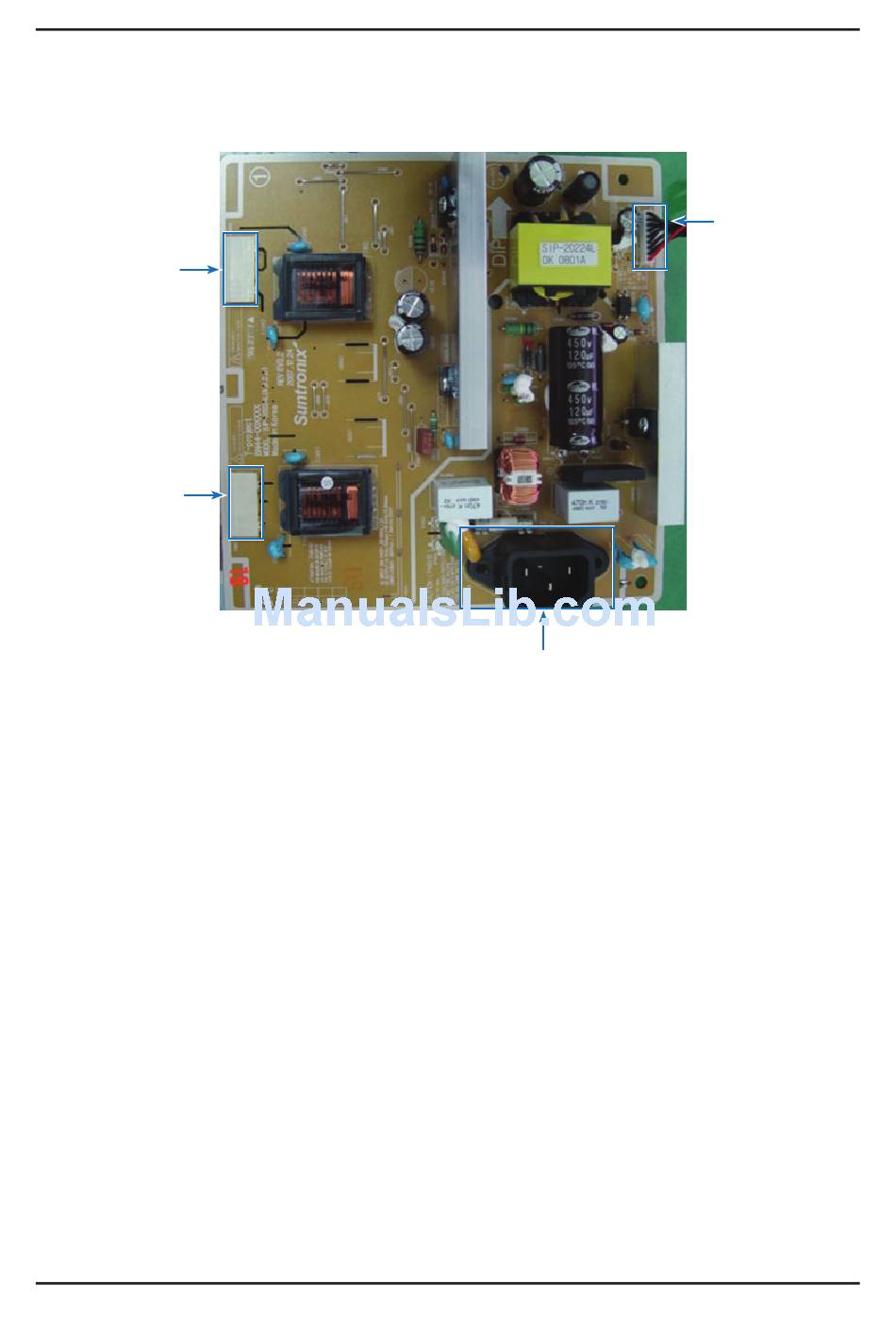

6-3. Wiring Diagram - IP Board

Power Connector 9P
(Connect with MAIN
Lamp Connector
board)
(Connect with panel
inverter – left top of
panel rear)
Lamp Connector
(Connect with panel
inverter – left bottom
of panel rear)
AC Power socket
6-3
