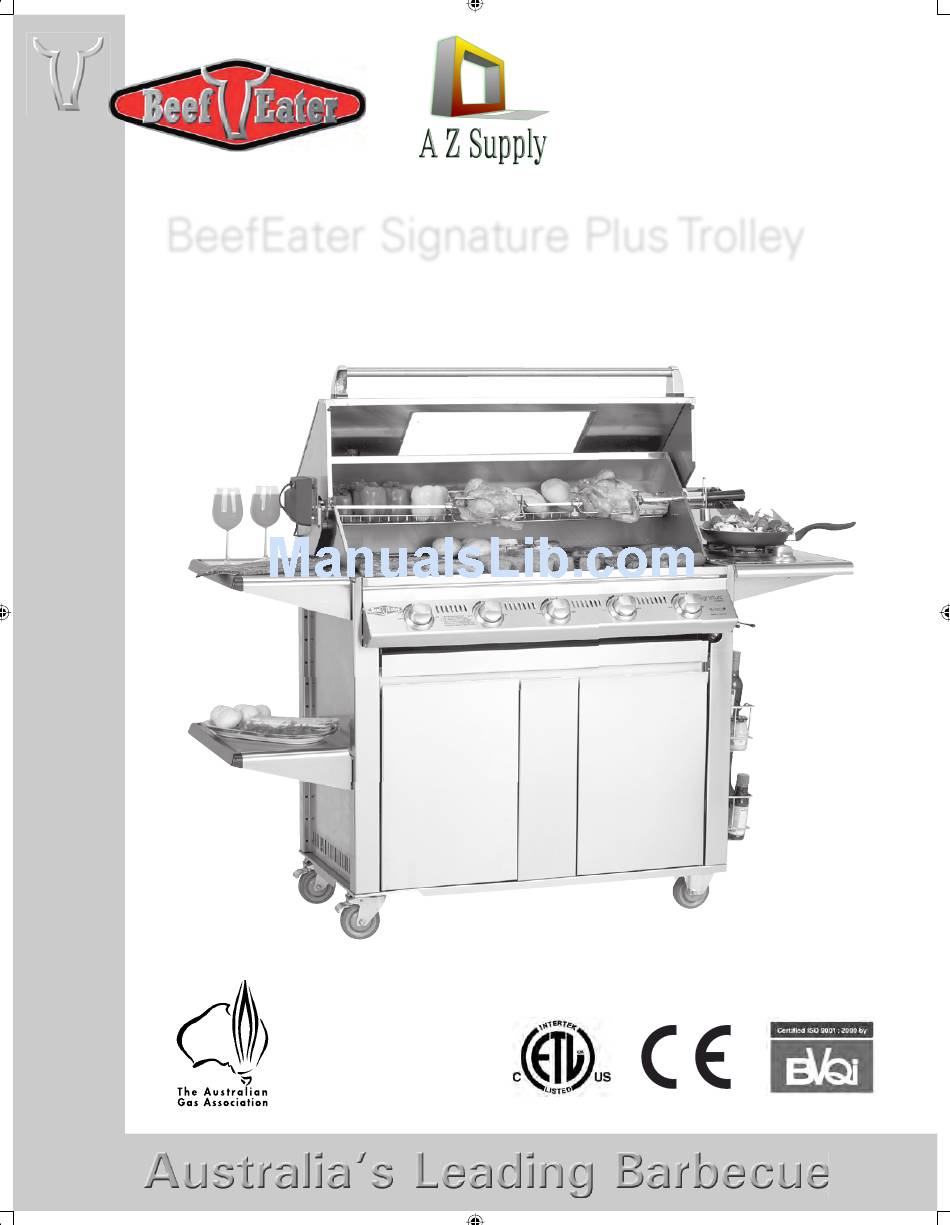

Page 1: Assembly Instructions
UNITED STATES www.beefeatergrillparts.com www.azgrills.com www.bbqdoorsanddrawers.com 800/997-4177 www.bbqgrillsupply.com BeefEater Signature Plus Trolley Assembly Instructions... -
Page 2: Parts List
Parts List cross brace 2 x magnets 56 x screws, washers and nuts (Allen head screw M6x12mm, washer & nut M6) may not all be required 2 back panels (identical) 2 x swivel 2 x fixed castors castors right side panel left side panel base shelf hose protector... -
Page 3: Before You Start
Assembly Instructions Before You Start Note the tools you will need before you begin. Check for damaged or missing parts, and consult your retailer if necessary. Allen key adjustable Phillips Head spanner/wrench Screwdriver Many components and panels are covered with a protective sheet of plastic. You will need to remove this plastic covering from all surfaces, especially where two panels join. - Page 4 Assembly Instructions The right side has holes for the gas hose 3) Fit The Right And Left Side Panels Use 5 Allen head screws, washers and nuts on each panel. You may find it easier to lay the cart on its side for this step. Only hand tighten at this stage - You will wrench/spanner tighten at a later step.
- Page 5 Assembly Instructions 6) Fit The Lower Back Panel Both back panels are identical. Screw one of the back panels to the base and side panels using 7 Allen head screws, washers and nuts. Hand tighten only at this stage. 7) Fit The Upper Back Panel Screw the other back panel to the side panels.
- Page 6 Assembly Instructions 9) Fit The Left Side Shelf Use 4 Allen head screws, nuts and washers. Get in underneath the side shelf and screw the shelf to the side panel. The screws go into the slotted holes as shown. If you have a second side shelf you should fit it at this point, only for lower shelves, the screws go in the round holes at the side.
- Page 7 Assembly Instructions 11) Fit The Infill Panel (5 burner models only) 5 burner models require an infill panel between the two doors. Use 4 Allen head screws, washers and nuts to secure the panel between the front cross brace and the base plate. Hand tighten only at this stage.
- Page 8 Assembly Instructions 14) Fit The Storage Racks If you purchased any optional storage racks, they slide easily into the holes on the right or left side panel. 15) Fit The Hose Protector Squeeze the rubber hose protector and fit it into one of the holes in the side panel.
- Page 9 Assembly Instructions 17) Fit The Hose To The Barbecue You need to connect the proper hose to the barbecue inlet before the barbecue is in place in the cart. You should follow the separate barbecue instructions for directions on methods of connection and leak testing. If you purchased a side burner: Pass hose a through the side hole (arrow 1) and connect to the barbecue.
- Page 10 Assembly Instructions 19) Fit The Optional Side Burner If you purchased a side burner, the side burner must go on the right side of the barbecue. Use 4 Allen head screws, washers and nuts. The screws go through the inside of the barbecue and help to secure it.
-
Page 11: Spare Parts Listing
Spare Parts Listing Description 4 burner 5 burner Code Code 180216 Base Plate 180238 180220 180220 Left hand side panel 180219 180219 Right hand side panel Side shelf 180217 180217 Moulded end cap 224801 224801 10G x ½” self tap screw 030126 030126 Cross brace... -
Page 12: Accessories Available
Accessories Available Your retailer can advise on the range of BeefEater accessories available to help you take full advantage of the barbecue cooking opportunities available with your roasting hood. Mitt Set - handle baking Poly Cover - protect your Meat Thermometer - takes...
