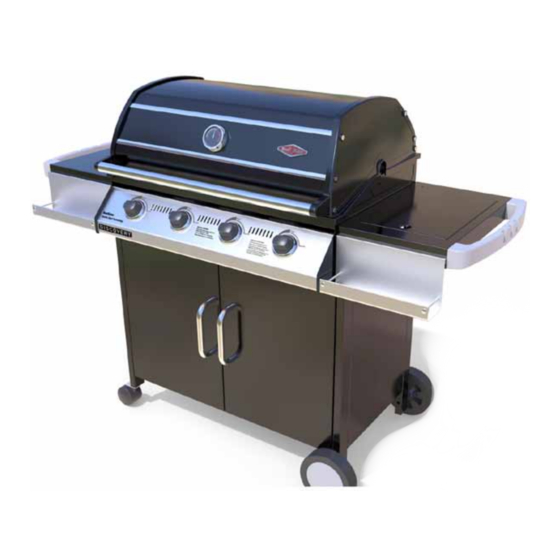

- Page 1 Australia North America Discovery Series Cabinet Trolley Assembly and Operating Instructions For outdoor use only Discovery i-1000...
- Page 2 Content: Index Part Quantity Bolt Pack: Top Panel Shelf description Side Burner M6 x 40mm Screw RHS Panel and legs M6 washer LHS Panel and legs M6 Fiber Washer M6 x 12mm screw Rear Panel ‘R’ Clips Base Panel M6 x 25mm Screw RHS Door M6 Nut LHS Door...
-
Page 3: Assembly Procedure
Assembly Procedure Step 1 Remove all loose parts from inside the BBQ, close the hood, and turn it upside-down on a padded surface (BBQ packaging can be used for this purpose). Step 2 Use: 4 x ‘A’, 4 x ‘B’, 4 x ‘C’ Attach the Sides of the trolley (Parts 4, 5) to the BBQ body. - Page 4 Step 3 Use: 4 x ‘A’, 4 x ‘B’ Attach the Top panel (Part 1) to the sides: Step 4 Use: 3 x ‘D’, 3 x ‘B’ Attach the Back panel (Part 6) to the Top panel:...
- Page 5 Step 5 Use: 4 x ‘A’, 7 x ‘B’, 3 x ‘D’, 1 x ‘H’, 1 x ‘I’ Attach the Base of the trolley (Part 7) to the Sides and Back panel: Step 6 Use: 2 x ‘E’ Fit the Wheels (parts 12, 13) and the castors (parts 11): Step 7 Carefully turn the trolley and Barbecue upright...
- Page 6 Step 8 Use: 2 x ‘A’, 2 x ‘B’ To the Left Hand Side, install the shelf (Part 2). Insert over the two legs and between the barbecue body and the leg, and secure with the screws. Step 9 Use: 2 x ‘A’, 2 x ‘B’ To the Right Hand Side, install the Side-Burner (Part 3) .
- Page 7 Step 11 Assemble both doors (Parts 8, 9) over the hinge brackets: Note: ensure that in each door, both hinge pins are inserted into the brackets simultaneously. It may be required to assemble the handles onto the doors. Step 12 Use: 2 x ‘F’, 2 x ‘G’, 2 x ‘B’, 2 x ‘C’...
-
Page 8: Warranty
Step 13 Make Gas connections and perform a leak test (as described in the Barbecue instruction book, P.11). Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. -
Page 9: For Your Records
Distances to Combustible materials (min): For your records: Model Number: ________________________________________________________________________ Date of Purchase: ________________________________________________________________________ Place where purchased: ________________________________________________________________________ Serial Number: _________________________________________________________________________... -
Page 10: Spare Parts
Spare Parts: Images in this manual are for illustrative purposes only. Due to constant improvement, BeefEater advises that changes to the design, material, specifications and product configuration may occur at any time without notice. - Page 12 Discovery Series Cabinet Trolley Woodland Home Products P.O. Box 236, Chester Hill, NSW, Australia 2162 Phone: +61 2 9724 8888 Facsimile: +61 2 9724 8899 E-mail: mail@beefeaterbbq.com Website: www.beefeaterbbq.com Disc_CabTrol_Inst V0...
