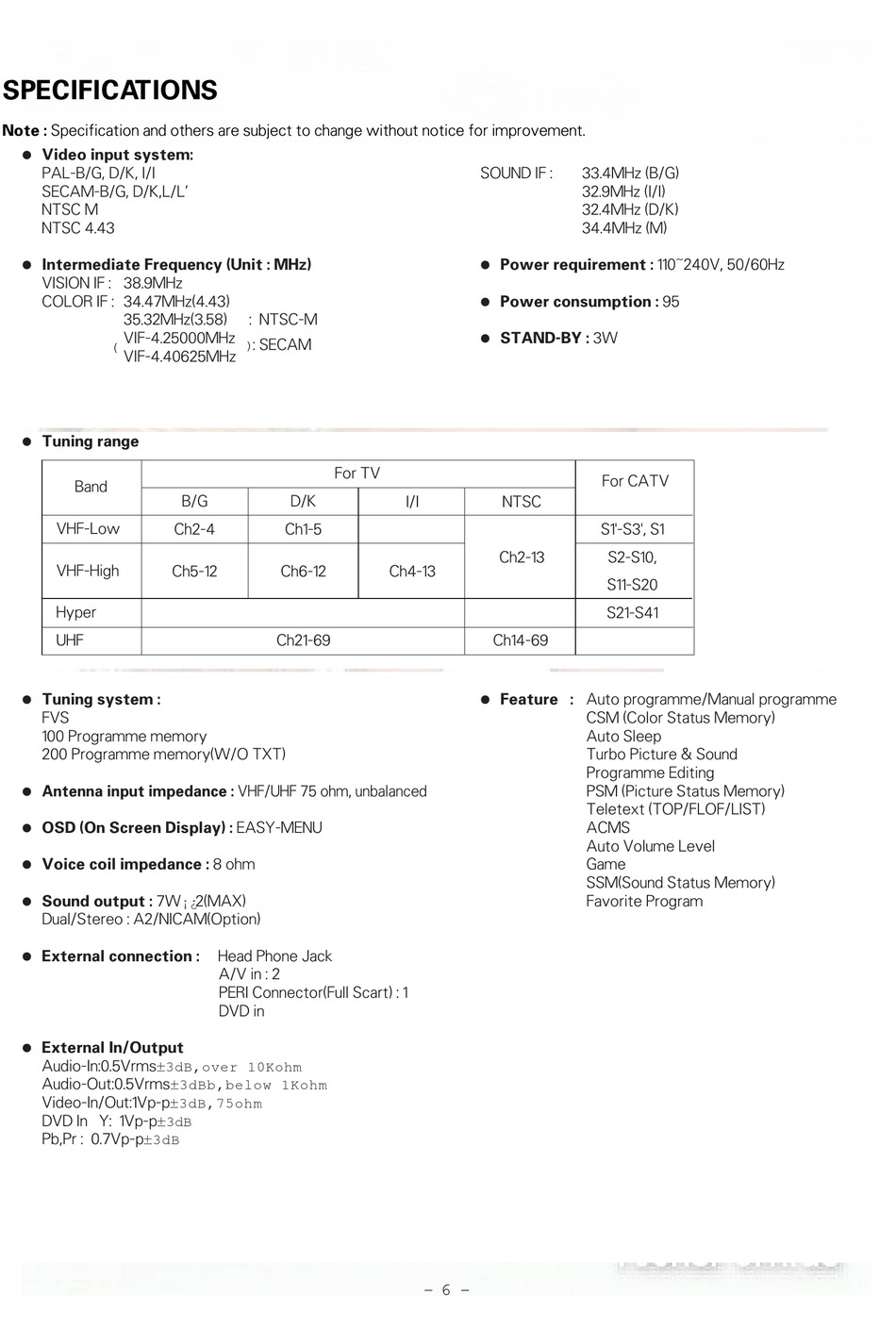

SPECIFICA TIONS
Note : Specification and others are subject to change without notice for improvement.
Video input system:
O
PAL-B/G, D/K, I/I
SECAM-B/G, D/K,L/L'
NTSC M
NTSC 4.43
Intermediate Frequency (Unit : MHz)
O
VISION IF : 38.9MHz
COLOR IF : 34.47MHz(4.43)
35.32MHz(3.58)
VIF-4.25000MHz
(
VIF-4.40625MHz
Tuning range
O
Band
VHF-Low
VHF-High
Hyper
UHF
Tuning system :
O
FVS
100 Programme memory
200 Programme memory(W/O TXT)
Antenna input impedance : VHF/UHF 75 ohm, unbalanced
O
OSD (On Screen Display) : EASY-MENU
O
Voice coil impedance : 8 ohm
O
Sound output : 7W¡¿2(MAX)
O
Dual/Stereo : A2/NICAM(Option)
External connection :
O
External In/Output
O
Audio-In:0.5Vrms!3dB,over 10Kohm
Audio-Out:0.5Vrms!3dBb,below 1Kohm
Video-In/Out:1Vp-p!3dB,75ohm
DVD In Y: 1Vp-p!3dB
Pb,Pr : 0.7Vp-p!3dB
: NTSC-M
): SECAM
For TV
B/G
D/K
Ch2-4
Ch1-5
Ch5-12
Ch6-12
Ch21-69
Head Phone Jack
A/V in : 2
PERI Connector(Full Scart) : 1
DVD in
SOUND IF :
Power requirement : 110~240V, 50/60Hz
O
Power consumption : 95
O
STAND-BY : 3W
O
I/I
NTSC
Ch2-13
Ch4-13
Ch14-69
Feature : Auto programme/Manual programme
O
- 6 -
33.4MHz (B/G)
32.9MHz (I/I)
32.4MHz (D/K)
34.4MHz (M)
For CATV
S1'-S3', S1
S2-S10,
S11-S20
S21-S41
CSM (Color Status Memory)
Auto Sleep
Turbo Picture & Sound
Programme Editing
PSM (Picture Status Memory)
Teletext (TOP/FLOF/LIST)
ACMS
Auto Volume Level
Game
SSM(Sound Status Memory)
Favorite Program
