Baby Control Digital BC-200 Instructions For Use Manual

Baby control digital breathing monitor
Hide thumbs Also See for BC-200:

Advertisement

Quick Links

Download this manual See also: User Manual

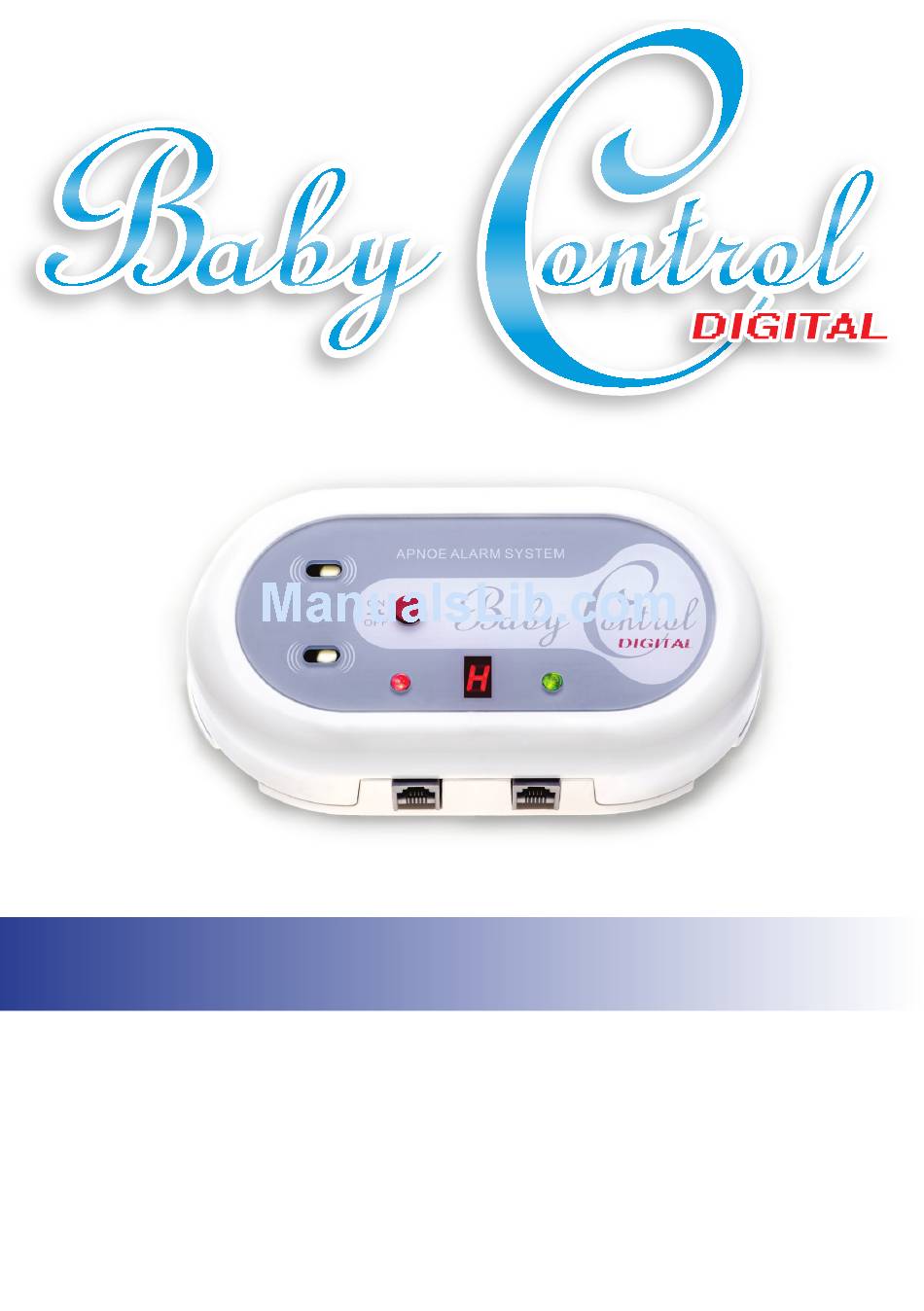

EN Instructions for Use
Instructions for Use for Baby Control Digital breathing monitor:
• BC-200 with one sensor pad
• BC-210 with two sensor pads
• BC-230 with three sensor pads
• BC-220i with two sensor pads, may be used with twin babies
• BC-230i with four sensor pads, may be used with twin babies

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Baby Control Digital BC-200

Summary of Contents for Baby Control Digital BC-200

  • Page 1 EN Instructions for Use Instructions for Use for Baby Control Digital breathing monitor: • BC-200 with one sensor pad • BC-210 with two sensor pads • BC-230 with three sensor pads • BC-220i with two sensor pads, may be used with twin babies...
  • Page 2 Baby Control Digital generates a noisy alarm. 4. But Baby Control Digital is in no way able to intervene in a dangerous situation that occurs. Only that person who un- derwent a dedicated training course is able to give artificial breathing and perform resuscitation. Ask your doctor for advice.
  • Page 3 2. Uniquely large monitored area The size of one sensor pad is 300 x 500 mm. Depending on the type Baby Control Digital breathing monitors have one, two, three or four (twin type) sensor pads. The device with three sensor pads is able to monitor the surface of most baby beds.
  • Page 4 1 pc - Instructions for Use Baby Control Digital BC-210 breathing monitor is in control of every function that characterizes the Baby Control Digital pro- duct series. Because it has two sensor pads, the device monitors the entire surface of an average size baby bed. Baby Control Digital breathing monitor manages any and all control over the baby’s breathing, it is therefore not necessary to use any ad-...
  • Page 5 If you have smartphone running Android, Windows or iOS operating systems, then this supplementary unit is something you can’t do without! You may freely move around your apartments and all information from Baby Control Digital breathing mo- nitor will be displayed on your phone as well. Quiet, easeful sounds if everything is in order and noisy alarm in case of danger.
  • Page 6 Never bend, fold or roll sensor pads! 7. Attach the control unit (8) to the baby’s bed using Velcro clamps. Baby Control Digital cable must be secured so that the baby cannot pull it. The best way is to turnit around one of the bed bars.
  • Page 7 Switching ON/OFF your Baby Control Digital breathing monitor (BC-200, BC-210, BC-230) 1. Press and hold the on/off button (1) for 2 seconds. Baby Control Digital breathing monitor will not start by any shorter pressing. 2. The pre-set threshold level of detection will flash on the display (2) five times. The factory setting is „3“.
  • Page 8 This may be checked on the display when the device is switched on and the baby is not lying in the bed! In the absence of the baby, Baby Control Digital breathing monitor must sound an alarm when in quiescent state.
  • Page 9 How to readjust the threshold level of detection 1. Switch off Baby Control Digital breathing monitor using on/off button (1) and wait for 5 seconds. 2. Then press the on/off button (1) and hold for 20 seconds. The display (2) will show the actual value of threshold level of detection („1“...
  • Page 10 Any voltage drop to 2.7V (1.35V per one battery) may endanger the reliable operation of Baby Control Digital breathing monitor. In such case do not use the device for the reasons of safety. Baby Control Digital cannot be switched off until batteries are replaced.

  • Page 11: Characteristic Features

    (BC-200, BC-210, BC-230, BC-220i, BC-230i) If you wish to try how the Baby Control Digital breathing monitor triggers a warning signal or whether it is ready for operation, then take the baby out of the bed, crib or pram when the device is switched on. The pre-set threshold level of detection will flash several times on the display (2) after switching on.
  • Page 12 You may test whether the beds are in adequate distance by taking one baby out of the bed. The sensor pad placed in his/her bed then must display the state with no movement and Baby Control Digital breathing monitor must trigger an alarm.
  • Page 13 TWIN MODE (BC-220i, BC-230i) The numerical display (2) will show the intensity of breathing movements detected by Baby Control Digital approximately eve- ry 2.5 seconds („9“ - the most intensive, „1“ - the least intensive, „0“ - no movement detected). At first, the value coming from the left socket (9) is displayed –...
  • Page 14 2. The display shows alternating values „1” and „2”. 3. If you press the on/off button (1) while „1” is displayed, Baby Control Digital breathing monitor will be set to the one-baby mode and should be operated according to instructions described above.
  • Page 15 Technical specifications of Baby Control Digital breathing monitor (BC-200, BC-210, BC-230, BC-220i, BC-230i) Control unit (BC-200, BC-210, BC-230, BC-220i, BC-230i) Power supply 3V, 2×1.5V alkaline AA batteries (average service life 1500-1700 hours) Dimensions 155×90×37 mm Weight 155 g Sensor pad (BC-200, BC-210, BC-230, BC-220i, BC-230i)

  • Page 16: Manufacturer's Declaration Of Conformity

    Declarer’s Name VMD 95 Kereskedelmi és Szolgáltató Kft. Declarer’s Address Színjátszó u. 19, H-1163 Budapest, Hungary Subject of declaration Baby Control Digital breathing monitor system series MSZ EN ISO 13485:2012 MSZ EN ISO 14971:2013 MSZ EN ISO/IEC 17050-1:2010 GYEMSZI/EMKI: Clinically tested.
