Baby Control Digital BC-230 Instructions For Use Manual

Apnoe alarm system
Hide thumbs Also See for BC-230:

Advertisement

Quick Links

Download this manual See also: User Manual

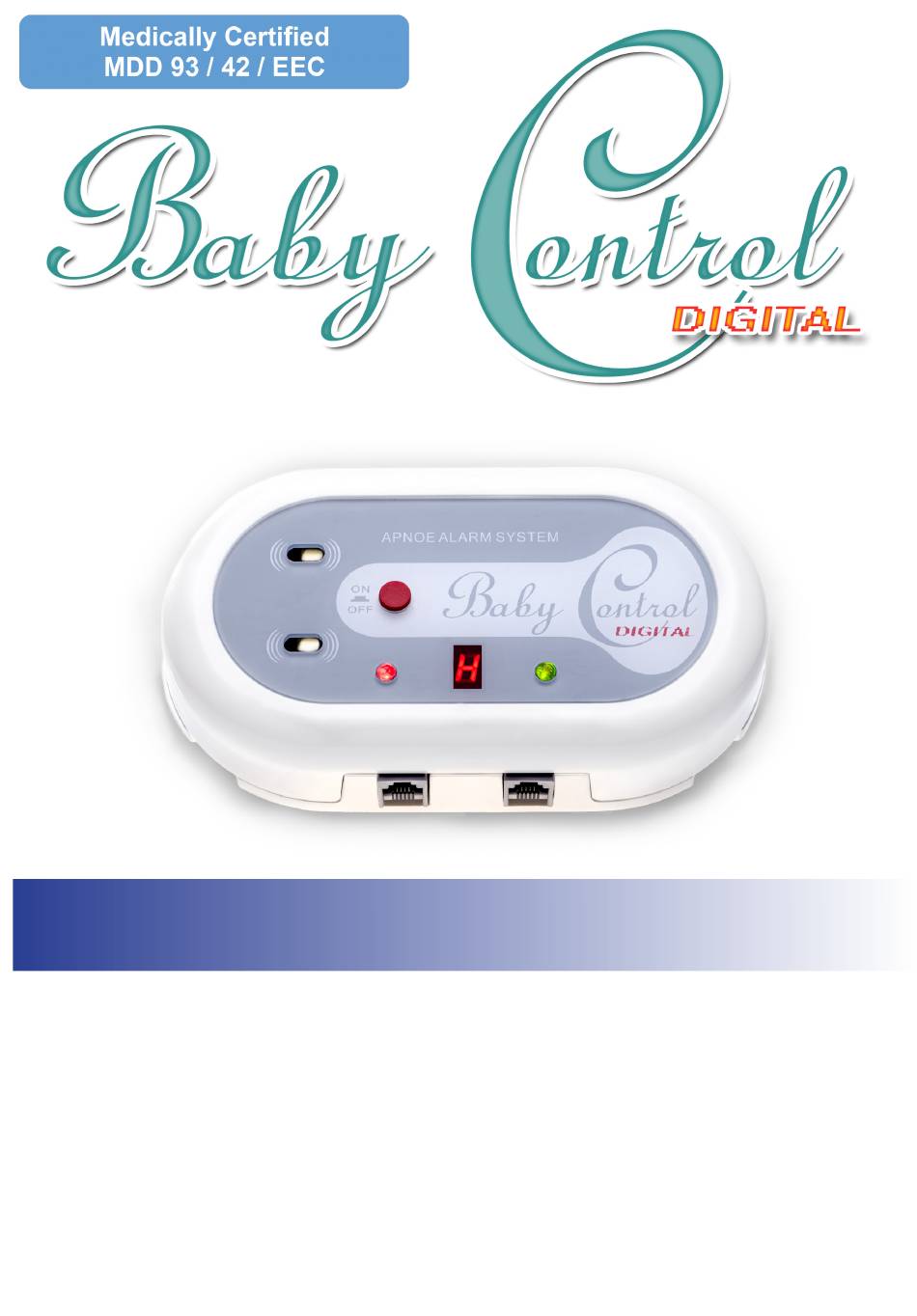

Instructions for Use
Instructions for Use for the Baby Control Digital breathing monitor:
• BC-200 with one sensor pad
• BC-210 with two sensor pads
• BC-230 with three sensor pads
• BC-220i with two sensor pads, may be used with twins
• BC-230i with four sensor pads, may be used with twins

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC-230 and is the answer not in the manual?

Questions and answers

Related Manuals for Baby Control Digital BC-230

Summary of Contents for Baby Control Digital BC-230

  • Page 1 Instructions for Use Instructions for Use for the Baby Control Digital breathing monitor: • BC-200 with one sensor pad • BC-210 with two sensor pads • BC-230 with three sensor pads • BC-220i with two sensor pads, may be used with twins...
  • Page 2 4. The Baby Control Digital is not able to intervene when it is unable to detect breathing movements but it is designed to alert you to a possible serious situation. Only a person who has undergone a dedicated training course is able to give artificial respiration and perform resuscitation.
  • Page 3 5. It can be used with all mattress and cot frame types The sensor pad of the Baby Control Digital breathing monitor is placed directly on the base of the bed and can be safely used with any standard mattress no matter how thick it is or what material it is made from.
  • Page 4 Thus it is not necessary to remove the sensor pads from under the baby’s cot, you only need to take with you the easily detachable control unit. The Baby Control Digital BC-230 breathing monitor is an excellent choice for those parents who prefer to use several independent sensor pads or those with a cotbed of a larger size.
  • Page 5 If you have smartphone running Android, Windows or iOS operating systems, then this supplementary unit is something you can’t do without! You may freely move around your home and all information from Baby Control Digital breathing monitor will be displayed on your phone as well. Quiet, restful sounds can be heard if everything is in order and a noisy alarm in case of danger.
  • Page 6 Never bend, fold or roll the sensor pads! 7. Attach the control unit (8) to the baby’s cot using the Velcro straps. The Baby Control Digital cable must be secured so that the baby cannot pull it.
  • Page 7 Switching ON/OFF your Baby Control Digital breathing monitor (BC-200, BC-210, BC-230) 1. Press and hold the ON/OFF button (1) for 2 seconds. The Baby Control Digital breathing monitor will not switch on if held for a shorter period than 2 seconds.
  • Page 8 If another value than 0 is flashing on the display and the baby is not in the cot, the Baby Control Digital breathing monitor is detecting vibrations from some source in its surroundings.
  • Page 9 (BC-200, BC-210, BC-230, BC-220i, BC-230i) The Baby Control Digital breathing monitor features a 9 minute event memory which records the events of last 9 minutes before the switch-off (both numbers on the display and acoustic signals). These recordings may become very useful especially when an alarm occurs as they may make it possible to gain information about whether your baby’s breathing pattern before...
  • Page 10 (BC-200, BC-210, BC-230, BC-220i, BC-230i) After the Baby Control Digital is switched on by the ON/OFF button (1) and after the pre-set detection threshold level flashes five times on the display (2), the letter “E” will constantly flash on the display accompanied by an acoustic signal. This means that the battery voltage is low.

  • Page 11: Characteristic Features

    You may test whether the cots are at an adequate distance by taking one baby out of the cot. The sensor pad placed in his/her cot then must display no movement and the Baby Control Digital breathing monitor will trigger an alarm.
  • Page 12 Never bend, fold or roll sensor pads! 7. Attach the control unit (8) to the baby’s cot using Velcro clamps. The Baby Control Digital cable must be secured so that a bigger baby cannot pull it, the best way is to wind it around one of the cot bars.
  • Page 13 (3). (If detection of breathing movements is restored in this phase, Baby Control Digital continues its normal operation.) 3. The alarm is triggered! The display (2) shows the letters “H” – “E” – “L” – “P”.
  • Page 14 2. The display shows alternating values “1” and“2”. 3. If you press the ON/OFF button (1) while “1” is displayed, the Baby Control Digital breathing monitor will be set to the one-baby mode and should be operated according to the instructions described above.
  • Page 15 Technical specifications of Baby Control Digital breathing monitor (BC-200, BC-210, BC-230, BC-220i, BC-230i) Control unit (BC-200, BC-210, BC-230, BC-220i, BC-230i) Power supply 3V, 2×1.5V alkaline AA batteries (average service life 1500-1700 hours) Dimensions 155×90×37 mm Weight 155 g Sensing unit (BC-200, BC-210, BC-230, BC-220i, BC-230i)

  • Page 16: Manufacturer's Declaration Of Conformity

    Manufacturer’s Declaration of Conformity Manufacturer VMD 95 Kereskedelmi és Szolgáltató Kft. Address Színjátszó u. 19, H-1163 Budapest, Hungary Subject of declaration Baby Control Digital breathing monitor system series 93/42/EEC MSZ EN ISO 13485:2012 MSZ EN ISO 14971:2013 MSZ EN ISO/IEC 17050-1:2010 GYEMSZI/EMKI:...

This manual is also suitable for:

Bc-200Bc-210Bc-230iBc-220i
