CIP900-IP-TR
HDMI with USB
IP Intranet
(Multi-cast Version)
Installation and User's Manual
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
info@iTechLCD.com
Over
1
• WEB:
www.iTechLCD.com
Introduction

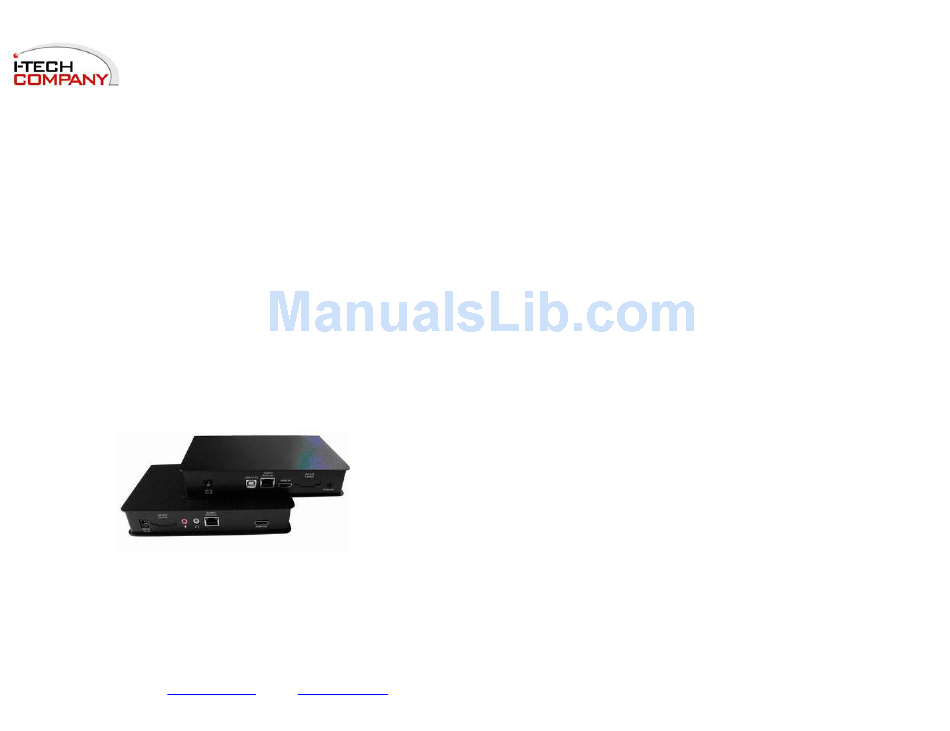

The CIP900-IP-TR system is a perfect solution to extend HDMI,
USB, and optional IR/RS-232/Remote-Power-ON-OFF over IP
network. It includes an CIP900-IP-T transmitter and an
CIP900-IP-R Receiver. The CIP900-IP-T transmitter connects with
PC or any device with HDMI source. The CIP900-IP-R receiver
connects to HDMI display, speaker, microphone, USB devices
(Keyboard/Mouse/Storage/...) and RS232 devices. It based on the
standard Ethernet IP network, all Gigabit or Fiber LAN switch HUB
can be used for inter-connection.
Package Includes:
(1) CIP900-IP-T Transmitter Unit
(1) CIP900-IP-R Receiver Unit
(1) HDMI-HDMI or HDMI-DVI cable
(2) 5V DC Power Supplies
(1) User's Manual
Optional Accessories:
(1) 3.5m mini-stereo to DB9 Female RS232 control cable
(1) 3.5m mini-stereo to DB9 Male RS232 control cable
(1) 3.5m mini-stereo to 2-pins Remote Power on/off cable
(1) IR blaster cable
