Summary of Contents for Promate Pyram
-

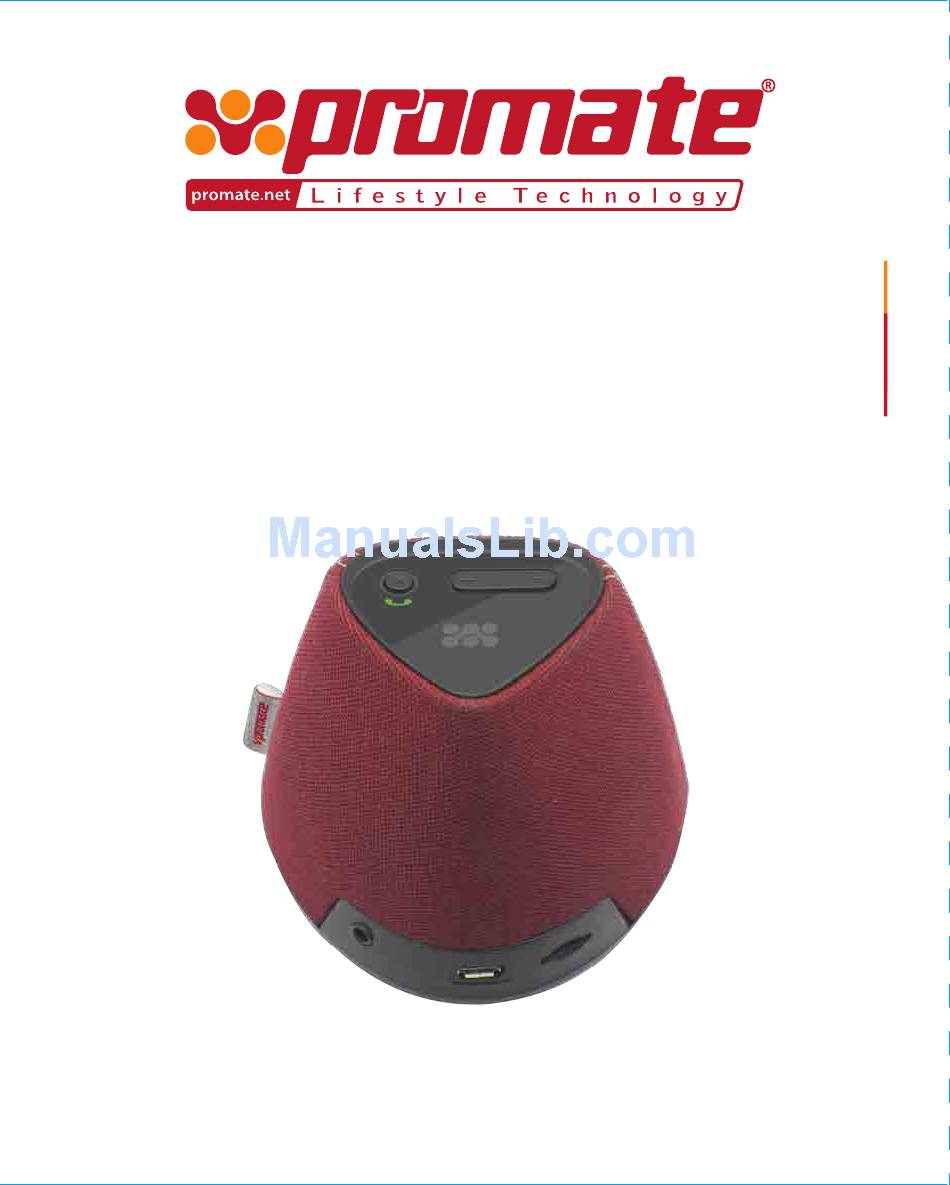

Page 1: User Guide
Pyram Universal Mini Handsfree Bluetooth™ Speakers with MP3 Micro-SD Card Slot User Guide... -
Page 2: Packing Contents
Introduction Pyram is a universal mini Bluetooth™ speaker with hands-free function for all Bluetooth enabled mobile and tablet devices. Perfect for smartphone audio enhancement, lightweight and portable, Pyram provides amazingly clear sound. Choose to play by Bluetooth streaming from your smartphone or tablet, also by connecting 3.5mm audio cable to any music source, or even by simply inserting a micro-SD card with music tracks. - Page 3 Appearance and Interface Description Audio Jack Mini- USB Micro USB...
- Page 4 1.)-Button In Bluetooth mode : •Press this button to adjust volume level down during Bluetooth mode . In TF card Playback mode : •Press and hold this button to adjust volume level down. •Short press this button once to return to the beginning of current track or previous track.
-
Page 5: Technical Specification
Technical Specification: •Bluetooth™: Version 3.0 •Input power: 5V, 1A •Output power: •Impedance: 3 Ohms •Speaker frequency: 90-15K •Signal-to-noise ratio: 50dB •Charging time: 2 hours •Playing time: 2 hours •Battery capacity: 800mAh •Operating distance: Battery Charging Instruction This unit operates on a built-in Li-ion battery that can be recharged either using the USB port on your computer or from a USB power adaptor (not included) with a rated output of DC 5V 500mA and up. - Page 6 2.)Activate Bluetooth on the compatible device, and set it to search for compatible devices. 3.)Select the speaker name:”Pyram” from the list of found devices. Tips: Only one playback unit can be connected to the speaker. If the speaker is already connected to another playback unit, the speaker will not appear in the BT selection list.
- Page 7 If the speaker has ever been paired with a Bluetooth device before. You need to follow the pairing instructions below to link the speaker with your Bluetooth device . 1.)After turning on the speaker, the speaker will search for the last paired device . The operating mode indicator will flash in blue.
- Page 8 OPERATING THE SPEAKER IN AUX-IN MODE If you are using an iPod, MP3/MP4 player or other mobile phone which can not connect this unit via bluetooth directly, you can still play it on the speaker via an audio connecting cable. 1.)Plug one end of the 3.5mm audio cable (excluded) into the headphone or line out jack on your player, plug the other end of cable into the unit AUX-IN jack of the speaker.
-
Page 9: Troubleshooting Guide
USB No Charging cable (included)is not cable (included) into the plugged into the mini USB mini USB jack on the Pyram jack on the bottom of the Pyram Plug another device into the Wall outlet is not functioning same outlet to confirm the outlet is working. - Page 10 NO Sound The Pyram battery is Recharge Pyram dead. battery. Pyram through “Speaker linked with the cell Operations” process to link phone. the speaker. Increase the volume of Volume set too low. your device. Check whether connection exists. Speaker is not paired...
