JL Audio Stealthbox SB-GM-VETC6/10W3v2 Installation Manual page 2

Cont.
From
Previous
Page

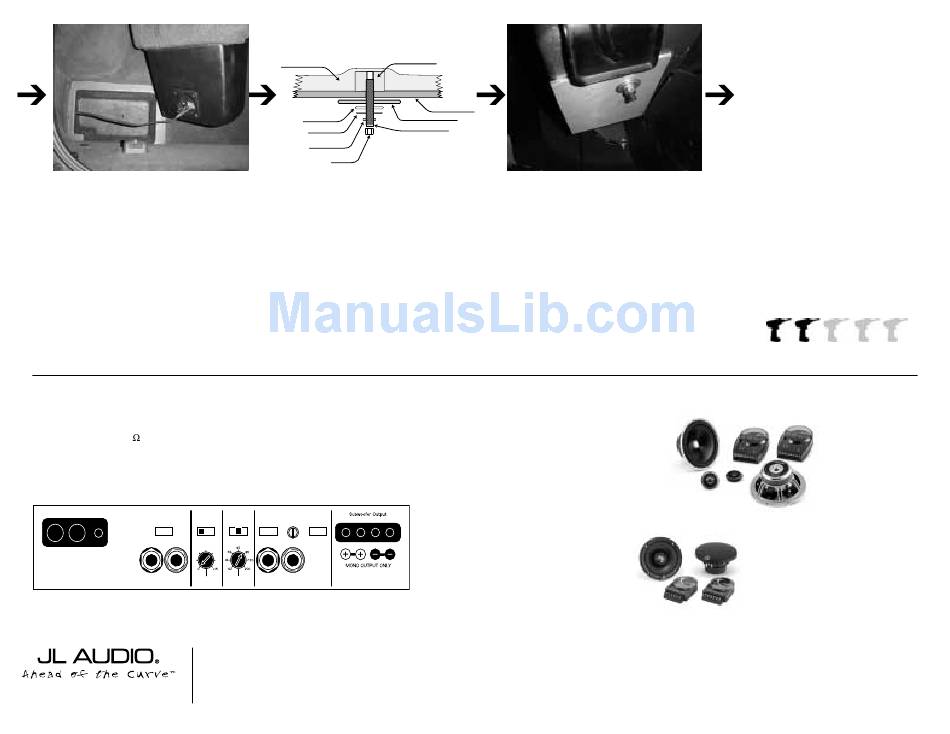

STEP 7: (a)Run speaker wire form the amplifier's
location to the Stealthbox's® terminal and connect.
(b)Back out the Socket Cup Set Screw to expose
1-1/2". Place the Stealthbox® into place and guide
the Socket Cup Set Screw through the drilled hole
from STEP 6.
Specifications:
Enclosure Type: Sealed
Driver Type: 10W3v2-D2
Nominal Impedance: 4
Cont. Power Handling: 300 Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.
+12VDC Ground Remote Preamp Output Section
Output Mode
Full-Range/Low-Pass/High-Pass
+1
JL AUDIO 250/1
monoblock subwoofer amplifier
Left Ch. Right Ch.
The JL Audio 250/1 is a very versatile audio component. Please consult the owner's manual for detailed information
about installing and tuning this amplifier.
w w w . j l a u d i o . c o m
STEALTHBOX WALL
FENDER WASHER
FLAT WASHER
LOCK WASHER
HEX NUT
STEP 8: Once the Stealthbox® is in place, from
the under side of the car. Place the supplied mount-
ing support plate, fender washer, flat washer, lock
washer and hex nut onto the exposed Socket Cup
Set Screw.
Amp LP Filter
Bass Control Amplifier Input Section
Infrasonic Filter Mode/Slope Input Voltage Input Sens. Signal Sensing
Off/30Hz Off/12dB/24dB Low/High Off/On
+7
+3 +10
+13
LF Boost (dB) Filter Freq. (Hz) Left Ch. Right Ch.
10369 N. Commerce Pkwy, Miramar, Florida 33025-392
S B - G M - V E T C 6 / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 5
THREADED INSERT
VEHICLE SHEET METAL
MOUNTING SUPPORT PLATE
SOCKET CUP SET SCREW
STEP 9: Thigthen the bolt assembly, do not over
torque.
Mid/High Frequency Driver Information:
Front Location Driver Size:
10"
Applicable JL Audio Products:
TR,VR,XR & ZR650-CSi*
*mounting plate is needed
Rear Location Driver Size):
5.25"
Applicable JL Audio Products:
TR,VR & XR525-CXi
Pa g e 2
CONGRATULATIONS!
INSTALL COMPLETE.
Included Hardware:
1) 3" x 3" Wax Square
1) 3/8-16 x 2-1/4" Socket Cup Set Screw
1) Mounting Support Plate
1) 3/8" x 1-1/4" Fender Washer
1) 3/8" Flat Washer
1) 3/8" Lock Washer
1) 3/8"-16 Hex Nut
Difficulty Of Installation:
XR525-CXi
Phone: 954.443.1100 Fax: 954.443.1111
S h e e t S K U # 0 1 1 1 9 8 R ev i s i o n 1 1 / 1 6 / 2 0 0 5
ZR650-CSi
