3 BRACKET ASSEMBLY

2.3 Installing 1 or 2 2.5" Hard Disk Drives into the
OWC Multi-Mount
➀
Once you have the 2.5" OWC Multi-mount attached to the
2.5" hard disk drive, you can install up to (2) 2.5" drives onto
the 3.5" OWC Multi-Mount bracket.

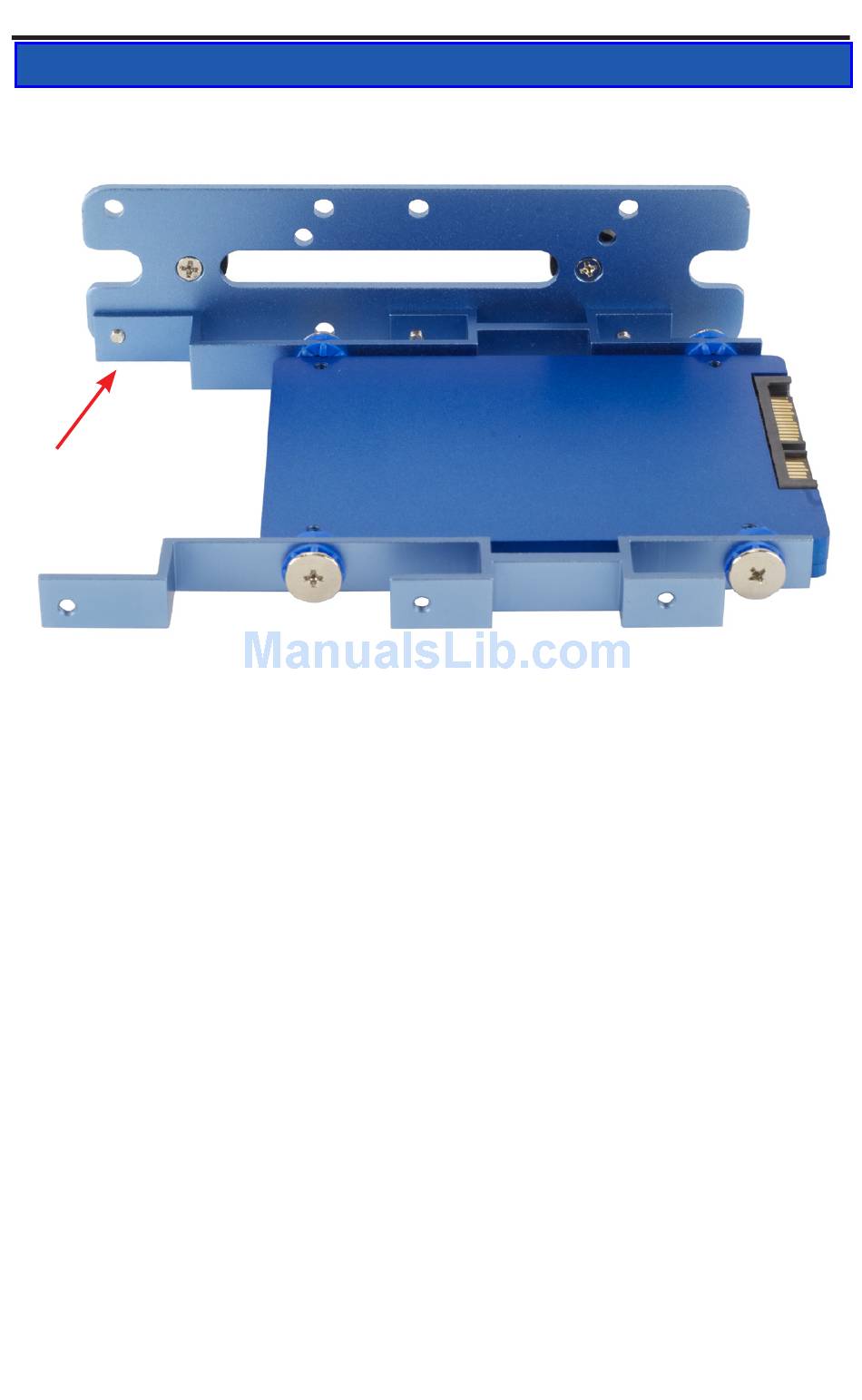

In the above picture you see an arrow pointing towards the
extended portion of the 2.5" OWC Multi-Mount bracket.
That would be the front of the drive, the 2.5" OWC Multi-
Mount bracket says "OWC" silkscreened in white right on
that portion of the bracket. You need to place the bracket in
this orientation to properly install.
The 3.5" OWC Multi-Mount bracket that you are attaching
the 2.5" OWC Multi-Mount bracket to has the white OWC
text silkscreening on it as well. Use that as your orientation.
The picture on the next page may also assist in orientation.
Chapter 3 - Bracket Installation
