OWC Multi-Mount
Chapter 2 - Bracket Assembly
2 3.5" BRACKET ASSEMBLY
2.1 Installing either 1 or 2 3.5" Hard Disk Drives
➀
Begin by positioning the bottom 3.5" hard disk drive with
the connection ports facing away from you, and then pick
up the OWC Multi-Mount 3.5" drive bracket that has the
white OWC Multi-Mount 3.5" silkscreening on it.

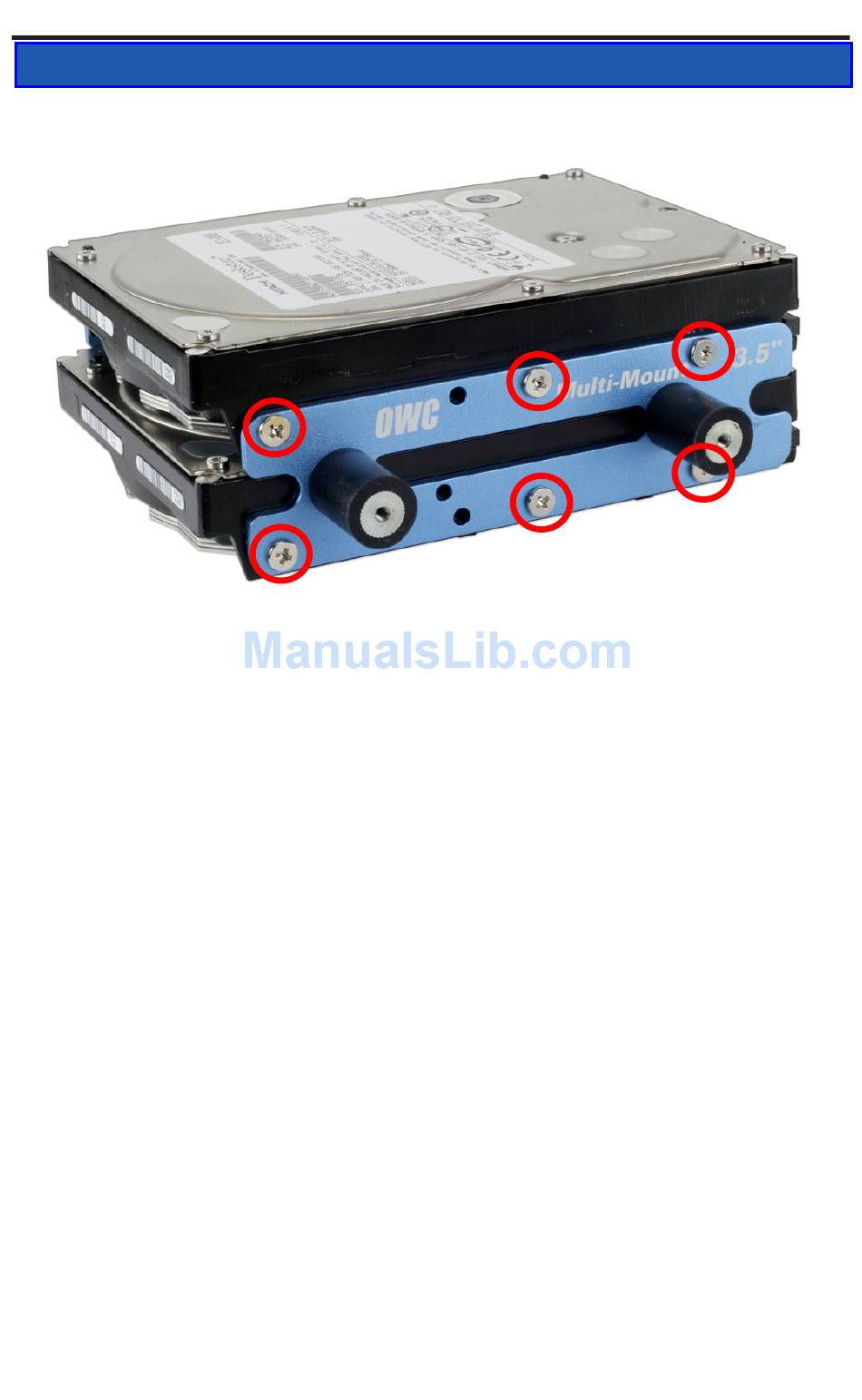

Place the OWC Multi-Mount onto the bottom 3.5" hard disk
drive using the center Phillips screw - coarse thread - and
don't tighten it all the way yet. Leave it loose.
Attach a second screw to one of the outside holes, that will
make sure that you have the bracket centered on the hard
disk drive. Then, you can insert the third screw and tighten
all 3 of them firmly.
If you are going to install a 2nd 3.5" drive in the OWC Multi-
Mount, continue with installation of that drive now follow-
ing the same instructions. You do not have to install 2 drives
into the bracket and can add a 2nd drive at any time.
