Summary of Contents for OWC Multi-Mount

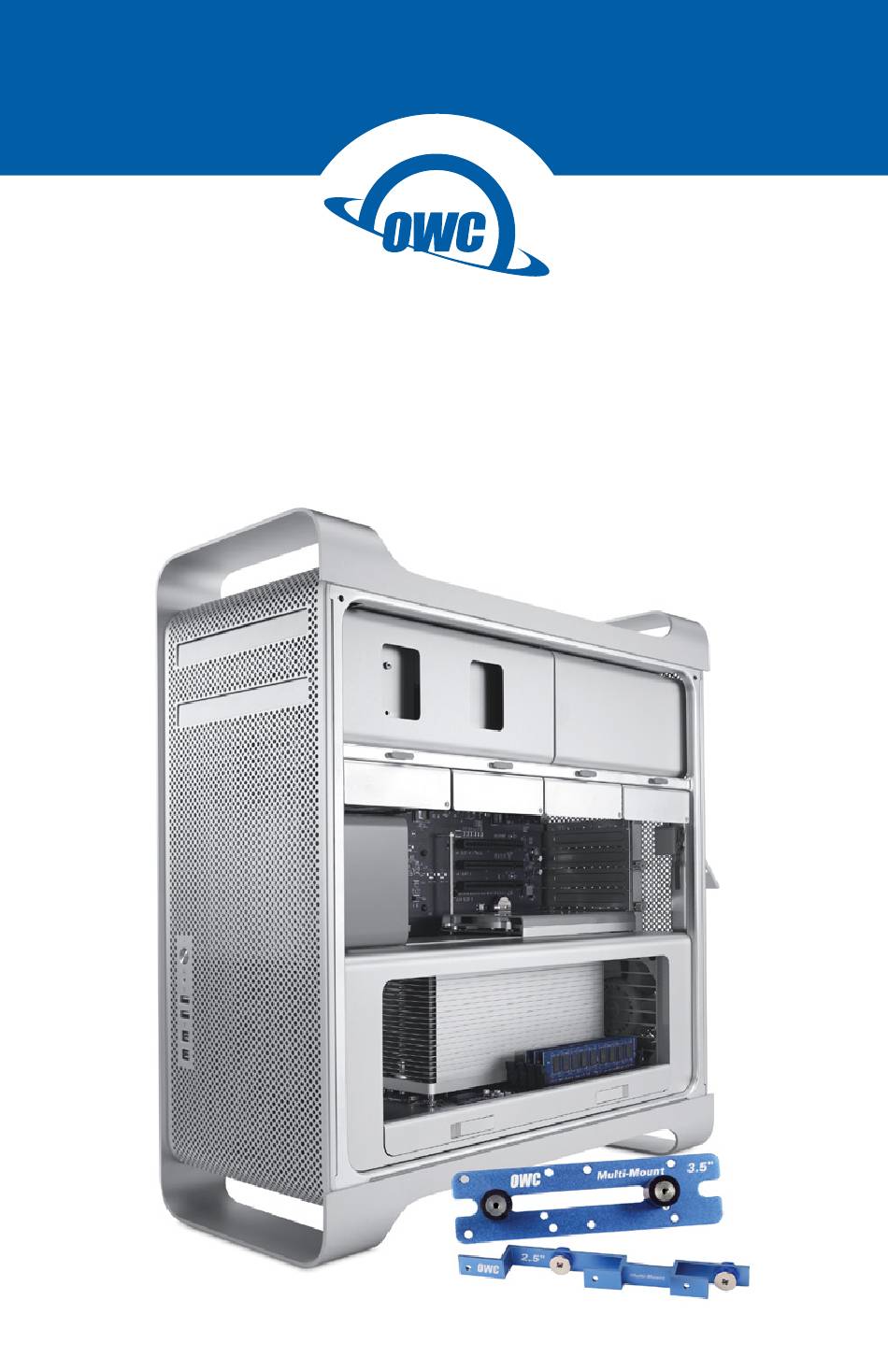

- Page 1 M U L T I - M O U N T Assembly Manual – 2009-2012 Mac Pro...
-
Page 2: Table Of Contents
2.3 Installing Two 2.5 Inch SATA drives ..........3 2.4 Combining 2.5 and 3.5 Inch Drives ..........3 Computer Installation 3.1 Removing the Optical Bracket ............4 3.2 Multi-Mount Installation ..............4 Support Resources 4.1 Formatting ..................5 4.2 Troubleshooting ................5 4.3 About Data Backup ................ -
Page 3: Hardware Requirements
4. Fine-threaded screws (6 pieces) 1.3 About This Manual Depending on type of Multi-Mount kit you purchased, contents may differ. The brackets are sold as individual units and as complete sets. Please check your invoice for exact contents. In addition, the images included in this manual may vary slightly in appearance from the items you received. -
Page 4: Installing 3.5 Inch Sata Drives
Use proper anti-static precautions while installing the Multi-Mount. Failure to do so can cause damage to the drives and/or the computer. • Be sure to work in a clean and static-free area, and avoid wearing clothing that retains static charges. -
Page 5: Installing Two 2.5 Inch Sata Drives
3. Rotate the drive and brackets then affix the the rear bracket using the large Phillips screws. Make sure all four screws are tightened. The 2.5 inch Multi-Mount assembly is now ready to be installed into a 3.5 inch drive bay or the 3.5 inch brackets. -
Page 6: Removing The Optical Bracket
Apple supplies (shown at right). The screws should be attached to the cage. 2. Once the Multi-Mount is secured, carefully slide the cage back into the optical bay, threading the large cutouts on the bottom of the cage with the large screws on the bottom of the bay. -
Page 7: Formatting
SUPPORT RESOURCES 4.1 Formatting For tips on how to format the drive(s) installed with your Multi-Mount, please visit: www.owcdigital.com/format 4.2 Troubleshooting If you are having trouble with the installation, go back and examine the steps and photographs. Most fit issues can be traced to missing a step or screw. Double-check the orientation of the brackets;... - Page 8 OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
