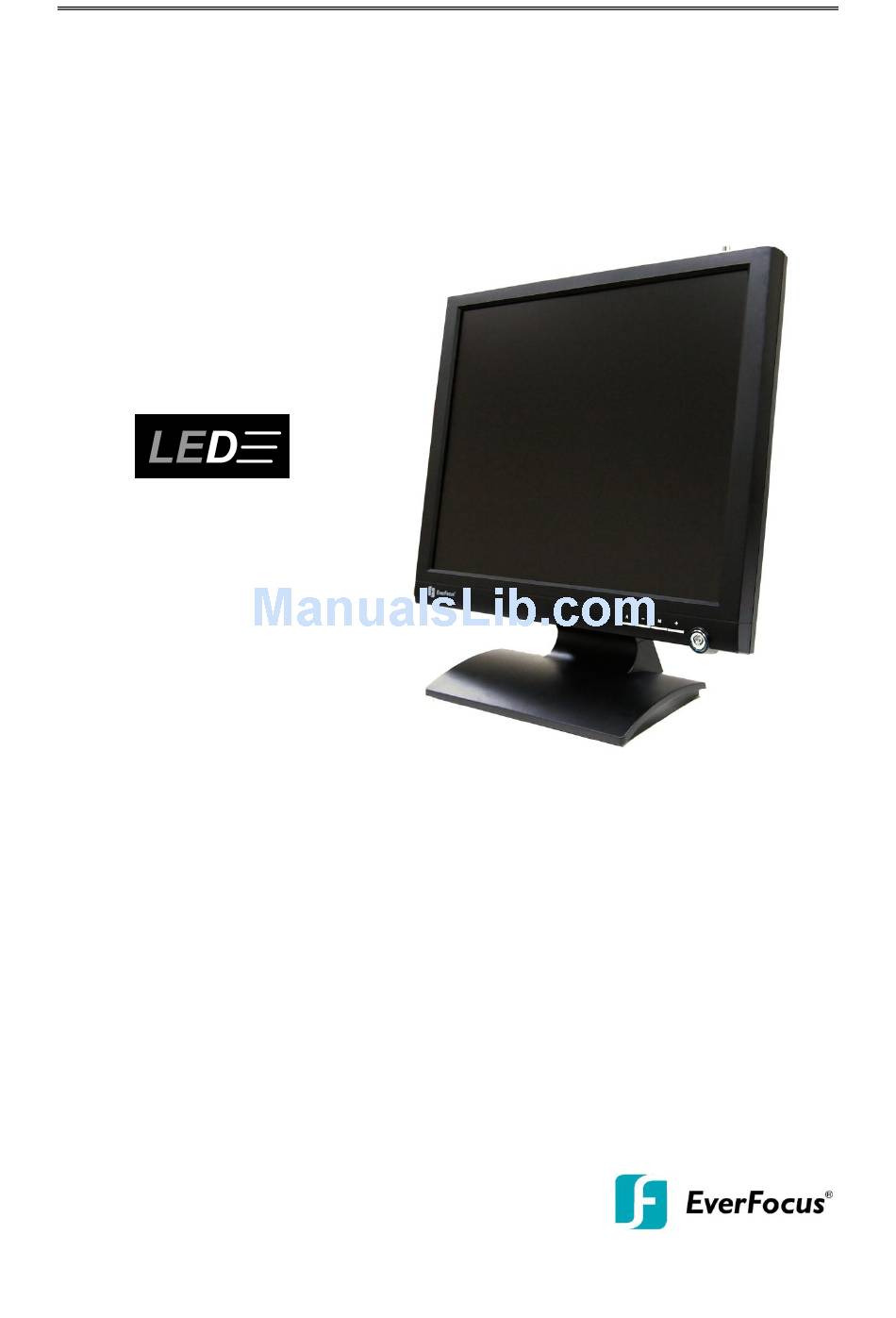

- Page 1 INSTALLATION / OPERATION FH 7517 EBL 43cm (17") TFT Monitor with LED Backlight FH 7519 EBL 48cm (19") TFT Monitor with LED Backlight...
-
Page 2: Safety Warnings
Do not open the monitor yourself. In case of malfunction, contact your local installer or dealer. Unauthorized opening of the device will annul the warranty claim! Use only the original external power supply. WEEE: Ihr EverFocus Produkt wurde entwickelt und Your EverFocus product is designed and hergestellt mit qualitativ hochwertigen Materialien manufactured with high quality materials and und Komponenten, die recycelt und wieder components which can be recycled and reused. -
Page 3: Table Of Contents
CONTENT Safety warnings ............................2 1 INTRODUCTION........................... 4 2 MAIN FEATURES ..........................4 3 PACKAGE CONTENTS ........................4 4 CONNECTORS............................. 4 5 INSTALLATION ............................ 5 6 FRONT KEYS ............................5 7 SETUP ..............................6 Picture Setup........................6 Sound Setup ........................7 OSD Setup .......................... -
Page 4: Introduction
1 INTRODUCTION The TFT monitors FH 7517 EBL and FH 7519 EBL are designed for CCTV installations. The new LED backlight technology provides clear high-contrast images combined with long component lifetime. This new feature allows also dropping down the power consumption more than 40% compared to former models. -
Page 5: Installation
INSTALLATION Depending on application, connect the video output of CCTV device (DVR, multiplexer, quad etc.) to the associated video input type (AV, HDMI or VGA). If a composite video signal has to be connected to a second monitor or another video device, use AV1 loop output or AV2 loop output. -
Page 6: Setup
7 SETUP All settings of the monitors are managed by an OSD setup menu. Press "MENU" key to open Main Menu: Select a Menu item with "+" or "-" and confirm with "SELECT" key. Picture Setup Picture Mode Press “-” OR “+” to select the picture mode: User, Standard, Movie, Vivid User mode allows full manual adjustment Brightness... -
Page 7: Sound Setup
Sound Setup Volume Press “-” OR “+” to adjust volume level. Mute ON disables sound, OFF enables sound OSD Setup Language Press “-” OR “+” to select language. H. Position Moves the display picture left or right. Press “ - ” OR “ + ” to adjust the parameter. H. -
Page 8: Picture-In-Picture Setup
Picture-in-Picture Setup Multi Window Selection of Multi - Windows mode OFF: Full screen display of selected video input PIP: Picture in Picture mode POP: Picture on Picture mode Both channels are displayed in full height, but cropped left right. POP 4:3: Picture on Picture mode 4:3 format Both channels are displayed scaled, but not cropped. -
Page 9: Specifications
8 SPECIFICATIONS Model FH-7517EBL FH-7519EBL 1. VGA RGB 0.7Vp-p. Input video signal 2. 2 x Composite PAL / NTSC 1Vp-p.(0.7V video+0.3V sync), 75ohm autom. 3. HDMI 1 x HDMI type A 1 x VGA D-sub 15-pin Input terminals 2 x Composite video BNC, 75 Ohm automatic termination 2 x Audio RCA, 1 Audio In 35 mm Stereo 1 x 12 VDC 5,5 mm socket Output video... -
Page 10: Dimension Drawing
9 DIMENSION DRAWING FH 7517 EBL: FH 7519 EBL: 10 of 12 FH7517EBL / FH7519EBL Installation / Operation... -
Page 11: Supported Display Modes
10 SUPPORTED DISPLAY MODES HDMI 720 x 400p at 70Hz - IBM VGA 720x480i60 720 x 400p at 88Hz - IBM XGA2 720x480p60 640 x 480p at 60Hz - IBM VGA 720x576i50 640 x 480p at 67Hz - Apple Mac II 720x576p50 640 x 480p at 72Hz - VESA 1280x720p50... - Page 12 Headoffice Subsidiary Beijing 12F, No.79 Sec.1 Shin-Tai Wu Road, Room 609,Technology Trade Building. Hsi-Chi, Taipei, Taiwan Shangdi Information Industry Base, Tel: +886-2-26982334 Haidian District,Beijing China Fax: +886-2-26982380 Tel: +86-10-62971096 Fax: +86-10-62971423 Subsidiary Japan Subsidiary Europe Albert-Einstein-Straße 1, 5F Kinshicho City Building，2-13-4 Koto-bashi，Sumida- D-46446 Emmerich am Rhein, Germany Ku，Tokyo，130-0022，Japan Tel: +49-2822-9394-0...
