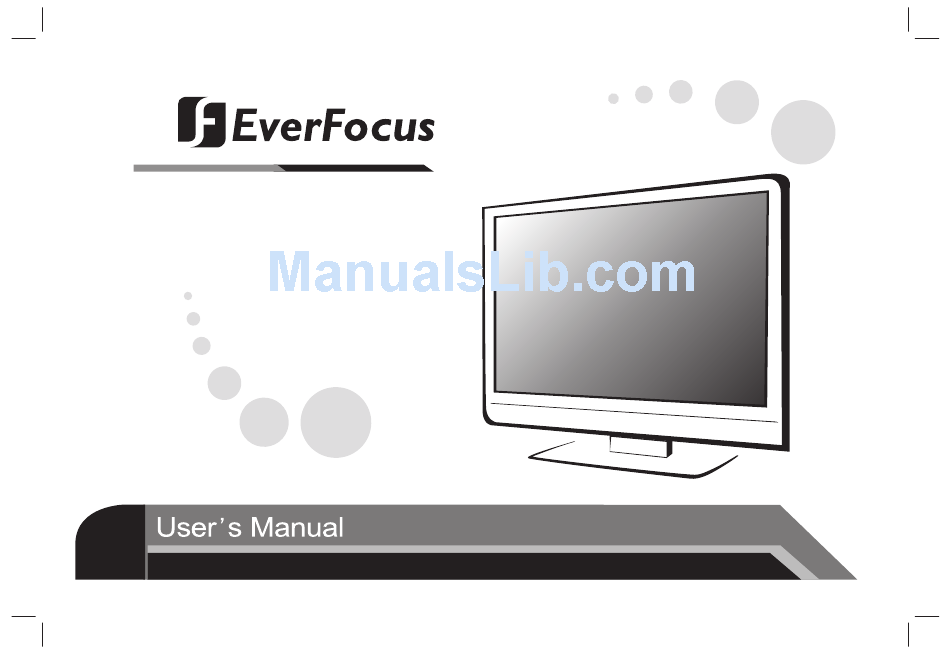

Page 1: Lcd Monitor
LCD MONITOR Please read this manual carefully for proper usage before installation and use.It is recommended to keep this manual properly for future check. -
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ………………………………………………………………………………1 Product Introduction ……………………………………………………………………………………………3 General information………………………………………………………………………………………………3 Features……………………………………………………………………………………………………………3 Listing………………………………………………………………………………………………………………6 Installation & Connection ……………………………………………………………………………………7 Panel Control Keys ……………………………………………………………………………………………7 Remote Control …………………………………………………………………………………………………8 Basic Operation Instruction …………………………………………………………………………………10 Power On/Off……………………………………………………………………………………………………10 Signal Source Selection…………………………………………………………………………………………10 Menu Operation Instruction ……………………………………………………………………………………10 PICTURE…………………………………………………………………………………………………………11 SOUND …………………………………………………………………………………………………………12 OSD………………………………………………………………………………………………………………13 Simple Troubleshooting ……………………………………………………………………………………14... -
Page 3: Important Safety Instructions
Important Safety Instructions Thank you to choose the monitor made by our company, a valuable product with excellent quality and multiple functions. This machine will bring you more audiovisual enjoyment. Its design can insure user's safety. All machine are strictly tested before leaving factory. - Page 4 thing to knock, press, score the panel. Otherwise it will be harmful for the panel. The exchange cost is very high. 14） There is high voltage inside the machine but no parts which can be repaired by users themselves. In order to assure the people's safety, please don't open the case to repair it by yourself.
-
Page 5: Product Introduction
Product Introduction General information ● Having many ideal connectors. The product can be used as a computer monitor with VGA or HDMI connectors. ● Much faster response time will completely eliminate shadow of picture. seeing film and playing game may be more fluent. - Page 6 Video/BNC Input 75Ω 1Vp-p Audio Input 75Ω Imbalance Earphone 16~300Ω 100mW+100mW ● The Technical Specifications for Final Product Panel size 19" 21.5" 23" Max. Resolution 1280×1024 1680×1050 1920×1080 Best resolution 1280×1024@60Hz 1680×1050@60Hz 1920×1080@60Hz Pixel pitch 0.011575 in×0.011575 in 0.011102 in×0.011102 in 0.010453 in×...
- Page 7 21.5 " Mode Resolution Refresh(Hz) Available Input Signal 720×400 640×480 SVGA 800×600 1024×768 1280×720 1280×960 SXGA 1280×1024 1360×768 WXGA 1600×900 WSXGA 1680×1050 Note: Recommended mode: 1680×1050@60Hz 23" Mode Resolution Refresh(Hz) Available Input Signal 720×400 640×480 SVGA 800×600 1024×768 1280×720 1280×960 SXGA 1280×1024 1360×768...
-
Page 8: Listing
● Operating Environment: Temperature: 41°F～104°F Humidity: 10%～85% Atmosphere Pressure: 25.395in～30.711in ● Storage Environment: Temperature: -4°F～131°F Humidity: 5%～95% Atmosphere Pressure: 25.395in～30.711in Listing Please make sure that all of the following items are complete： ● Monitor (Include base) ● User manual ● Power cord If any of above listed items is missing, please contact your dealer or our service department. -
Page 9: Installation & Connection
Installation & Connection Power Connection nsert the power plug into the socket of the electrical source ( AC 100V-240V, 50/60Hz). Notes: 1. When connecting the power cord, be sure to turn off the machine and other equipment's power. Power Cord 2. -
Page 10: Remote Control
1. SOURCE: Press this key to enter the menu of signal source and choose signal source. ▲ ▼ / : Press these two keys to select the items which you want to adjust under OSD operation. 3. MENU: Press this key to enter main menu. Turns on/off the monitor. - Page 11 Remote control battery installation method: Take off the cover of battery box, fix two AAA batteries with 1.5 volt, and conform with the polarity of remote control battery box. Note: Appearance of the remote control may be different from this picture, please according to practicality. Precautions for use of remote control: 1.
-
Page 12: Basic Operation Instruction
Basic Operation Instruction Power On/Off Input Source Press " " key to turn on/off the monitor. Signal Source Selection HDMI Press ''SOURCE'' key, menu of signal source will be displayed on the screen. Then press ''▲ ▼" key to choose the signal source such as BNC, AV, PC, HDMI. Press ''MENU'' key and the monitor w ill switch the current signal source to the signal source you choose. -
Page 13: Picture
PICTURE Select to enter the PICTURE submenu. Press ''▲ ▼" key to choose what you need. Press "t " key to adjust analog value or state (see below table). Picture Mode Soft ★ Special Attention Contrast The value adjusted by user, such as Contrast, Brightness, Saturation, Hue, Brightness Saturation and Sharpness will be saved automatically by the machine as personal... -
Page 14: Sound
Color Temp Select color temperature mode of the There are three Color Temperature modes: "Standard", picture "Warm", "Cool ". Noise Reduction Select model of 3D NR “Medium", "High", "Off", "Low". SOUND Select to enter the SOUND submenu. Press ''▲ ▼" key to choose what you need. -
Page 15: Osd
Auto Volume Select Auto Volume "On/Off", two states. Select to enter the OSD submenu. Press ''▲ ▼" key to choose what you need. Press "t " key to adjust analog value or state (see below table). OSD Language English OSD Duration 60 Second OSD Transparency Blue Screen... -
Page 16: Simple Troubleshooting
Simple Troubleshooting Symptom Factor Solution 1.Check power cord whether or not connect well. Power plug is loose, power No image. No sound. 2.Check if the " " button is on. cord don't connect well. Enter "PICTURE" to add up color saturation. No color.
