Instruction Manual
EN-7522C
22" Wide Screen TFT-LCD Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN-7522C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EN-7522C

Summary of Contents for EverFocus EN-7522C

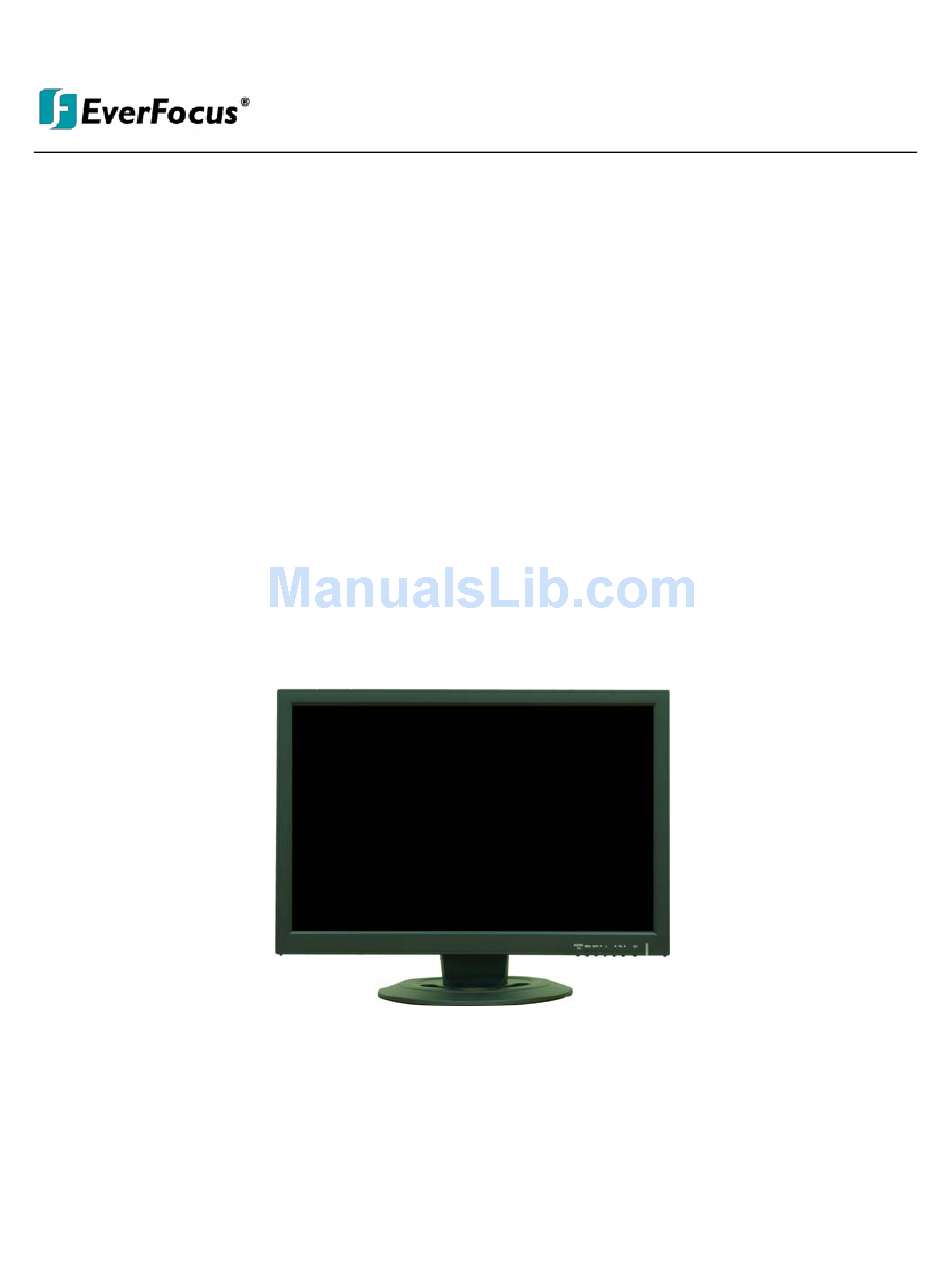

  • Page 1 Instruction Manual EN-7522C 22” Wide Screen TFT-LCD Monitor...
  • Page 2 Please read this manual thoroughly before use, and keep it handy for future reference. SAFETY INSTRUCTION ………………………………………………………………….. CAUTIONS ………………………………………………………………... FCC RF INTERFERENCE STATEMENT ……………………………... CONNECTING WITH EXTERNAL EQUIPMENT ………………………………………. REMOTE FUNCTIONS …………………………………………………………………… CONTROLS AND FUNCTIONS ………………………………………………………….. MOUNTING GUIDE ……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………. POWER MANAGEMENT ………………………………………………………………….

  • Page 3: Important Safety Instruction

    INSTRUCTION MANUAL ……………………………………………………………………. 1 Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 4 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.
  • Page 5 This symbol is intended to alert the user to the presence of uninsulated : dangerous voltage with in the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.
  • Page 6 BE CAREFUL OF HEAVY OBJECT Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock. 4 ……………………………………………………………………. INSTRUCTION MANUAL...

  • Page 7: Doc Compliance Notice

    communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
  • Page 8 A. BOTTOM PANEL CONTROL 6, 7 1. VIDEO2(AV2) OUT 2. VIDEO2(AV2) IN 3. VIDEO1(AV1) OUT 4. VIDEO1(AV1) IN 5. TRIGGER INPUT 6, 7. AUDIO IN(R+L) for AV1, AV2 and S-VIDEO 8. S-VIDEO(Y/C) IN 9. AUDIO OUT(Speaker) 10. PC STEREO IN 11.

  • Page 9: Remote Controller(Option)

    B. REMOTE CONTROLLER(Option) 1. POWER( Turn the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video(AV1/AV2/S-Video/HDMI/DVI/PC) sources. 3. AUTO Auto geometry adjustment in PC Source. 4. HOLD Stop the Trigger & Auto switching functions. 5.

  • Page 10: Power Led

    C. FRONT KEY CONTROL 8, 9 1. SOURCE/ Select PC or video. Select On Screen Display menu. 2. MENU/EXIT Activate and exit the On Screen Display. 3, 4. AUTO/▼, ▲ These buttons allow user to enter the sub-menu of the activated function. The up(▲) button is HOLD function and stop the Trigger &...

  • Page 11: Osd Menu Description

    8 ……………………………………………………………………. INSTRUCTION MANUAL OSD MENU DESCRIPTION A: Custom Menu (Only Video Input) 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Custom. 2) Press the up(▲) or down(▼) button to select the sub menu. 3) Press the left(◀) or right(▶) button to adjust the picture setting.
  • Page 12 INSTRUCTION MANUAL ……………………………………………………………………. 9 A: Custom Menu (For RGB-PC & HDMI Input) 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Custom. 2) Press the up(▲) or down(▼) button to select the sub menu. 3) Press the left(◀) or right(▶) button to adjust the picture setting.
  • Page 13 10 ……………………………………………………………………. INSTRUCTION MANUAL B. Picture / Sound Menu (Only Video Input) 1. Picture Mode...
  • Page 14 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Picture / Sound. 2) Press the right(▶) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the Picture Mode. 4) Press the right(▶) or SOURCE/ 5) Press the up(▲) or down(▼) button to select the Picture Mode option.
  • Page 15 INSTRUCTION MANUAL ……………………………………………………………………. 11 2-1. Color Tone 1) Press the up(▲) or down(▼) button to select the Color Tone. 2) Press the right(▶) or SOURCE/ button.
  • Page 16 3) Press the right(▶) or SOURCE/ button again. 4) Press the up(▲) or down(▼) button to select the Color Tone option. 5) Press the MENU button to save. 12 ……………………………………………………………………. INSTRUCTION MANUAL 2-2. Color Tone (User)
  • Page 17 1) Press the up(▲) or down(▼) button to select the User. 2) Press the MENU button. 3) Press the up(▲) or down(▼) button to select the User option. 4) Press the left(◀) or right(▶) button to adjust the Red, Green or Blue setting. 5) Press the MENU button to save.
  • Page 18 INSTRUCTION MANUAL ……………………………………………………………………. 13 3. Mute 1) Press the up(▲) or down(▼) button to select the Mute. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save.
  • Page 19 14 ……………………………………………………………………. INSTRUCTION MANUAL 4. Volume 1) Press the up(▲) or down(▼) button to select the Volume 2) Press the left(◀) or right(▶) button to adjust Volume setting. 3) Press the MENU button to save.
  • Page 20 INSTRUCTION MANUAL ……………………………………………………………………. 15 5. Size 1) Press the up(▲) or down(▼) button to select the Size 2) Press the right(▶) or SOURCE/ button.
  • Page 21 3) Press the up(▲) or down(▼) button to select the Size option. 4) Press the MENU button to save. 16 ……………………………………………………………………. INSTRUCTION MANUAL 6. NR (Noise Reduction)
  • Page 22 1) Press the up(▲) or down(▼) button to select the NR. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save.
  • Page 23 INSTRUCTION MANUAL ……………………………………………………………………. 17 7. 3D Comb 1) Press the up(▲) or down(▼) button to select the 3D Comb. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save.
  • Page 24 18 ……………………………………………………………………. INSTRUCTION MANUAL B. Picture / Sound Menu (For RGB-PC & HDMI Input) 1. Size 1) Press the up(▲) or down(▼) button to select the Size. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Size option.
  • Page 25 INSTRUCTION MANUAL ……………………………………………………………………. 19 Input 2. PC (Only RGB-PC 1) Press the up(▲) or down(▼) button to select the PC.
  • Page 26 2) Press the right(▶) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the PC sub menu. 4) Press the right(▶) or SOURCE/ 5) Press the left(◀) or right(▶) button to adjust the PC setting. 6) Press the MENU button to save. Auto Adjust: Auto geometry adjustment.
  • Page 27 1) Press the MENU button and then press the up(▲) or down(▼) button to select the PIP. 1. PIP 1) Press the right(▶) or SOURCE/ button. 2) Press up(▲) or down(▼) button to select the On or Off. 3) Press the MENU button to save.
  • Page 28 INSTRUCTION MANUAL ……………………………………………………………………. 21 2. Input Source 1) Press the up(▲) or down(▼) button to select the Input Source. 2) Press the right(▶) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the Source option. 4) Press the MENU button to save. ※...
  • Page 29 Main RGB PC or HDMI RGB PC or HDMI 22 ……………………………………………………………………. INSTRUCTION MANUAL 3. PIP Mode 1) Press the up(▲) or down(▼) button to select the PIP Mode. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the PIP Mode option. 4) Press the MENU button to save.
  • Page 30 ※ PBP1 Main image image ※ PBP2 Main image image INSTRUCTION MANUAL ……………………………………………………………………. 23 4. PIP Size...
  • Page 31 1) Press the up(▲) or down(▼) button to select the Size. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Size option. 4) Press the MENU button to save.
  • Page 32 24 ……………………………………………………………………. INSTRUCTION MANUAL 5. Position 1) Press the up(▲) or down(▼) button to select the Position. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Position option. 4) Press the MENU button to save. ※...
  • Page 33 INSTRUCTION MANUAL ……………………………………………………………………. 25 6. Swap 1) Press the up(▲) or down(▼) button to select the Swap. 2) Press the right(▶) or SOURCE/ button to swap the main image for the sub one.
  • Page 34 26 ……………………………………………………………………. INSTRUCTION MANUAL 7. Sound Select 1) Press the up(▲) or down(▼) button to select the Sound Select.

  • Page 35: Setup Menu

    2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Sound Select option. 4) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 27 D. Setup Menu...
  • Page 36 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Setup. 1. Reset 1) Press the right(▶) or SOURCE/ 2) Press the right(▶) or SOURCE/ 3) Press SOURCE/ button to execute the reset. Reset: All settings go to the factory initialization. 28 …………………………………………………………………….
  • Page 37 2. Language 1) Press the up(▲) or down(▼) button to select the Language. 2) Press the right( ) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select language. 4) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 29...
  • Page 38 3. OSD Tone 1) Press the up(▲) or down(▼) button to select the OSD Tone. 2) Press the right( ) or SOURCE/ button 3) Press the up(▲) or down(▼) button to select the OSD Tone option. 4) Press the MENU button to save. 30 …………………………………………………………………….
  • Page 39 4. Blue Screen 1) Press the up(▲) or down(▼) button to select the Blue Screen. 2) Press the right( ) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 40 5. Key Lock 1) Press the up(▲) or down(▼) button to select the Key Lock. 2) Press the right( ) or SOURCE/ button 3) Press the up(▲) or down(▼) button to select the On or Off 4) Press the MENU button to save. 32 …………………………………………………………………….
  • Page 41 6. Trigger 1) Press the up(▲) or down(▼) button to select the Trigger. 2) Press the right( ) or SOURCE/ 6-1. Trigger Enable 1) Press the up(▲) or down(▼) button to select the Trigger Enable. 2) Press the right( ) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the On or Off.
  • Page 42 6-2. Trigger Input 1) Press the up(▲) or down(▼) button to select the Trigger Input . 2) Press the right( ) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Trigger Input option. 4) Press the Menu button to save. 34 …………………………………………………………………….
  • Page 43 6-3. Buzzer 1) Press the up(▲) or down(▼) button to select the Buzzer. 2) Press the right( ) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the Menu button to save. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 44 6-4. Trigger Time 1) Press the up(▲) or down(▼) button to select the Trigger Time. 2) Press left( ) or right( ) button to adjust Trigger Time setting. 3) Press the MENU button to save. 36 ……………………………………………………………………. INSTRUCTION MANUAL...
  • Page 45 6-5 Trigger Option 1) Press the up(▲) or down(▼) button to select the Trigger Option. 2) Press the right( ) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the Trigger Option setting. 4) Press the Menu button to save. N/C (Normal Closed): When Trigger cable is opened, Trigger function is activated.
  • Page 46 6-6. Display Type 1) Press the up(▲) or down(▼) button to select the Display Type. 2) Press the right( ) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the Display Type option. 4) Press the Menu button to save. PIP &...
  • Page 47 7. Auto switching 1) Press the up(▲) or down(▼) button to select the Auto switching. 2) Press the right( ) or SOURCE/ 7-1. Auto switching On/Off 1) Press the right( ) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the On or Off . 4) Press the Menu button to save.
  • Page 48 7-2. Auto switching Input enabled 1) Press the up(▲)or down(▼) button to select the Inputs enabled. 2) Press the right( ) or SOURCE/ 3) Press the up(▲) or down(▼) button to select the Input. 4) Press the right( ) or SOURCE/ 5) Press the up(▲) or down(▼) button to select the On or Off.
  • Page 49 7-3. Auto switching Time 1) Press the up(▲) or down(▼) button to select the Time. 2) Press the left( ) or right( ) button to adjust the Time setting. 3) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 41...
  • Page 50 Using the VESA standard wall mount design and the 100×100mm hole pattern on the back panel to install the LCD monitor to the wall. Wall-mount Installation (Option) 1. The Monitor fixing bracket to the monitor using the fixing screws provided. 2. The monitor fixing bracket assembled with monitor...

  • Page 51: Pin Assignments

    42 ……………………………………………………………………. INSTRUCTION MANUAL ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO BLUE VIDEO GROUND GROUND RED GROUND GREEN GROUND BLUE GROUND ▶ ACCESSORIES 1. Power cord 2. Power adaptor 3. User’s manual 4. PC cable 5. Trigger cable (Option) 6.

  • Page 52: Power Consumption

    INSTRUCTION MANUAL ……………………………………………………………………. 43 This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal.

  • Page 53: Input Signal

    44 ……………………………………………………………………. INSTRUCTION MANUAL 22” 22˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.282(H) x 0.282(V) BRIGHTNESS: 300cd/㎡(Typical) LCD-Type CONTRAST RATIO: 1000:1(Typical) VIEWING ANGLE: 160°/160°(H/V) RESPONSE TIME: 5msec(Typical) 1680X1050@60Hz RESOLUTION (H x V) HORIZONTAL: 31~80KHz, VERTICAL: 56~75Hz FREQUENCY VIDEO(2ch input 1.0Vp-p, 75Ω terminated, loop-through out) S-VIDEO(1ch input (Y/C)) DVI D(Digital Video Interface) HDMI(High Definition Multimedia Interface)

  • Page 54: Active Display Area

    ACTIVE DISPLAY AREA (H x V) PACKING DIMENSIONS (W x D x H) WEIGHT ELECTRICAL RATINGS ▶▶ NOTE : Technical specifications are subject to change without notice. INSTRUCTION MANUAL ……………………………………………………………………. 45 473.76 mm X 296.1 mm (18.65” X 11.65”) 650 mm X 205 mm X 545 mm (25.59” X 8.07” X 21.45”) Net Weight : 5.83kg (12.83 Ibs) Gross Weight : 8.42kg (18.52 Ibs) DC 12V / 5.83A...

  • Page 55: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
