IpCAS ipEther232 User Manual

Ipcas modem
Hide thumbs Also See for ipEther232:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

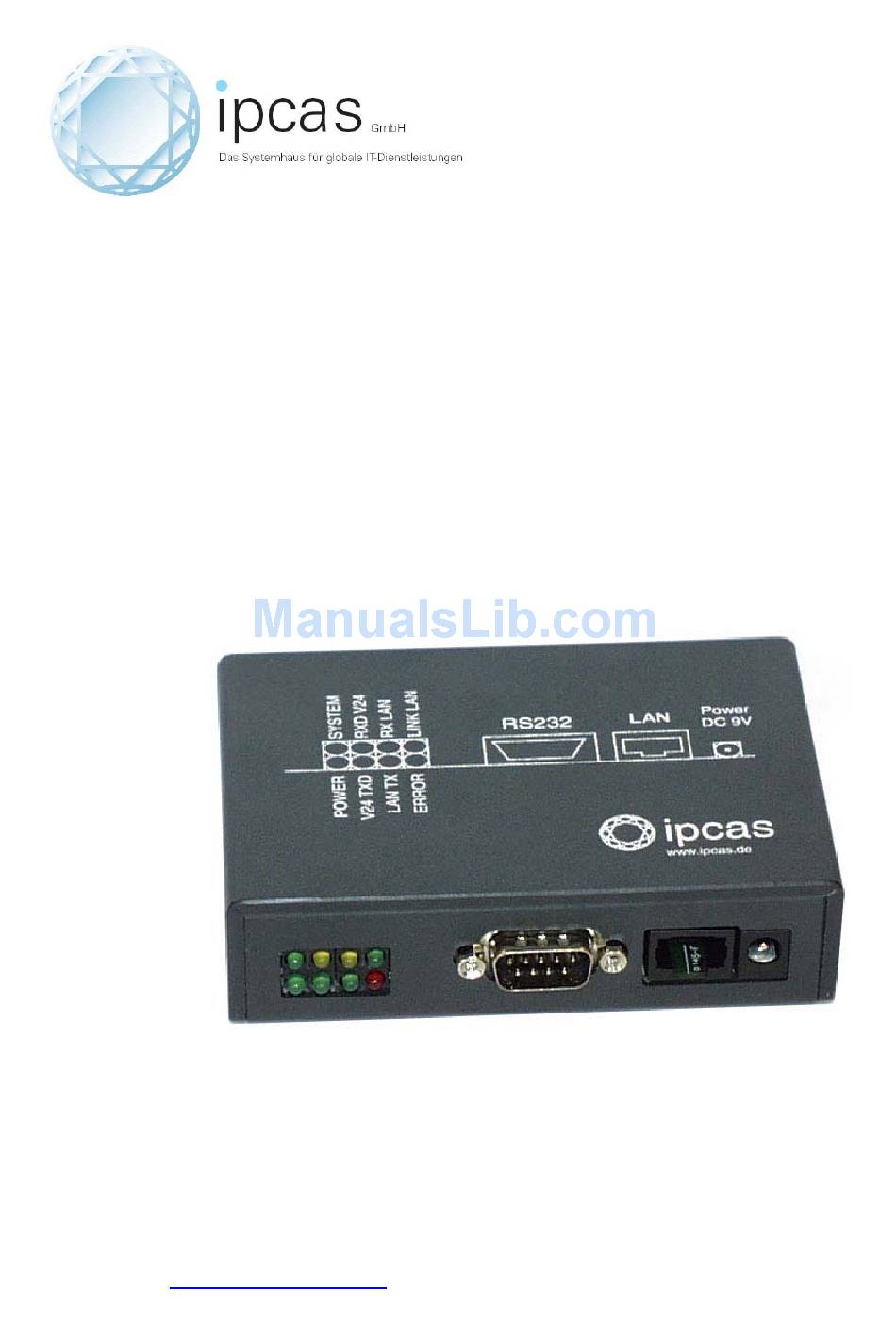

ipEther232
ipEther232.Modem
ipEther232.PPP
ipNTP
User Guide
ipcas GmbH
Wetterkreuz 17
D-91058 Erlangen
Telefon:
+49 9131 7677 0
Telefax:
+49 9131 7677 78
Internet:
http://www.ipcas.de
E-Mail:
info@ipcas.de
